Grundig GKN16220DZ User manual

ENG

www.grundig.co.uk

USER INSTRUCTIONS

GKN16220DZ

Combi Fridge

Freezer

Contents

1. Safety and Environment

Instructions 5

1.1. General Safety.....................5

1.1.1 HC Warning..........................7

1.1.2 For Models with Water

Dispenser......................................7

1.2. Intended Use .......................8

1.3. Child Safety..........................8

1.4. Compliance with WEEE

Directive and Disposing of the

Waste Product ..............................8

1.5. Compliance with RoHS

Directive........................................8

1.6. Package Information...........9

2. Your Refrigerator 10

3. Installation 11

3.1 Appropriate installation

location .......................................11

3.2 Installing the plastic

wedges........................................12

3.3 Electrical connection.........12

4. Preparation 14

4.1 Things to be done for energy

saving..........................................14

4.2 Initial use ...........................14

5. Operating the product 16

5.1 Indicator panel ..................16

5.2 Freezing fresh food ...........19

5.3 Recommendations for

preserving the frozen food.........21

5.4 Placing the food.................22

5.5 Deep-freeze information...22

5.6 Changing the door opening

direction......................................23

5.7 Open door warning............23

5.8 Recommendations for

freshfood compartment .............23

5.9 Humidity controlled crisper .24

5.10 Using the water dispenser.24

5.11 Filling the water

dispenser's tank.........................25

5.12 Cleaning the water tank ...26

5.13 Drip tray ..............................27

6. Maintenance and cleaning 28

6.1 Avoiding bad odours .............28

6.2 Protecting the plastic

surfaces .....................................29

7. Troubleshooting 30

Please read these instructions first before using your appliance

Thank you for choosing a Grundig appliance.

Please take some time to read this user manual before using your

appliance, to ensure you know how to safely operate the controls

and functions.

Carefully follow all unpacking and installation instructions to

ensure the appliance is correctly connected and fitted prior to use.

Please write your product model and serial number on the last

page of this user manual, and store in a safe location close to the

appliance for easy future reference.

This user manual may also be applicable for several other models.

Differences between models will be listed.

If you have any questions or concerns, please call our contact

centre or find help and information online at www.grundig.co.uk

Symbols and their descriptions

This instruction manual contains the following symbols:

CImportant information or useful

usage tips.

AWarning against dangerous

conditions for life and property.

BWarning against electric voltage.

Packaging materials of the product

are manufactured from recyclable

materials in accordance with our

National Environment Regulations.

1. Safety and Environment Instructions

This section provides the safety

instructions necessary to

prevent the risk of injury and

material damage. Failure to

observe these instructions will

invalidate all types of product

warranty.

Intended use

WARNING:

Keep ventilation

openings, in the

appliance enclosure or

in the built-instructure,

clear of obstruction.

WARNING:

Do not use mechanical

devices or other

means to accelerate

the defrostingprocess,

other than those

recommended by the

manufacturer.

AWARNING:

Do not damage the

refrigerant circuit.

WARNING:

Do not use electrical

appliances inside

the food storage

compartments of the

appliance, unless

they are of the type

recommended by the

manufacturer.

WARNING:

Do not store explosive

substances such as

aerosol cans with a

flammable propellant

in this appliance.

This appliance is intended to be

used in household and similar

applications such as

– staff kitchen areas in shops,

offices and other working

environments;

– farm houses and by clients

in hotels, motels and other

residential type environments;

– bed and breakfast type

environments;

– catering and similar non-retail

applications.

1.1. General Safety

• This product should not

be used by persons with

physical, sensory and mental

disabilities, without sufficient

knowledge and experience

or by children. The device

can only be used by such

persons under supervision

and instruction of a person

responsible for their safety.

Children should not be

allowed to play with this

device.

• In case of malfunction,

unplug the device.

• After unplugging, wait at

least 5 minutes before

plugging in again.

• Unplug the product when not

in use.

• Do not touch the plug with

wet hands! Do not pull the

cable to plug off, always hold

the plug.

• Do not plug in the refrigerator

if the socket is loose.

• Unplug the product during

installation, maintenance,

cleaning and repair.

• If the product will not be

used for a while, unplug the

product and remove any food

inside.

• Do not use the product when

the compartment with circuit

cards located on the upper

back part of the product

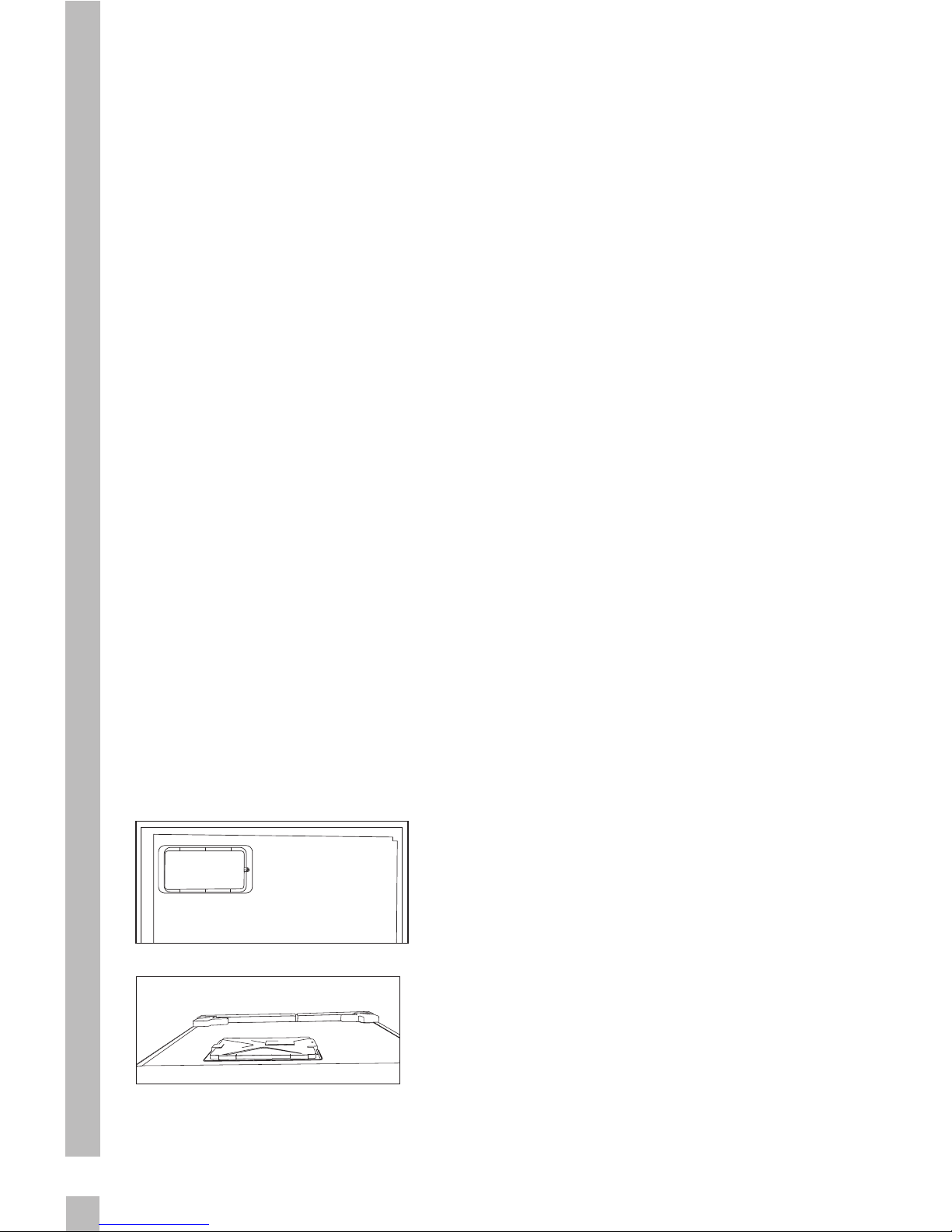

(electrical card box cover) (1)

is open.

• Do not use steam or steamed

cleaning materials for

cleaning the refrigerator and

melting the ice inside. Steam

may contact the electrified

areas and cause short circuit

or electric shock!

• Do not wash the product by

spraying or pouring water on

it! Danger of electric shock!

• In case of malfunction, do not

use the product, as it may

cause electric shock. Contact

the authorized service before

doing anything.

• Plug the product into an

earthed socket. Earthing

must be done by a qualified

electrician.

• If the product has LED

type lighting, contact the

authorized service for

replacing or in case of any

problem.

• Do not touch frozen food with

wet hands! It may adhere to

your hands!

• Do not place liquids in bottles

and cans into the freezer

compartment. They may

burst out!

• Place liquids in upright

position after tightly closing

the lid.

• Do not spray flammable

substances near the product,

as it may burn or explode.

• Do not keep flammable

materials and products with

flammable gas (sprays, etc.)

in the refrigerator.

• Do not place containers

holding liquids on top of the

product. Splashing water on

an electrified part may cause

electric shock and risk of fire.

• Exposing the product to rain,

snow, sunlight and wind

will cause electrical danger.

When relocating the product,

do not pull by holding the

door handle. The handle may

come off.

• Take care to avoid trapping

any part of your hands or

body in any of the moving

parts inside the product.

• Do not step or lean on the

door, drawers and similar

parts of the refrigerator. This

will cause the product to fall

down and cause damage to

the parts.

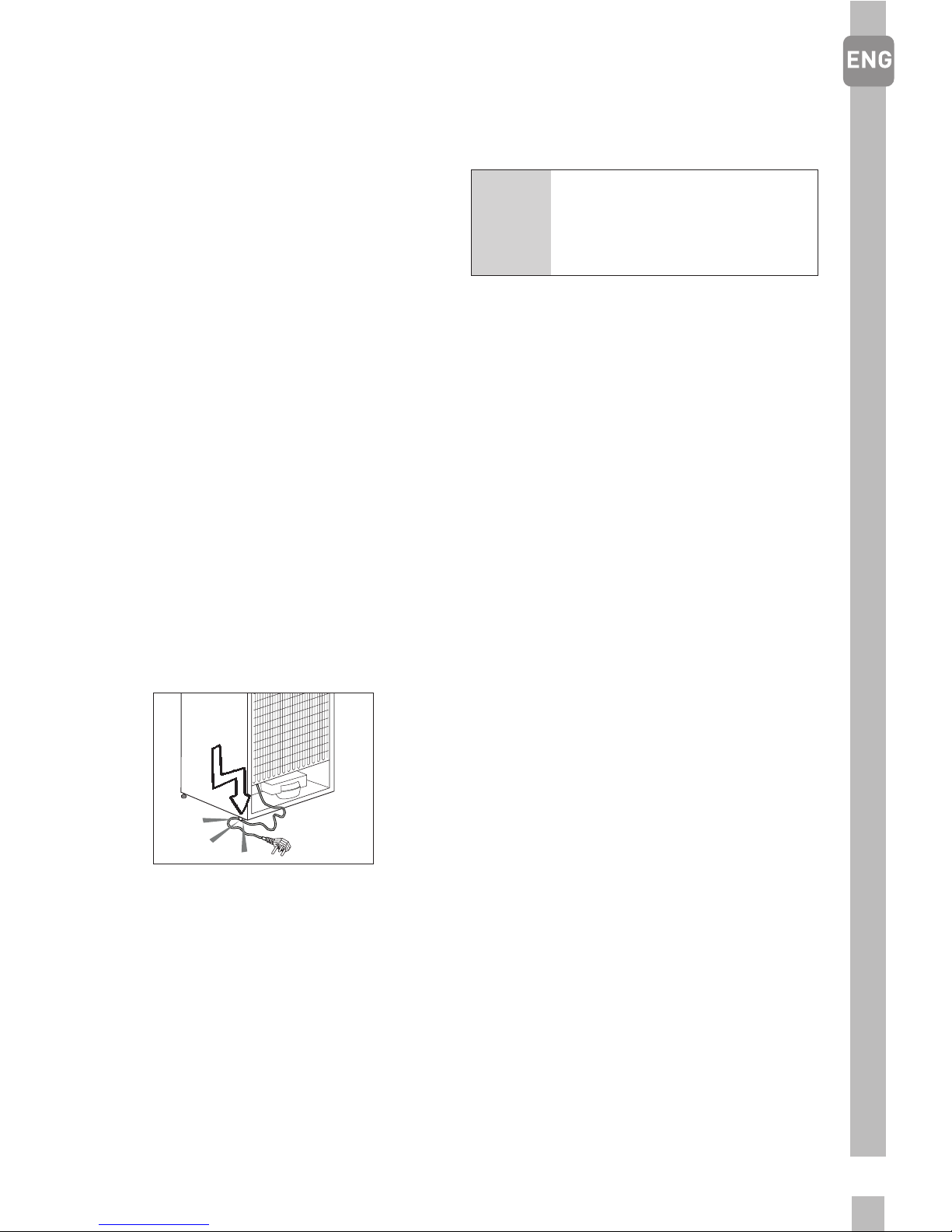

• Take care not to trap the

power cable.

1.1.1 HC Warning

If the product comprises a

cooling system using R600a

gas, take care to avoid

damaging the cooling system

and its pipe while using and

moving the product. This gas

is flammable. If the cooling

system is damaged, keep the

product away from sources

of fire and ventilate the room

immediately.

The label on the inner

left side indicates the

type of gas used in the

product.

1.1.2 For Models with

Water Dispenser

• Pressure for cold water inlet

shall be maximum 90 psi (6.2

bar). If your water pressure

exceeds 80 psi (5.5 bar), use

a pressure limiting valve in

your mains system. If you

do not know how to check

your water pressure, ask for

the help of a professional

plumber.

• If there is risk of water

hammer effect in your

installation, always

use a water hammer

prevention equipment in

your installation. Consult

Professional plumbers if you

are not sure that there is no

water hammer effect in your

installation.

• Do not install on the hot

water inlet. Take precautions

against of the risk of

freezing of the hoses. Water

temperature operating

interval shall be 33°F (0.6°C)

minimum and 100°F (38°C)

maximum.

• Use drinking water only.

1.2. Intended Use

• This product is designed for

home use. It is not intended

for commercial use.

• The product should be used

to store food and beverages

only.

• Do not keep sensitive

products requiring controlled

temperatures (vaccines,

heat sensitive medication,

medical supplies, etc.) in the

refrigerator.

• The manufacturer assumes

no responsibility for any

damage due to misuse or

mishandling.

• Original spare parts will

be provided for 10 years,

following the product

purchasing date.

1.3. Child Safety

• Keep packaging materials

out of children’s reach.

• Do not allow the children to

play with the product.

• If the product’s door

comprises a lock, keep the

key out of children’s reach.

1.4. Compliance with WEEE

Directive and Disposing

of the Waste Product

This product complies

with EU WEEE Directive

(2012/19/EU). This product

bears a classification symbol for

waste electrical and electronic

equipment (WEEE).

This product has been

manufactured with

high quality parts and

materials which can be

reused and are

suitable for recycling.

Do not dispose of the waste

product with normal domestic

and other wastes at the end of

its service life. Take it to the

collection center for the

recycling of electrical and

electronic equipment. Please

consult your local authorities to

learn about these collection

centers.

1.5. Compliance with

RoHS Directive

• This product complies with

EU WEEE Directive (2011/65/

EU). It does not contain

harmful and prohibited

materials specified in the

Directive.

1.6. Package Information

Packaging materials of the

product are manufactured

from recyclable materials in

accordance with our National

Environment Regulations. Do

not dispose of the packaging

materials together with the

domestic or other wastes. Take

them to the packaging material

collection points designated by

the local authorities.

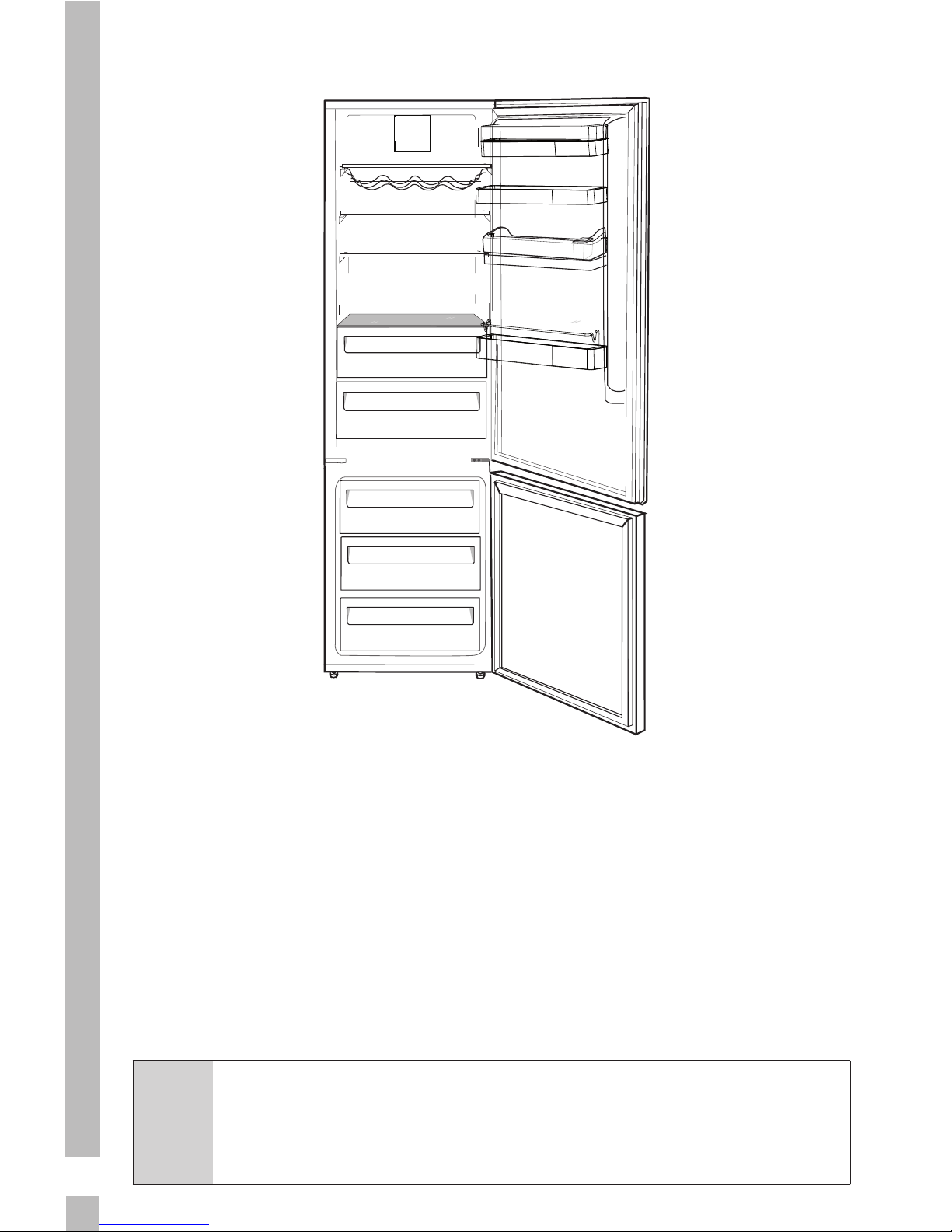

2. Your Refrigerator

Figures in this user manual are schematic and may not

match the product exactly. If the subject parts are not

included in the product you have purchased, then those

parts are valid for other models.

1. Butter & Cheese sections

2. Indıcator Panel

3. Adjustable door shelves

4. Egg tray

5. Water dispenser filling tank

6. Water dispenser reservoir

7. Shelter wire

8. Bottle shelf

9. Adjustable front feet

10. Freezer compartment

11. Crisper

12. Chiller

13. Chiller cover and glass

14. Adjustable shelves

15. Wine cellar

16. Fan

* May not be available in all models

15 3

Table of contents

Other Grundig Freezer manuals

Grundig

Grundig GFN24840N User manual

Grundig

Grundig GKN4582VW User manual

Grundig

Grundig GKN 16820 W Installation instructions

Grundig

Grundig GFNI12411 Instruction Manual

Grundig

Grundig GFN3671N User manual

Grundig

Grundig GFN 33810 W User manual

Grundig

Grundig GFNE 8440 User manual

Grundig

Grundig GKNI 15720 User manual

Grundig

Grundig GFN 13810 W User manual

Grundig

Grundig GFN 13840 XN User manual

Grundig

Grundig GFN 13621 X User manual

Grundig

Grundig GFN1671N User manual

Grundig

Grundig GKNI 15720 User manual

Grundig

Grundig GFNE 8440 User manual

Grundig

Grundig GFPN 66820 X User manual

Grundig

Grundig GFNE 138E20 N User manual

Grundig

Grundig GFNI12430N User manual

Grundig

Grundig GKN 26840 XN Instruction Manual

Grundig

Grundig GFRN 66820 User manual

Grundig

Grundig GFN 13840 XN User manual

Grundig

Grundig GFPN 66820 User manual

Grundig

Grundig GKN 16820 W User manual

Grundig

Grundig GKN4582VPZ User manual

Grundig

Grundig GFNEP5686PZ User manual

Popular Freezer manuals by other brands

Siemens

Siemens GU..D SERIES Instructions for use

Omcan

Omcan FR-CN-0155 instruction manual

Beko

Beko FNE290E24W user manual

Electrolux

Electrolux ARCTIS G 8 60 50-6I user manual

Electrolux

Electrolux EUF2042AOX user manual

Dometic

Dometic CoolFreeze CFX95DZ operating manual

Electrolux

Electrolux EUF7000W1 user manual

Polar Electro

Polar Electro CT330 instruction manual

MPM

MPM MPM-145-SK Series manual

SAF

SAF PRESTOTIG 200AC/DC Installation and instruction manual

Zanussi

Zanussi ZFT11407WA user manual

AEG

AEG A63190GT user manual

AEG

AEG A81000TNW0 user manual

Matsui

Matsui MUC50S15E instruction manual

NEFF

NEFF G4344X8 Instructions for use

Frigidaire

Frigidaire FV 1246 H Instruction book

Frigidaire

Frigidaire FFC13K1AW Factory parts catalog

Electrolux

Electrolux EU 2400C Instructions for use
