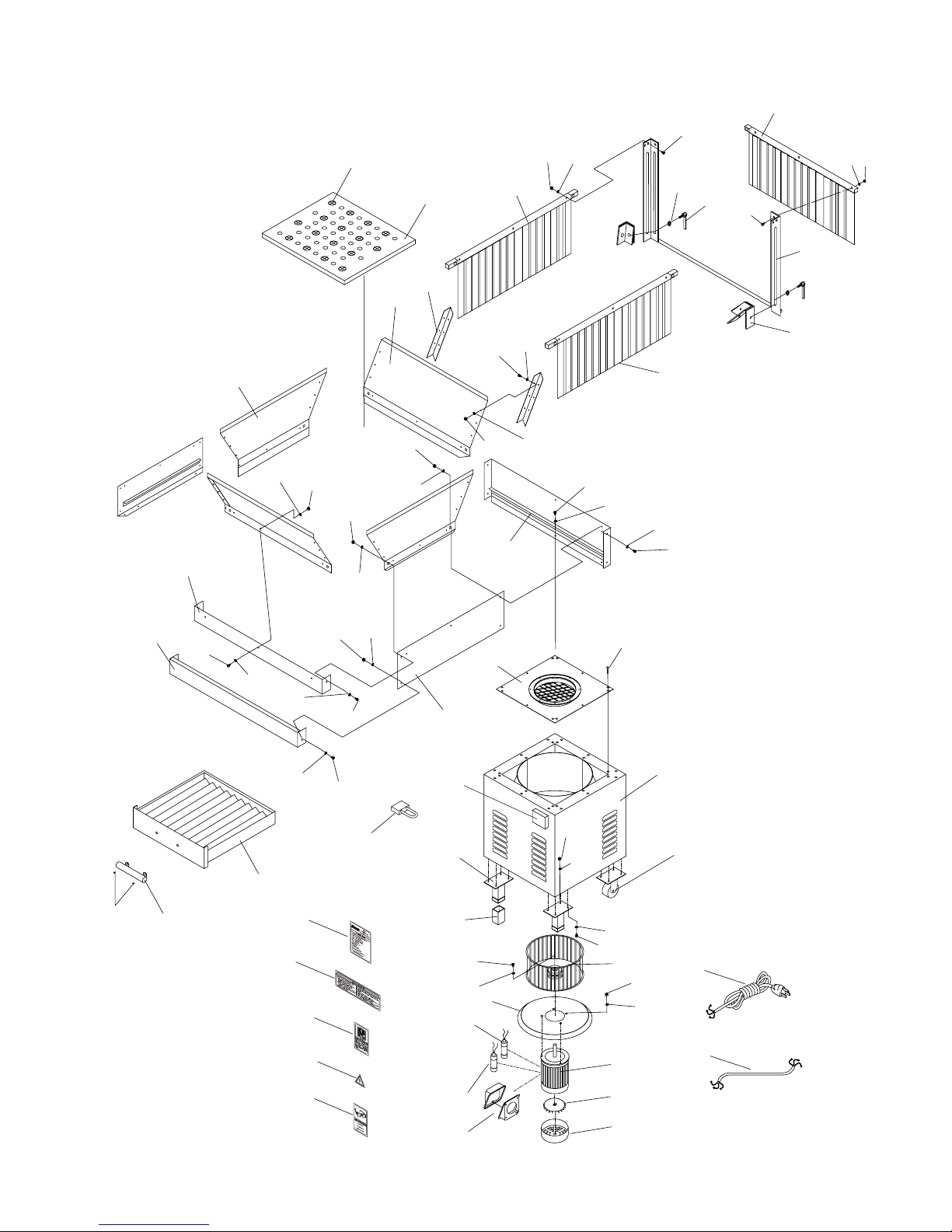

-22- G0534/G0535 Downdraft Tables
G0534
66
67
7
8
39
40
13
23
25
49
52
68
68-1
53
55
56
57
48
60
60-4
60-5
60-3
60-2
60-1
58
54
50
51
59
47
46
36
41
44
34
37
45
45-1
45-2
35
38
33
26
42
43
24
69
4
29
22
32
31
20
17
28
27
18
5
15
14
12
19
21
11
10
9
2
3
30
16
6
1
69
61
62
63
64
65
G0534/G0535 Downdraft Tables -23-
REF PART # DESCRIPTIONREF PART # DESCRIPTION
40 P0534040 LOWER FRONT FILTER WALL
41 PW06 FLAT WASHER 1/4
42 PB02 HEX BOLT 1/4-20 X 5/8
43 PS01 PHLP HD SCR 10-24 X 1/2
44 P0534044 SAFETY NET
45 P0534045 FILTER DRAWER
45-1 P0534045-1 DRAWER HANDLE
45-2 PHTEK10 TAP SCREW #8 X 5/8
46 P0534046 MOTOR CABINET
47 P0534047 CASTER
48 PN05 HEX NUT 1/4-20
49 PW06 FLAT WASHER 1/4
50 PW06 FLAT WASHER 1/4
51 PB02 HEX BOLT 1/4-20 X 5/8
52 P0534052 CABINET FOOT
53 P0534053 FOOT BOOT
54 P0534054 FAN
55 PB07 HEX BOLT 5/16-18 X 3/4
56 PW06 FLAT WASHER 1/4
57 P0534057 DEFLECTOR
58 PN05 HEX NUT 1/4-20
59 PW06 FLAT WASHER 1/4
60 P0534060 COMPLETE MOTOR 1/2 HP
60-1 P0534060-1 FAN COVER
60-2 P0534060-2 MOTOR FAN
60-3 P0534060-3 WIRING BOX
60-4 P0534060-4 S CAPACITOR 200M 125V SM
60-5 P0534060-5 R CAPACITOR 30M 250V SM
61 P0534061 G0534 MACHINE ID LABEL
62 P0534062 DOWNDRAFT WARNING LBL
63 PLABEL-12 READ MANUAL LABEL
64 PLABEL-14 ELECTRICITY LABEL
65 PLABEL-11 SAFETY GLASSES LABEL
66 PWRCRD110L 110V CORD W/5-15 PLUG
67 PWRCRD110S 110V MOTOR CORD
68 P0534068 PUSH BUTTON SWITCH
68-1 P0534068-1 SWITCH PADLOCK
69 P0534069 SIDE SKEWED WALL
1 P0534001 REAR CURTAIN
2 P0534002 FLAT HD SCR 1/4-20 X 7/8
3 PW06 FLAT WASHER 1/4
4 PN05 HEX NUT 1/4-20
5 P0534005 SIDE CURTAIN
6 P0534002 FLAT HD SCR 1/4-20 X 7/8
7 PW06 FLAT WASHER 1/4
8 PN05 HEX NUT 1/4-20
9 P0534009 CURTAIN FRAME
10 P0534010 LOCK HANDLE 5/16-18 X 1
11 PW07 FLAT WASHER 5/16
12 P0534012 TABLE BOARD
13 P0534013 RUBBER GROMMET
14 P0534014 FRONT/REAR SKEWED WALL
15 P0534015 ANGLE BRACKET
16 P0534016 CURTAIN BRACKET
17 PB02 HEX BOLT 1/4-20 X 5/8
18 PW06 FLAT WASHER 1/4
19 PW06 FLAT WASHER 1/4
20 PN05 HEX NUT 1/4-20
21 PB02 HEX BOLT 1/4-20 X 5/8
22 PW06 FLAT WASHER 1/4
23 PN05 HEX NUT 1/4-20
24 PW06 FLAT WASHER 1/4
25 PN05 HEX NUT 1/4-20
26 PW06 FLAT WASHER 1/4
27 PN05 HEX NUT 1/4-20
28 PW06 FLAT WASHER 1/4
29 PW06 FLAT WASHER 1/4
30 PB02 HEX BOLT 1/4-20 X 5/8
31 P0534031 REAR FILTER WALL
32 P0534032 SIDE FILTER WALL
33 PN05 HEX NUT 1/4-20
34 PW06 FLAT WASHER 1/4
35 PW06 FLAT WASHER 1/4
36 PB02 HEX BOLT 1/4-20 X 5/8
37 PW06 FLAT WASHER 1/4
38 PB02 HEX BOLT 1/4-20 X 5/8
39 P0534039 UPPER FRONT FILTER WALL
