Grizzly H5626/7 User manual
COPYRIGHT © SEPTEMBER, 2003 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
PRINTED IN TAIWAN
Model H5626
Model H5627
FINE WIRE
UPHOLSTERY STAPLER
MODEL H5626/7
INSTRUCTION MANUAL
For Your Own Safety Read Instruction Manual
Before Operating This Equipment
Indicates an imminently hazardous situation which, if
not avoided, WILL result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, COULD result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, MAY result in minor or moderate injury.
It may also be used to alert against unsafe practices.
This symbol is used to alert the user to useful infor-
mation about proper operation of the equipment.
The purpose of safety symbols is to attract your attention to possible hazardous
conditions. This manual uses a series of symbols and signal words which are
intended to convey the level of importance of the safety messages. The progres-
sion of symbols is described below. Remember that safety messages by them-
selves do not eliminate danger and are not a substitute for proper accident pre-
vention measures.
NOTICE
SAFETY
Safety Instructions For Pneumatic Tools
1. KEEP ALL SAFETY DEVICES IN
PLACE and in working order.
2. REMOVE ADJUSTING KEYS AND
WRENCHES. Form habit of check-
ing to see that keys and adjusting
wrenches are removed from tool
before operation.
3. KEEP WORK AREA CLEAN.
Cluttered areas and benches invite
accidents.
4. DO NOT USE IN DANGEROUS
ENVIRONMENT. DO NOT use
pneumatic tools in damp or wet
locations, or where any flammable
or noxious fumes may exist. Keep
work area well lighted.
5. KEEP CHILDREN AND VISITORS
AWAY. All children and visitors
should be kept at a safe distance
from work area.
6. MAKE WORKSHOP CHILD
PROOF with padlocks, master
switches, or by removing air hoses
from tools.
7. DO NOT FORCE TOOL. It will do
the job better and safer at the rate
for which it was designed.
8. USE THE RIGHT TOOL. DO NOT
force tool or attachment to do a job
for which it was not designed.
9. DO NOT USE UNDER THE INFLU-
ENCE OF DRUGS OR ALCOHOL.
H5626/H5627 Upholstery Stapler
-2-
10. USE PROPER AIR HOSE for the
tool. Make sure your air hose is in
good condition and is long enough to
reach your work without stretching.
11. WEAR PROPER APPAREL. DO
NOT wear loose clothing, gloves,
neckties, rings, bracelets, or other
jewelry which may get caught in
moving parts. Non-slip footwear is
recommended. Wear a protective
hair covering to contain long hair.
12. ALWAYS USE SAFETY GLASSES.
Also use a face or dust mask if cut-
ting operation is dusty. Everyday
eyeglasses only have impact resis-
tant lenses, they are NOT safety
glasses.
13. WEAR APPROVED HEARING
PROTECTION.
14. SECURE WORK. Use clamps or a
vise to hold work when practical. It is
safer than using your hand and frees
both hands to operate tool.
15. DO NOT OVERREACH. Keep prop-
er footing and balance at all times.
16. MAINTAIN TOOLS WITH CARE.
Keep tools lubricated and clean for
best and safest performance. Follow
instructions for lubricating and
changing accessories.
17. REDUCE THE RISK OF UNINTEN-
TIONAL FIRING. DO NOT carry tool
with hand on trigger and always dis-
connect from air when not in use.
Safety Instructions For Pneumatic Tools
18. DISCONNECT TOOLS before ser-
vicing and changing accessories.
19. USE THE RECOMMENDED
ACCESSORIES. Consult the
owner’s manual for recommended
accessories. The use of improper
accessories may cause risk of
injury.
20. CHECK DAMAGED PARTS.
Before further use of the tool, a
guard or other part that is damaged
should be carefully checked to
determine that it will operate prop-
erly and perform its intended func-
tion. Check for alignment of moving
parts, binding of moving parts,
breakage of parts, mounting, and
any other conditions that may affect
its operation. A guard or other part
that is damaged should be properly
repaired or replaced.
21. NEVER LEAVE UNATTENDED
TOOL CONNECTED TO AIR.
Disconnect the air hose and DO
NOT leave tool until it is relieved of
any built up pressure.
22. NEVER ALLOW UNTRAINED
USERS TO USE THIS TOOL
WHILE UNSUPERVISED.
23. IF YOU ARE UNSURE OF THE
INTENDED OPERATION, STOP
USING THE TOOL. Seek formal
training or research books or maga-
zines that specialize in pneumatic
tools.
H5626/H5627 Upholstery Stapler -3-
Operating this stapler can propel
objects into the air, causing immedi-
ate eye damage. To protect yourself,
always wear American National
Standards Institute (ANSI) approved
safety glasses or goggles when oper-
ating this equipment. In addition, this
stapler discharges at 85-90 decibels.
To protect your hearing, always wear
ANSI approved ear protection when
operating this stapler.
Basic Stapler Safety
In addition to the rules stated in the previ-
ous section, and those in the warning
boxes throughout this manual, please
observe the following safety tips for your
new stapler:
1. READ THIS ENTIRE MANUAL
BEFORE OPERATING THE STA-
PLER.
2. ALWAYS DISCONNECT AIR FROM
THE STAPLER whenever servicing
or installing staples. During mainte-
nance, a stapler connected to air may
fire accidentally, causing serious per-
sonal injury.
3. DO NOT PLACE HANDS NEAR
STAPLE POINT OF ENTRY. Staple
can deflect and tear through the sur-
face of the workpiece, puncturing
your hand or fingers.
4. NEVER CONNECT THE STAPLER
TO PRESSURIZED OXYGEN OR
OTHER COMBUSTIBLE GASES as
a power source. Only use filtered,
lubricated, and regulated compressed
air.
5. NEVER USE GASOLINE OR
OTHER FLAMMABLE LIQUIDS TO
CLEAN THE STAPLER. Vapors in
the tool will ignite by a spark and
cause the tool to explode.
6. DO NOT CARRY THE STAPLER BY
ANY OTHER PART THAN THE
HANDLE, and do not carry the sta-
pler by the air hose.
7. DO NOT KEEP THE TRIGGER
PULLED WHEN CARRYING OR
HOLDING THE TOOL.
8. DO NOT USE A CHECK VALVE OR
ANY OTHER FITTING that allows air
to remain in the tool.
Never point this stapler at yourself or
another person! Always pay attention
to the direction this stapler is pointed.
Use this tool with respect and caution
to lessen the possibility of operator or
bystander injury. Ignoring this warn-
ing may result in serious personal
injury.
H5626/H5627 Upholstery Stapler
-4-
INTRODUCTION
Commentary Most importantly, we stand behind our
tools. If you have any service questions or
parts requests, please call or write us at
the location listed below.
Grizzly Industrial, Inc.
1203 Lycoming Mall Circle
Muncy, PA 17756
Phone: (570) 546-9663
Fax: (800) 438-5901
E-Mail: [email protected]
Web Site: http://www.grizzly.com
We are proud to offer the Grizzly Model
H5626/H5627 Upholstery Stapler. This
model is part of a growing Grizzly family of
fine power tools. When used according to
the guidelines set forth in this manual, you
can expect years of trouble-free, enjoy-
able operation and proof of Grizzly’s com-
mitment to customer satisfaction.
This stapler fires 22 gauge fine wire, 1⁄4"-
5⁄8" crown staples and features an easy
clear magazine.
We are pleased to provide this manual
with the Model H5626/H5627. It was writ-
ten to encourage safety considerations
and guide you through general operating
procedures and maintenance. This manu-
al represents our effort to produce the best
documentation possible.
The specifications, details, and pho-
tographs in this manual represent the
Model H5626/H5627 as supplied when
the manual was prepared. However,
owing to Grizzly’s policy of continuous
improvement, changes may be made at
any time with no obligation on the part of
Grizzly. If you have any comments regard-
ing this manual, please write to us at the
address below:
Grizzly Industrial, Inc.
C/O Technical Documentation
P.O. Box 2069
Bellingham, WA 98227-2069
Read the manual before assembly
and operation. Become familiar with
this tool, its safety instructions, and
its operation before beginning any
work. Serious personal injury may
result if safety or operational infor-
mation is not understood or followed.
H5626/H5627 Upholstery Stapler -5-
Compressed Air System
Exceeding the maximum permissible
operating pressure may cause the sta-
pler to explode, blowing metal frag-
ments in all directions. To protect
yourself from serious personal injury,
DO NOT allow your air compressor to
exceed the recommended pressure
when connected to this stapler!
The Model H5626/H5627 is designed to be
operated at 60-100 psi. Do not exceed
the maximum operating pressure for
your model.
Before you use your new stapler, install the
1⁄4" quick connect fitting that comes with the
stapler. Install a female 1⁄4" fitting on the air
hose. Regulate the air pressure on your air
compressor to barely over the minimum psi
for your model.
Many pneumatic tools benefit from an in-
line filter/lubricator/regulator unit. Using
this unit protects your tool from damaging
water build-up, allows you to adjust and
maintain constant air pressure to your tool,
and saves you the inconvenience of having
to manually lubricate your tool every time
you use it. Check the current Grizzly cata-
log for availability of this unit. If you plan on
installing a filter/lubricator/regulator unit in
your compressed air system, always follow
the connection instructions that come with
the unit.
Oiling Stapler
Special oil has been included with you new
Grizzly stapler to help maintain its useful
life. Place one drop of oil in the stapler air
inlet (as shown in Figure 1) before every
use. Wipe off any excess oil near the sta-
pler exhaust to avoid dust build-up. When
the oil that was included with the stapler
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to install a lubricator in your air compressor
line. If your air compressor line already has
a lubricator, then regular lubrication of your
stapler will not be necessary. Just make
sure there is always oil in the lubricator.
As mentioned before, the best option is to
install a filter/lubricator/regulator unit in
your air line.
Figure 1. Lubricating stapler via air inlet.
H5626/H5627 Upholstery Stapler
-6-
OPERATION
Loading Stapler
To load your stapler:
1. Disconnect the air supply from the
stapler!
2. Push the magazine latch in the direc-
tion shown in Figure 2.
Figure 2. Releasing magazine latch. Figure 3. Loading staples into stapler.
5. Push the magazine cover forward
until the magazine latch locks in
place.
3. Pull back the magazine cover until it
stops.
4. Point the stapler up and insert a stick
of staples into the magazine as shown
in Figure 3. Make sure that the point-
ed ends of the staples point in the
same direction as the stapler nose
piece.

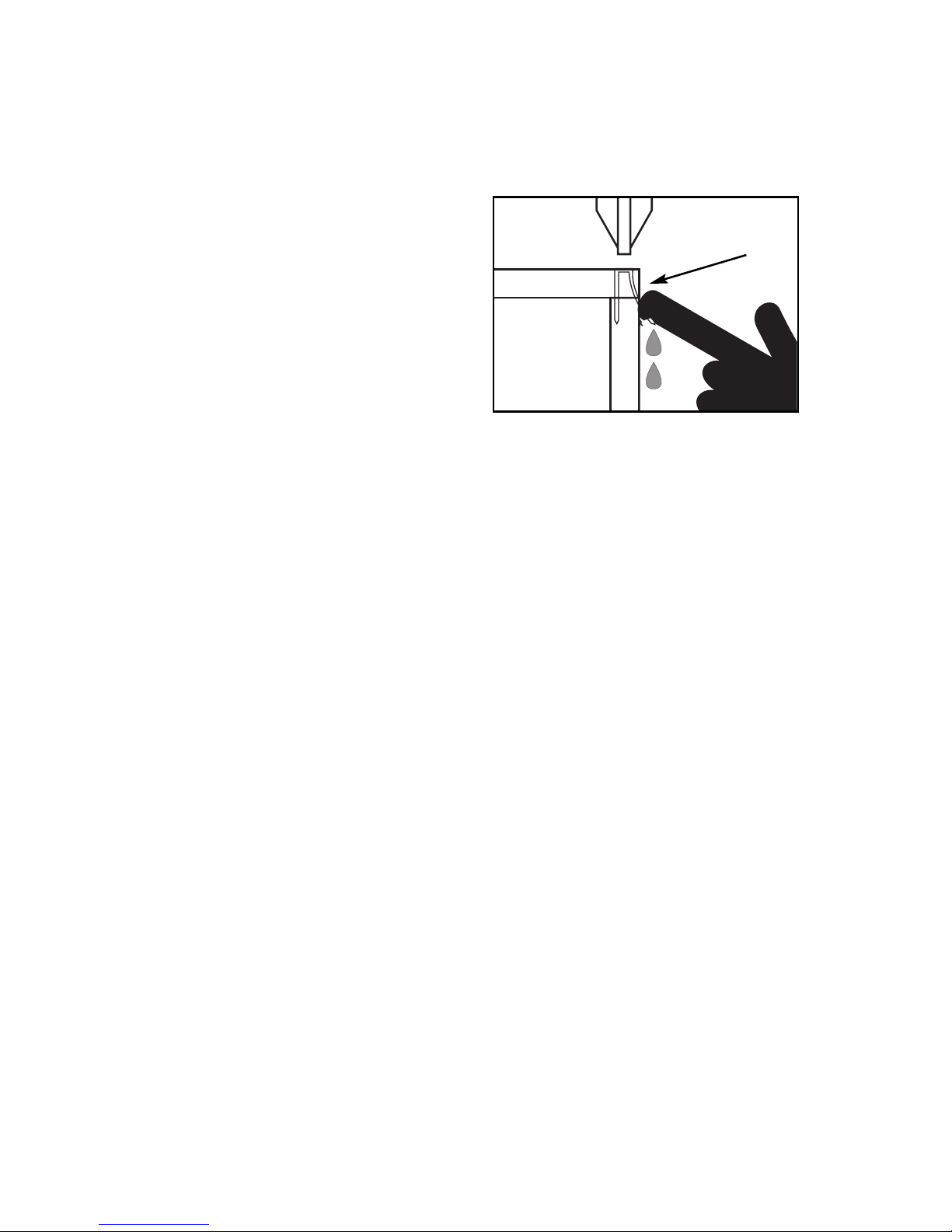

ple in case of deflection. (Deflection is
caused when the staple changes its
path, resulting in the staple puncturing
the surface of the workpiece as
shown in Figure 4.)
Besides damaging your workpiece,
deflection can cause injury if your free
hand is securing the workpiece in the
location that the staple deflects.
4. Press the trigger. If the staple drove
into the wood far enough, continue
with your intended operations. If the
staple either went too far or not far
enough, then adjust the air pressure.
More air pressure will make the staple
go deeper and less air pressure will
decrease the staple penetration.
H5626/H5627 Upholstery Stapler -7-
Operating Stapler
If you have not read the safety instruc-
tions in this manual, do not operate the
stapler.
Every time you operate your stapler, place
one drop of the included oil into the quick
connect fitting where the stapler connects
to the air supply.
To operate your stapler:
1. Connect the air supply to the quick
connect fitting.
2. Test the loaded stapler for proper
penetration. Hold the stapler perpen-
dicular to the surface of a piece of
clean scrap wood that is thick enough
for the length of staples you have
loaded.
3. Before pressing the trigger, make
sure your free hand is positioned out
of the way of a potential path of a sta-
Figure 4. Example of staple deflection.
H5626/H5627 Upholstery Stapler
-8-
Clearing Jammed Staples
A jammed staple must be cleared before
using the stapler again.
To clear a jammed staple:
1. Disconnect the stapler from the air
supply!
2.Open the magazine cover and pull the
magazine all the way back.
3. Remove stick of staples.
4. Remove jammed staple with needle
nose pliers.
Speed Adjustment
The Model H5627 features staple firing
speeds from .5 to 16 staples per second.
To adjust the staple firing speed:
1. Disconnect the stapler from the air
supply!
2.Release the speed adjustment lock by
holding the speed adjustment screw
in place with a screwdriver while rotat-
ing the speed adjustment lock counter
clockwise.
3.Rotate the speed adjustment screw
counter clockwise to increase the fir-
ing speed or clockwise to slow the fir-
ing speed (Figure 5).
4. To test fire the stapler push the sta-
pler against a scrap of wood, hold the
trigger down continuously, and move
the stapler across the wood.
5. When the firing speed has been
adjusted, secure the speed adjust-
ment screw by placing a flat head
screwdriver in the slot and twisting the
speed adjustment lock clockwise until
tight.
Always disconnect air from stapler
whenever clearing a jammed staple!
Fast
Slow
Figure 5. H5627 speed adjustment screw.
Speed
Adjustment
Lock
Speed
Adjustment
Screw
H5626/H5627 Upholstery Stapler -9-
Cleaning Stapler
Use a good solvent to clean the nose
assembly of the stapler. Always be sure
that the stapler is dry before using it again.
Do not allow dust, chips, sand, etc. into the
air connectors or into the body of the sta-
pler; this may result in leaks and damage
to the stapler and the air couplings.
Never use use gasoline or other flam-
mable liquids to clean this tool.
Vapors in the tool may ignite, causing
the tool to explode. Ignoring this
warning may lead to serious personal
injury or even death!
Always disconnect air from stapler
whenever servicing! During mainte-
nance, a stapler connected to air
may fire accidentally, causing seri-
ous personal injury!
This manual suits for next models
2
Table of contents
Other Grizzly Staple Gun manuals
Grizzly
Grizzly H3119 User manual
Grizzly
Grizzly G6042 User manual
Grizzly
Grizzly H7678 User manual
Grizzly
Grizzly G6042 User manual
Grizzly
Grizzly H2909 User manual
Grizzly
Grizzly G6772 User manual
Grizzly
Grizzly H7677 Quick start guide
Grizzly
Grizzly H7677 User manual
Grizzly
Grizzly H7678 Quick start guide
Grizzly
Grizzly H5627 Quick start guide
Popular Staple Gun manuals by other brands
DUO-FAST
DUO-FAST CNP 40 M operating instructions
King Canada
King Canada 8260FSN Service manual & parts list
Novus
Novus J-155 A instruction manual
Bostitch
Bostitch 800 SERIES Operation and maintenance manual
Silverline
Silverline 101315 Instructions for use
Campbell Hausfeld
Campbell Hausfeld CHN103 operating instructions
