Grizzly H5749 User manual
706
707
713
712
704
714
702
701
703
708
711
709
710
705
705-3
705-1
705-1
705-2
705-4
702-1
702-2
COPYRIGHT © NOVEMBER 2003 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#5902 PRINTED IN TAIWAN

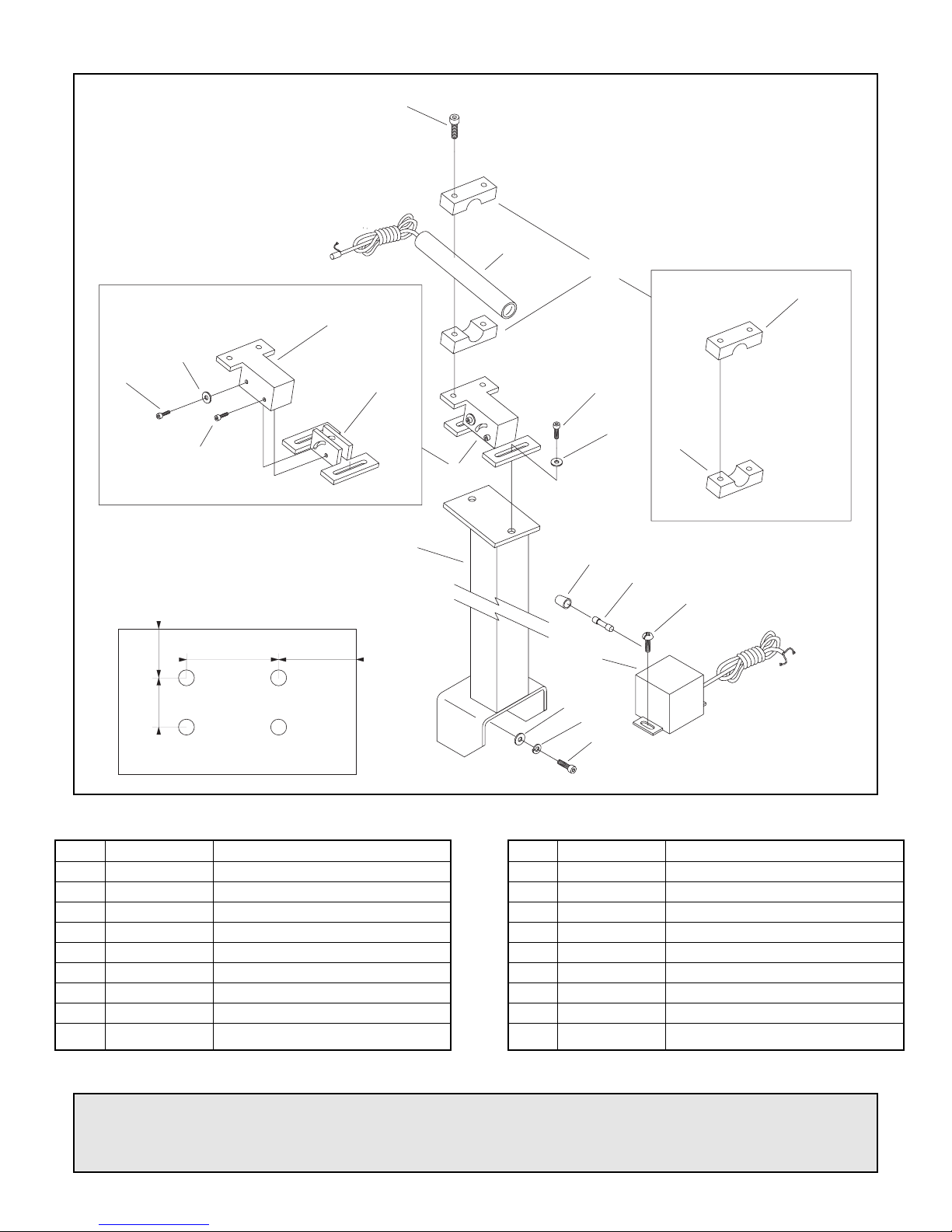

701 PSB48M CAP SCREW M6-1.0 X 35
702 PH5749702 LASER CLAMP ASSEMBLY
702-1 PH5749702-1 LASER CLAMP (TOP)
702-2 PH5749702-2 LASER CLAMP (BOTTOM)
703 PH5749703 LASER
704 PSB01M CAP SCREW M6-1.0 X 16
705 PH5749705 LASER BRACKET ASSEMBLY
705-1 PSB18M CAP SCREW M4-0.7 X 8
705-2 PW05M FLAT WASHER 4MM
705-3 PH5749705-3 LASER BRACKET (TOP)
REF PART # DESCRIPTION
705-4 PH5749705-4 LASER BRACKET (BOTTOM)
706 PH5749706 STEEL ARM
707 PSB31M CAP SCREW M8-1.25 X 25
708 PS05M PHLP HD SCR M5-0.8 X 8
709 PH5749709 POWER BOX
710 PH5749710 FUSE T1AL250V
711 PH5749711 FUSE COVER
712 PLW04M LOCK WASHER 8MM
713 PW01M FLAT WASHER 8MM
714 PW03M FLAT WASHER 6MM
REF PART # DESCRIPTION
Hole Pattern For
Arm Attachment
55mm
60mm
30mm 30mm
