-46- G0504 16" Horizontal Resaw Bandsaw
SECTION 9: Parts

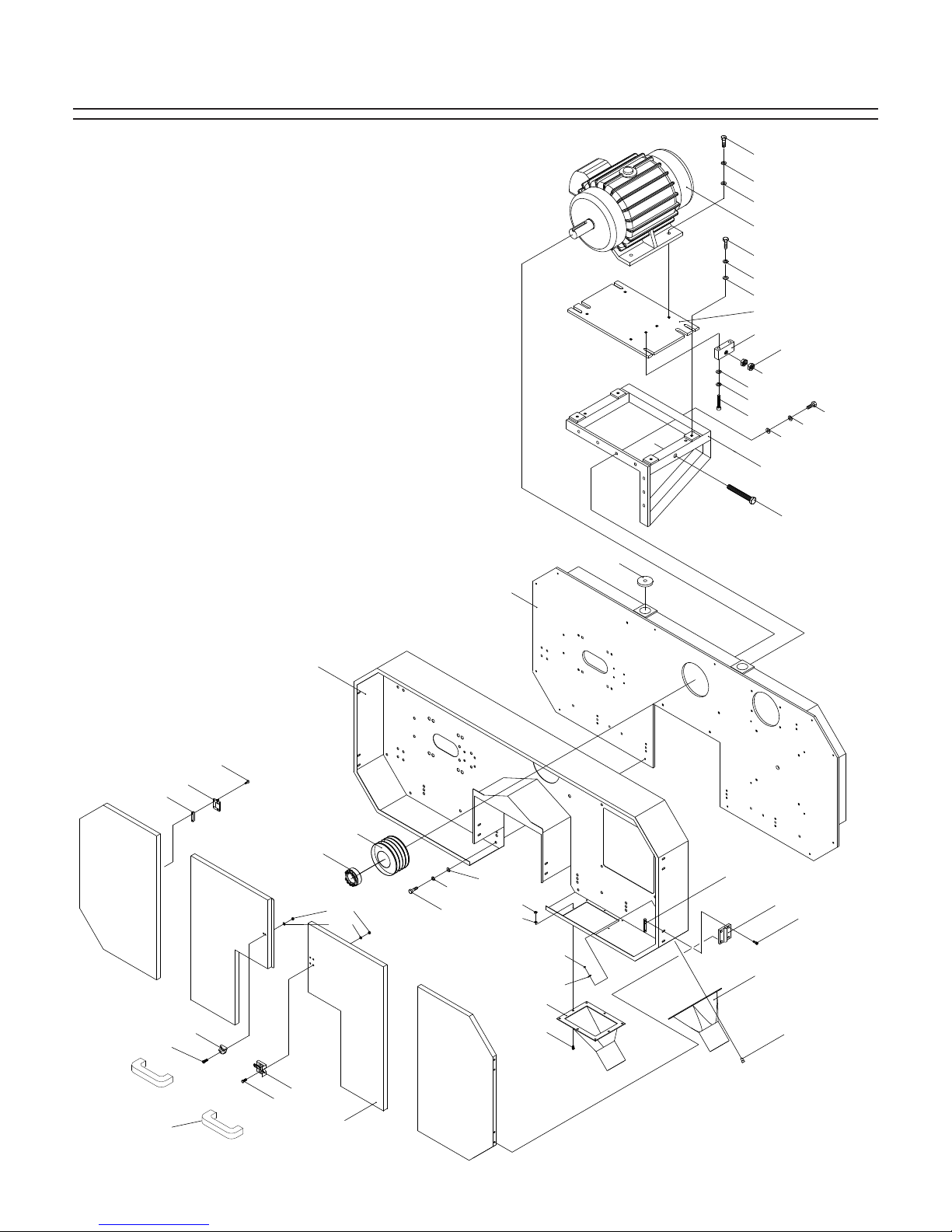

Housing Parts
G0504 16" Horizontal Resaw Bandsaw -47-
Housing Parts List
REF PART # DESCRIPTION
1101 PB27M HEX BOLT M12-1.75 X 30
1102 PLW05M LOCK WASHER 12MM
1103 PW06M FLAT WASHER 12MM
1104 P05041104 MOTOR 25HP
1105 PB24M HEX BOLT M12-1.75 X 45
1107 P05041107 ADJUSTMENT BLOCK
1108 PN28M HEX NUT M20-2.5
1109 PB125M HEX BOLT M12-1.75 X 65
1110 PB25M HEX BOLT M12-1.75 X 25
1113 P05041113 SAW WHEEL FRAME
1114 P05041114 SAW WHEEL GUARD
1115 P05041115 MOTOR PULLEY
1116 P05041116 LOCKING SLEEVE
1117 PW01M FLAT WASHER 8MM
1118 PLW04M LOCK WASHER 8MM
1119 PB87M HEX BOLT M8-1.25 X 15
1120 PN01M HEX NUT M6-1
1121 PLW03M LOCK WASHER 6MM
1122 P05041122 DUST PORT B
1123 PB02M HEX BOLT M6-1 X 12
1124 P05041124 BUTTON BRACKET
1125 P05041125 BUTTON DH-75
1126 PB08M HEX BOLT M6-1 X 20
1127 P05041127 DUST PORT A
1128 PB95M HEX BOLT M5-.8 X 16
1129 P05041129 BUTTON DK-50
1130 P05041130 BUTTON BRACKET
1131 P05041131 KNOB BRACKET
1132 PB08M HEX BOLT M6-1 X 20
1133 P05041133 KNOB SEAT
1134 P05041134 DOOR PLATE
1135 P05041135 HEX BOLT M20-2.5 X 150
1136 P05041136 MOTOR BRACKET
1137 P05041137 MOTOR BRACKET
1138 P05041138 WHEEL COVER HANDLE
-48- G0504 16" Horizontal Resaw Bandsaw
Frame Parts
G0504 16" Horizontal Resaw Bandsaw -49-
Frame Parts List
REF PART # DESCRIPTION
1201 P05041201 FRAME
1202 P05041202 ELECTRIC BOX
1203 P05041203 DOOR HINGE
1204 PW01M FLAT WASHER 8MM
1205 PLW04M LOCK WASHER 8MM
1206 PB09M HEX BOLT M8-1.25 X 20
1207 PS07M PHLP HD SCR M4-.7 X 8
1208 P05041208 CONTROL PANEL
1209 P05041209 CONTROL BOX
1210 PB07M HEX BOLT M8-1.25 X 25
1211 P05041211 CONTROL BOX SUPPORT
1212 PW04M FLAT WASHER 10MM
1213 PLW06M LOCK WASHER 10MM
1214 PB31M HEX BOLT M10-1.5 X 40
1215 PN02M HEX NUT M10-1.5
-50- G0504 16" Horizontal Resaw Bandsaw
Elevation Parts
G0504 16" Horizontal Resaw Bandsaw -51-
Elevation Parts List
REF PART # DESCRIPTION
1301 PB110M HEX BOLT M16-2 X 25
1302 PLW10M LOCK WASHER 16MM
1303 PW08M FLAT WASHER 16MM
1304 P0504204 COLUMN
1305 P0504205 CHIP COVER
1306 PR50M INT RETAINING RING 80MM
1307 P0504207 OIL SEAL 60 X 80 X 10
1308 P0504208 BRASS SLEEVE
1309 PSB73M CAP SCREW M12-1.75 X 50
1310 PLW05M LOCK WASHER 12MM
1311 P0504211 ELEVATION HOUSING
1312 PZERK2 GREASE FITTING PT 1/8
1313 PSS30M SET SCREW M10-1.5 X 10
1314 P0504214 LIMIT DOG
1315 PB15M HEX BOLT M8-1.25 X 40
1316 P0504213 LOCK RING
1317 P0504216 TIGHTEN RING
1318 P0504217 DUST GUARD BELLOW
1319 PS65M PHLP HD SCR M4-.7 X 40
1320 P0504219 LIMIT SWITCH AV8104
1321 P0504220 SWITCH BRACKET
1322 PSB02M CAP SCREW M6-1 X 20
1323 PLW03M LOCK WASHER 6MM
1324 PW03M FLAT WASHER 6MM
1325 P0504224 COVER
1326 P0504225 INDEX RING
1327 PSS01M SET SCREW M6-1 X 10
1328 P0504245 GEAR BOX 40# 1/30 VTW
1329 PK74M KEY 6 X 6 X 35
1330 P0504244 CONNECT ROD
1331 PK11M KEY 6 X 6 X 40
1332 P0504243 UNIVERSAL JOINT
1333 PSS64M SET SCREW M6-1 X 15
1334 PLW04M LOCK WASHER 8MM
1335 PW01M FLAT WASHER 8MM
1336 P0504242 GEAR BOX A 40# 1/30 VTWM
1337 P0504241 SHAFT COUPLINGS
1338 P0504235 GEAR BOX & MOTOR
1339 PK12M KEY 5 X 5 X 30
1340 PSB14M CAP SCREW M8-1.25 X 20
1341 PSB99M CAP SCREW M3-.5 X 30
1342 P0504250 SENSOR QL-1805NB
1343 P0504251 SENSOR BRACKET
1344 PW07M FLAT WASHER 3MM
1345 PLW09M LOCK WASHER 3MM
1346 PN07M HEX NUT M3-.5
-52- G0504 16" Horizontal Resaw Bandsaw
Blade Guide Parts
G0504 16" Horizontal Resaw Bandsaw -53-
Blade Guide Parts
REF PART # DESCRIPTION
1401 P0504309 ADJUSTMENT ROD BRACKET
1402 PW04M FLAT WASHER 10MM
1403 PLW06M LOCK WASHER 10MM
1404 PB74M HEX BOLT M10-1.5 X 20
1405 P0504310 ADJUSTMENT SCREW
1406 P0504305 GUIDE POST
1407 P0504304 ADJUSTMENT BRACKET
1408 PW01M FLAT WASHER 8MM
1409 PLW04M LOCK WASHER 8MM
1410 PB15M HEX BOLT M8-1.25 X 40
1411 PB26M HEX BOLT M8-1.25 X 30
1412 P0504314 GUIDE POST BASE
1413 P0504315 ECCENTRIC SHAFT
1414 PR35M INT RETAINING RING 30MM
1415 P6200LLB BALL BEARING 6200LLB
1416 P0504318 SUPPORT ROLLER
1417 PB09M HEX BOLT M8-1.25 X 20
1418 P0504355 UPPER GUIDE (CERAMIC)
1419 P0504321 GUIDE POST BASE (R)
1420 P0504336 LOWER GUIDE (CERAMIC)
1421 PSB02M CAP SCREW M6-1 X 20
1422 PB40M HEX BOLT M10-1.5 X 15
1423 P0504319 GUIDE POST
1424 P0504320 POST BRACKET
-54- G0504 16" Horizontal Resaw Bandsaw
Tensioning Wheel Parts
G0504 16" Horizontal Resaw Bandsaw -55-
Tensioning Wheel Parts List
REF PART # DESCRIPTION
1501 P0504428A LOCK NUT AN11
1502 PTLW08M EXT TOOTH WASHER 10MM
1503 P0504429A LOCK RING
1504 P0504455 INT RETAINING RING 90MM
1505 P0504456 OIL SEAL TC-70 X 90 X 8
1506 P32011 BEARING 32011
1507 P0504461 LEFT BEARING HOUSING
1508 PB35M HEX BOLT M12-1.75 X 40
1509 PLW05M LOCK WASHER 12MM
1510 P0504433 LEFT BLADE WHEEL
1511 P0504434 SAW BLADE 1" X 180"
1512 PZERK2 GREASE FITTING PT 1/8
1513 PSB100M CAP SCREW M8-1.25 X 15
1514 P0504442A LEFT WHEEL SHAFT
1515 PSB13M CAP SCREW M8-1.25 X 30
1516 P0504437 SLIDER
1517 P0504437 LINER GUIDE
1518 P0504438 LINER WAY BRACKET
1519 PW01M FLAT WASHER 8MM
1520 PLW04M LOCK WASHER 8MM
1521 PB26M HEX BOLT M8-1.25 X 30
1522 P0504443 SPRING
1523 P0504444 SPRING ROD
1524 P0504445 SPRING SEAT
1525 PW04M FLAT WASHER 10MM
1526 PLW06M LOCK WASHER 10MM
1527 PB73M HEX BOLT M10-1.5 X 50
1528 PSB52M CAP SCREW M8-1.25 X 10
1529 P0504415 WHEEL SCRAPE
1530 PS66M PHLP HD SCR M10-1.5 X 150
1531 P0504417 CLEANER BASE
1532 PN02M HEX NUT M10-1.5
