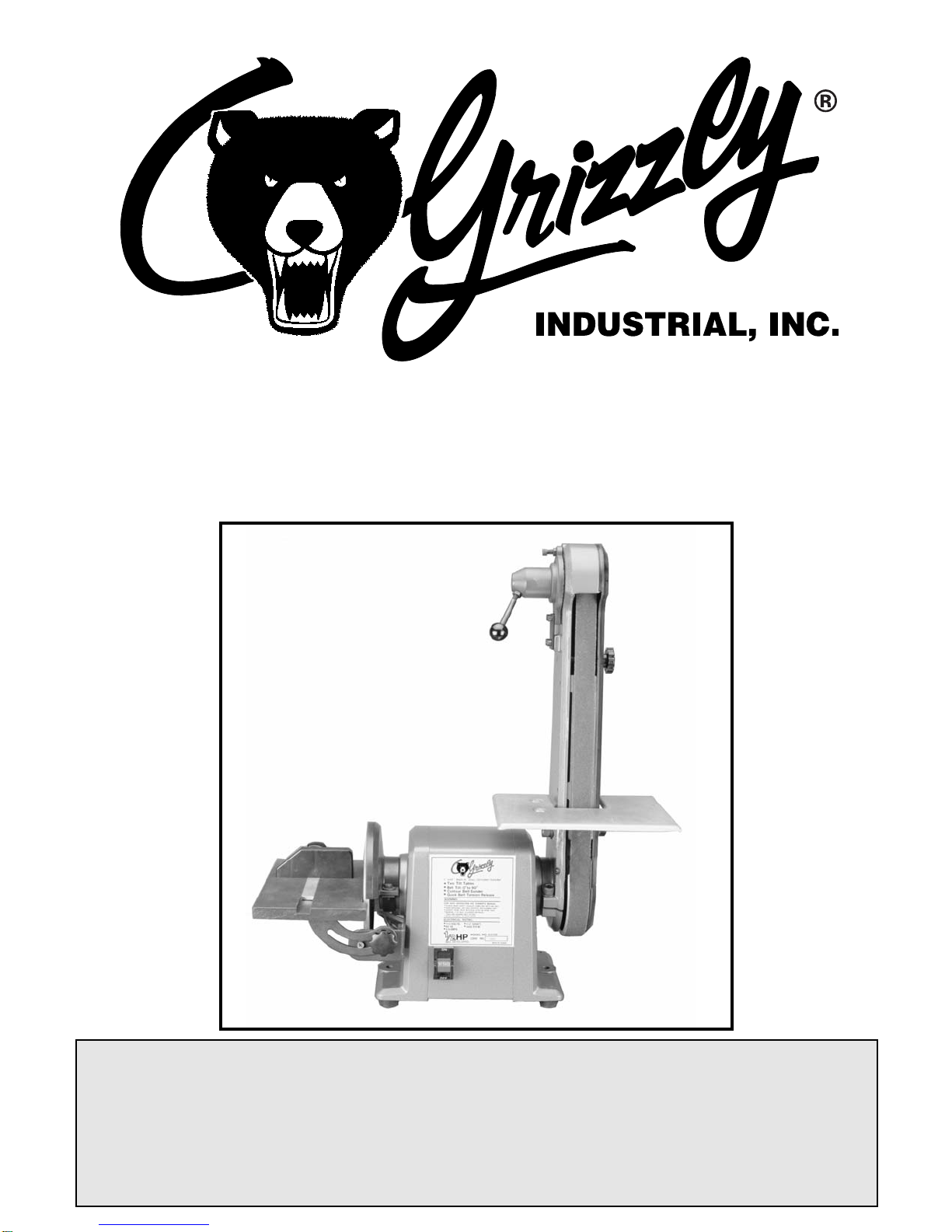

BELT/DISC SANDER

MODEL G3105

PARTS LIST

COPYRIGHT © 1991 BY GRIZZLY INDUSTRIAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED APRIL, 1999. PRINTED IN U.S.A.

PARTS LIST DISCLAIMER

THIS PARTS LIST AND DRAWINGS REPRESENT THE CONFIGURATION OF THE MACHINE AS IT IS CURRENTLY BEING SHIPPED. THE MACHINE CON-

FIGURATION CAN CHANGE AS PRODUCT IMPROVEMENTS ARE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS PARTS

LIST MAY NOT DEPICT YOUR MACHINE EXACTLY. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIFFERENCES.

PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

-B- G3105 Combination Sander

1P3105001 ROTOR

2P3105002 STATOR

3P6202 BALL BEARING 6202

4P3105004 MOTOR END BELL

6P3105006 CAPACITOR

7P3105007 CAPACITOR CLIP

8P3105008 BOTTOM COVER

9P3105009 RUBBER FOOT

10 P3105010 DISC GUARD

11 P3105011 DISC GUARD BRACKET

12 P3105012 SANDING PLATE

13 P3105013 DISC TABLE

14 P3105014 LEFT TRUNNION

15 P3105015 TABLE SUPPORT BRACKET

16 P3105016 RIGHT TRUNNION

17 P3105017 KNOB

18 P3105018 GUIDE PIN

19 G1445 6" 60-GRIT DISC (3) PACK

20 P3105020 BELT HOUSING

21 P3105021 STOP BRACKET

22 P3105022 DRIVE WHEEL

23 P3105023 WHEEL FLANGE

24 PN06 HEX NUT 1/2" - 12

25 P3105025 BELT PLATEN

26 P3105026 GUARD SUPPORT

27 PB02 HEX BOLT 1/4" - 20 x 5/8"

28 P3105028 BELT GUARD

29 G1209 1"X42" 100-GRIT (2) PACK

30 P6200 BALL BEARING 6200

31 P3105031 TRACKING WHEEL

32 P3105032 TRACKING SHAFT

33 P3105033 TRACKING BRACKET

34 P3105034 TENSION SPRING

REF PART DESCRIPTION REF PART DESCRIPTION

DIAGRAMS & PARTS LISTS

G3105 MOTOR

B&T

CAPACITORS

43 42

44

27

40

44

10

65

3

17

23

4

4

6

8

9

45

11

48

12

19

13

71

14

57

55

57

55

16 18 17

15

64

46

57

47

58

G3105 Combination Sander -C-

35 P3105035 SPRING PLATE

36 P3105036 SPRING CAP

37 P3105037 HANDLE W/KNOB

38 P3105038 BELT TABLE

39 P3105039 BELT TABLE BRACKET

40 P3105040 SWITCH

41 PS01 PHLP HD SCREW 10 - 24 x 1/2"

42 P3105042 STRAIN RELIEF

43 P3105043 POWER CORD

44 PS06 PHLP HD SCREW 10 - 24 x 3/8"

45 PS01 PHLP HD SCREW 10 - 24 x 1/2"

46 PB09 HEX BOLT 5/16" - 18 x 1/2"

47 P3105047 HOUSING SCREW

48 PSS04 SETSCREW 1/4" - 20 x 5/16"

49 PSB02 CAP SCREW 10 - 24 x 3/8"

50 PSB31 CAP SCREW 10 - 24 x 5/8"

51 PSB33 CAP SCREW 10 - 24 x 3/4"

52 PSB16 CAP SCREW 3/8" - 16 x 3/4"

G3105 SAND FRAME

4

8

3

6

59

37

34

5156

3361

32

20 30

31 30 60

26

57 55 1

7

1

7

28

29

25

23

24

22

26

49

50 35

45

21

38

53

39

69

67

54

52

72

62

53 PFH06 FLAT HD SCREW 5/16" - 18 x 7/8"

54 PW02 FLAT WASHER 3/8"

55 PB19 HEX BOLT 1/4" - 20 X 1/2"

56 PN07 HEX NUT 10 - 24

57 PW06 FLAT WASHER 1/4"

58 PLW03 LOCK WASHER 3⁄16"

59 PN05 HEX NUT 1/4" - 20

60 PR01M EXT RET RING 10mm

61 PR05M EXT RET RING 15mm

62 PSB19 CAP SCREW 3/8" - 16 x 1 1/4"

64 PW07 FLAT WASHER 5/16"

65 P3105065 MOTOR SHROUD

67 PN02 HEX NUT 5/16" - 18

69 P3105069 SPACER

71 P3105071 MITER GAUGE

72 PLW04 LOCK WASHER 3/8"

REF PART DESCRIPTION REF PART DESCRIPTION
