Grizzly H6188 User manual

Introduction

• 230 RPM free speed

• 30 ft/lbs maximum torque

• 90 PSI operating pressure

• 5 CFM average air consumption

• 92 dB(A) sound level

• 1⁄4" Air inlet

• Forward and reverse

• Short, ergonomic profile

Inventory

A. 1⁄4" Industrial Air Ratchet ............................. 1

Operation

Install any 1⁄4" drive socket onto your air ratchet.

Choose from clockwise (R) to tighten, or coun-

terclockwise (L) to loosen by turning the direc-

tion control on top of the ratchet. Connect the air

ratchet to your regulated air source.

MODEL H6188

1⁄4" INDUSTRIAL AIR

RATCHET

INSTRUCTION SHEET

Figure 1. Model H6188

Figure 2. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8324 PRINTED IN TAIWAN

Air ratchet MUST have 3-4 drops of air tool oil

directly dropped into the air fitting before each use

as shown in Figure 2.

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

DO NOT EXCEED 120 PSI!

Personal injury could

occur.

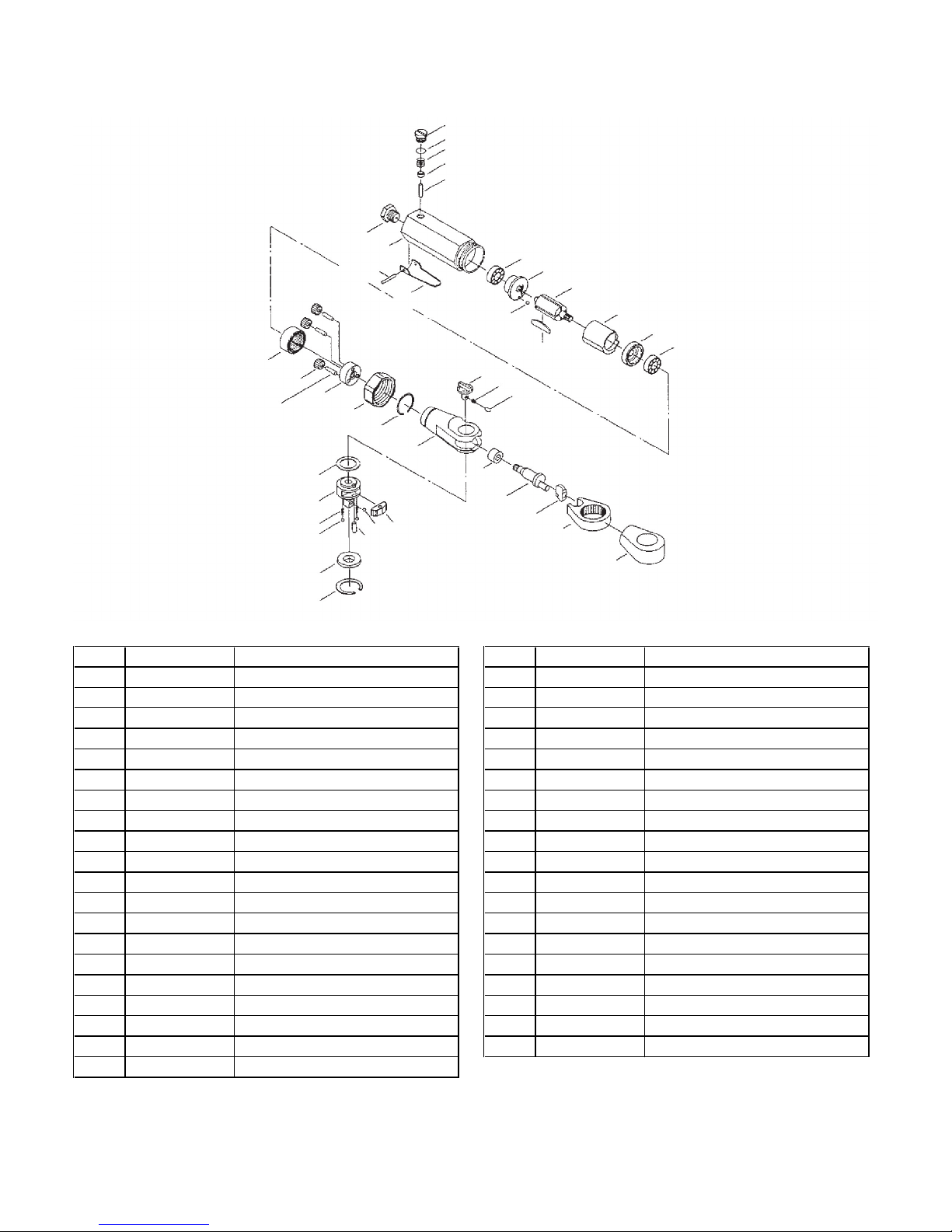

H6188 Parts Breakdown and List





 











 















  



 

































REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH6188001 HOUSING 22 PH6188022 RATCHET HOUSING

2 PH6188002 AIR INLET 23 PH6188023 IDLER GEAR

3 PH6188003 THROTTLE LEVER 24 PH6188024 IDLER GEAR PIN

4 PH6188004 ROLL PIN 25 PH6188025 INDLER GEAR PLATE

5 PH6188005 STEEL BALL 26 PH6188026 CLAMP NUT

6 PH6188006 VALVE PIN 27 PH6188027 COMPRESSION SPRING

7 PH6188007 VALVE 28 PH6188028 NEEDLE BEARING

8 PH6188008 COMPRESSION SPRING 29 PH6188029 CRANK SHAFT

9 PH6188009 O-RING 30 PH6188030 DRIVE BUSHING

10 PH6188010 VALVE PLUG 31 PH6188031 RATCHET YOKE

11 PH6188011 LOCK PIN 32 PH6188032 RATCHET ANVIL

12 PH6188012 REAR BEARING 33 PH6188033 COMPRESSION SPRING

13 PH6188013 REAR PLATE 34 PH6188034 STEEL BALL

14 PH6188014 ROTOR 35 PH6188035 PAWL

15 PH6188015 ROTOR BLADE 36 PH6188036 DOWEL PIN

16 PH6188016 CYLINDER 37 PH6188037 THIN WASHER

17 PH6188017 CYLINDER PIN 38 PH6188038 THRUST WASHER

18 PH6188018 FRONT PLATE 39 PH6188039 RETAINER RING

19 PH6188019 FRONT BEARING 40 PH6188040 REVERSE BUTTON

20 PH6188020 RETAINER RING 41 PH6188041 RUBBER GRIP

21 PH6188021 THREAD RING GEAR
