Grizzly G1847 User manual

NAIL GUNS & STAPLERS

MODEL G1847 / G1852 / G1861 / G3811

PARTS LIST

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

REVISED MARCH, 1999 PRINTED IN USA

DISCONTINUED MACHINE PARTS LIST DISCLAIMER

THESE PARTS REPRESENT THE LAST CONFIGURATION OF THE MACHINE BEFORE IT WAS DISCONTINUED. MACHINE CONFIGURATIONS

MAY HAVE CHANGED AS PRODUCT IMPROVEMENTS WERE INCORPORATED. IF YOU OWN AN EARLIER VERSION OF THE MACHINE, THIS

PARTS LIST MAY NOT EXACTLY DEPICT YOUR MACHINE. CONTACT CUSTOMER SERVICE IF YOU HAVE ANY QUESTIONS ABOUT PART DIF-

FERENCES. PREVIOUS PARTS LIST VERSIONS ARE NOT AVAILABLE ONLINE.

-B- G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers

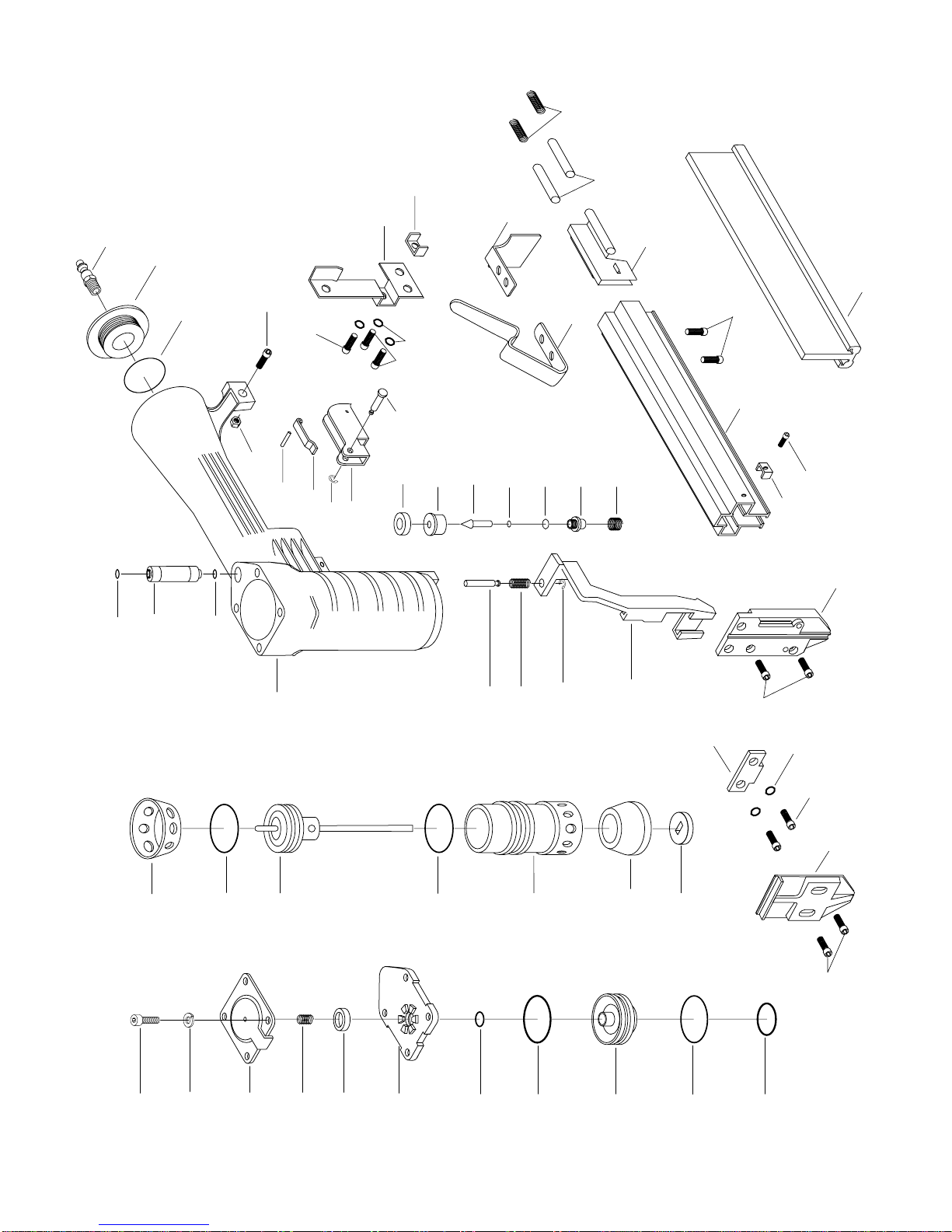

G1847 PARTS DIAGRAM

101

102

103

104

105

106

107

108

109

110

111

118

119

116

117

112

113

120

121

301

122

123

216

217

218

404

403

407

405 401 402

406

201

202

203

204

205

210

206

214

215

207

208

209

302 303

304

429

408

411 413

409410

414

415

416

418

417

421

422

419

427

425 424

423

G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers -C-

REF PART # DESCRIPTIONREF PART # DESCRIPTION

101 PSB15M CAP SCREW M5 - 0.8 x 20

102 PLW01M LOCK WASHER 5mm

103 P1847103 DEFLECTOR

104 P1847104 SPRING

105 P1847105 SEAL

106 P1847106 CAP

107 P1847107 O-RING

108 P1847108 O-RING

109 P1847109 HD VALVE PISTON

110 P1847110 O-RING

111 P1847111 O-RING

112 P1847112 COLLAR

113 P1847113 O-RING

116 P1847116 MAIN PISTON UNIT

117 P1847117 O-RING

118 P1847118 CYLINDER

119 P1847119 BUMPER

120 P1847120 O-RING

121 P1847121 TUBE

122 P1847122 O-RING

123 P1847123 JOINT GUIDE

201 P1847201 SEAL

202 P1847202 TRIGGER VALVE HEAD

203 P1847203 TRIGGER VALVE STEM

204 P1847204 O-RING

205 P1847205 O-RING

206 P1847206 TRIGGER VALVE GUIDE

207 PEC01M E-CLIP 3mm

208 P1847208 TRIGGER

209 P1847209 STEPPED PIN

210 P1847210 SPRING

214 PRP11M ROLL PIN 2.5 x 16mm

215 P1847215 SAFETY LEVER

216 P1847216 SHAFT

217 P1847217 SPRING

218 PEC02M E-CLIP 4mm

301 P1847301 NAILER BODY

302 P1847302 O-RING

303 P1847303 NIPPLE

304 G2308 AIR FITTING

401 PSB15M CAP SCREW M5 - 0.8 x 20

402 PLW01M LOCK WASHER 5mm

403 P1847403 DRIVER GUIDE COVER B

404 PSB17M CAP SCREW M4 - 0.7 x 10

405 P1847405 NOSEPIECE COVER

406 P1847406 NOSEPIECE

407 PSB41M CAP SCREW M4 - 0.7 x 14

408 P1847408 MAGAZINE UNIT A

409 P1847409 STOPPER

410 PSB18M CAP SCREW M4 - 0.7 x 8

411 P1847411 MAGAZINE UNIT B

413 PSB18M CAP SCREW M4 - 0.7 x 8

414 P1847414 PUSHER

415 P1847415 PUSHER PIN

416 P1847416 SPRING

417 P1847417 REAR PLATE

418 P1847418 MAGAZINE LATCH

419 PSB16M CAP SCREW M4 - 0.7 x 16

421 P1847421 STOPPER

422 P1847422 FIXED PLATE

423 PSB18M CAP SCREW M4 - 0.7 x 8

424 PLW02M LOCK WASHER 4mm

425 PSB17M CAP SCREW M4 - 0.7 x 10

427 PLN01M LOCK NUT M4 - 0.7

429 P1847429 SAFETY

430 P1847430 O-RING KIT

-D- G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers

301

216

217

425

201

214

215

207

208

209

421

427

424

414

415

409

413

410

411

412

408

418

417

422

423

419

420

218

426

118

119

116

117

112

113

103

104

105

106

107

108

109

110

111

302 303

304

120

121

122

202

203

204

205

210

206

123

101

102

406

403

405

407 401 402

404

G1852 PARTS DIAGRAM

G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers -E-

REF PART # DESCRIPTIONREF PART # DESCRIPTION

101 PSB15M CAP SCREW M5 - 0.8 x 20

102 PLW01M LOCK WASHER 5mm

103 P1847103 DEFLECTOR

104 P1847104 SPRING

105 P1847105 SEAL

106 P1847106 CAP

107 P1847107 O-RING

108 P1847108 O-RING

109 P1847109 HD VALVE PISTON

110 P1847110 O-RING

111 P1847111 O-RING

112 P1852112 COLLAR

113 P1847113 O-RING

116 P1852114 MAIN PISTON UNIT

117 P1847117 O-RING

118 P1847118 CYLINDER

119 P1847119 BUMPER

120 P1847120 O-RING

121 P1847121 TUBE

122 P1847122 O-RING

123 P1847123 JOINT GUIDE

201 P1847201 SEAL

202 P1847202 TRIGGER VALVE HEAD

203 P1847203 TRIGGER VALVE STEM

204 P1847204 O-RING

205 P1847205 O-RING

206 P1847206 TRIGGER VALVE GUIDE

207 PEC01M E-CLIP 3mm

208 P1847208 TRIGGER

209 P1847209 STEPPED PIN

210 P1847210 SPRING

214 PRP11M ROLL PIN 2.5 x 16mm

215 P1847215 SAFETY LEVER

216 P1847216 SHAFT

217 P1847217 SPRING

218 PEC02M E-CLIP 4mm

301 P1847301 NAILER BODY

302 P1847302 O-RING

303 P1847303 NIPPLE

304 G2308 AIR FITTING

401 PSB15M CAP SCREW M5 - 0.8 x 20

402 PLW01M LOCK WASHER 5mm

403 P1847403 DRIVER GUIDE COVER B

404 P1847404 NOSEPIECE

405 PSB41M CAP SCREW M4 - 0.7 x 14

406 PSB17M CAP SCREW M4 - 0.7 x 10

407 P1852407 NOSEPIECE COVER

408 P1852408 STOPPER

409 P1852409 MAGAZINE UNIT A

410 P1852410 STOPPER

411 PLW02M LOCK WASHER 4 mm

412 PSB17M CAP SCREW M4 - 0.7 x 10

413 P1852413 MAGAZINE UNIT B

414 P1852414 REAR PLATE

415 PLW02M LOCK WASHER 4mm

416 PSB18M CAP SCREW M4 - 0.7 x 8

417 P1852417 PUSHER

418 P1852418 SPRING

419 PSB18M CAP SCREW M4 - 0.7 x 8

420 P1852420 FIXED PLATE

421 P1852421 MAGAZINE LATCH

422 P1852422 STOPPER

423 PSB23M CAP SCREW M4 - 0.7 x 12

424 PLW02M LOCK WASHER 4mm

425 P1852425 SAFETY

426 P1852426 FLAT BAR

427 PLN01M LOCK NUT M4 - 0.7

428 P1847430 O-RING KIT

-F- G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers

A58 A59

A16

A14

A08

A07

A55

A54

A06

A53

A05

A17

A04

A57

A03

A55

A13

A51

A11

A12

A10

A57

A09

A56

C56

C51

B02

C03

B07

C02

B05

B03

B56

B01

A02

B09

A01

C06

B52

C01

A54

A52

C55

C07

C52

C57

C53

C54

B54

B53

B08

B06

B54

B51

C04

C57

C52

B55

B04

C05

G1861 PARTS DIAGRAM

REF PART # DESCRIPTIONREF PART # DESCRIPTION

G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers -G-

A01 P1861A01 NAILER BODY

A02 G2308 AIR FITTING

A03 P1861A03 CYLINDER

A04 P1861A04 BUMPER

A05 P1861A05 MAIN PISTON UNIT

A06 P1861A06 GASKET SET

A07 P1861A07 SPRING

A08 P1861A08 HD VALVE PISTON

A09 P1861A09 COPPER COVER

A10 P1861A10 SHAFT, VALVE

A11 P1861A11 SPRING

A12 P1861A12 COLLAR

A13 P1861A13 CAP

A14 P1861A14 INSERT OF CAP

A16 P1861A16 DEFLECTOR

A17 P1861A17 JOINT GUIDE

A51 P1861A51 O-RING

A52 P1861A52 O-RING

A53 P1861A53 O-RING

A54 P1861A54 O-RING

A55 P1861A55 O-RING

A56 P1861A56 O-RING

A57 P1861A57 O-RING

A58 PSB15M CAP SCREW M5 - 0.8 x 20

A59 PLW01M LOCK WASHER 5mm

A60 P1861A60 O-RING KIT

B01 P1861B01 NOSEPIECE

B02 P1861B02 MAGAZINE UNIT A

B03 P1861B03 MAGAZINE UNIT B

B04 P1861B04 PUSHER

B05 P1861B05 SPRING

B06 P1861B06 REAR PLATE

B07 P1861B07 FIXED PLATE

B08 P1861B08 MAGAZINE LATCH

B09 P1861B09 FLAT BAR

B51 PSB16M CAP SCREW M4 - 0.7 x 16

B52 PSB17M CAP SCREW M4 - 0.7 x 10

B53 PSB18M CAP SCREW M4 - 0.7 x 8

B54 PLW02M LOCK WASHER 4mm

B55 PSS22M SETSCREW M4 - 0.7 x 12

B56 P1861B56 SPECIAL BOLT

C01 P1861C01 TRIGGER

C02 P1861C02 SAFETY LEVER

C03 PRP02M ROLL PIN 3 x 16

C04 P1861C04 DRIVER GUIDE COVER B

C05 P1861C05 NOSEPIECE COVER

C06 P1861C06 SAFETY

C07 P1861C07 SPACER SLEEVE

C51 PSB07M CAP SCREW M6 - 1.0 x 30

C52 PSB20M CAP SCREW M5 - 0.8 x 14

C53 PSB21M CAP SCREW M4 - 0.7 x 30

C54 PSB22M CAP SCREW M4 - 0.7 x 35

C55 PLN01M LOCK NUT M4 - 0.7

C56 PLW03M LOCK WASHER 6mm

C57 PLW01M LOCK WASHER 5mm

-H- G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers

G3811 PARTS DIAGRAM

A53

A12

C56

C07

A01 A02

C02

C01

C03

C53

C54

C06

A55

A11

A57

A10

A57

A09

A56

A05

A51

A52

A03

A04

A17

A59

A58

A16

A13

A14

A54

A08

A07

A55

A54

A06

B09

B05

C58

C51

C52

C04

C05

B51

B06 B07

C59

C60

B52 C61

C55

C08

B10

B04

B51

B08 B05

B03

B53

B02

B01 C57

G1847 / G1852 / G 1861 / G3811 Air Nailers/Staplers -I-

REF PART # DESCRIPTION

B04 P3811B04 FIXED PIN

B05 P3811B05 SPRING STOPPER

B06 P3811B06 PUSHER

B07 P3811B07 FIXED PIN

B08 P3811B08 PUSHER SPRING

B09 P3811B09 FIXED PIN

B10 P3811B10 STOPPER

B51 P3811B51 E-CLIP

B52 PSB17M CAP SCREW M4 - 0.7 x 10

B53 P3811B53 HEX NUT

C01 P1861C01 TRIGGER

C02 P1861C02 SAFETY LEVER

C03 PRP02M ROLL PIN 3 x 16

C04 P3811C04 DRIVER GUIDE COVER B

C05 P3811C05 DRIVER GUIDE COVER A

C06 P3811C06 SAFETY

C07 P1861C07 SPACER SLEEVE

C08 P3811C08 ATTACHING PLATE

C51 PSB07M CAP SCREW M6 - 1.0 x 30

C52 PSB20M CAP SCREW M5 - 0.8 x 14

C53 PSB21M CAP SCREW M4 - 0.7 x 30

C54 PSB22M CAP SCREW M4 - 0.7 x 35

C55 P3811C55 CAP SCREW

C56 PLN01M LOCK NUT M4 - 0.7

C57 P3811C57 LOCK NUT

C58 PLW03M LOCK WASHER 6mm

C59 P3811C59 CAP SCREW

C60 P3811C60 LOCK WASHER

C61 P3811C61 LOCK WASHER

REF PART # DESCRIPTION

A01 P3811A01 NAILER BODY

A02 G2308 AIR FITTING

A03 P1861A03 CYLINDER

A04 P1861A04 BUMPER

A05 P3811A05 MAIN PISTON UNIT

A06 P1861A06 GASKET SET

A07 P1861A07 SPRING

A08 P1861A08 HD VALVE PISTON

A09 P1861A09 COPPER COVER

A10 P1861A10 SHAFT, VALVE

A11 P1861A11 SPRING

A12 P1861A12 COLLAR

A13 P1861A13 CAP

A14 P1861A14 INSERT OF CAP

A16 P1861A16 DEFLECTOR

A17 P3811A17 JOINT GUIDE

A51 P1861A51 O-RING

A52 P1861A52 O-RING

A53 P1861A53 O-RING

A54 P1861A54 O-RING

A55 P1861A55 O-RING

A56 P1861A56 O-RING

A57 P1861A57 O-RING

A58 PSB15M CAP SCREW M5 - 0.8 x 20

A59 PLW01M LOCK WASHER 5mm

A60 P1861A60 O-RING KIT

B01 P3811B01 DRIVER GUIDE

B02 P3811B02 COVER ASSEMBLY

B03 P3811B03 PLASTIC COVER
