Grizzly H6193 User manual

Introduction









Inventory

A.  

B.  

Operation







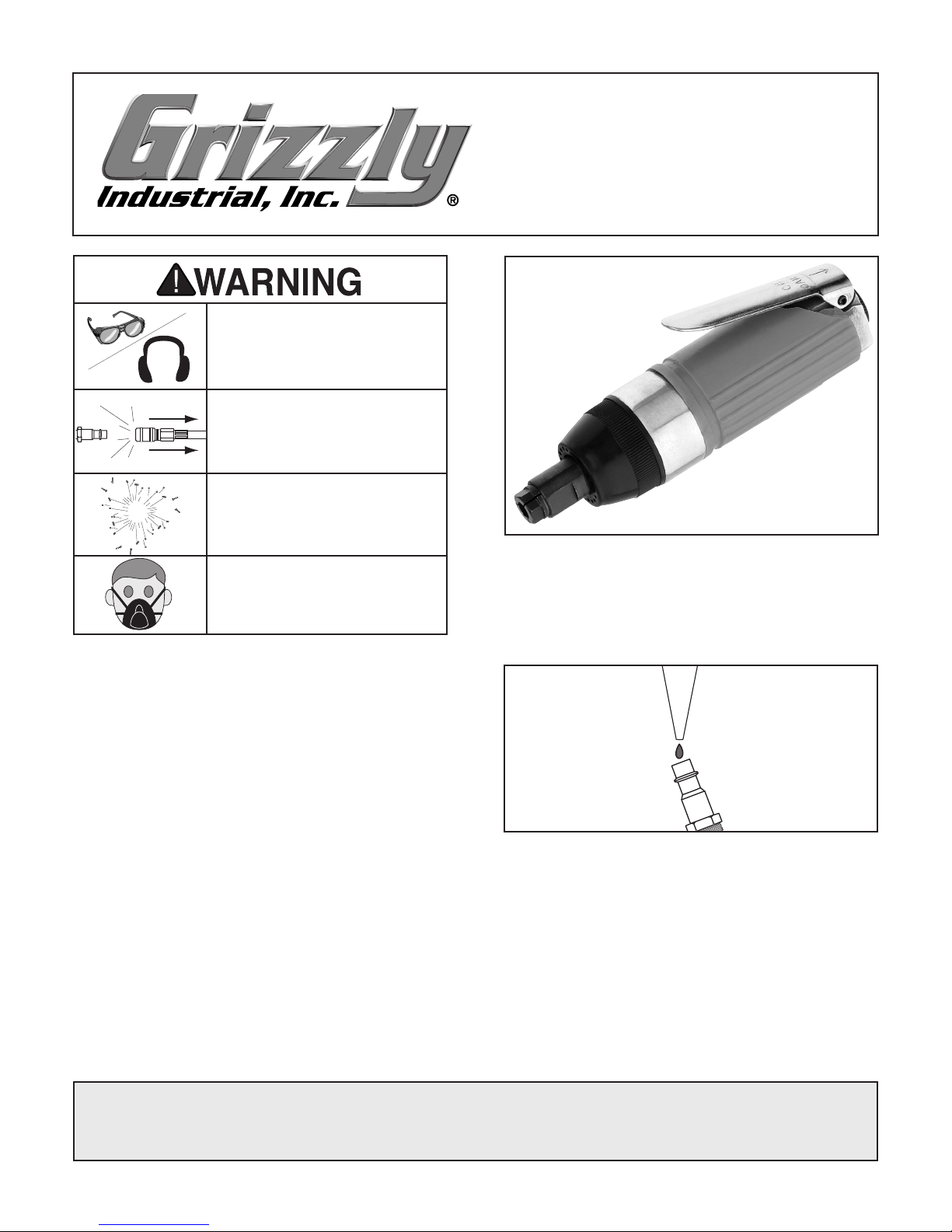

MODEL H6193

1⁄4" INDUSTRIAL

DIE GRINDER

INSTRUCTION SHEET

Figure 1. 



WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.



Figure 2. 

If you need help with your new pneumatic tool, call

our Tech Support at: (570) 546-9663.

   

        

Figure 2

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EYE/EAR INJURY HAZARD!

Wear safety glasses and

hearing protection during

use of this tool!

RESPIRATORY HAZARD!

Grinding produces fine

dust. Wear the appropriate

protection during use!

EXPLOSION HAZARD!

Never exceed 90 PSI! Always

use accessories with correct

speed rating.

H6193 Parts Breakdown and List

&* &)

&(

&' && &% '

&+

)

(

'(

')

&

*

+

,

-

.

&,

&-

&.'%

'&

''

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 PH6193001 HOUSING COVER 13 PH6193013 ROTOR BLADE

2 PH6193002 HOUSING 14 PH6193014 ROTOR

3 PH6193003 THROTTLE LEVER 15 PH6193015 CYLINDER

4 PH6193004 LEVER PIN 16 PH6193016 BEARING SPACER

5 PH6193005 VALVE PIN 17 PH6193017 FRONT END PLATE

6 PH6193006 VALVE 18 PH6193018 BEARING

7 PH6193007 COMPRESSION SPRING 19 PH6193019 SPINDLE

8 PH6193008 O-RING 20 PH6193020 RETAINER

9 PH6193009 VALVE CAP 21 PH6193021 HOUSING CAP

10 PH6193010 BALL BEARING 22 PH6193022 COLLET

11 PH6193011 REAR END PLATE 23 PH6193023 WRENCH 12MM

12 PH6193012 PIN 24 PH6193024 WRENCH 11MM
