Grizzly H6155 Quick start guide
Model H6155 Rotary Mini Grinder-10-

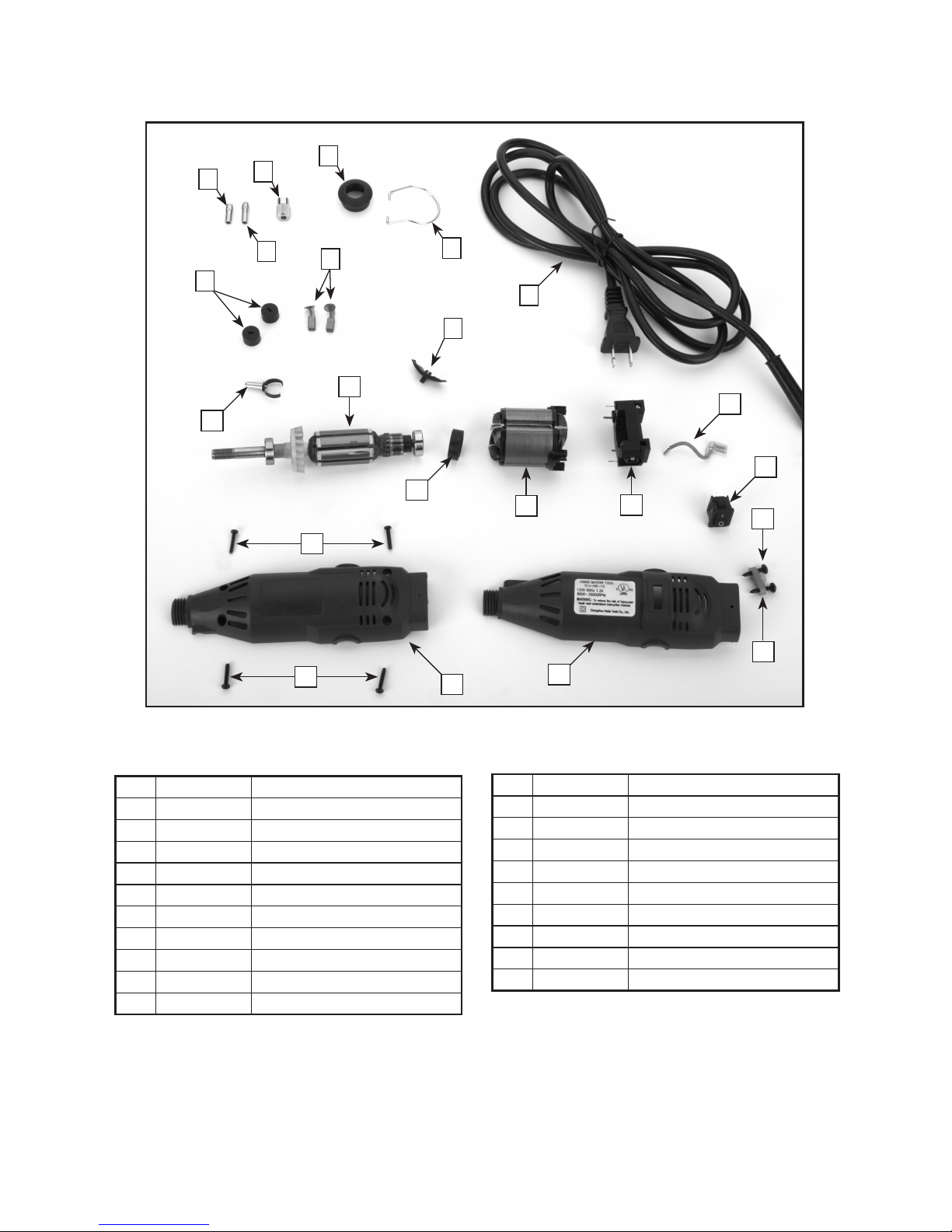

H6155 Rotary Mini Grinder Parts Breakdown
REF PART # DESCRIPTION
1 PH6155001 1/8" COLLET
2 PH6155002 3/32" COLLET
3 PH6155003 COLLET NUT
4 PH6155004 COLLET SHIELD
5 PH6155005 HANGER
6 PH6155006 PLUG AND CORD
7 PH6155007 BRUSH CAP
8 PH6155008 CARBON BRUSH
9 PH6155009 VARIABLE SPEED LEVER
10 PH6155010 COLLET LOCK
11 PH6155011 ARMATURE
1
2
34
5
6
7
8
9
10
11
12 13 14
15
16
19
20
21
21
17
18
REF PART # DESCRIPTION
12 PH6155012 RUBBER CAP
13 PH6155013 WINDING
14 PH6155014 ELECT CONNECTOR
15 PH6155015 CONNECTING WIRE
16 PH6155016 ON/OFF SWITCH
17 PHTEK4 TAP SCREW 10-24 X 3/8"
18 PH6155018 STRAIN RELIEF
19 PH6155019 TOP HOUSING
20 PH6155020 BOTTOM HOUSING
21 PHTEK3 TAP SCREW #5 X 1/2"
Model H6155 Rotary Mini Grinder -11-

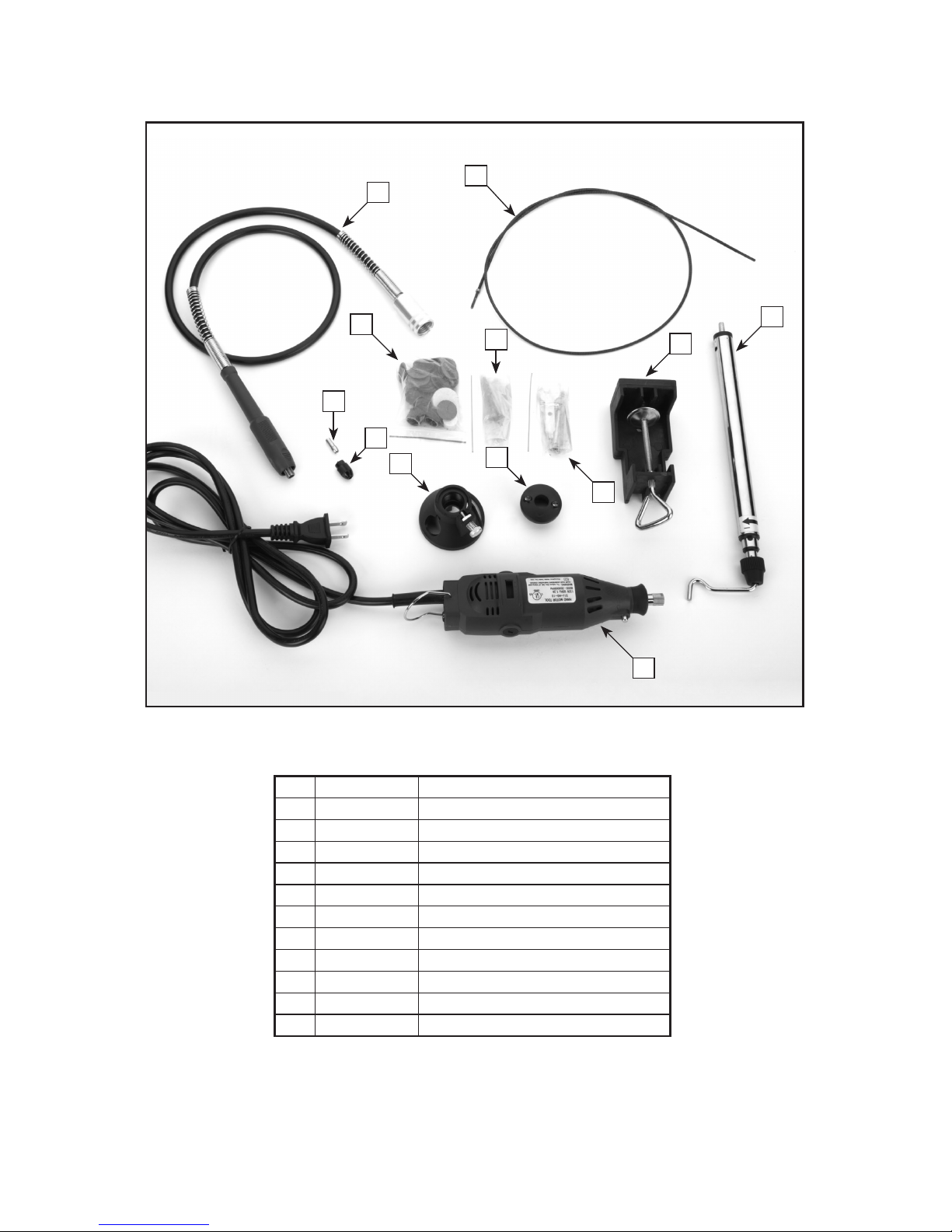

REF PART # DESCRIPTION
22 PH6155022 FLEX SHAFT
23 PH6155023 INNER SPINDLE
24 PH6155024 SANDING ASSORTMENT BAG
25 PH6155025 TOOL BIT ASSORTMENT BAG
26 PH6155026 CLAMP BASE
27 PH6155027 TELESCOPING TOOL HOLDER
28 PH6155028 TOOL BAG
29 PH6155029 FLASHLIGHT BASE
30 PH6155030 ROUTER BASE
31 PH6155031 FLEX SHAFT COLLET NUT
32 PH6155032 FLEX SHAFT COLLET
33 PH6155033 ROTARY MINI GRINDER
22
23
24 25 26
27
28
29
30
31
32
33
