INSTRUCTION MANUAL

GATOR®ES32

Battery-powered

Cable Cutter

Read and understand all of the instructions and

safety information in this manual before operating

or servicing this tool.

Serialnummer

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Description

The ES32 Battery-powered Cable Cutter is a hand-held,

self-contained cutting tool intended to cut aluminum

and copper cable only.

Safety

Safety is essential in the use and maintenance of

Greenlee tools and equipment. This manual and any

markings on the tool provide information for avoiding

hazards and unsafe practices related to the use of this

tool. Observe all of the safety information provided.

Purpose of this Manual

This manual is intended to familiarize all personnel with

the safe operation and maintenance procedures for the

following Greenlee tool:

ES32 Battery-powered Cable Cutter

Keep this manual available to all personnel.

Replacement manuals are available upon request at

no charge at www.greenlee.com.

All specications are nominal and may change as design

improvements occur. Greenlee Textron Inc. shall not be liable for

damages resulting from misapplication or misuse of its products.

GATOR is a registered trademark of Greenlee Textron Inc.

Tellus is a registered trademark of Shell Oil Company.

KEEP THIS MANUAL

Table of Contents

Description ..................................................................... 2

Safety ............................................................................. 2

Purpose of this Manual .................................................. 2

Important Safety Information ..................................... 3–4

Identication................................................................... 5

Specications................................................................. 5

Operation........................................................................ 6

Maintenance................................................................... 7

Troubleshooting.............................................................. 8

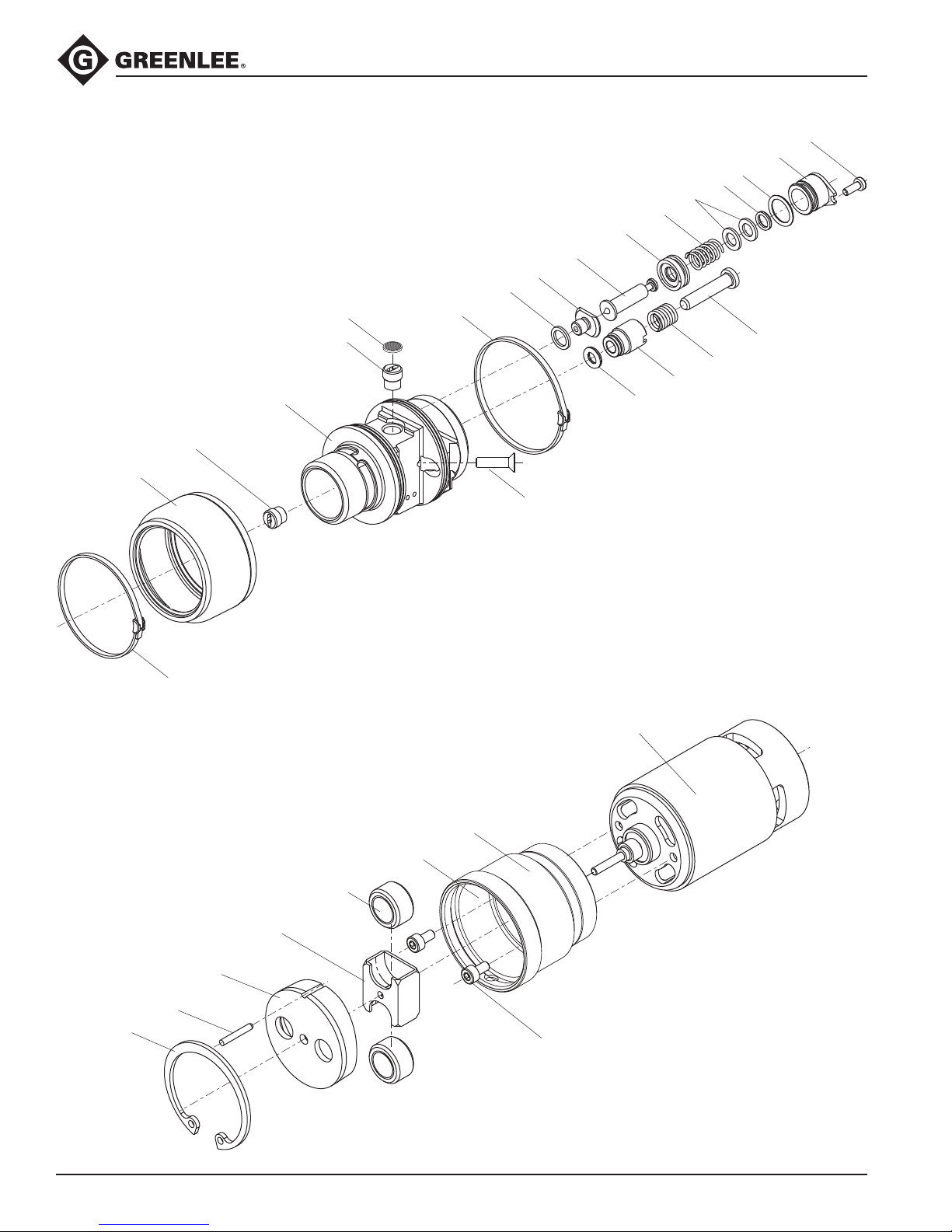

Illustrations ............................................................... 9–10

Parts List ...................................................................... 11

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

IMPORTANT SAFETY INFORMATION

SAFETY

ALERT

SYMBOL

This symbol is used to call your attention to hazards

or unsafe practices which could result in an injury or

property damage. The signal word, dened below,

indicates the severity of the hazard. The message

after the signal word provides information for pre-

venting or avoiding the hazard.

Immediate hazards which, if not avoided, WILL result

in severe injury or death.

Hazards which, if not avoided, COULD result in

severe injury or death.

Hazards or unsafe practices which, if not avoided,

MAY result in injury or property damage.

Read and understand all of the

instructions and safety information

in this manual before operating or

servicing this tool.

Failure to observe this warning

could result in severe injury or death.

Electric shock hazard:

This tool is not insulated. When

using this unit near energized

electrical lines, use proper personal

protective equipment.

Failure to observe this warning

could result in severe injury or death.

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from

ying debris or hydraulic oil.

Skin injection hazard:

Do not use hands to check for oil

leaks. High pressure oil easily

punctures skin causing serious

injury, gangrene, or death. If injured,

seek medical help immediately to

remove oil.

Do not use solvents or ammable

liquids to clean the cutting tool.

Solvents or ammable liquids could

ignite and cause serious injury or

property damage.

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Cutting hazard:

Keep hands away from the cutting

head when cutting.

Failure to observe this warning

could result in severe injury or death.

Do not dispose of batteries in a re. They will vent

fumes and may explode.

Failure to observe this warning could result in severe

injury from harmful fumes or burns from ying

debris.

Inspect tool and blades before use. Replace any

worn or damaged parts. A damaged or improp-

erly assembled tool can break and strike nearby

personnel.

Failure to observe this warning could result in severe

injury or death.

This tool is not designed for continuous use. After •

100 cutting cycles, allow the cutter to cool for 15

minutes.

Do not place the tool in a vise. The cable cutter is•

designed for hand-held operation.

This tool may be used in damp or wet environ-•

ments; however, we recommend air-drying the tool

before use if it becomes soaked.

Use this tool for the manufacturer’s intended •

purpose only.

Failure to observe these precautions may result in

injury or property damage.

Do not cut ACSR or steel.

Do not allow anything to contact the battery

terminals.

Do not immerse the batteries in liquid. Liquid may •

create a short circuit and damage the battery.

If batteries are immersed, contact your service

center for proper handling.

Do not place the battery into a pocket, tool pouch, •

or tool box with conductive objects. Conductive

objects may create a short circuit and damage the

battery.

Do not place a battery on moist ground or grass.•

Moisture may create a short circuit and damage

the battery.

Failure to observe these precautions may result in

injury or property damage.

Do not store the battery at more than 60 °C •

(140 °F). Damage to the battery can result.

Do not use another manufacturer’s charger. Other •

manufacturers’ chargers may overcharge and

damage the battery.

Do not attempt to open the battery. It contains no•

user-serviceable parts.

Failure to observe these precautions may result in

injury or property damage.

Do not perform any service or maintenance other

than as described in this manual. Injury or damage

to the tool may result.

Failure to observe this precaution may result in injury

and property damage.

Note: Keep all decals clean and legible, and replace

when necessary.

IMPORTANT SAFETY INFORMATION

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Identiﬁcation

Speciﬁcations

Cutting Tool

Length ........................................................................................... 400 mm (15-3/4")

Width................................................................................................. 60 mm (2-3/8")

Depth............................................................................................... 108 mm (4-1/4")

Mass/Weight (with battery)...................................................................0.8 kg (1.8 lb)

Sound Level .............................................................................. 75 dB (A) at 1 meter

Vibration .................................................................................................... < 2.5 m/s2

Hydraulic Oil...................................................................................Shell Tellus®T 15

Cutting Capacities

Maximum Cable Size with 2 cutting cycles .................. 500 kcmil (MCM) (300 mm2)

(Aluminum & Copper)

Maximum Cable Size with 1 cutting cycle .................... 400 kcmil (MCM) (240 mm2)

(Aluminum & Copper)

Average Cutting Time....................................................................................2 seconds

Average Cuts per Charge.............................................................approximately 150

Battery

Charging Voltage............................................................................................... 9.6 V

Charging Time.................................................................................................45 min

1. Cutting Head

2. Retract Button

3. Battery Lock

4. Battery Cartridge

5. Trigger

6. LED Display

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Operation

Electric shock hazard:

This tool is not insulated. When

using this unit near energized

electrical lines, use proper personal

protective equipment.

Failure to observe this warning

could result in severe injury or death.

Wear eye protection when operating

or servicing this tool.

Failure to wear eye protection could

result in serious eye injury from

ying debris or hydraulic oil.

Cutting hazard:

Keep hands away from the cutting

head when cutting.

Failure to observe this warning

could result in severe injury or death.

This tool is not designed for continuous use. After •

100 cutting cycles, allow the cutter to cool for 15

minutes.

Do not place the tool in a vise. The cutting tool is•

designed for hand-held operation.

This tool may be used in damp or wet environ-•

ments; however, we recommend air-drying the tool

before use if it becomes soaked.

Use this tool for the manufacturer’s intended •

purpose only.

Failure to observe these precautions may result in

injury or property damage.

Charging the Battery

Read the instructions supplied with the battery charger.

LED Display

This tool is equipped with a special circuit board

incorporating several important features to inform

the user about the currect status of the unit. The LED

signals in the following cases:

Signal Duration When it occurs What it means

a few seconds

of ﬂashing

battery

insertion self check - O.K.

glowing for

20 seconds after cut battery discharged

ﬂashing for

20 seconds (2Hz)

after cut time for inspection and

preventive maintenace

20 seconds

glowing and

ﬂashing

intermittently

after cut

battery discharged

—time for inspection

and preventive

maintenance

Cutting Cable

1. Insert the cable to be cut into the cutting head.

2. Pull the trigger to make the cut.

3. Hold the trigger down until the cutting tool achieves

pressure relief, which is accompanied by an audible

“pop”.

4. The cutting tool returns automatically.

Note: For some cables more than one cutting cycle may

be required to complete the cut. If the cable is not fully

cut during the ﬁrst cycle, move the cable as close to the

jaw pivot as possible and cycle the tool again.

Note: If it is necessary to retract the ram before a cutting

cycle is completed, push the retract button. Pushing

the retract button will result in the complete retraction

of the ram.

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Maintenance

Each Operating Day

Before use:

1. Inspect blades for wear or damage such as cracks,

gouges, or chips.

2. Inspect the tool for damage or leaks. If damage is

detected, return the tool to an authorized Greenlee

service center for inspection.

Skin injection hazard:

Do not use hands to check for oil

leaks. High pressure oil easily

punctures skin causing serious

injury, gangrene, or death. If injured,

seek medical help immediately to

remove oil.

After use:

1. Wipe all tool surfaces clean with a damp cloth and

mild detergent.

Do not use solvents or ammable

cleaners to clean the tool body.

Solvents could ignite, causing

serious injury or property damage.

2. Fully retract the ram. Place the tool in the carrying

case. Store in a cool, dry place.

3. Charge the battery.

Monthly

Thoroughly clean all surfaces.

Annually or After 10,000 Cuts

Return the tool to a Greenlee Authorized Service Center

for inspection.

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Troubleshooting

Before You Begin

1. Make sure that the battery is charged. Recheck the battery after several minutes to make sure the battery is

holding its charge.

2. Use a nonﬂammable contact cleaner or pencil eraser to clean the electrical contacts on the battery and

cutting tool.

3. Reinstall the battery and check the tool again.

Problem Probable Cause Probable Remedy

Tool is inoperative. Dirt, contaminants, etc., in ram area

of tool.

Clean tool.

Cutting tool battery contacts

damaged.

Reform contacts.

Tool components worn or damaged. Return tool to a Greenlee Authorized

Service Center.

Blades stop during operation. Oil level is low. Return tool to a Greenlee Authorized

Service Center.

Air in hydraulic system. Pull trigger and hold retract button

simultaneously. Hold for approximately

10 seconds.

LED glows for 20 seconds. Battery charge low. Charge or replace battery.

Tool loses oil. Damaged internal seal. Return tool to a Greenlee Authorized

Service Center.

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Illustrations—Main

141

10 11

146

144

143

147

142

148

145

140

141

104

103

93 100

101

102

ES32 Battery-powered Cable Cutter

Greenlee / A Textron Company 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070

Illustrations (cont’d)

Pump Housing Unit, Relief Valve Unit, and Piston Pump Assembly

Motor Assembly

55 50

36 37

123

122

121

120

Table of contents

Other Greenlee Cutter manuals

Greenlee

Greenlee GATOR ESG85GL User manual

Greenlee

Greenlee ESG65LXR User manual

Greenlee

Greenlee GATOR Plus ESG45GL User manual

Greenlee

Greenlee GATOR Plus ESG50GL User manual

Greenlee

Greenlee ES750 User manual

Greenlee

Greenlee GATOR ES1000 User manual

Greenlee

Greenlee GATOR ESG45GL User manual

Greenlee

Greenlee GATOR ESG45L User manual

Greenlee

Greenlee GATOR ESG50GL User manual

Greenlee

Greenlee 758 User manual

Greenlee

Greenlee GATOR ESG105LXR User manual

Greenlee

Greenlee GATOR ETS8 User manual

Greenlee

Greenlee ESG65LXR11 User manual

Greenlee

Greenlee ES20LXR User manual

Greenlee

Greenlee GATOR ETS12 User manual

Greenlee

Greenlee ES85 User manual

Greenlee

Greenlee KP1022 INS User manual

Greenlee

Greenlee Gator ES20HVX User manual

Greenlee

Greenlee GATOR CSG50GL User manual

Greenlee

Greenlee 773 User manual

Greenlee

Greenlee 881 Cam Track User manual

Greenlee

Greenlee 764 Guide

Greenlee

Greenlee 763 User manual

Greenlee

Greenlee 750 User manual

Popular Cutter manuals by other brands

Milwaukee

Milwaukee HEAVY DUTY M12 FCOT Original instructions

Makita

Makita DCS552 instruction manual

SignWarehouse.com

SignWarehouse.com Bobcat BA-60 user manual

Makita

Makita 4112HS instruction manual

GEISMAR STUMEC

GEISMAR STUMEC MTZ 350S manual

Hitachi

Hitachi CM 4SB2 Safety instructions and instruction manual

Dexter Laundry

Dexter Laundry 800ETC1-20030.1 instruction manual

GCC Technologies

GCC Technologies AFJ-24S user manual

DeWalt

DeWalt XR LI-ION DCS350N manual

Baudat

Baudat ES1 instruction manual

Mafell

Mafell ZAF 200 Operating instructions and spare parts list

Makita

Makita 4100NH instruction manual

Formax

Formax FD 574 Operator's manual

EINHELL

EINHELL TE-MA 1500 Original operating instructions

Husqvarna

Husqvarna Cut-n-Break K 760 Operator's manual

CLEAN ROOM DEVICES

CLEAN ROOM DEVICES CRD130SS Operator's manual

TRI tool

TRI tool 301A user manual

Roller

Roller King 1 1/4 operating instructions
