Grasslin Thermio eco B2B User manual

thermio™ eco B2B/B4B

EN Operating manual

This manual ensures safe and efficient use of the

“thermio™ eco B2B” or “thermio™ eco B2B B4B”

countdown timer (referred to as “device” in the fol-

lowing). This manual is a component of the device and

must remain accessible at all times for everyone who

uses the device.

2

Everyone who uses the device must have read and

understood this manual before commencing any work.

The basic prerequisite for working safely is compliance

with all safety instructions and usage instructions speci-

fied in this manual. Furthermore, the local accident pre-

vention regulations and the general safety regulations in

the area in which the device is operated apply.

Copyright

This manual is copyright protected.

EN

3

Handover of this manual to third parties, reproductions of

any type and form – including excerpts – and use and/or

disclosure of the content without the written permission

of Grässlin GmbH (referred to as “manufacturer” in the

following), except for internal purposes, is not permitted.

Violations will result in liability for compensation. The

manufacturer reserves the right to assert additional

claims.

The copyright is held by the manufacturer.

© Grässlin GmbH

Bundesstr. 36

78112 St. Georgen

GERMANY

4

Declaration of conformity and download instructions

The declaration of conformity for the device described in

this manual, a download of this manual, and the tech-

nical data can be found at

www.graesslin.de

.

EN

5

Overview................................................ 7

Safety................................................... 11

Installation............................................ 21

Operation............................................. 28

Disposal............................................... 32

6

Overview

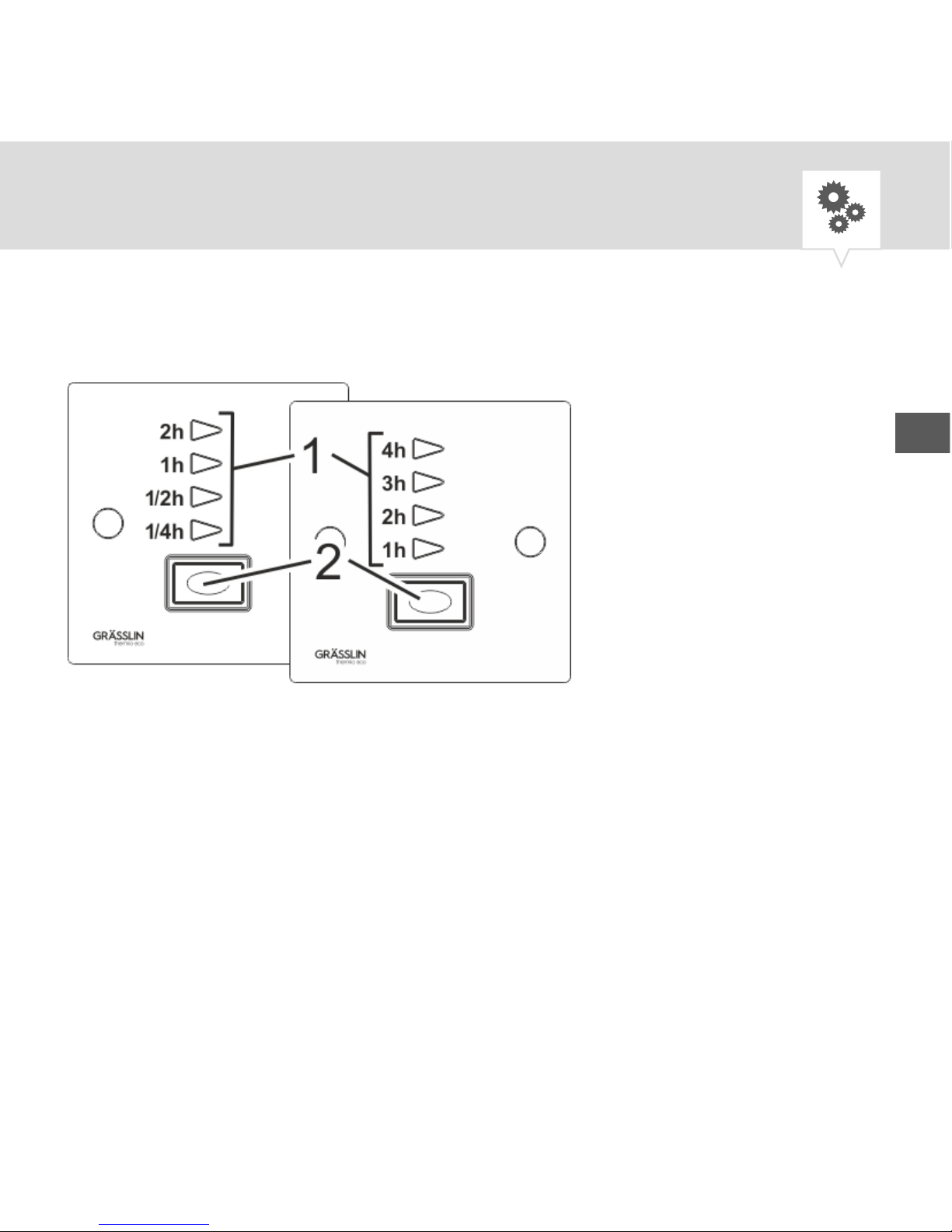

Fig. 1: Overview of “thermio™ eco B2B” (left) and

“thermio™ eco B4B” (right)

1 LEDs for time intervals

2

[Boost]

button

EN

7

Description of function

“thermio™ eco B2B” and “thermio™ eco B4B” are

countdown timers with selectable, predefined periods.

The connected devices are supplied with electricity

during the set periods. When the period ends, the con-

nected device is switched off.

The set periods are displayed by LEDs (Fig. 1/1) and can

be selected using the

[Boost]

button.

Adjustable periods

• “thermio™ eco B2B” countdown timer

− 1/4 h (15 min), 1/2 h (30 min), 1 h and 2 h

• “thermio™ eco B4B” countdown timer

− 1 h, 2 h , 3 h and 4 h

8

Elements Function

LEDs Display the selected period that is cur-

rently counting down

[Boost]

button

Select and activate the period

EN

9

The following components are included in the contents:

Number Designation

1 Countdown timer “thermio™ eco B2B”

or “thermio™ eco B4B”

2 3.5 mm screws

1 Strain relief clamps

2 Screw covers

1 Screw terminal (optional)
