GRASS VALLEY 8945EDA-D - V1.3.0 Instruction Manual

8945EDA/-D

HD EQUALIZING DISTRIBUTION AMPLIFIERS

Release Notes

Software Version 1.3.0

071875400

AUGUST 2010

2 8945EDA/-D — Release Notes

Contacting Grass Valley

International

Support Centers

France

24 x 7 +800 8080 2020 or +33 1 48 25 20 20 United States/Canada

24 x 7 +1 800 547 8949 or +1 530 478 4148

Local Support

Centers

(available

during normal

business hours)

Asia

Hong Kong, Taiwan, Korea, Macau: +852 2531 3058 Indian Subcontinent: +91 22 24933476

Southeast Asia/Malaysia: +603 7805 3884 Southeast Asia/Singapore: +65 6379 1313

China: +861 0660 159 450 Japan: +81 3 5484 6868

Australia and New Zealand: +611300 721 495 Central/South America: +55 11 5509 3443

Middle East: +971 4 299 64 40 Near East and Africa: +800 8080 2020 or +33 1 48 25 20 20

Europe

Belarus, Russia, Tadzikistan, Ukraine, Uzbekistan: +7 095 2580924 225 Switzerland: +41 1 487 80 02

S. Europe/Italy-Roma: +3906 87 20 35 28 -Milan: +39 02 48 41 46 58 S. Europe/Spain: +34 91 512 03 50

Benelux/Belgium: +32(0) 2 334 90 30 Benelux/Netherlands: +31 (0) 35 62 38 42 1 N. Europe: +45 45 96 88 70

Germany, Austria, Eastern Europe: +496150 104 444 UK, Ireland, Israel: +44 118 923 0499

This product may be covered by one or more U.S. and foreign patents.

Grass Valley Web Site

The www.grassvalley.com web site offers the following:

Online User Documentation — Current versions of product catalogs, brochures,

data sheets, ordering guides, planning guides, manuals, and release notes

in .pdf format can be downloaded.

FAQ Database — Solutions to problems and troubleshooting efforts can be

found by searching our Frequently Asked Questions (FAQ) database.

Software Downloads — Download software updates, drivers, and patches.

8945EDA/-D — Release Notes 3

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

8945EDA/-D Version 1.3.0 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Software Updating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Acquiring NetConfig Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Acquiring 8900NET Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Acquiring 8945EDA and 8945EDA-D Software . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Updating Software with NetConfig . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Update 8945EDA Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Update 8945EDA-D Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4 8945EDA/-D — Release Notes

Contents

8945EDA/-D — Release Notes 5

Version 1.3.0

AUGUST 2010

8945EDA/-D

HD/SD Equalizing DA

Release Notes

Introduction

These release notes provide important information and software updating

instructions for the latest release of 8945EDA and 8945EDA-D module soft-

ware, version 1.3.0. This update takes the 8945EDA module from version

1.0.0 to 1.3.0.

8945EDA/-D Version 1.3.0 Software Overview

Version 1.3.0 features the following new enhancements for both modules:

• Allows use of updated RoHS compliant modules (108525)

• Improves internal module reliability of 8945EDA-D (107966)

Version 1.3.0 features the following new enhancements for the 8945EDA-D:

• Previously, SNMP reporting would report an error for either DA1 or

DA2 and the user could not tell which DA had the error. Now the user

can enter a name for DA1 and a name for DA2 and the SNMP status

reporting will report the DA with an error by name. Refer to the Set-

tings web page for the 8945EDA-D in Figure 1 on page 6.

6 8945EDA/-D — Release Notes

Introduction

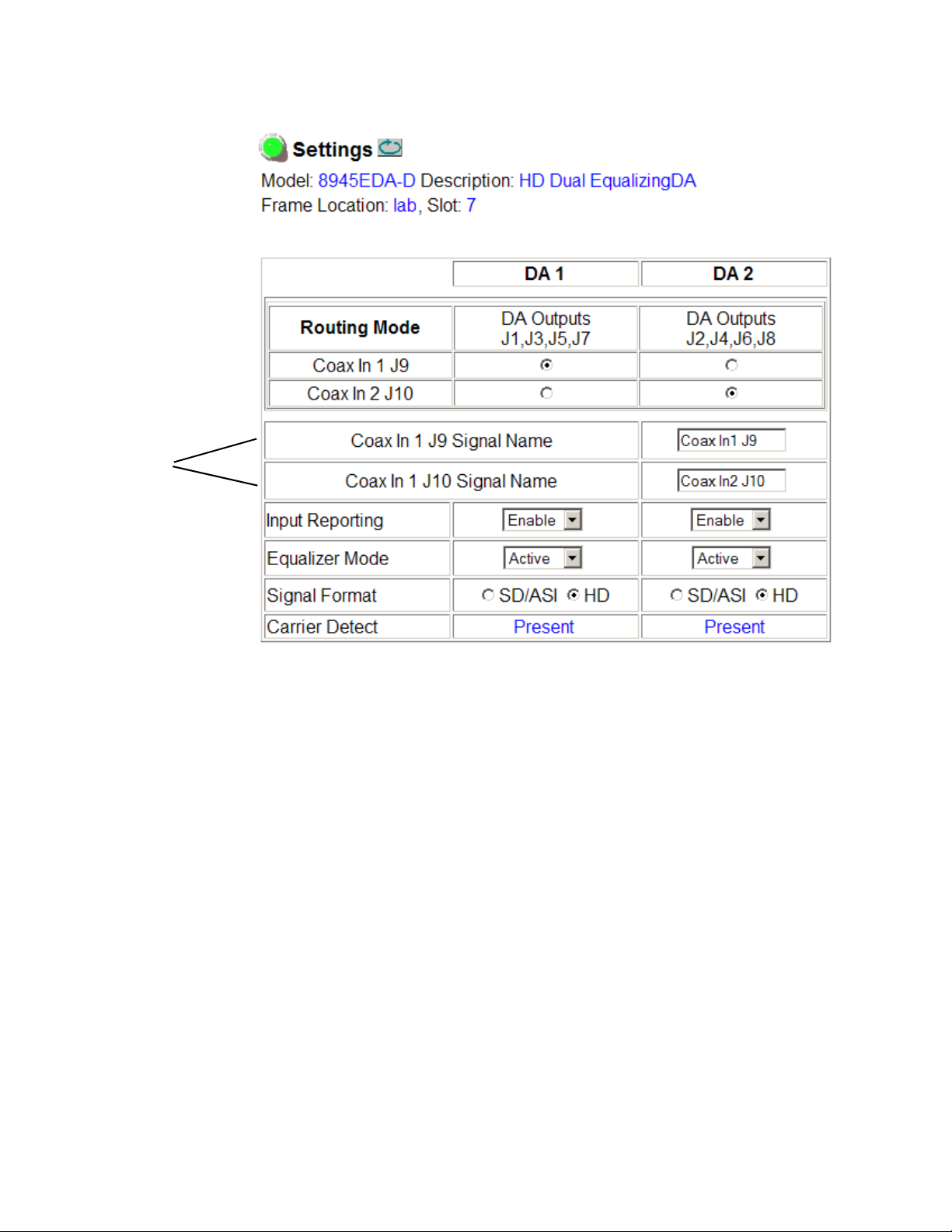

Figure 1. 8945EDA-D Settings Web Page

DA1 and DA2 now

have separate

Input Reporting

8945EDA/-D — Release Notes 7

Software Updating

For software updating, the Grass Valley PC application NetConfig (soft-

ware version 2.0.10 or later) is required. This update also requires an

8900NET (Net Card) module running the latest version software 4.3.0

installed in the GeckoFlex frame during the software update.

Acquiring NetConfig Application

The NetConfig networking application is a highly versatile tool for both

software updating and accessing modular and other Grass Valley products

on the network to view status and set module parameters. If you do not

have NetConfig or the latest version as of this printing (version 2.0.10), you

can download it free of charge from the Grass Valley ftp site at this URL:

ftp://ftp.grassvalley.com/router/NetConfig/Version%202.0.10/

1. Right-click on the latest NetConfig link to download the zipped file to

a folder on your local PC.

2. Extract the zipped files onto your local drive.

3. Double-click on the NetConfig.exe file to install NetConfig.

Note Installing NetConfig into the default location given in the install script

(C:\Programs\Grass Valley Group) is recommended for future NetConfig and

module software updates.

Acquiring 8900NET Software

The latest version of 8900NET (Net Card) software required for this update

(version 4.3.0) is available from the Grass Valley ftp site free of charge at the

following URL:

ftp://ftp.grassvalley.com//modular/8900/8900NET

To download the latest 8900NET software, do the following:

4. Select the 8900 Series link.

5. Select the link to the latest 8900NET Interface module software.

6. If you are updating from an earlier version than 3.2.0, use the .bin file

and the FTP Server procedure described in detail in the 8900NET

Instruction Manual available on-line.

7. Use the NetConfig Networking Application option to update from

version 3.2.2 to version 4.3.0 with the .fld file.

8 8945EDA/-D — Release Notes

Software Updating

Acquiring 8945EDA and 8945EDA-D Software

1. The latest 8945EDA and -D module software update files are available

on the Grass Valley ftp site at this URL:

ftp://ftp.grassvalley.com/modular/8900/8945EDA/

2. Copy the 8945EDA and/or 8945EDA-D .xml and .fld files listed below

onto your PC from the ftp site.

• 8945EDA_v1.3.0.xml

• 8945EDA_1.3.0.fld

• 8945EDA-D_SW_v1.3.0.xml

• 8945EDA_D_1.3.0.fld

with any new parameters that have been added.

CAUTION Be sure to record your current settings on each module before updating soft-

ware. Write down parameters or take screen shots of your web pages as you

will have to reload all previous settings.

Updating Software with NetConfig

To update with NetConfig make sure you have the following:

• PC with NetConfig Networking application at version 2.0.10 or later

installed (version 2.0.10 is the latest version available) (see Acquiring

NetConfig Application on page 7),

• An 8900NET (Net Card) module in the frame running version 4.3.0 or

later software (seeAcquiring 8900NET Software on page 7),

• The 8945EDA and/or 8945EDA-D software update files for version

1.3.0 (see Acquiring 8945EDA and 8945EDA-D Software on page 8), and

• IP connection between the GeckoFlex frame and your PC.

1. On your local C:\ drive, locate the NetConfig program directory. This

directory is normally in the default location in C:\Program Files\Grass

Valley Group\NetConfig.

Note If you have installed NetConfig in another location, find the location of the

NetConfig directory by right-clicking on the NetConfig shortcut. Select Prop-

erties and note the location in the Start In field.

8945EDA/-D — Release Notes 9

Software Updating

2. Move the required .xml and .fld files listed below you downloaded

onto your PC into the main NetConfig directory.

• 8945EDA_v1.3.0.xml

• 8945EDA_1.3.0.fld

• 8945EDA-D_SW_v1.3.0.xml

• 8945EDA_D_1.3.0.fld

3. In the main NetConfig directory, locate a folder named modular. If this

folder does not exist, create a folder called modular in the main

NetConfig directory.

4. Move the .fld file(s) from the main NetConfig directory into this modular

directory.

5. Make sure the .xml file(s) remains in the main NetConfig directory, not

the modular folder.

6. Open NetConfig by double clicking on the NetConfig icon on your

desktop.

Note If you have not used NetConfig before, refer to the NetConfig Instruction

Manual included during installation in the main NetConfig directory in PDF

format (NetConfig.pdf).

7. Click on the Load SW button on the top of the NetConfig toolbar.

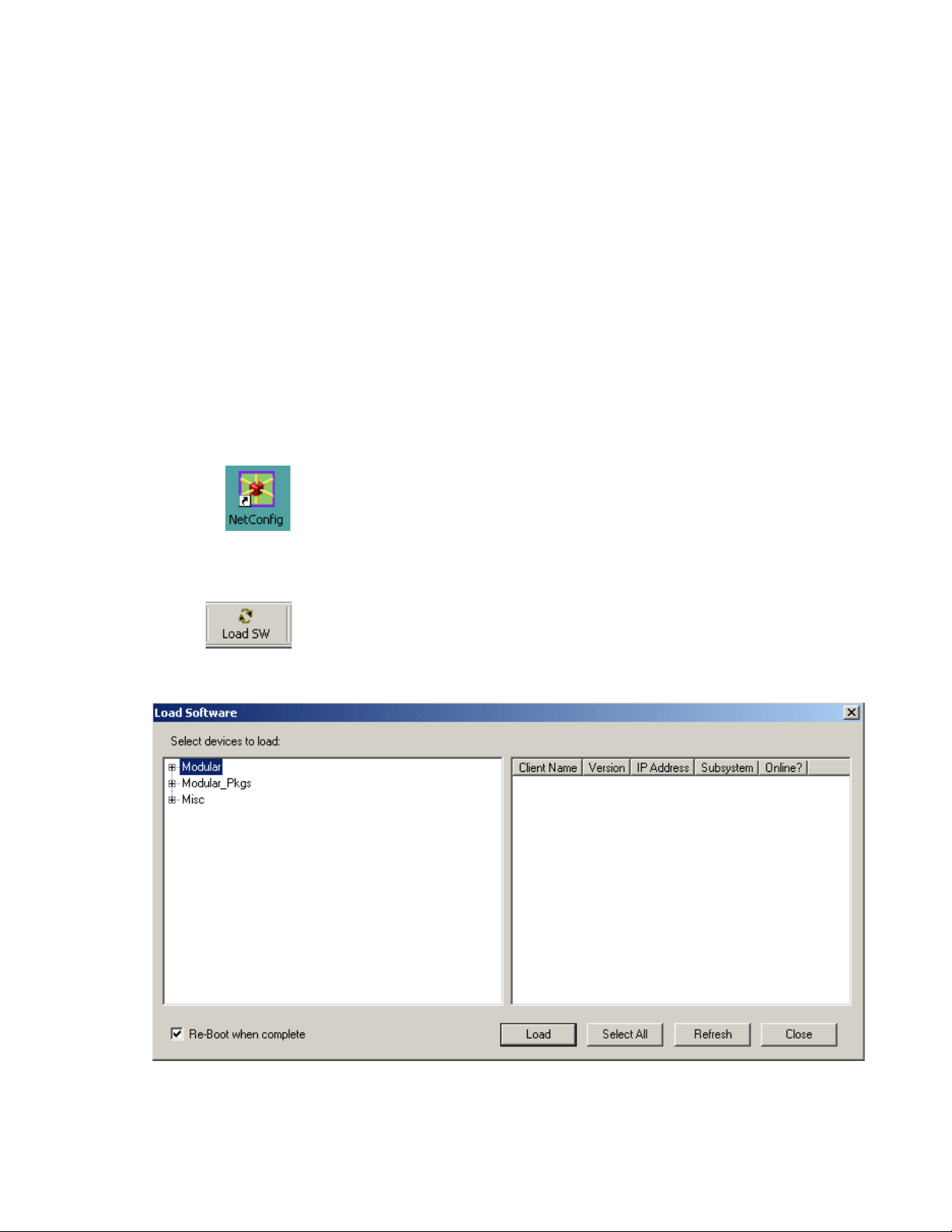

8. This will bring up the NetConfig Load Software screen (Figure 2).

Figure 2. NetConfig Main Software Load Screen

10 8945EDA/-D — Release Notes

Software Updating

9. If you done previous software downloads for Grass Valley products,

you may have a Modular, a Modular_Pkgs, and possibly a Misc directory,

and possibly router and other products listed on the left.

10. For this update, open the Modular_Pkgs directory by selecting the +.

Refer to the following pages for the update procedures:

•Update 8945EDA Modules on page 10

•Update 8945EDA-D Modules on page 14

After updating, check for proper module operation.

Update 8945EDA Modules

1. To update the 8945EDA modules, In the Modular_Pkgs directory open the

8900 directory, then the 8945EDA directory as shown in Figure 3.

Note Software versions displayed may vary depending on when the modules were

last updated or purchased.

2. Click on the SW(1.3.0) selection to bring up all of the 8945EDA modules

on the network in the Client Name list on the right.

3. Check the 8945EDA module checkboxes you wish to update in the

Client Name list. You may update all devices at once if desired by

clicking on the Select All button at the bottom of the screen. Or you may

only check the corresponding checkboxes only next to the specific

modules you need to update.

4. Check the Re-Boot when complete checkbox in the lower left corner of the

Load Software screen.

Note Please read the Caution on page page 8, before updating software.
