Grandview LF-VMF-77 User manual

Instruction Manual for

Large-Flat Series Adjustable Fixed-Frame Screen

Model：VMF-xxxLF-

Product Specification

Scree n Size

W (mm) L (mm) H (mm) A (mm)

16:9 77 "

80 "

92 "

100"

106”

Wrinkle on the frame When using normally, the wrinkle can be removed naturally. The removing

period will change with 1-15days according to the temperature. Watering

can remove the wrinkle faster.

Three years warranty

Grandview provides three years warranty. Contents of warranty include replacement of spare parts while problems

occur with correct operation. Not include inappropriately operating the screen or uninstall the screen by yourself.

You should reserve in advance for the repair with Grandview or appointed service center.

Side Frame Bar

Side View

105mm

60mm

Concave Frame

Bar Side View

110mm

38.5mm

60mm

LF- -77

LF- -80

LF- -92

LF- -100

LF- -106

LF- -120

VMF

VMF 120”

1705

1771

2037

2214

2346

2656

958

996

1145

1245

1320

1494

1915

1981

2247

2424

2556

2866

1258

1296

1445

1545

1620

1794

Thank you for purchasing a Grandview projection screen.

Before use, please read instructions carefully. After installation, store instructions for future reference.

Front View Side View

Note:

1. Due to product updates, sizes and specifications are subject to change at any time. The tolerance for L is approximately ± 5mm (3/16 inches).

2. Actual dimension is measured by: total screen length x end cap depth x end cap height.

Questions & Answers

Fabrics of Grandview screen can be used for years, most problems are caused by simple incidents. If problem

occurs, please find the list below for some common solutions. If problems keep on, please contact authorized

agent of Grandview or call service number at: (8620)34806166

REPRODUCING GENUINE COLORS

Caution

Cleaning

Clean the casing of screen with a soft cloth and lukewarm water.

Do not use any detergent or cleaning products.

Please follow the instruction to operate.

Please contact the professional people for repairing.

4.After hanging on the bracket, please adjust the screen horizontally and ensure the hole of hanging piece and the

holes of low bracket is at the same level, and then fasten the security fixing screws into the holes (figure 15-16)

figure 15 figure 16

Top Bracket

Security Fixing Screw

Frame

Hanging Piece

Low Bracket

Security Fixing Screw

Frame

Hanging Piece

Groove

figure 13 figure 14

3.Buckle the hanger of concave frame bar on top and low bracket, figure 13-14.

figure 11 figure 12

please prevent screen from wet place to avoid electric or fire danger

1. Please read carefully with this instructions before installation to avoid the damage caused by inappropriate

installation or operation

2. Please keep the screen away from hot sources, such as radiator, heating machine, fireplace, loudspeaker

or other relative device.

3. Please handle the repair work to the professional agent

4. Please prevent screen from water as well as putting stuff with water (such as vase) on the screen.

5. Please make sure which one is front or back of product.

6. Please put down the screen carefully because of the aluminum alloy frame.

7. Please cover the screen by cloth if it is not being used for a long time.

8. Please do not poke screen fabric with hand or edge tools to avoid marking on the screen surface.

Warnings:

Please follow the installation as below:

a.Wood wall installation: fix the top and low bracket on the wall using the 5X60mm wood screw (3 screws on

each bracket) (figure 11).

b.Concrete wall installation: drill six proper holes on the concrete wall with electric drill, then fix the top and low

bracket on the wall using the 5X40mm tapping screw and then fasten with the anchor (3 screws on each bracket)

(figure 12).

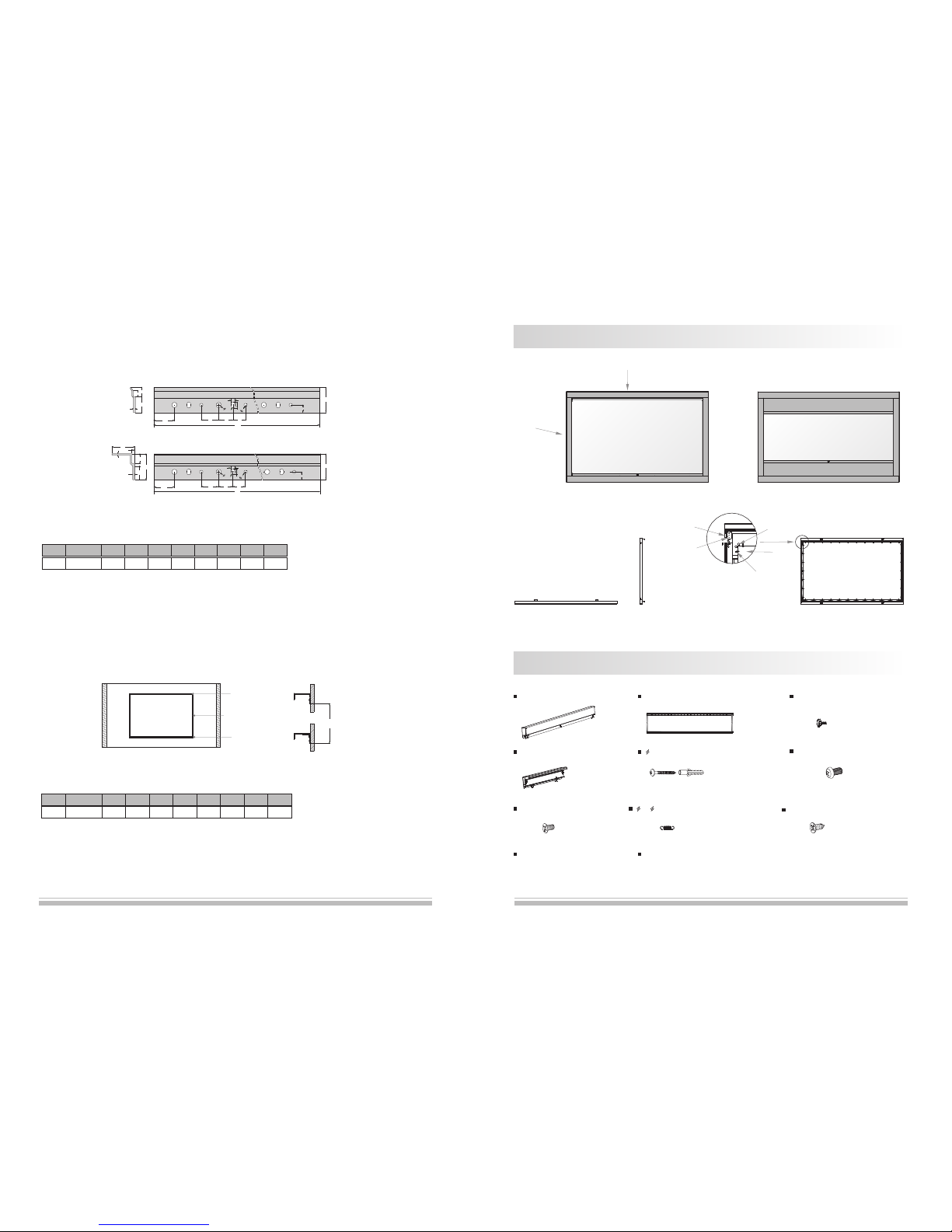

Screen Installation

figure 8

120 32 23 20

Front View

Front ViewSide View

Side View

Top Bracket

Low Bracket

unit：mm

Sp ecific atio n

Form at

16:9

77" 80"

Lt (mm) 1000 1000

92" 100" 106" 112" 120"

1150 1150 1300 1300 1450

150"

1750

Table 2: the length of bracket (Lt)

Note: due to product updates, sizes and specifications are subject to change at any time.

2.Top bracket and low bracket are connected by a belt when delivery. The top bracket shall keep balance with the

low bracket vertically because of the universal gravitation. Please ensure the distance between the top bracket

and the low bracket is the same as the data of table shows us (if not, please measure), and then fix the frames on

the wall ( please refer the data to make sure the distance between top and low bracket) (figure 9-10)

Top Bracket

Low Bracket

figure 9 figure 10

Link

Side Frame Bar

Concave Frame Bar

幕布

Front View（16:9）

Top View Back View

Screen

Rod

Connecting Board 2

Connecting Board 1

Spring

Screen

Front View（2.35:1）

Description

Accessories

Con cave Frame Ba r （2pcs）

Sid e Frame B ar （2pcs）

Ins truc tion Ma nual (1 pc)

Warranty C ard (1pc)

5×40mmTapping wit h Anch or（8sets）

Top& Low Br acket (1pc)

Side View

M4X6mm Screw(8pcs)

Security Fixing Screw (2pcs)

M2.5X8mmTapping Screw（4pcs）

7x 0.8x28mmSpring（A numb er）

M5X8mmScrew 12pcs（）

1489

Table 3: the safety distance between two brackets

Specif ic atio n

Format

16:9

77" 80" 92" 100" 106" 112" 120"

Note: due to product updates, sizes and specifications are subject to change at any time.

1063 1101 1250 1350 1424 1499 1599

150"

1972

Distance(mm)

1.Each screen has a set of bracket. Each bracket has a number of corresponding holes and 3 holes per group,

Please refer to figure 8.

Installation

Frame Installation

Open the packing box, check whether the components which need to be installed are complete or not according to

the Accessory Diagrammatic Sketch in the user manual, then take out all the small components carefully from the

packing box and put them at a suitable place, finally install it according to the operating method as below:

figure 1

figure 2

1.Put the fixing lug into the slots of top and bottom bars, taking the following table as reference (figure 1).

Side Frame Bar

Concave Frame Bar

1.Pull up the top bar to a suitable distance in order to attach the bar plug into it. And then insert the connecting

board 1 and the connecting board 2 into Side Frame Bar (please operate together in two sides). Finally, fasten

the corresponding screws: figure 2

Top Bar

Plug

Connecting

Board 2

Connecting Board 1

M4X6mm

Screw

M5x8mmScrew

M2.5x8mm

Tapping Screw

figure 3

3.The installation of low bar is the same as top bar. Notice: please pull up the top bar to a suitable distance and keep

it when o perating this step, othe rwise, the low bar can not be pulled out, and then the installa tion is completed

(figure 3).

figure 5 figure 6

figure 4

Screen Fabric Installation

1.Put the whole frame upside down and then unwrap the screen fabric (avoid scraping the fabric when

unwrapping) (figure 4).

2.Put the tension bars to the four slots of screen fabric (note: this is a step suggested to be completed by two

persons, one to hold the screen fabric and the other pull through the tension bar) (figure 5-7).

Installation for spring of concave frame bar

Spring

Screen Fabric

Rod

Position for Frame Hanger

Installation for spring of side frame bar

Position for

Frame Hanger Spring Rod Screen Fabric

figure7

Concave Frame Bar

Side Frame

Bar Top Bar

Pull up t he top bar

This manual suits for next models
