INTRODUCTION
Grandstream GXP1610/1620/1625/1628 SIP phone supports the BroadWorks Xtended Services
Interfaces (Xsi) Directories and Call Log features. This User Guide will describe how to configure and use
the BroadWorks Xsi Directories and Call Logs features on GXP1610/1620/1625/1628. To learn more about
GXP1610/1620/1625/1628 features, please visit http://www.grandstream.com/support to download the
latest “GXP1610/1620/1625/1628 User Guide" and " GXP1610/1620/1625/1628 Administration Guide".
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 4 of 15
BROADWORKS XTENDED SERVICES INTRODUCTION
BroadWorks Xtended Services Interfaces (Xsi interfaces) are a set of application programming interfaces
supporting the integration of BroadWorks functions with Internet services to create Web Application or
mashups. Currently, service providers offer a voice service consisting of connectivity, features, phone
numbers and usage or minutes. By adding a public web service interface to the offering, the voice services
can be integrated with existing Internet services. This integration is done outside of BroadWorks. It can be
done by end users, the service providers, or third party developers to provide applications that normally
could not be offered in a mainstream offering.
The Xsi-Actions are a set of RESTful APIs that allows resources to be defined and addressed over HTTP
with simple XML. This approach requires less client-side software to be written than other approaches and
is the overwhelming choice for developers to create Web Applications. These APIs allow a remote
application to control and query BroadWorks.
ARCHITECTURE AND MESSAGING
The Xsi-Action is a Web Application that runs in a container like the BroadWorks Xtended Service Platform
(Xsp). Xsi-Action is responsible for authenticating the requests received from the remote applications. It is
also responsible for providing requests and response mapping and for routing events received from the
BroadWorks core.
When an HTTP requests is received from the remote application and successfully authenticated, then the
request is processed by the BroadWorks core and an appropriate response is generated.

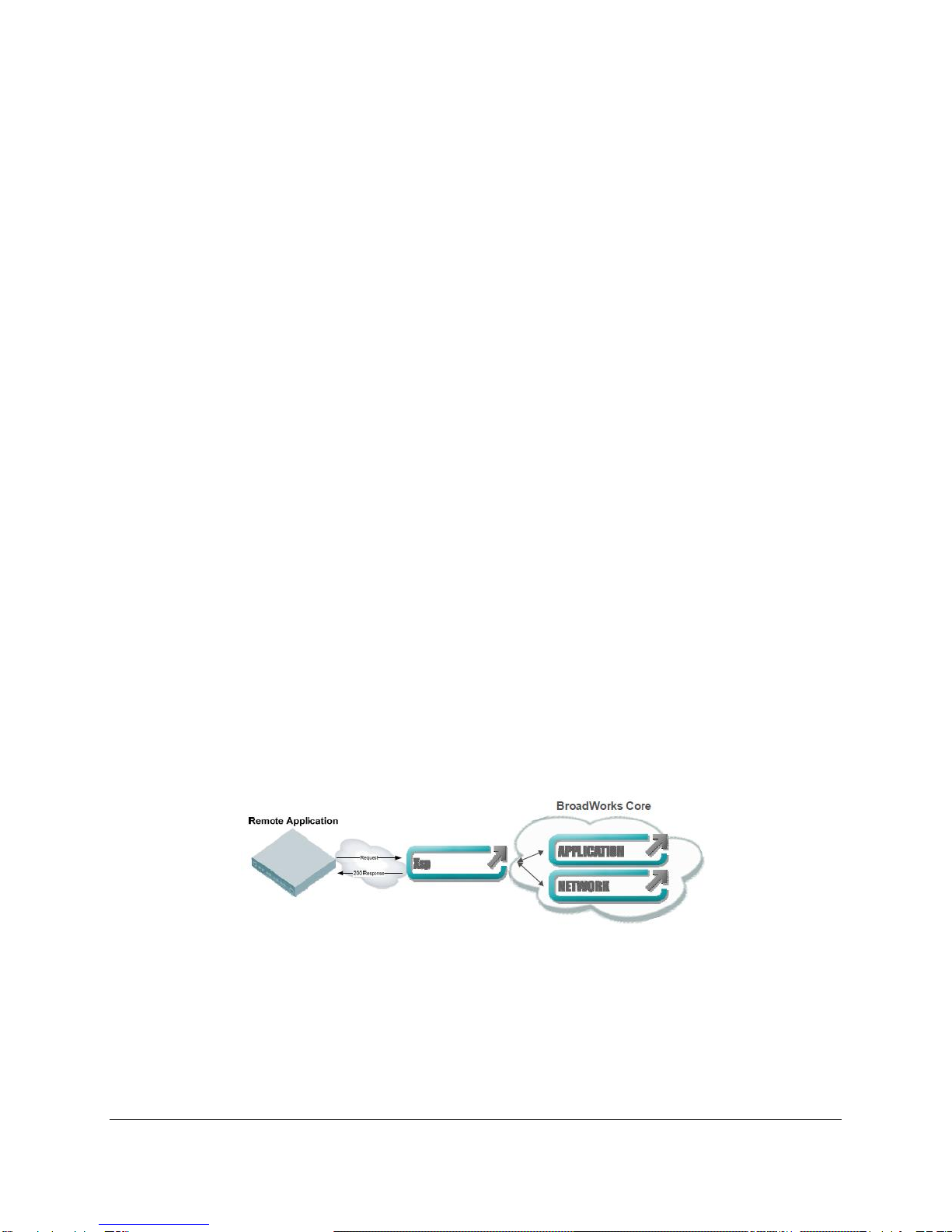

Figure 1: Xsi-Actions Requests-Response
The BroadWorks Xsi Directories and Xsi Call Logs feature allows user to access the phonebook and call
log entries managed by BroadWorks Servers via the Xsp server.
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 5 of 15
BROADWORKS XSI DIRECTORY AND CALL LOGS
CONFIGURATION
BROADWORKS SERVER CONFIGURATION
The BroadWorks Xsi Directories and Call Logs configuration is completed by the BroadWorks server
administrator or service provider. End users should be given Xsp server URI and user credentials to
access the service.
GXP PHONE CONFIGURATION
1. Log in Web GUI and register the BroadWorks account on the phone.
2. Browse to SettingsBroadWorks Xsi:
Fill the BroadWorks XSP server address in the Server blank. If the BroadWorks Xsp server
requires to use the HTTPS, please add the header “https://” ahead of BroadWorks Xsp server URI.
For example, “https://xsp1.iop1.broadworks.net”.
Fill the XMPP port number in the Port blank. The default port number is 80. If the BroadWorks Xsp
server requires to use the HTTPS, please fill the HTTPS port number “443” in the blank.
Fill the BroadWorks Xsi credentials in Username and Password blanks.
If users need to use the selected Directory or Call Log categories, please set the categories’
setting “Enabled”.
The GXP phone assigned end user rights to rename each directory or call log category. If user files
customized names into a blanks, it will override the default name. For example, the Group
Directory’s default name is “Group Directory” if it keeps blank. If the user files “Grandstream” into
the blank, the phone will display “Grandstream” to for the Group Directory.
The following figure shows an example of how to configure the Broadsoft Directories settings on the
GXP1610/1620/1625/1628 phones:
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 6 of 15

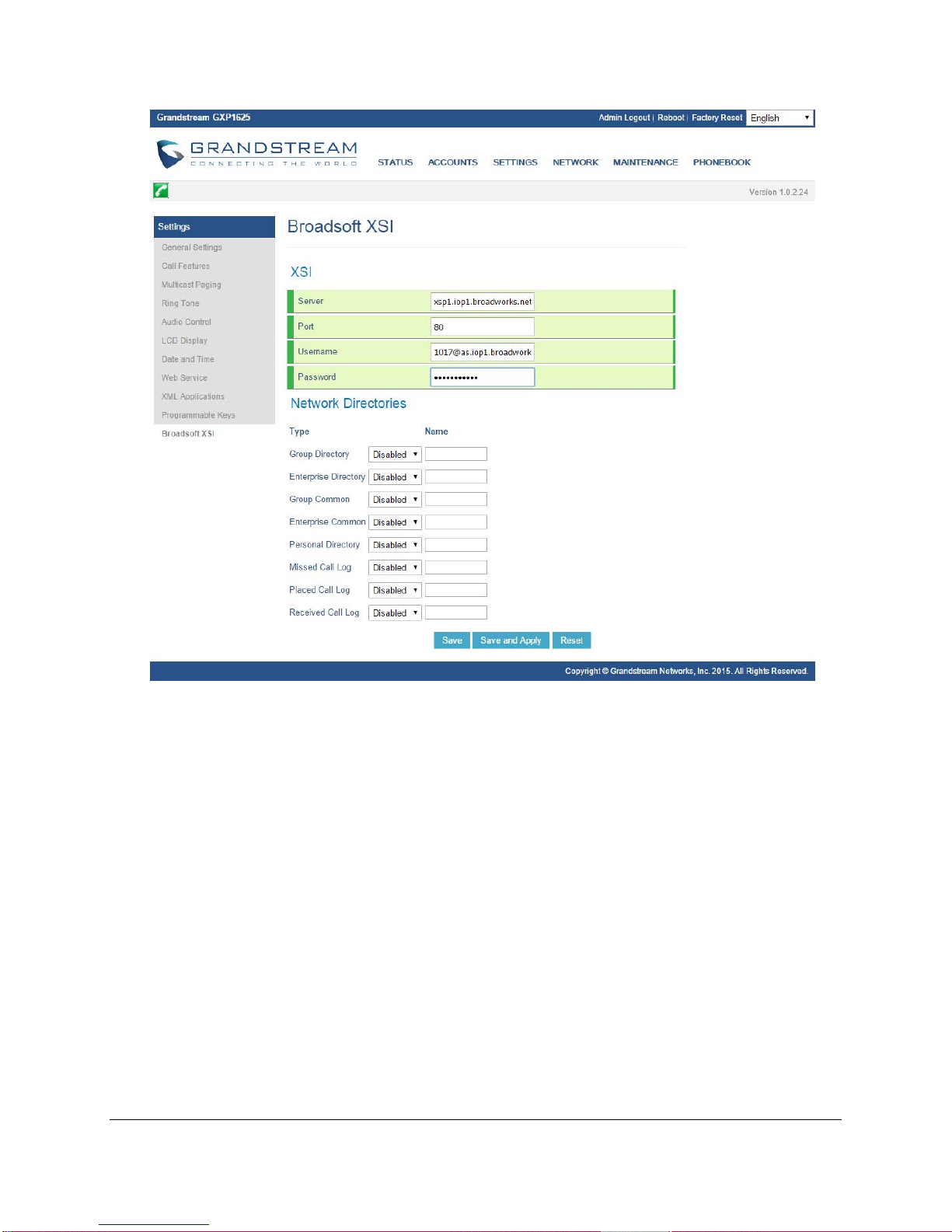

Figure 2: Web-GUI –Broadsoft Directories Feature Show on the Phone
BROADWORKS XSI DIRECTORIES
After configuration, users can use Broadsoft Xsi Directories features on GXP phones. Please do as the
following steps:
1. Press the Menu button on the pad to enter the configuration menu.
2. Select the “Phone Book”.
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 7 of 15
Figure 3: LCD Configuration Menu - Contacts
3. Select Broadsoft Phonebook to enter the Directory page.
Figure 4: Contact Page
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 8 of 15
4. After entering the Broadsoft phonebook page, the LCD screen will display the enabled BroadWorks
Xsi directories.
Figure 5: Broadsoft Phonebook Page
5. Select the destined Directory and press the Menu/OK button. Then the phone will download the
directory entries from the BroadWorks server and will traverse to show them on the LCD screen. The

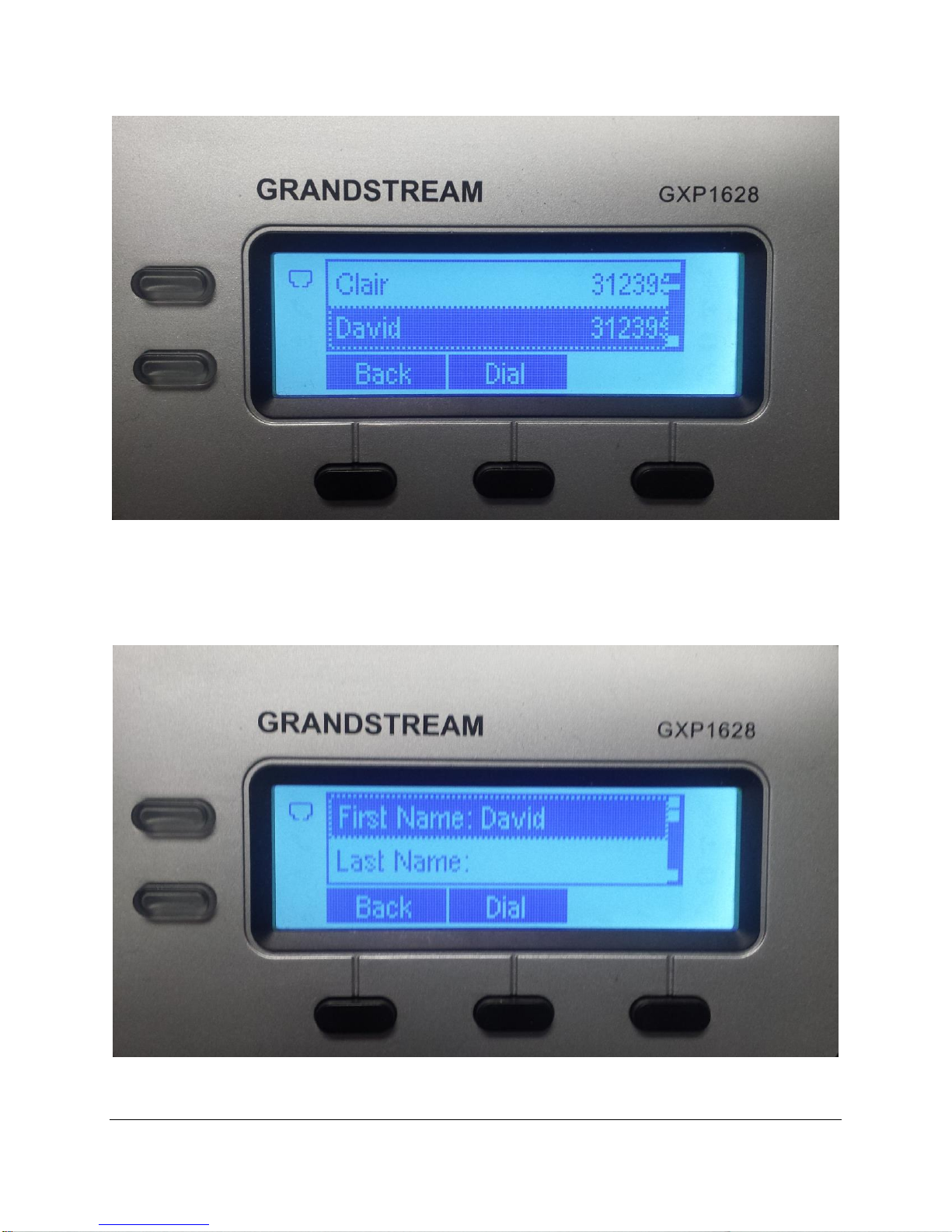

following figure shows the GXP phone display the Group Common directory entries. It is also able to
select one entries and press the “Dial”to make an outbound call to the contact via the Account 1
registered on the phone.
GXP1610/1620/1625/1628
BroadWorks Xsi Directories and Call Logs User Guide
Page 9 of 15
Figure 6: Broadsoft Group Common
6. Select a contact and press the Menu/OK button to view more details about the contact. The following
figure shows an example of details of a contact:
Figure 7: Broadsoft Contact Entry Page
