Graco TURBOBOOSTER PD349130E User manual
Do not install or use this child
restraint until you read, understand
and follow the instructions in this
manual and the warnings on
the car seat.
FAILURE TO PROPERLY USE THIS
CHILD RESTRAINT INCREASES THE
RISK OF SERIOUS INJURY OR DEATH
IN A SUDDEN STOP OR CRASH.
TURBOBOOSTER
www.gracobaby.ca
PD349130E 11/18
2
1-A Quick Guide to Your Manual
1-B Welcome to the Graco Family
1-C Before You Begin
Register This Car Seat
If You Need Help
Certification
Car Seat’s Useful Life
Vehicle Seat Protection
Warm Weather Use
1-D Safety Warnings
1 Important Pages 5-19
2 Features Pages 20-23
2-A Car Seat Features
3
3 Booster Pages 24-27
4-A Securing Child Backed Booster
4-B Securing Child Backless Booster
4 Securing Child Pages 28-37
3-A Booster Use
3-B Install Booster
3-C Install Backless Booster
5 Accessories Page 38
4
6-A Choosing Vehicle Seat Location
6-B Unsafe Vehicle Seat Location
6-C Vehicle Seat Belts
7-A Cleaning Seat Pad
6 Vehicle Information Pages 39-42
7 Care & Cleaning Pages 43
Adult Assembly Required

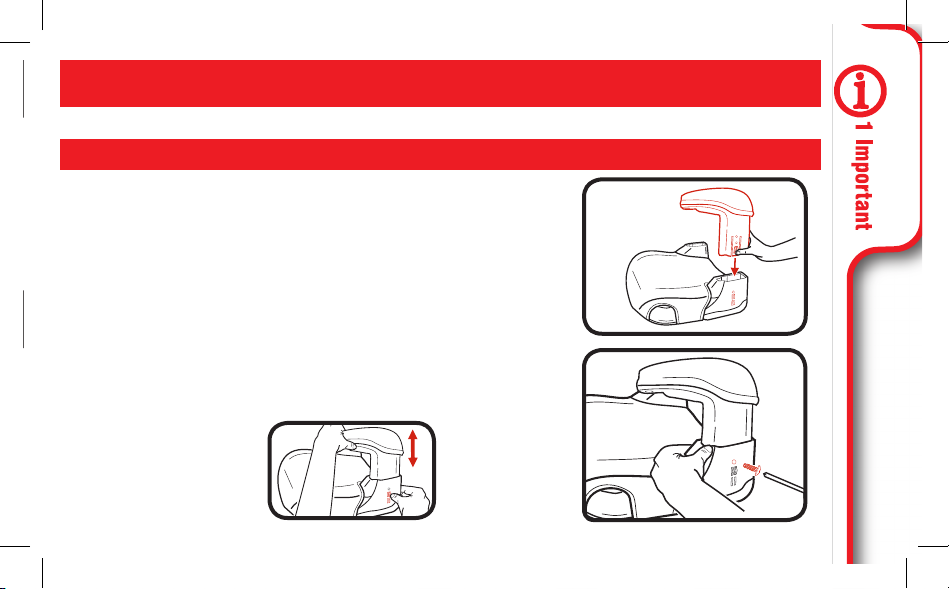

1. Armrests
Insert armrest into base as shown until buttons snap into
slots on side of base.
Select the desired armrest height for your child, then insert
the height adjustment screw and tighten. Repeat for other
armrest.
To adjust armrests, remove screw and press in button on
side of base as shown to raise or lower. Reinsert screw and
tighten.CHECK to make sure armrests are securely attached
by pulling up on them.
5
1-A Quick Guide to Your Manual
This car seat is for children: Booster: 18-45 kg (40-100 lb) 110-145 cm (43-57 in)
Car Seat Assembly (On Select Models)
Adult Assembly Required
1. Armrests
Insert armrest into base as shown until buttons snap into
slots on side of base.
Select the desired armrest height for your child, then insert
the height adjustment screw and tighten. Repeat for other
armrest.
To adjust armrests, remove screw and press in button on
side of base as shown to raise or lower. Reinsert screw and
tighten.CHECK to make sure armrests are securely attached
by pulling up on them.
6
2. Armrest Covers
Slip armrest covers onto armrests as shown.
(on certain models)
3. Back support pad (on select models)
On certain models, your
lower back support pad
may not be attached to
the back support. Place
lower back support pad
around edges of support
as shown. Then fasten
lower elastic strap to the
metal hook on the other side of the seat pad.
7

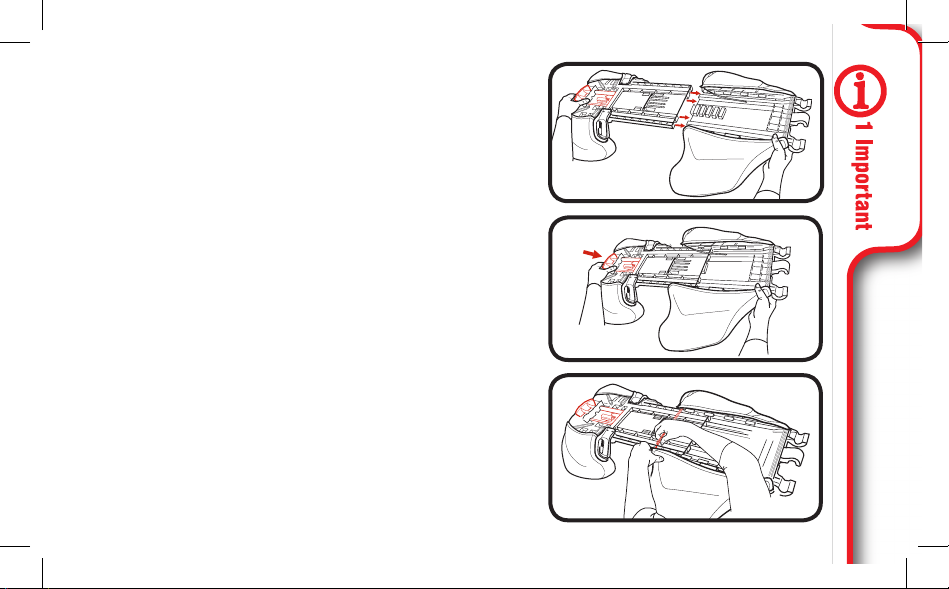

4. Head support (on select models)
Flip head support and lower back support over
as shown.
Squeeze red adjustment button and slide two pieces
together until they snap into place.
CHECK to make sure two pieces are securely
snapped together by pulling on them.
Attach elastic strap to metal hook on other side of
seat pad as shown.
8

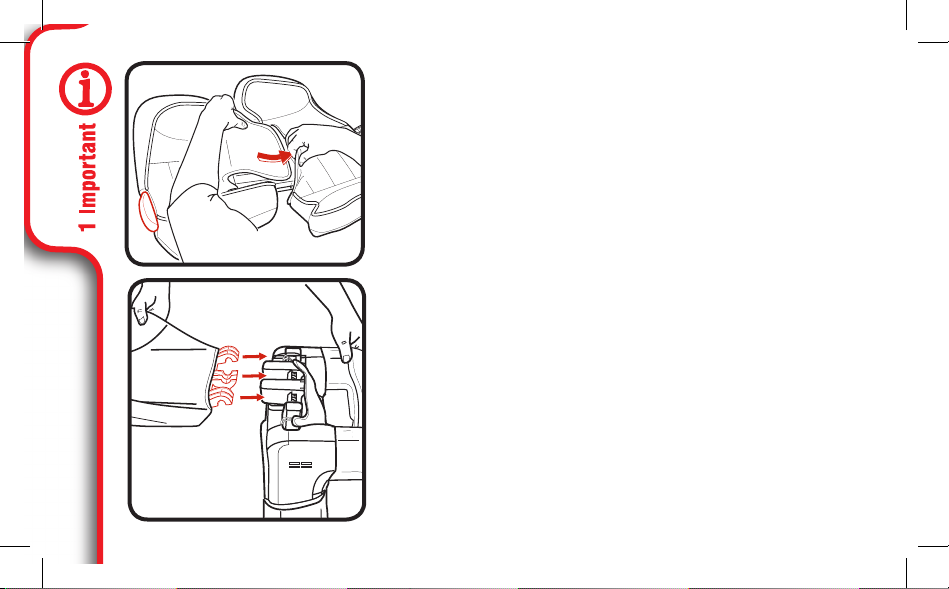

5. Head support pad (on select models)
Flip seat over and insert the fabric from the head
support underneath the fabric on the lower back support
as shown.
To make insertion of fabric easier, slide the upper and
lower back pieces apart by squeezing the red adjustment
button.

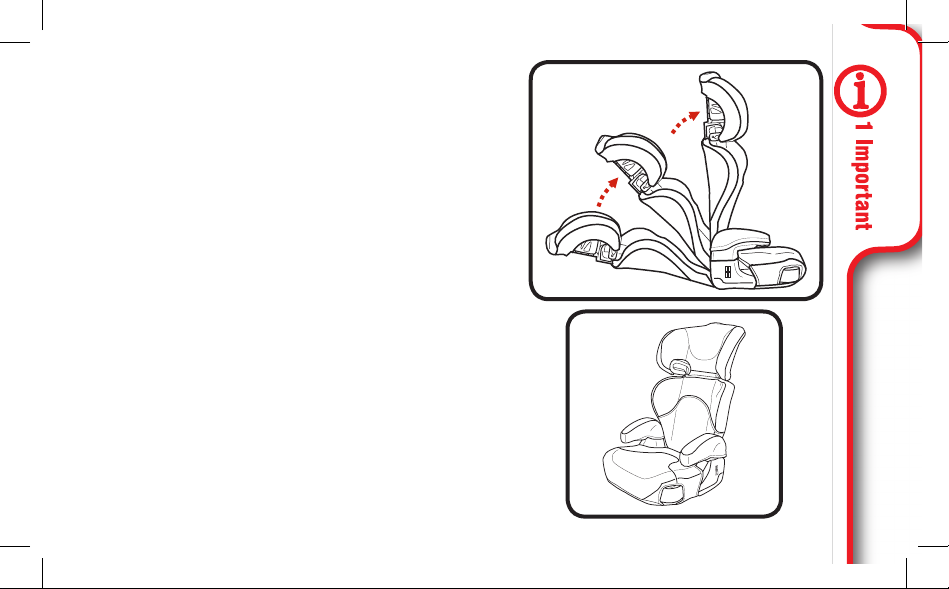

6. Backrest (on select models)
Attach backrest to base. “U”-shaped hooks on bottom
of backrest will interlock with bars on base.
Make sure that no part of the seat covering interferes
when attaching backrest to the base.
Once backrest is securely attached to the base, push
backrest up as shown.
Your Graco booster seat is now ready to use.
9
Once backrest is securely attached to the base, push
backrest up as shown.
Your Graco booster seat is now ready to use.
10
Get to Know Your Car Seat
What Seating Location Should I Use?
Review section 2-A to see all of the features of this booster seat.
The best seating location for this booster seat is one that:
• Is recommended by your vehicle owner’s manual, and
• Results in a secure installation of this booster seat.
Some vehicles have specific requirements for where the booster seat can be installed,
so be sure to check your vehicle owner’s manual for available seating positions, if any.
For example, sometimes the center rear seat has a lap belt only vehicle seat belt, which
cannot be used with this booster seat.
Review section 6-B and 6-C of this manual AND your vehicle owner’s manual.
According to collision statistics, the safest place for
your child in any vehicle is the back seat. The center
of the back seat can be the safest during a possible
side impact.
