Graco NAUTILUS User manual

READ THIS MANUAL

Do not install or use this child restraint until you read and understand the instructions in this manual.

FAILURE TO PROPERLY USE THIS CHILD RESTRAINT INCREASES THE RISK OF SERIOUS

INJURY OR DEATH IN A SUDDEN STOP OR CRASH.

Child Restraint / Booster Seat Owner’s Manual

featuring

Table of Contents

1.0 Warnings to Parents and Other Users

...........................4-5

2.0 Registration Information ..............6

2.1 Register Your Child Restraint ......6

2.2 For Recall Information ...........6

2.3 If You Need Help ...............7

3.0 Useful Information ..................7

3.1 Certification....................7

3.2 Child Restraint Useful Life.........7

3.3 Second Hand Child Restraint ......7

4.0 Features........................8-9

5.0 Assembling the Child Restraint ....10-13

6.0 WARNINGS...................14-15

7.0 Height and Weight Limitations ........16

7.1 WITHBuilt-inHarness...........16

7.2 WITHOUTBuilt-inHarness.......17

7.3 WITHOUT Back Support.........18

8.0 Choosing an Appropriate Vehicle

Seat Location ...............19

8.1 Vehicle Seat Location

Requirements ............19

8.2 Vehicle Seat Belt Requirements

......................20

8.3 SAFE Vehicle Seat Belt

Systems ................20

8.4 For Built-in Harness Only . .21

8.5 WITH or WITHOUT Built-in

Harness ................22

8.6 To Install Locking Clip......23

8.7 UNSAFE Vehicle Belt

Systems..............24-25

9.0 LATCH......................26

9.1 WhatisLATCH?.......26-27

9.2 LATCHSystem........28-29

10.0 Using Child Restraint WITH Built-in

Harness .................30-35

Table of Contents (cont.)

11.0 Securing the Child Restraint in Your

Vehicle .....................36

11.1 Using a Child Restraint WITH a

Built-inHarness ..........36

11.2 With a Vehicle Lap or

Lap/shoulder belt ......36-37

11.3WithLATCH..........38-39

12.0 Securing Your Child in the

Child Restraint ............40-41

13.0 Harness Removal .........42-46

14.0 Using Your Child Restraint WITHOUT

Built-inHarness...........47-49

15.0 Securing Child & Booster Seat in . .

Vehicle ....................50

16.0 Adjusting Head Support........51

17.0 Removing Back Support ....52-54

18.0 Securing Child in Vehicle Belt with

Shoulder Belt Positioning Clip.... 55-58

19.0 Using the Tether ..................59

19.1 Storing LATCH and Tether......60

20.0 Airplane Use ....................61

21.0Accessories .....................62

21.1 Body Support and

HarnessCovers..............62

22.0 Recline Foot ....................63

23.0 Care and Maintenance .............64

23.1 Buckle Cleaning Process .......65

24.0 To Remove Seat Cover ............66

25.0 Owners Manual Storage. ...........67

26.0 Replacement Parts and Warranty . . ...68

1.0 Warnings to Parents and Other Users

NEVER PLACE THIS CHILD RESTRAINT INA VEHICLE

SEATING LOCATION THAT HAS A FRONTAIR BAG. If an air

bag inÀatesit can hit the child and child restraint with great force

and cause serious injury or death to your child. Refer to your

vehicle owner’s manual for information about side air bags and

child restraint installation.

Failure to properly use this child restraint increases the risk of serious injury or death in a sharp

turnsudden stop or crash. Your child’s safety depends on you installing and using this child

restraint correctly.

Even if using this child restraint seems easy to ¿gure out on your ownit is very important to READ

THE OWNER’S MANUAL and the vehicle owner’s manual.

Your child’s safety depends on:

1. Choosing the correct mode of use for the child restraint depending on your child’s size.

2. Inserting the harness straps (if needed) in the proper slots for your child.

3. Selecting a suitable location for the child restraint in your vehicle.

4. Properly routing the vehicle seat belt or LATCH.

5. Properly securing the child restraint in the vehicle using a seat belt designed to restrain

both the child restraint and your child or by using LATCH. Many seat belts are NOT safe to use

with this child restrainteven though they can easily be threaded through or around the child

restraint!

6. Properly securing your child in the child restraint.

2.0 Registration Information

Please ¿ll in the above information. The model number and date of manufacture can be found on a

label on the child restraint. Fill out the prepaid registration postcard attached to the harness and

mail it today.

Child restraints could be recalled for safety reasons. You must register this restraint to be reached

in a recall. Send your nameaddressand the restraint’s model number and date of manufacture to:

Graco Children’s Products Inc.

Attn: Customer Service

3 Glenlake Parkway

Atlanta, GA 30328

or call 1-800-345-4109 or register online at:

http://www.gracobaby.com/carseatregistration

2.1 Register Your Child Restraint

Call the U.S. Government’s Vehicle Safety Hotline at: 1-888-327-4236

(TTY:1-800-424-9153), or go to http://www.NHTSA.gov or contact Graco:

1-800-345-4109 or www.gracobaby.com

2.2 For Recall Information

Model Number:

Date of manufacture:

Purchase Date:

3.2 Child Restraint Useful Life

Please contact our Customer Service Department with any questions you may have concerning

partsuseor maintenance. When you contact usplease have your product’s model and

date of manufacture ready so that we may help you ef¿ciently. These numbers can be found

on a label on the child restraint.

USA: 1-800-345-4109 or www.gracobaby.com

www.cpsc.gov www.NHTSA.gov www.seatcheck.org

2.3 If You Need Help

THIS CHILD RESTRAINT

CONFORMS to all applicable

Federal Motor Vehicle Safety

Standards and is certi¿ed for

use in motor vehicles.

It is certi¿ed for use in Aircraft

only when used with the

built-in harness. When used

as a booster without the

harnessthis restraint is NOT

certi¿ed for use in aircraft.

3.1 CertiÀcation

Graco Children’s Products Inc. advises against loaning or

passing along a child restraint.

3.3 Second Hand Child Restraint

3.0 Useful Information

STOP using this child restraint and throw it away 10 years after the

date of manufacture.

Look for this sticker on rear

of child restraint: MODEL

Date of Manufacture

GRACO CHILDREN'S PRODUCTS, INC.

ATLANTA, GA 30328 1-800-345-4109

Made in China

PD206938A

NAME

year month day

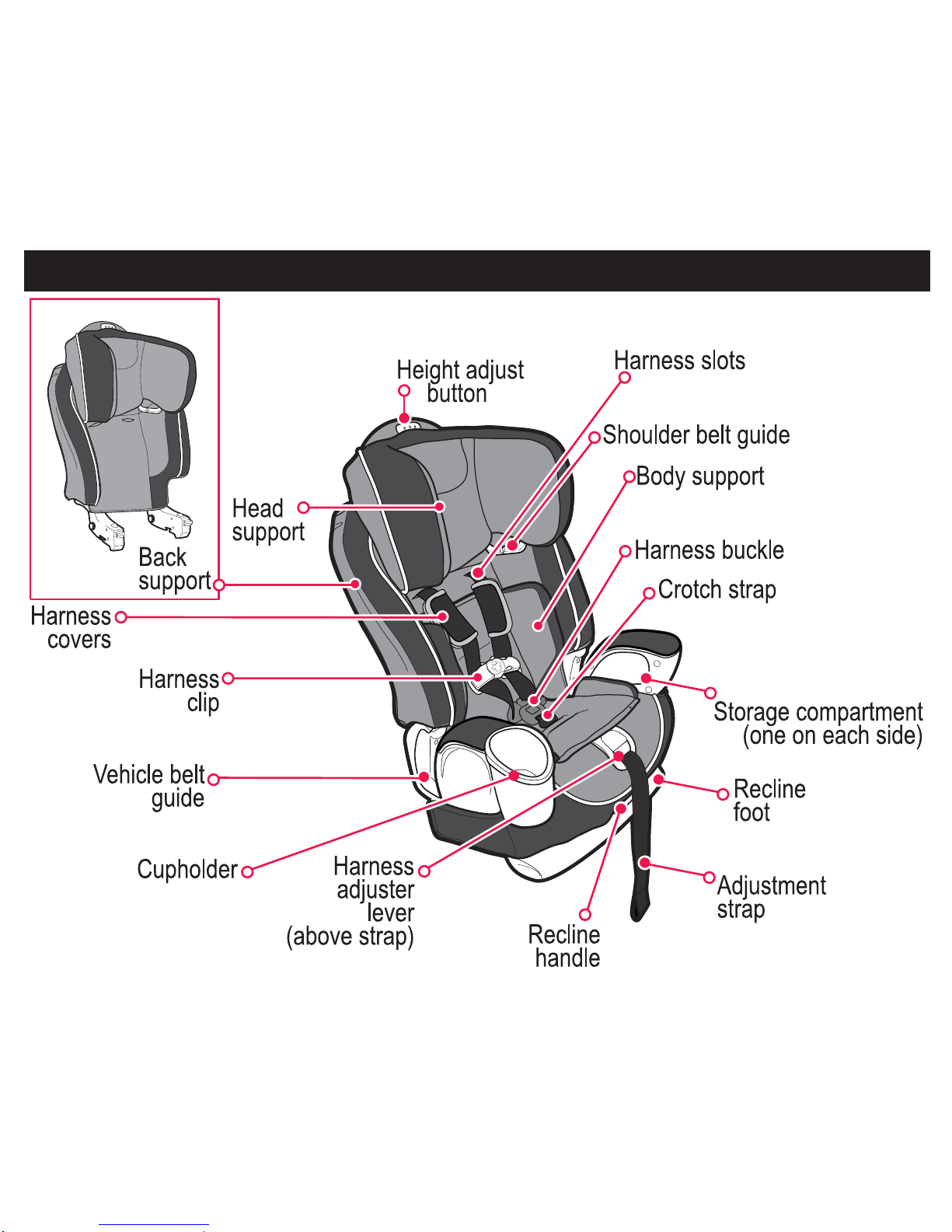

4.0 Features

The locking clip is stored

on the back of the child

restraint. You will need to

use it with certain types

of vehicle seat belts.

United States Federal

Motor Vehicle Safety

Standards have de¿ned a

system for installing child

restraints in vehicles.

The system is called

LATCH (Lower

Anchorage and Tether for

CHildren). LATCH may

ONLY be used IN PLACE

of vehicle belt if vehicle is

equipped with LATCH

anchor points. Please

refer to vehicle owners

manual for LATCH

locations in vehicles.



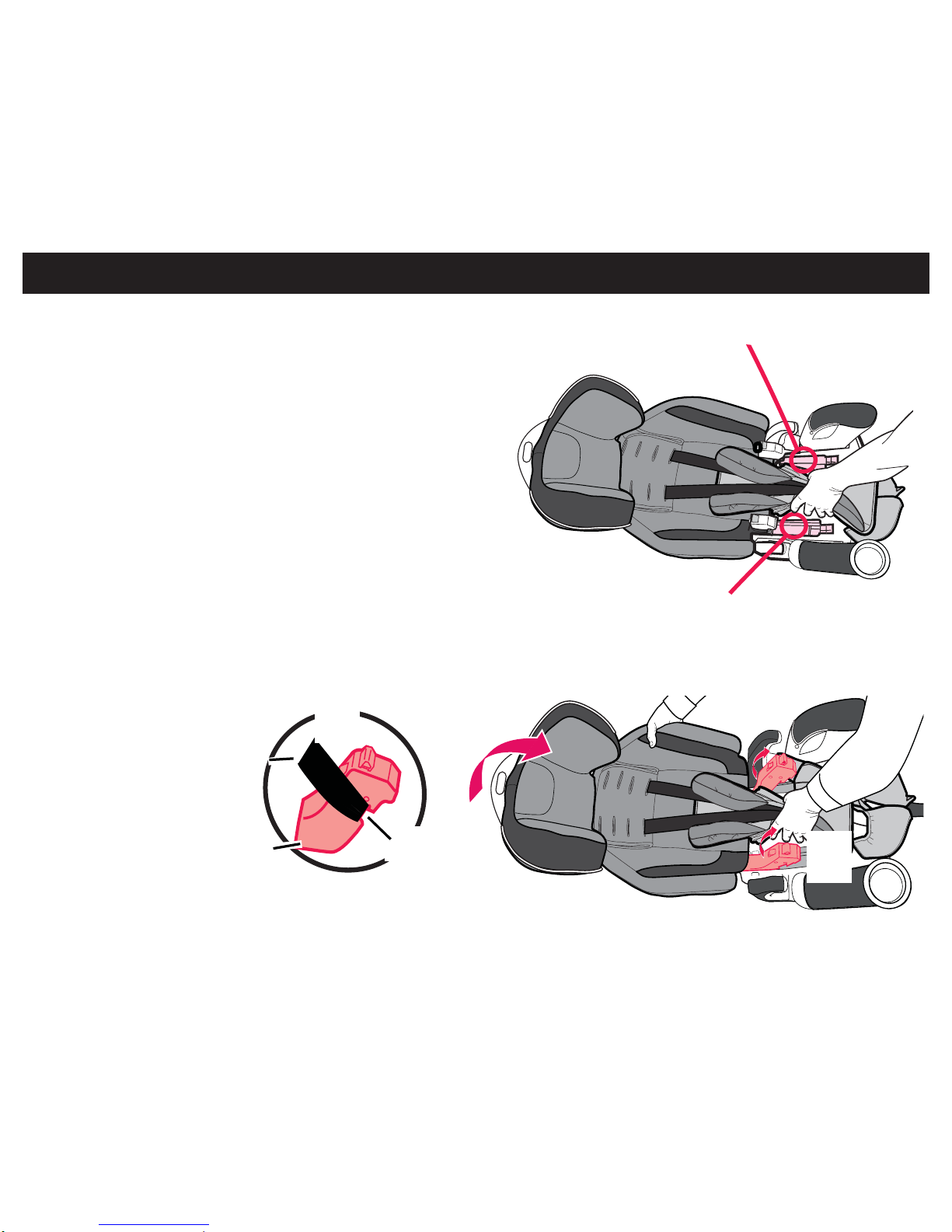

1. Lay child restraint flat on back. Grab seat pad

fabric in sitting area to expose the gutters .

MAKE SURE all handsfingers and other objects

are clear of the gutters.

2. MAKE sure the harness straps are securely

attached within the “T”-shaped slots around the

arms as shown .

With your other handraise seat back so that

both arms LOCK into the gutters .

KEEP GUTTERS CLEAR

A r m

Harness Strap

T-slot

5.0 Assembling the Child Restraint

Adult assembly required.




