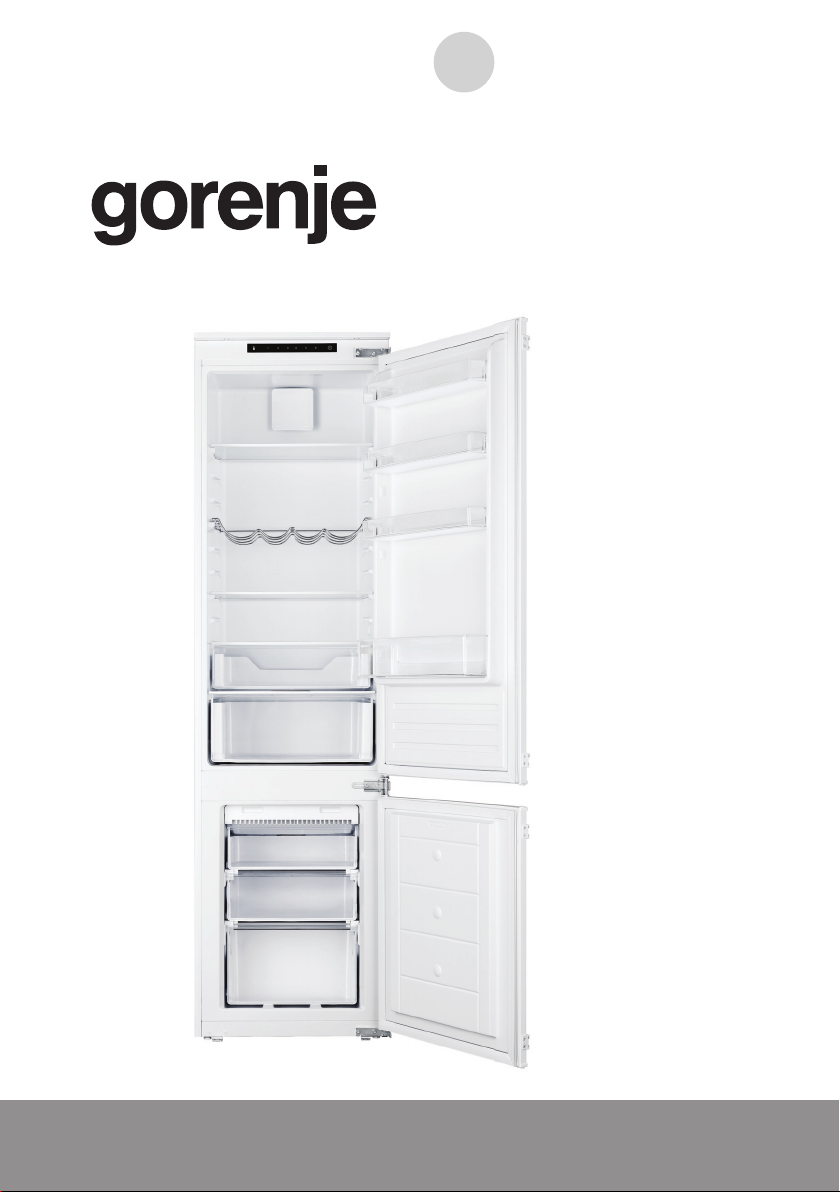

Gorenje NRKI419EP1 Technical manual

www.gorenje.comwww.gorenje.com

DETAILED

INSTRUCTIONS FOR USE

OF UPRIGHT

REFRIGERATOR AND

FREEZER

We thank you for the confidence you have shown by purchasing

our appliance which is designed to simplify your life. To make the use of the

product easier, we have supplied detailed instructions for use, and installation

instructions supplied on a separate sheet. The instructions should allow you to

learn about your new appliance as quickly as possible.

We wish you find a lot of pleasure in its use.

The appliance is intended solely for household use.

The refrigerator is intended for storing fresh food at temperatures above 0°C.

The freezer is intended for freezing fresh food and for long-term storage of

frozen food (up to one year, depending on the type of food).

Please visit our website where you can enter your appliance model number,

indicated on the rating plate or the warranty sheet, to find detailed description

of your appliance, tips on use, troubleshooting, service information, instructions

for use etc.

http://www.gorenje.com

Important safety warning

General information and tips

Protecting the environment

Do not wash in the dishwasher

Link to the EU EPREL database

The QR code on the energy label supplied with the appliance provides a web

link to the registration of this appliance in the EU EPREL database. Keep

the energy label for reference together with the user manual and all other

documents provided with this appliance.

It is possible to find information related to the performance of the product

in the EU EPREL database using the link https://eprel.ec.europa.eu and the

model name and product number that you can find on the rating plate of the

appliance.

For more detailed information about the energy label, visit www.theenergylabel.eu.

CONTENTS

INTRODUCTION

APPLIANCE

DESCRIPTION

DEFROSTING

AND CLEANING

THE APPLIANCE

4 IMPORTANT NOTES AND PRECAUTIONS

4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME

5 IMPORTANT SAFETY INSTRUCTIONS

8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE

9 ENVIRONMENT PROTECTION

10 ADVICE FOR SAVING POWER WITH REFRIGERATION

APPLIANCES

11 INSTALLATION AND CONNECTION

13 APPLIANCE DESCRIPTION

14 OPERATING THE APPLIANCE

16 APPLIANCE INTERIOR EQUIPMENT

19 RECOMMENDED DISTRIBUTION OF FOOD IN THE

APPLIANCE

20 STORING FOOD IN THE REFRIGERATOR

25 STORING FOOD IN THE FreshZone DRAWER

26 FREEZING AND STORING FROZEN FOOD

26 Freezing procedure

27 Important warnings on freezing

27 Storing industrially frozen food

28 Frozen food storage time

28 Defrosting frozen food

29 DEFROSTING THE APPLIANCE

30 CLEANING THE APPLIANCE

31 TROUBLESHOOTING

33 INFORMATION ABOUT APPLIANCE NOISE

MISCELLANEOUS

STORING AND

FREEZING FOOD

IMPORTANT NOTES AND

PRECAUTIONS

Before connecting the appliance to the power mains, please

read carefully the instructions for use which describe the

appliance and its correct and safe use. The instructions

apply to several appliance types/models; thus, settings or

equipment may be described herein which is not available

in your appliance. We recommend saving this instruction

manual for future reference and attach it to the appliance if

it is sold in the future.

The instruction manual includes the NO FROST version/

model of the freezer which is fitted with a fan and in

which the defrosting process is automatic (only with some

models).

Check for any damage or irregularities on your appliance. If

you find your appliance is damaged, notify the retailer from

which you have purchased the appliance.

Before connecting the appliance to the power mains, let

the appliance rest in a vertical position for a minimum of 2

hours. This will reduce the possibility of operation faults due

to the effect of transport on the cooling system.

BEFORE USING THE APPLIANCE FOR

THE FIRST TIME

The appliance must be connected to the power mains and

grounded in compliance with the effective standards and

regulations.

WARNING! Do not locate multiple portable socket-outlets

or portable power supplies at the rear of the appliance.

Before cleaning the appliance, unplug it from the power

mains (unplug the power cord from the wall outlet).

WARNING! If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

WARNING! When positioning the appliance, ensure the

supply cord is not trapped or damaged.

If LED lighting does not work, call a service technician. Do

not attempt a repair of the LED lighting yourself, as there is

danger of contact with high voltage!

IMPORTANT SAFETY INSTRUCTIONS

WARNING! Do not use electrical appliances inside the

food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

WARNING! Do not use mechanical devices or other

means to accelerate the defrosting process, other than

those recommended by the manufacturer.

WARNING! To avoid any hazard resulting from poor

stability of the appliance, make sure it is installed as

instructed.

WARNING! Risk of fire/flammable materials.

Danger of frostbite

Never put frozen food in your mouth and avoid touching

frozen food as this may cause frostnip or frostbite.

Safety of children and vulnerable persons

The appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not

play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Remove the packaging intended to protect the appliance

or particular parts during transport and keep it outside the

reach of children.

It presents danger of injury or suffocation.

When removing a used appliance, disconnect the

power cord, remove the door, and leave the shelves in

the appliance. This will prevent children from locking

themselves in the appliance.

For European markets only

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by

children without supervision.

Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances.

Warning regarding the refrigerant

The appliance contains a small amount of an

environmentally friendly yet flammable gas R600a. Make

sure that no parts of the cooling system are damaged. A

gas leak is not hazardous to the environment, but it could

cause eye injury or fire.

In case of a gas leak, ventilate the room thoroughly,

disconnect the appliance from the power mains, and call a

service technician.

The appliance may not be used outdoors and it may not be

exposed to rain.

Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

If the appliance will be out of use for an extended period of

time, switch it off using the relevant button, and unplug it

from the power mains. Empty the appliance, defrost it, clean

it, and leave the door ajar.

In case of an error or power supply failure, do not open the

freezer compartment unless the freezer has not operated

for over 16 hours. After this period, use the frozen food or

provide sufficient cooling (e.g. a replacement appliance).

IMPORTANT INFORMATION ON THE USE

OF APPLIANCE

WARNING! Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of

obstruction.

WARNING! This appliance is intended to be used in

household and similar applications such as:

– staff kitchen areas in shops, offices and other working

environments;

- farm houses and by clients in hotels, motels and other

residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

The symbol on the product or its packaging indicates that the product

should not be treated as normal household waste. The product should be

taken to an authorized collection centre for waste electric and electronic

equipment processing. Correct disposal of the product will help prevent

any negative effects on the environment and health of people which could

occur in case of incorrect product removal. For detailed information on

removal and processing of the product, please contact the relevant municipal

body in charge of waste management, your waste disposal service, or the

store where you bought the product.

Packaging is made of environmentally friendly materials

that can be recycled, disposed of, or destroyed without any

hazard to the environment.

!Removing an obsolete appliance

To protect the environment, take the obsolete appliance to

an authorized home appliance collection centre.

Before doing so, do the following:

• disconnect the appliance from the power mains;

• do not allow children to play with the appliance.

ENVIRONMENT PROTECTION

WARNING! Do not damage the refrigerant circuit.

This will also prevent pollution.

Technical information on the appliance

Rating plate can be found in the appliance interior. It

indicates data on voltage, gross and net volume, type

and amount of refrigerant, and information on the climate

classes.

If the language on the rating plate is not the language of

your choice or the language of your country, replace it with

the one supplied.

ADVICE FOR SAVING POWER

WITH REFRIGERATION

APPLIANCES

• Install the appliance as specified in the instruction manual.

• Do not open the door more often than necessary.

• Occasionally make sure air circulation underneath the appliance is

unobstructed.

• Condenser unit on the rear wall should be kept clean (see chapter Cleaning the

appliance).

• If the gasket is damaged or does not provide a perfect seal for any reason,

have it replaced as soon as possible.

• Store the food in tightly sealed containers or appropriate packaging.

• Before placing the food in the refrigerator, allow it to cool down to room

temperature.

• Defrost frozen food in the refrigerator compartment.

• To make use of the entire freezer compartment interior volume, remove

some of the drawers as described in the instruction manual.

• Defrost your conventional freezer when an approximately 3–5 millimetre

layer of frost or ice has built up on the refrigerated surfaces.

• Make sure the layout of shelves in the compartment is uniform and that

the food is placed so that the air can freely circulate in the appliance

interior (observe the recommended placement of food as described in the

instructions).

• In appliances with a fan, do not block the fan slots or vents.

• If you do not need the fan or the ionizer, switch them off to reduce power

consumption.

Table of contents

Other Gorenje Refrigerator manuals

Gorenje

Gorenje ONRK193OL User manual

Gorenje

Gorenje RBI4121E1UK Technical manual

Gorenje

Gorenje COMBI FS-600 User manual

Gorenje

Gorenje R6193LXUK Technical manual

Gorenje

Gorenje RF3121ANW Technical manual

Gorenje

Gorenje RI4091AW User manual

Gorenje

Gorenje R6192SX User manual

Gorenje

Gorenje HPI1566 Technical manual

Gorenje

Gorenje Simplicity Series Technical manual

Gorenje

Gorenje NRS918BCBG User manual

Gorenje

Gorenje RB 4138 W User manual

Gorenje

Gorenje RK6191EW4 User manual

Gorenje

Gorenje RK6355W1 User manual

Gorenje

Gorenje X6012-17a User manual

Gorenje

Gorenje RK4172ANX Technical manual

Gorenje

Gorenje RB4092ANW User manual

Gorenje

Gorenje NRS9182MB Technical manual

Gorenje

Gorenje nrf7181aw User manual

Gorenje

Gorenje K287MLB User manual

Gorenje

Gorenje RIU609FA1 Technical manual

Gorenje

Gorenje RK4182PW4 User manual

Gorenje

Gorenje RK 62395 DW User manual

Gorenje

Gorenje RK4151ANX Technical manual

Gorenje

Gorenje COMBI FS-600 Technical manual

Popular Refrigerator manuals by other brands

Bonnet Neve

Bonnet Neve SKYVIEW PLUS User instructions

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Instruction book

Sharp

Sharp SJ-BA31IEXW2-EU user manual

CORBERO

CORBERO CC2300MCW Instruction booklet

KitchenAid

KitchenAid 2205264 Use and care guide

Stengel

Stengel KU 1101 A++ user manual

NEFF

NEFF KI181 Series user manual

Hoshizaki

Hoshizaki Reach-In instruction manual

Amana

Amana ASD2524VES00 User instructions

BOMANN

BOMANN KGC 213 instruction manual

Danby

Danby DAR044A1SLDD Owner's use and care guide

Samsung

Samsung RF323TE user manual

Beko

Beko CSA31022 Instructions for use

IKEA

IKEA FROSTIG C 185 E manual

Electrolux

Electrolux ER 6821 D Instruction book

True

True TS-28 Specifications

Frigidaire

Frigidaire FSC23R5DW9 installation guide

Beko

Beko LSP4579W Instructions for use
