Goldair GOC215 User manual

Operating Instructions

Oil Column Heater

Model: GOC215, GOC217, GOC2111

This page is intentionally left blank.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they are supervised or have been given instruction

concerning the use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this appliance. Covering this appliance

presents fire risk and will activate the safety fuse; permanently disabling the

unit.

WARNING: Do not use this appliance in small rooms when they are

occupied by persons not capable of leaving the room on their own, unless

constant supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any

flammable material a minimum distance of 1 metre from the air outlet.

General Care and Safety Guide

•Use only the voltage specified on the rating label of the appliance.

•Keep all objects at least 1 metre from the front, sides and rear of the

appliance.

•This appliance is intended for household use only and not for commercial or

industrial use.

•Indoor use only.

•Use this appliance only as described in this manual. Any other use is not

recommended by the manufacturer and may cause fire, electric shock or

injury.

•Do not use the appliance if it has been dropped or damaged.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE

INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•Never use the appliance to dry clothes.

•Always unplug appliance when not in use.

•When the appliance has been unpacked, check it for transport damage and

ensure all parts have been delivered. If parts are missing or the appliance has

been damaged, contact the Customer Services Team.

•Do not use if there are visible signs of damage to the appliance.

•Do not connect the appliance to mains supply until completely assembled and

adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Ensure appliance is on a flat, stable, heat-resistant surface.

•Do not operate with cord set coiled up as a heat build up is likely, which could

be sufficient to become a hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance

malfunctions or has been dropped or damaged in any manner. Take to a

qualified electrical person for examination, electrical service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the

insulation to weaken and split. Always ensure that all cord has been removed

from any cord storage area and is unrolled before use.

•It is recommended that this appliance is plugged directly into the wall socket.

Power boards are not rated to supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this

appliance provided it is used in a safe manner.

•Do not remove plug from power socket until the appliance has been switched

off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord

so it cannot be tripped over.

•Don’t place appliance on bedding or on thick & long carpet where the openings

may get blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust

opening, as this may cause an electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp

cloth (not wet) rinsed in hot soapy water only. Always remove plug from the

mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used

or stored.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a

swimming pool or other liquids.

General Care and Safety Guide

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not place the unit in wardrobes or other enclosed spaces as this may cause

fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs,

works of art or delicate articles of science, etc. are stored.

•If your appliance does not work, or is not working properly, contact the place of

purchase or the Customer Services Team.

General Care and Safety Guide

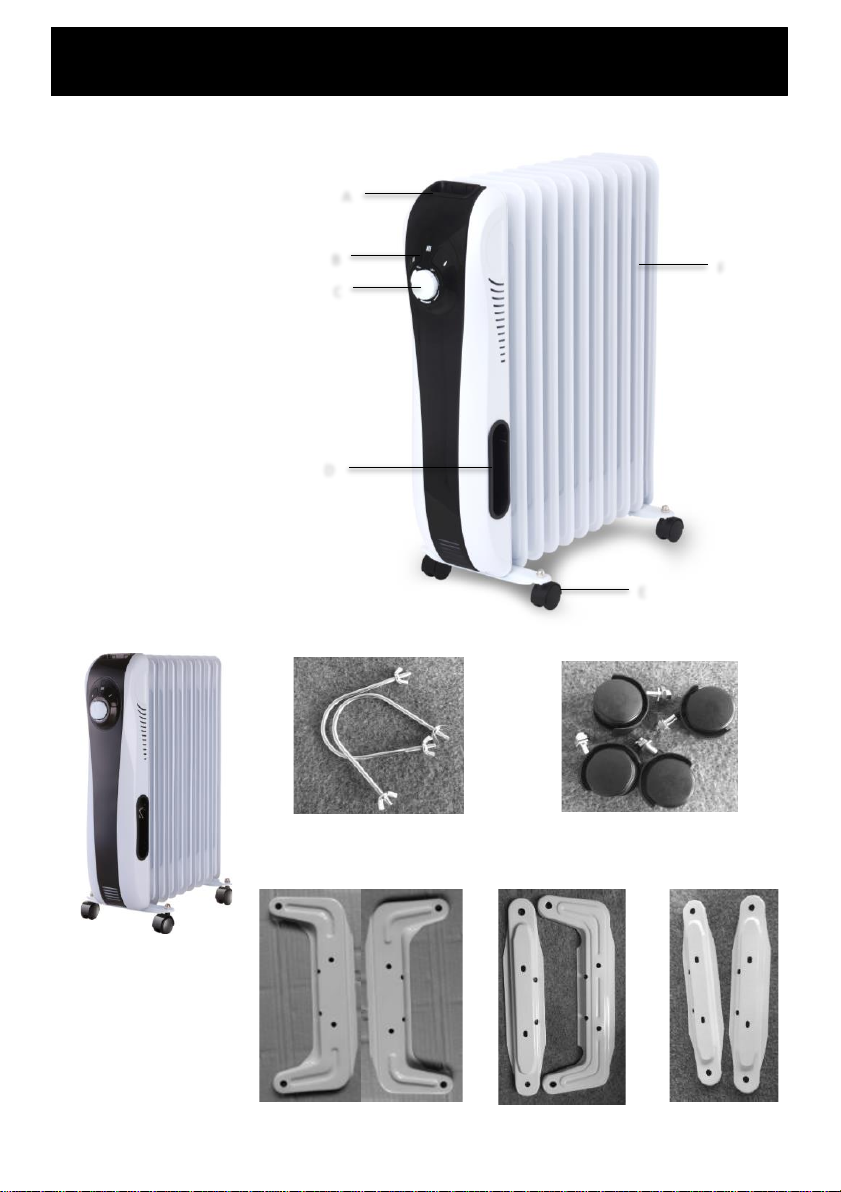

Components Of Your Oil Column Heater

A. Carry Handle

B. Heat Control Buttons

C. Adjustable Thermostat

D. Cord Storage

E. Wheel Assembly

F. Radiant Fins

Main Body x1

Wing Nut x 4 Wheel Castor x4

U-shape Bolt x 2

7 Fin Castor Plates x2 11 Fin Castor Plates x25 Fin Castor Plates x2

Assembly

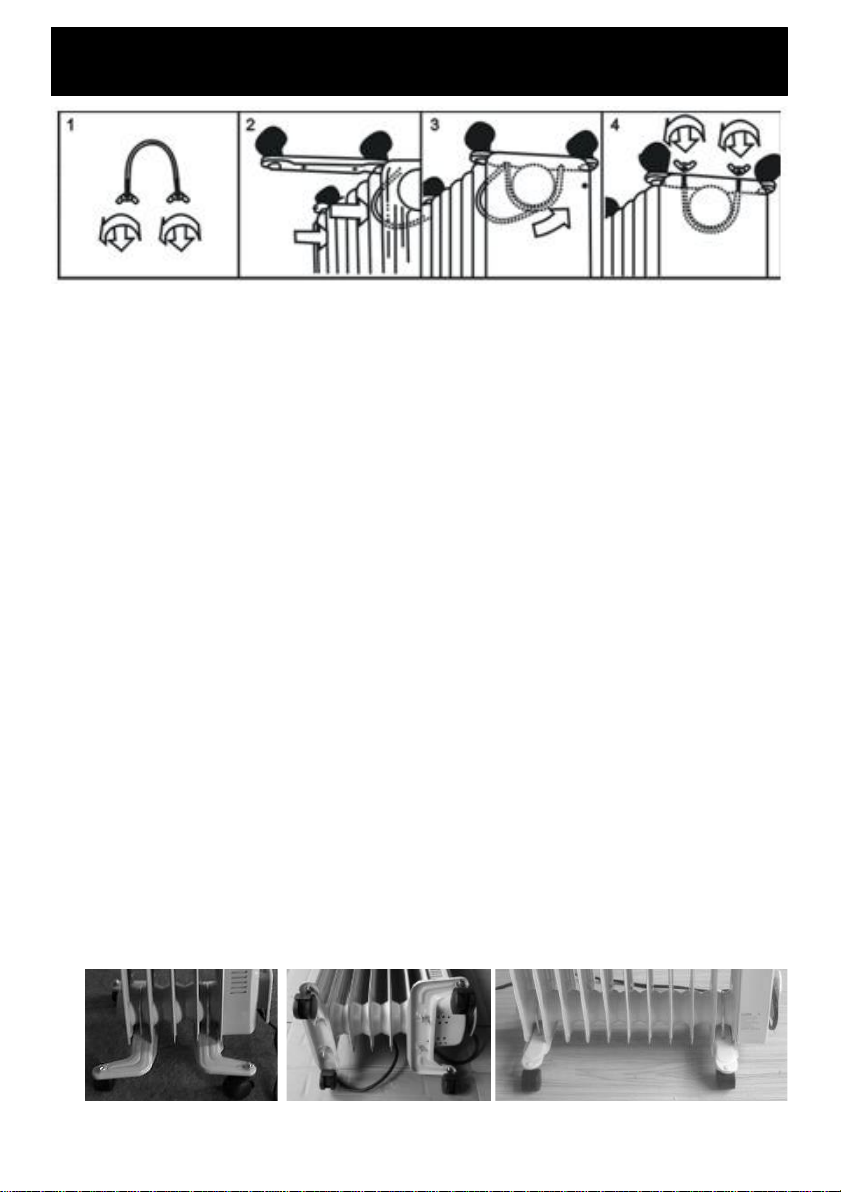

ASSEMBLY OF THE HEATER

1. Remove the dome nut from the castors, fit castor thread through the castor mounting

plate. Replace dome nut and tighten.

2. Place the radiator body upside-down on a scratch-free location, make sure it is stable and

will not fall. Be careful to prevent damage to the cosmetic finish or your floor surfacing.

3. Unscrew the wing nuts from the U-shaped bolt provided, fit the U-shaped bolt over the

connector between control panel and second fin.

4. Insert the threaded ends of the U bolt in the holes on the C shaped castor plate (for 5 or 7

fin model) or straight castor plate for the 11 Fin model. Note the C shaped castor plate

should be placed with the castors pointed towards the control panel.

5. Screw the wing nuts back to the U bolt and tighten the wing nut securely.

Note: do not over-tighten, which may cause damage to the heater.

6. Repeat steps 3, 4 and 5 on the rear of the heater for mounting of the rear castors. For the

5 fin model the C shaped castor plate should be placed with the castors pointed out the

back of the heater.

Note: the rear castors must be mounted between the end two fins.

IMPORTANT: Please fit the wheel assemblies as per the diagram. Any other position may affect

the stability of the heater.

WARNING: Only operate the heater in normal upright position with

wheel assemblies attached to the bottom, any other position could create a

hazardous situation.

7 Fin Castor Plates 11 Fin Castor Plates

5 Fin Castor Plates

Operating Your Heater

Always choose a safe location for the heater, keeping in mind the safety precautions

outlined. Ensure all packaging has been removed from the unit before use.

Please follow the below instructions.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front, sides and rear

of the appliance.

WARNING: Do not use this heater with a programmer, separate timer,

remote-control system or any other device that switches the heater on

automatically, since a fire risk exists if the heater is covered or positioned

incorrectly.

WARNING:Never leave this heater unattended when in use.

Ensure heater is on a flat, stable, heat-resistant surface.

Once the heater is in a safe operating position and all switches are in the off

position, insert the power plug into the mains outlet and switch on.

CAUTION: Ensure the power cord is not tight because if pulled it may

partially pull the plug from the socket. A partially inserted plug will overheat

the plug and socket and could result in fire.

Operating Your Oil Column Heater

Always choose a safe location for the heater, keeping in mind the safety precautions outlined.

Ensure all packaging has been removed from the unit before use. This appliance requires no

installation, it should be used solely as a portable appliance.

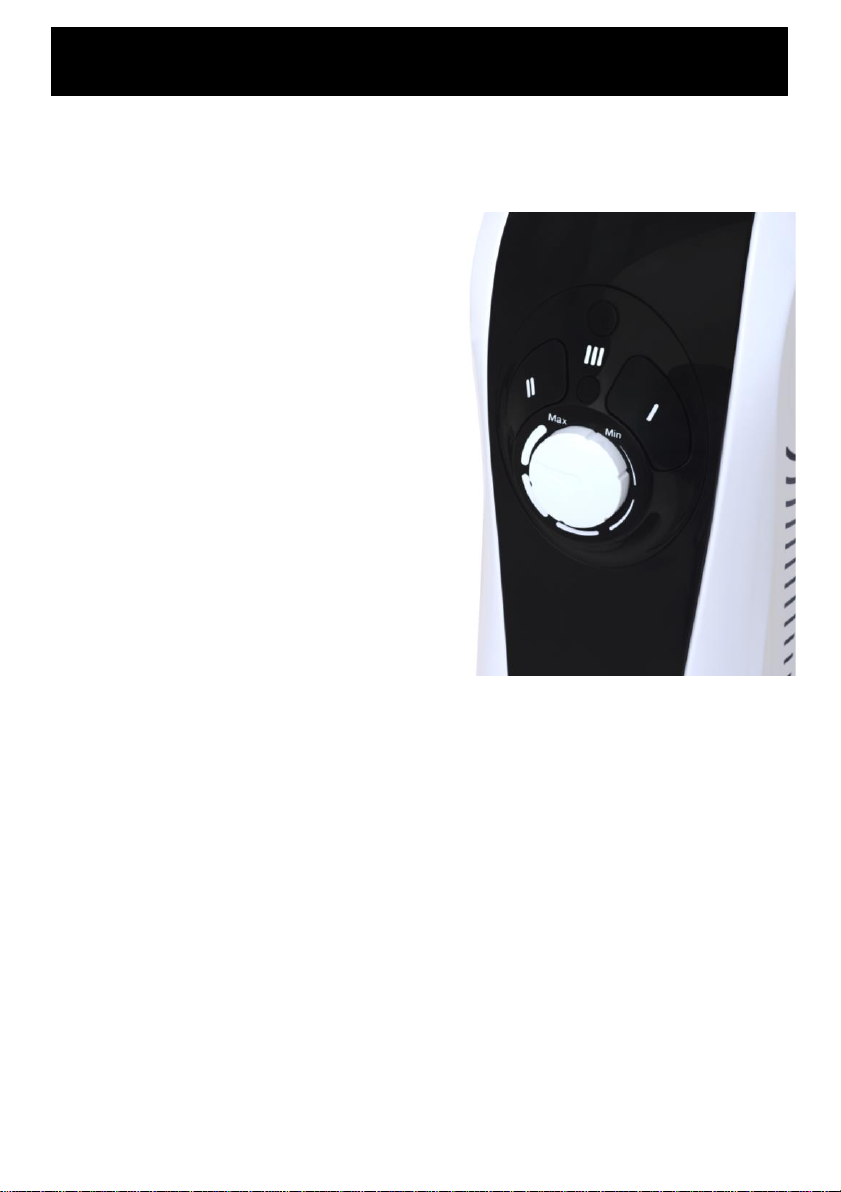

HEAT CONTROL BUTTONS

The heating element heating options are:

| Low heat

|| Medium heat

| + || High heat

For greater economy, use the high heat setting

initially and then switch to the lower heat

settings.

THERMOSTATIC CONTROL

1. Rotate thermostat knob clockwise until you

reach the maximum position.

2. When the room reaches a temperature that

is comfortable for you, slowly turn the knob

anti-clockwise until the heater just turns off

(you will hear a click).

3. The heater will now cycle on and off to

maintain the comfort level you have set.

4. Take note of this setting position for future

use.

CAUTION: The heater generates heat during use. Proper precautions must

be taken to prevent the risk of burns, scalds, fires or other damage to persons.

SUPPORT AND TECHNICAL ADVICE

Goldair –New Zealand

Monday –Friday 8am-5pm

Phone +64 (0)9 917 4000

Phone 0800 232 633

[email protected]

Goldair –Australia

Monday –Friday 8am-5pm

Phone +61 (0)3 9365 5100

Phone 1300 465 324

[email protected]

Operating Your Heater

TECHNICAL SPECIFICATION

Model No: GOC215 GOC217 GOC2111

Supply: 220-240VAC 50/60Hz 220-240VAC 50/60Hz 220-240VAC 50/60Hz

Wattage: 1000W1500W2000-2400W

SAFETY DEVICES

This appliance has three protection devices:

•Tilt Switch - this will automatically turn the appliance off if the appliance is not in

the correct operating position.

•Resettable Thermal Link - this will automatically disconnect the power to the

appliance at a pre-set overheat temperature. After cooling down it will reset and

power on again. If this occurs, investigate what is causing the appliance to overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating.

(It is non resettable).

CAUTION: The appliance generates heat during use. Precautions must be

taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and

dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

This appliance cannot be serviced. Do not attempt to dismantle.

There are no user serviceable parts. For service or repair, contact an authorised

electrical service technician.

When disposing of the appliance, follow the regulations concerning disposal of oil.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

This manual suits for next models

Table of contents

Other Goldair Heater manuals

Goldair

Goldair GPOC418 User manual

Goldair

Goldair SFH7000 Manual

Goldair

Goldair Select GSOC117T User manual

Goldair

Goldair GMH211 User manual

Goldair

Goldair Platinum GPPH220 User manual

Goldair

Goldair GPH150 User manual

Goldair

Goldair PLATINUM GPCV330 User manual

Goldair

Goldair GPPH500 User manual

Goldair

Goldair GPCT440 User manual

Goldair

Goldair GSCH230 User manual

Goldair

Goldair GCV125 User manual

Goldair

Goldair GCV100 User manual

Goldair

Goldair Select GSOC117T User manual

Goldair

Goldair GFH267 User manual

Goldair

Goldair GMH230 User manual

Goldair

Goldair GECO255 User manual

Goldair

Goldair GCT330 User manual

Goldair

Goldair GCV290B User manual

Goldair

Goldair GFH530 User manual

Goldair

Goldair GCH255B User manual

Goldair

Goldair GCW220 User manual

Goldair

Goldair GCV370 User manual

Goldair

Goldair GFH260 User manual

Goldair

Goldair PLATINUM GPOC4115 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
