Gofanco HDExtIP4K User manual

HDMI IP Extender 4K - 120m

User's Guide

G4-0071A

HDExtIP4K (Kit)

HDExtIP4K-TX (Transmitter)

HDExtIP4K-RX (Receiver)

Part Number:

Thank you for purchasing from gofanco. Our

products aim to meet all your connectivity needs

wherever you go. For optimum performance

and safety, please read the instructions carefully

and keep this User’s Guide for future reference.

If you need more information about our

products, please visit www.gofanco.com. For

technical support, please email us at

[email protected]. For drivers/manuals

download, please go to www.gofanco.com/

download.

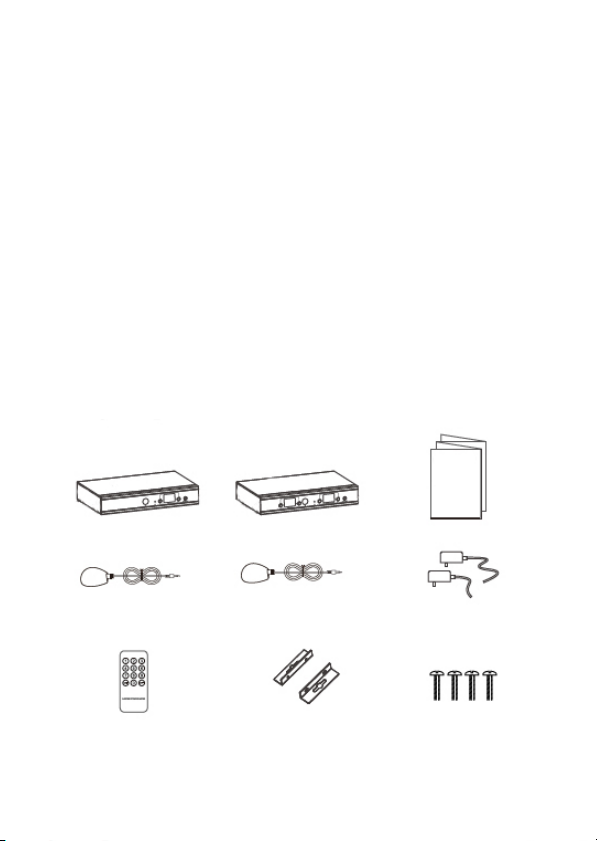

PackageContents

Transmitter (TX) (1pc) Receiver (RX) (1pc) User's Manual (1pc)

Power Adapter (2pcs)

IR Blaster Extension

Cable (1pc)

IR Receiver Extension

Cable (1pc)

Remote control (1pc) Wall mount brackets (4pcs) Screws (8pcs)

Introduction

TheHDMIIPExtender4K extendshighdefinition

4K HDMI signals up to 120m (394ft) over CAT6

cabling.

Features

• HDMI 2.0 and HDCP 2.2 compliant with

18Gbps bandwidth

• Supports IR remote control function to

control the source device from long

distances

• Offers scalable matrix configuration

through IGMP IP networks, up to 256 total

units combined (maximum of 100

transmitter units allowed), additional

transmitter units (part # HDExtIP4K-TX)

and receiver units (part# HDExtIP4K-RX)

sold separately

• Supports up to 4K@60Hz resolution

• Allows computer software control, remote

control, or push button control, to select/

switch between HDMI source devices

Installation Requirements

1. HDMI source device (computer, DVD

player, etc.)

2. HDMI display device (SDTV/Monitor,

HDTV/Monitor, projector, etc.)

3. UTP/STP CAT5e/6 cable following

IEEE-568B wiring standard

1. IR Window Receives IR signals from the included remote

control to set/select the channel

2. Power LED On when Transmitter is powered on

3. TX ID Displays the Transmitter's ID number

4. Power Jack Connects to the included power adapter

5. Data LED Blinks when data transmission is detected

6. RJ45 Output Connects to the Receiver's RJ45 Input using a

CAT5e/6 cable

7. Link LED Lights up when RJ45 signal detected

8. IR Output Connects to the IR Blaster cable

9. HDMI Input Connects to the HDMI source device

10. Reset Button Press the button to reset the Transmitter

Product Layout

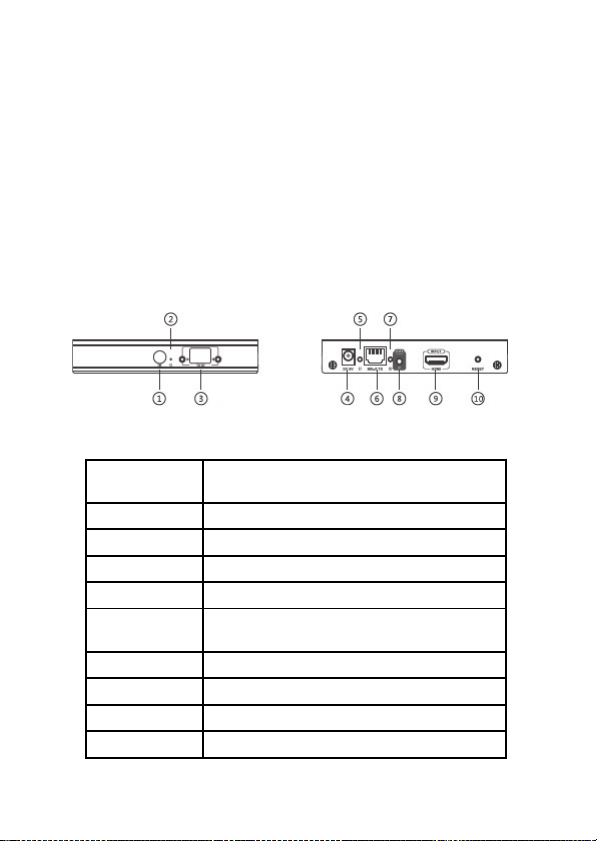

Figure 1: Transmitter (TX)

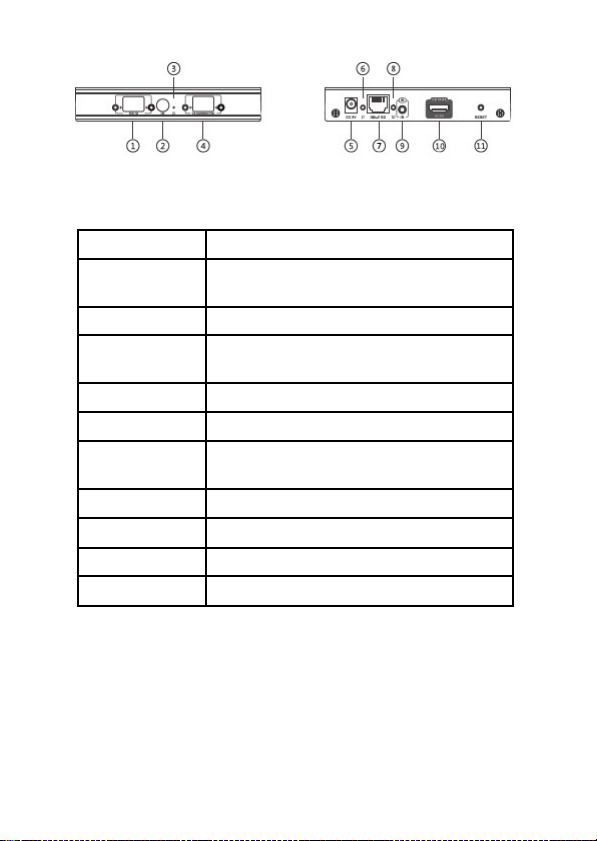

Figure 2: Receiver (RX)

1. RX ID Displays the Receiver's ID number

2. IR Window Receives IR signals from the included

remote control to set/select the channel

3. Power LED On when the Receiver is powered on

4. TX Connected Displays Transmitter's ID number for

device pairing

5. Power Jack Connects to the included power adapter

6. Data LED Blinks when data transmission is detected

7. RJ45 Input Connects to the Transmitter's RJ45 Output

using a CAT5e/6 cable

8. Link LED Lights up when RJ45 signal detected

9. IR Input Connects to the IR Receiver cable

10. HDMI Out Connects to an HDMI display

11. Reset Button Press the button to reset the Receiver

Hardware Installation

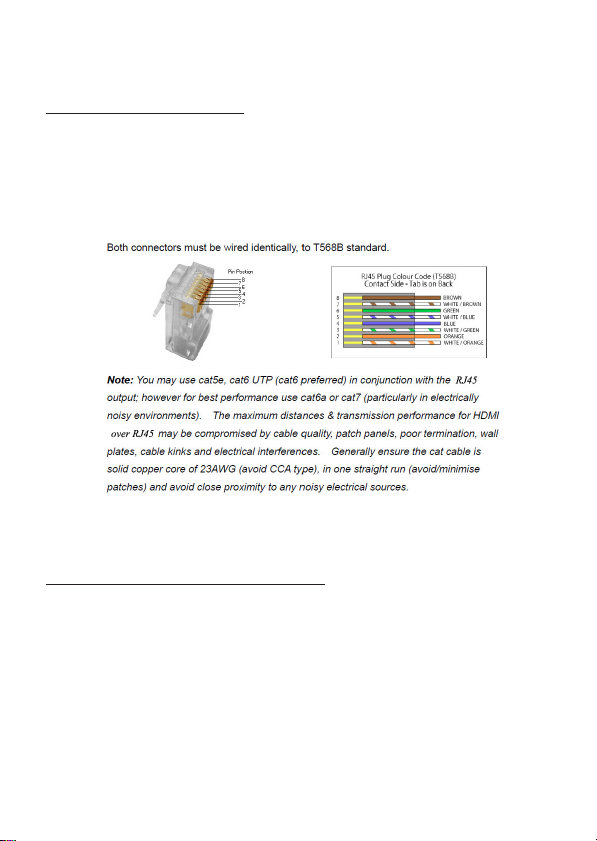

CAT Cable Wiring

We suggest both RJ-45 connectors be wired

identically following T568B wiring standard for

the best performance and compatiblity.

One to One Configuration

1. Power off all devices including your HDMI

source and HDMI display(s).

2. Connect your HDMI source device to the

Transmitter's HDMI Input connector with

an HDMI cable (HDMI cable not included).

3. Optional: Connect the IR Blaster Cable to

the Transmitter's IR Output port. Face the

eye towards your HDMI source device's IR

window. This connection is needed only if

you need to control your HDMI source

from the remote location.

4. Plug your CAT5e/6 cable between the

Transmitter's RJ45 Output and Receiver's

RJ45 Input.

5. Connect your HDMI display to the

Receiver's HDMI ouput connector with a

HDMI cable (HDMI cable not included).

6. Optional: Connect the IR Receiver Cable to

theReceiver'sIR Inputport. Thisconnection

is needed only if you need to control your

HDMI source device from the remote

location.

7. Plug the included power adapters into the

Transmitter's and Receiver's power jacks,

then plug both power adapters into a

reliable power source.

8. Power on all connected devices.

9. The HDMI extender is ready for use.

Network Configuration

Dedicated IGMP Gigabit Ethernet switches are

recommended for the best performance and

reliability.

When connecting to an existing LAN

environment, it's recommended to configure a

VLAN dedicated to these transmitter(s) and

receiver(s) to avoid traffic collision with other

networking devices.

TheTransmitter'sand Receiver'sdefaultIPadress

is 192.168.1.238 and 192.168.1.239 respectively. If

your existing network is DHCP enabled, the

transmitter(s) and receiver(s) will be assigned

with IP addresses automatically when connected

and turned on. Press the reset button on each

transmitter and receiver if an IP address is not

assigned automatically.

1. Power off all devices.

2. Connect your HDMI source device to the

Transmitter's HDMI Input connector with

an HDMI cable (HDMI cable not included).

3. Optional: Connect a HDMI display to the

Transmitter's HDMI out connector with an

HDMI cable (HDMI cable not included) for

local monitoring of the HDMI signal.

4. Optional: Connect the IR Blaster Extension

Cable to the Transmitter's IR output port.

Face the eye towards your HDMI source

device's IR window. This connection is

needed only if you need to control your

HDMI source from the remote location.

5. Optional: Connect a HDMI display to the

Transmitter's HDMI out connector with an

HDMI cable (HDMI cable not included) for

local monitoring of the HDMI signal.

6. Optional: Connect the IR Blaster Cable to

the Transmitter's IR Output port. Face the

eye towards your HDMI source device's IR

window. This connection is needed only if

you need to control your HDMI source

from the remote location.

7. Plug your CAT5e/6 cable between the

Transmitter's RJ45 Output and a switch or

router on your IP network.

8. Connect your HDMI display to the

Receiver's HDMI ouput connector with a

HDMI cable (HDMI cable not included).

9. Optional: Connect the IR Receiver Cable to

theReceiver'sIR Input port. Thisconnection

is needed only if you need to control your

HDMI source device from the remote

location.

10. Plug your CAT5e/6 cable between the

Receiver's RJ45 Input and a switch or router

on your IP network.

11. Plug the included power adapters into the

Transmitter's and Receiver's power jacks,

thenplugbothpoweradaptersinto areliable

power source.

12. Power on all connected devices.

13. The HDMI extender is ready for use.
