Godox LED170 II User manual
LED Video Light
型号/Model:
Instruction manual | 说明手册
Chinese English Bilingual | 中英文双语
705-LED170-09
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fuzhou RD West, Fuyong
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: [email protected]
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
5.滤色片更换
● 用手轻轻按住滤色片(02)向右推。
● 听到“咔”声后，抽出滤色片(02)。
● 将新滤色片直接插入，向左推移，听到“咔”声
后表示锁紧，更换完毕。
* 设计和规格如有变更，恕不另行通知。
产品型号
灯珠数量
电池供电
DC电源供电
功率
亮度
锂电池供电
色温
调光方式
使用时长(以碱性电池为参考)
色片
工作环境温度
产品尺寸(不包含转轴尺寸)
净重
五、产品参数
LED170 II
170个
8*AA电池
6~12V
<10W
>2700Lux (0.5 米)
SONY：NP-F970 ( 数码摄像机/相机充电电池）
5500~6500K
无级调光
约1小时
柔光片、黄色滤色片各1张
-10~55度
172*108.6*42.5mm
350g
Thank you for purchasing this Godox Product!
This LED video light is excellent for macrophotography, product shooting,
photojournalistic and video recording, etc. This lightweight and portable
light provides high brightness and accurate color temperature. It comes
with a diffusion filter and a yellow filter, and also supports multiple power
supply modes. You can flexibly control the light brightness by using the
dimmer and change the illumination direction by using the angle adjusting
knobs.
Foreword:
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product
must be sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures
of waterproof in rainy or damp environment.
Do not use or store the product if the ambient temperature reads over
50°C.
Do not use the flash unit in the presence of flammable gases,
chemicals and other similar materials. In certain circumstance, these
materials may be sensitive to the strong light emitting from this flash
unit and fire or electromagnetic interference may result.
Observe precautions when handling batteries
● Do not put batteries into a fire or apply direct heat to them.
● Batteries are prone to leakage when fully discharged. To avoid
damage to the product, be sure to remove batteries when the
product is not used for a long time or when batteries run out of
charge.
● Should liquid from the batteries come into contact with skin or
clothing, rinse immediately with fresh water.
Warning:
01. LED Beads
02. Color Filters
03. Power Switch
04. Brightness Controller
05. Battery Level Indicator
06. DC Power Jack
07. Battery Compartment Lock
08. Battery Compartment
09. Lithium Battery Container
10. Angle Adjusting Knob A
11. Angle Adjusting Knob B
12. Locking Ring
13. Camera Hotshoe Connection
14. 1/4″ Bracket Mounting Hole
15. Reflector
Parts:
1.Power Supply
Three power supply modes are available:
2.Installing the Video Light
● Screw the Locking Ring (12) to the highest point
and insert the Camera Hotshoe Connection (13)
horizontally into the hotshoe of a camera or a
camcorder.
● Tighten the Locking Ring (12).
* When using AA batteries or lithium battery, the Battery
Level Indicator (05) turns green, meaning battery power is
sufficient. When the indicator turns red, the battery power
is low.
* When the indicator turns red and blinks, the lithium battery
power is low. Please recharge it immediately before use in
order to avoid forceful auto off.
* When using DC power supply, the indicator shows green.
● Using batteries: This
light uses AA-sized
alkaline or Ni-MH
rechargeable batteries.
● Using lithium battery:
This light uses SONY
NP-F970 model lithium
battery.
● Using DC power jack:
This light can be powered
by DC power supply. Use
an adapter (purchased
separately) to connect the
light with the AC power
supply. LED126 uses a
6V-9V adapter and
LED170 uses a 6-12V
adapter.
Installation and Operation
03
04
05
06
07
14
11
10
12
09
08
01
02
10
15
13
Note: If your camcorder has no hotshoe connection,you
are advised to purchase a connecting bracket for camcorder.
The video light has a 1/4″Bracket Mounting Hole as your
camcorder does. Therefore, you can easily connect both the
light and the camcorder to the purchase a connecting bracket
for camcorder.The video light has a 1/4″ Bracket

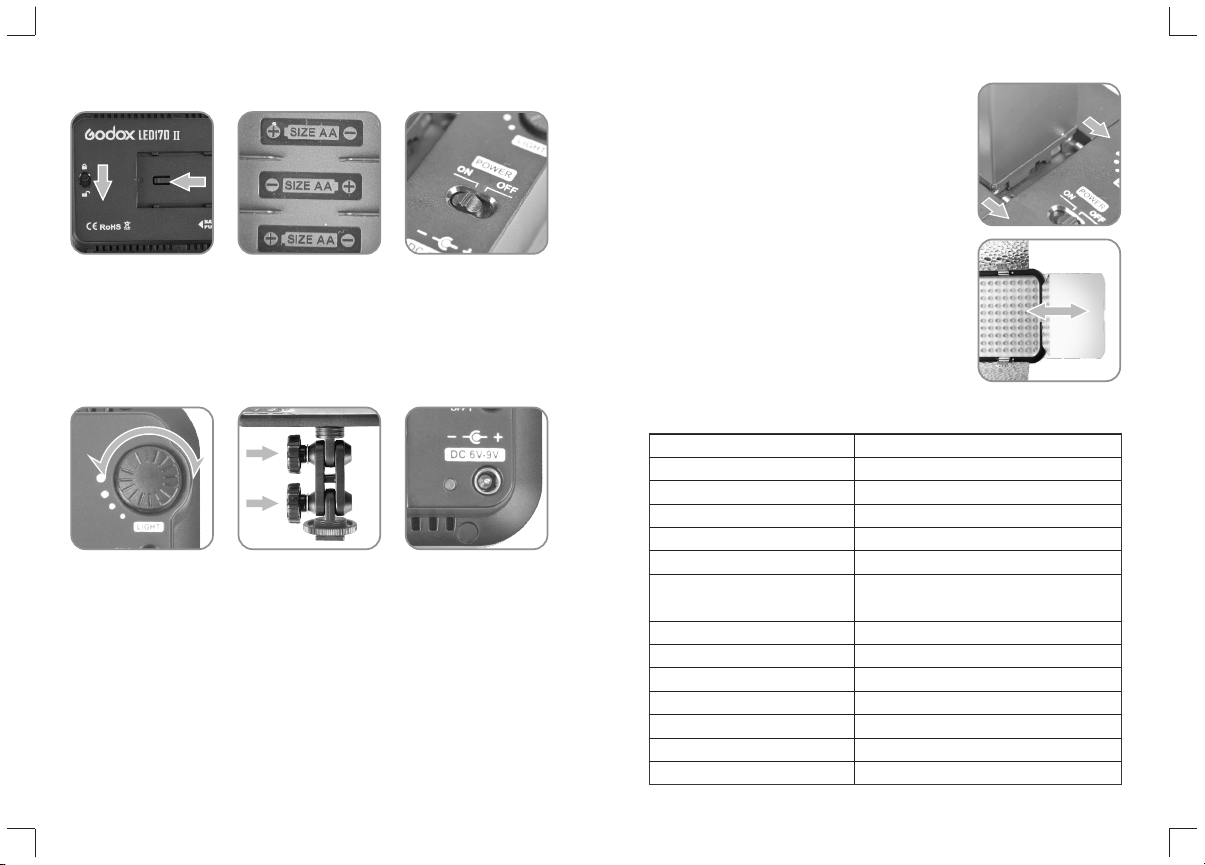

3.Using the Video Light
● Turn the Battery
Compartment Lock (07)
down and at the same
time push the Battery
Compartment (08) to the
left and open it.
● Install AA batteries
according to indications
in the compartment and
then lock it.
● Switch the power on,
the video light giving out
light.
● Turn the Brightness
Controller (04) to adjust
the brightness.
● By operating the
Angle Adjusting Knob A
and B, you can change
the LED illumination
direction.
● Instead of AA
batteries, the light can
be powered by DC
power supply. Use an
adapter (purchased
separately) to connect
the light with the AC
power supply. LED126
uses a 6V-9V adapter
and LED170 uses a 6-
12V adapter.
● After using the light, please power it off.
4.Using Lithium Battery
● Turn the Power Switch (03) off.
● Target the socket of the lithium battery towards
the “+””-” contacts of the Lithium Battery
Container (09). Push the battery in until it locks.
● Power the light on.
● After using the light, please power it off.
5.Replacing A Color Filter
● Slightly press the color filter (02) and push it to
the right at the same time.
● Pull the color filter out after hearing a click
sound.
● Insert a new color filter in and push it to the left.
With a click sound, the color filter is securely in
position.
* Product design and specifications are subject to change without notice.
Model
LED Beads Quantity
Battery
DC Power Supply
Power (Max.)
Brightness
Lithium Battery
Color Temperature
Brightness Control
Battery Life (with alkaline batteries)
Color Filters
Operation Temperature
Dimension
Net weight
Technical Data:
LED170 II
170
8*AA
6-12V
<10W
>2700Lux (0.5m)
Sony NP-F970 model camera or camcorder
lithium-ion battery
5500-6500K
Steplessly
Approx. 1 hour
Includes a diffusion filter and a yellow filter
-10~55 °C
172*108.6*42.5mm
350g
