User Manual

Bluetooth GPS Receiver

BT-318

Version: 1.12

1

CONTENT

1 BT-318 AT A GLANCE 3

1.1 appearance and function 3

1.2 Change battery 5

1.3 The appearance of GPRS cradle and how to connect it with BT-318 7

1.4 How to insert SIM card into GPRS cradle 9

2 INTRODUCTION 10

2.1 Product Feature 10

2.2 Package 10

2.3 Power Switch 11

2.4 Power Jack 11

2.5 LED Function 11

2.6 External Antenna 11

3 Usage 13

3.1 For PDA which built-in Bluetooth (Example: iPAQ 3870/3970) 13

3.2 For PDA with Bluetooth Compact Flash card 13

3.3 For Notebook with Bluetooth device 13

3.4 How to test your Bluetooth GPS Receiver ? 14

4 BT-318 SPECIFICATION 16

4.1 System Specification 16

4.2 Bluetooth Specification 16

4.3 FCC Notices 17

5 How to get on internet by GPRS Cradle 18

5.1 Surfing on internet by using GPRS cradle with PC 18

5.1.1 setup Bluetooth for windows 18

5.1.1.1 Setup for Windows ME 18

5.1.1.2 Setup for Windows 2000 27

5.1.1.3 Setup for Windows XP 36

5.1.2 Wireless networking GPRS setting for windows 45

5.1.2.1 Wireless networking GPRS setting for Windows ME 45

5.1.2.2 Wireless networking GPRS setting for Windows 2000 50

5.1.2.3 Wireless networking GPRS setting for Windows XP 55

5.1.3 setup Bluetooth for Pocket PC 61

5.1.4 setup for Pocket PC 2002 68

5.1.5 Connect to GPRS network for Pocket PC 2002 77

5.1.6 Setup and connect to GPRS network for Pocket PC 2003 80

5.1.7 GPRS Connections Operators Information 85

2

1 BT-318 ATA GLANCE

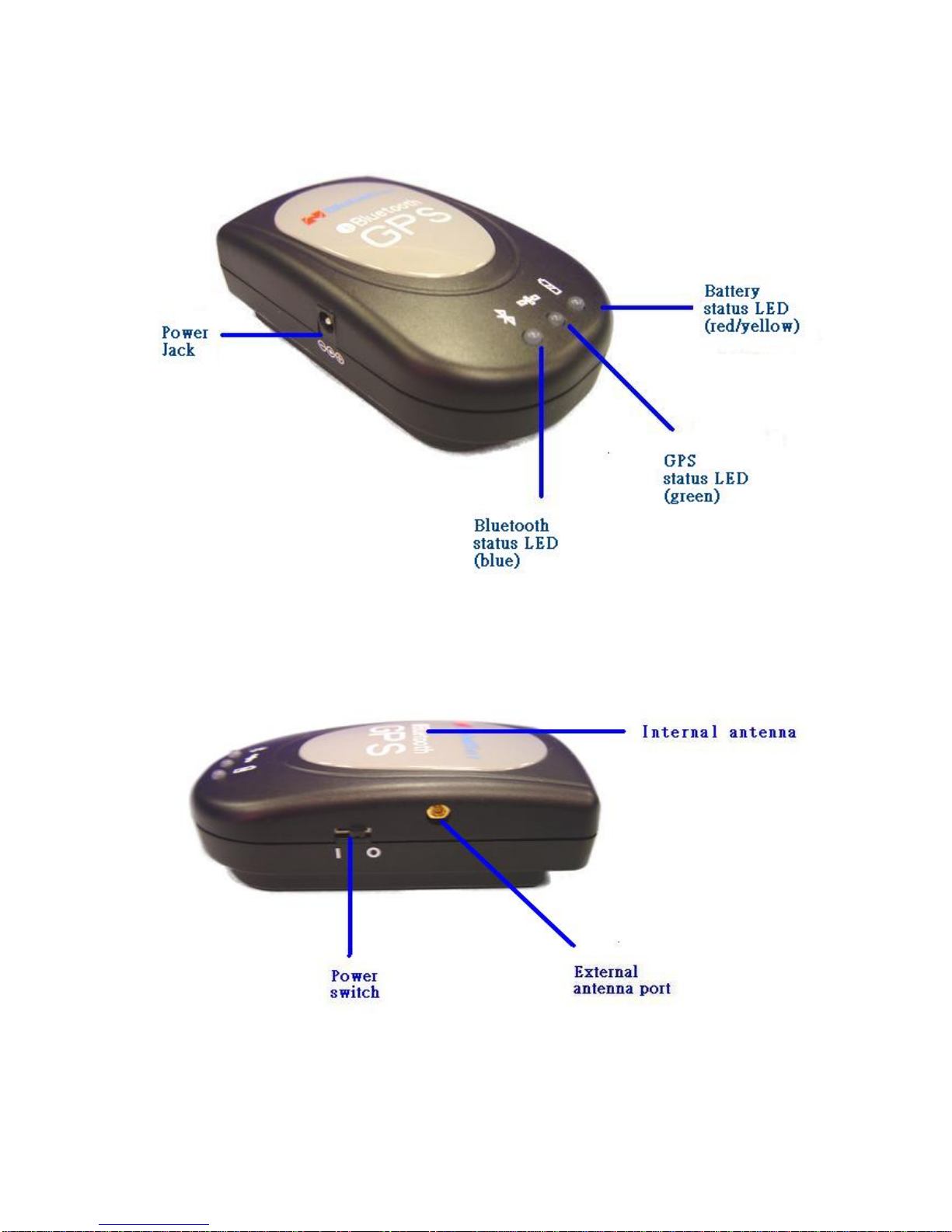

1.1 appearance and function

3

4

1.2 Change battery

Figure 1 Opening the cover of battery

5

Figure 2 Putting battery into BT-318

Figure 3 Putting battery into BT-318

Figure 4 Closeing the cover of battery

6

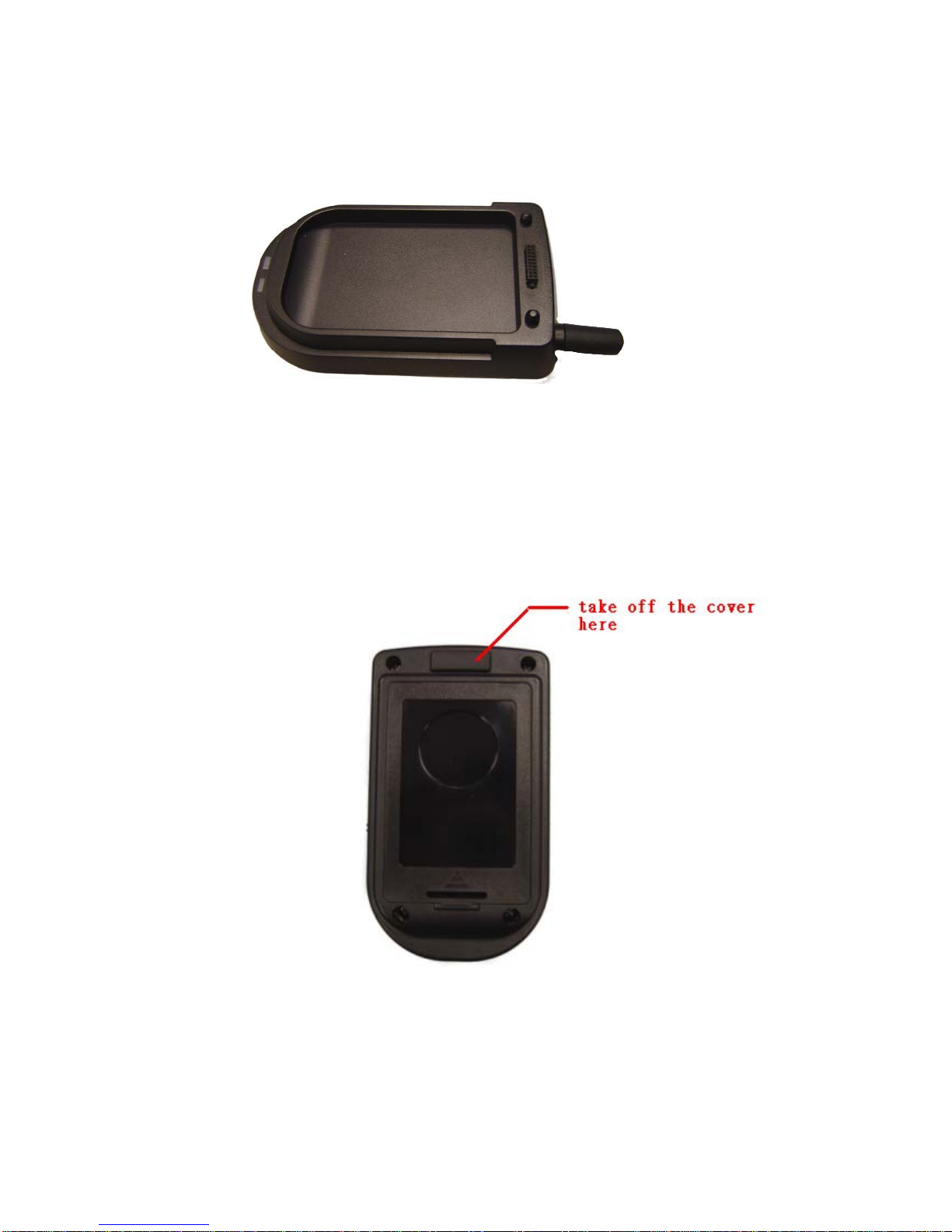

1.3 The appearance of GPRS cradle and how to connect it with BT-318

Figure 5 GPRS Cradle

Figure 6 The bottom of BT-318 main unit

7

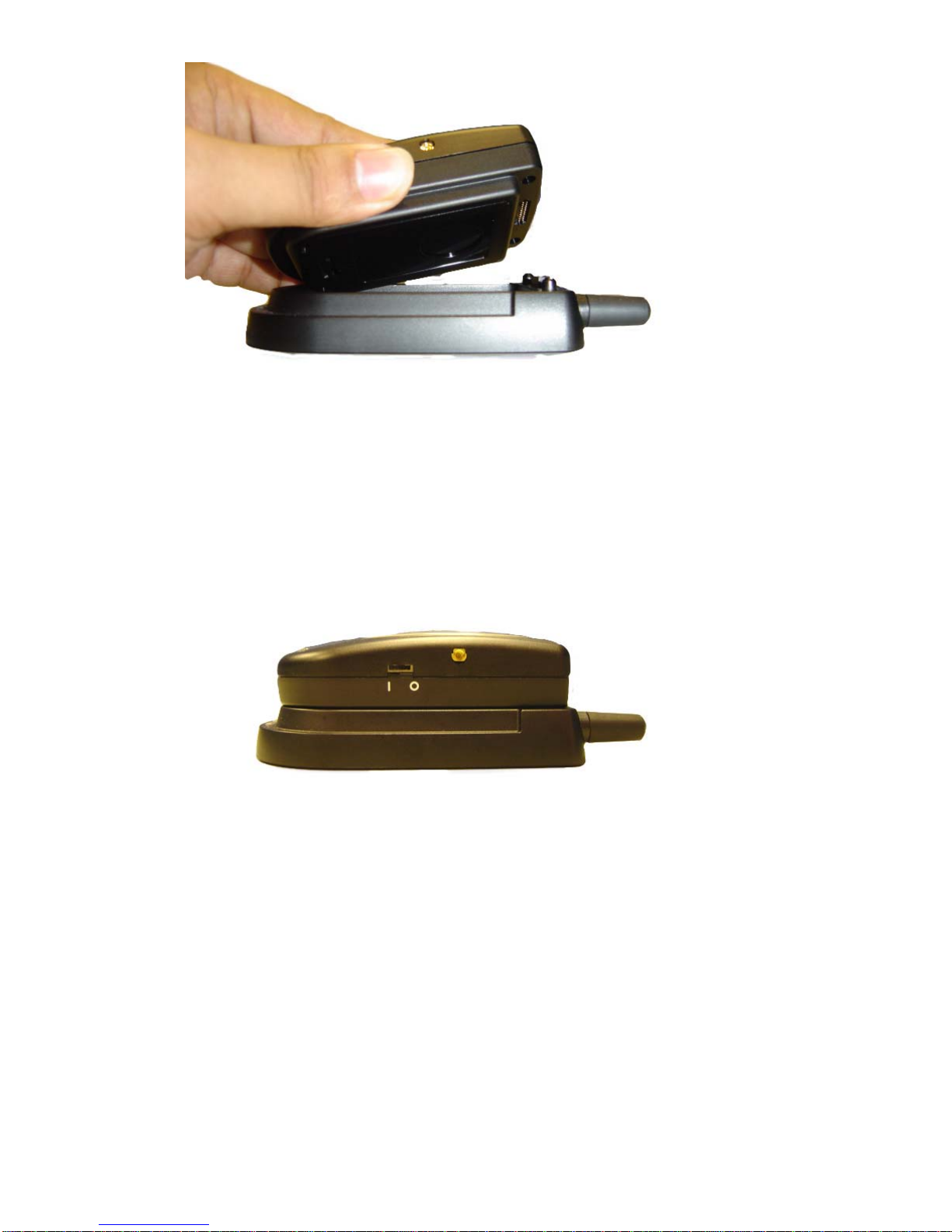

Figure 7 Combining BT-318 and GPRS Cradle

Figure 8 The BT-318 with GPRS cradle

8

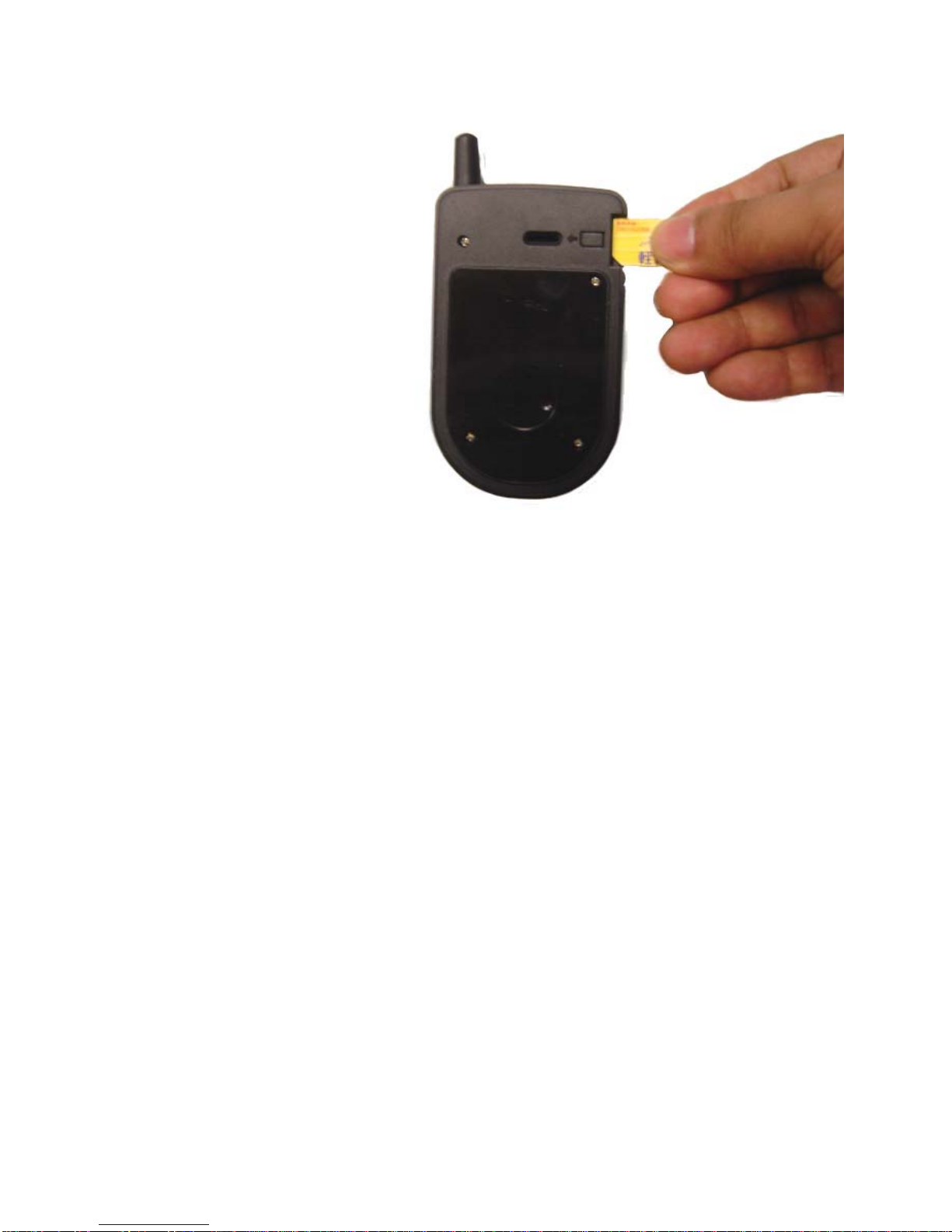

1.4 How to insert SIM Card into GPRS cradle

Figure 9 Inserting SIM Card into GPRS Cradle

9

2 INTRODUCTION

The BT-318 is a GPS receiver with Bluetooth interface and built-in active antenna for

high sensitivity to tracking signal. Based on the SiRF star Ⅱe/LP low power chip set and

supports all functions(SingleSat updates in reduced visibility, Superior urban canyon

performance, FoliageLock for weak signal tracking, etc.). The BT-318 is well suited to

system integration and users who use PDA, Smart phone, Tablet PC and Notebook PC with

Bluetooth devices. It satisfies a wide variety of applications for car navigation, personal

navigation or touring devices, tracking and marine navigation purpose.

2.1 Product Feature

1. SiRF Star II/LP high performance and low power consumption chipset

2. Communicates with Host Platform via Bluetooth Serial Profile

3. Built-in high sensitivity active GPS antenna

4. Optional external GPS antenna

5. 3 LED to show the status of GPS/Bluetooth/Battery

6. Replaceable and rechargeable 1650 mAh Li-ion battery

7. Continuously working for lasting 15 hours

8. Bluetooth operation range：80M

9. Magnetic chassis for mounting conveniently

10. Can be provided with GPRS function by fitting on cradle

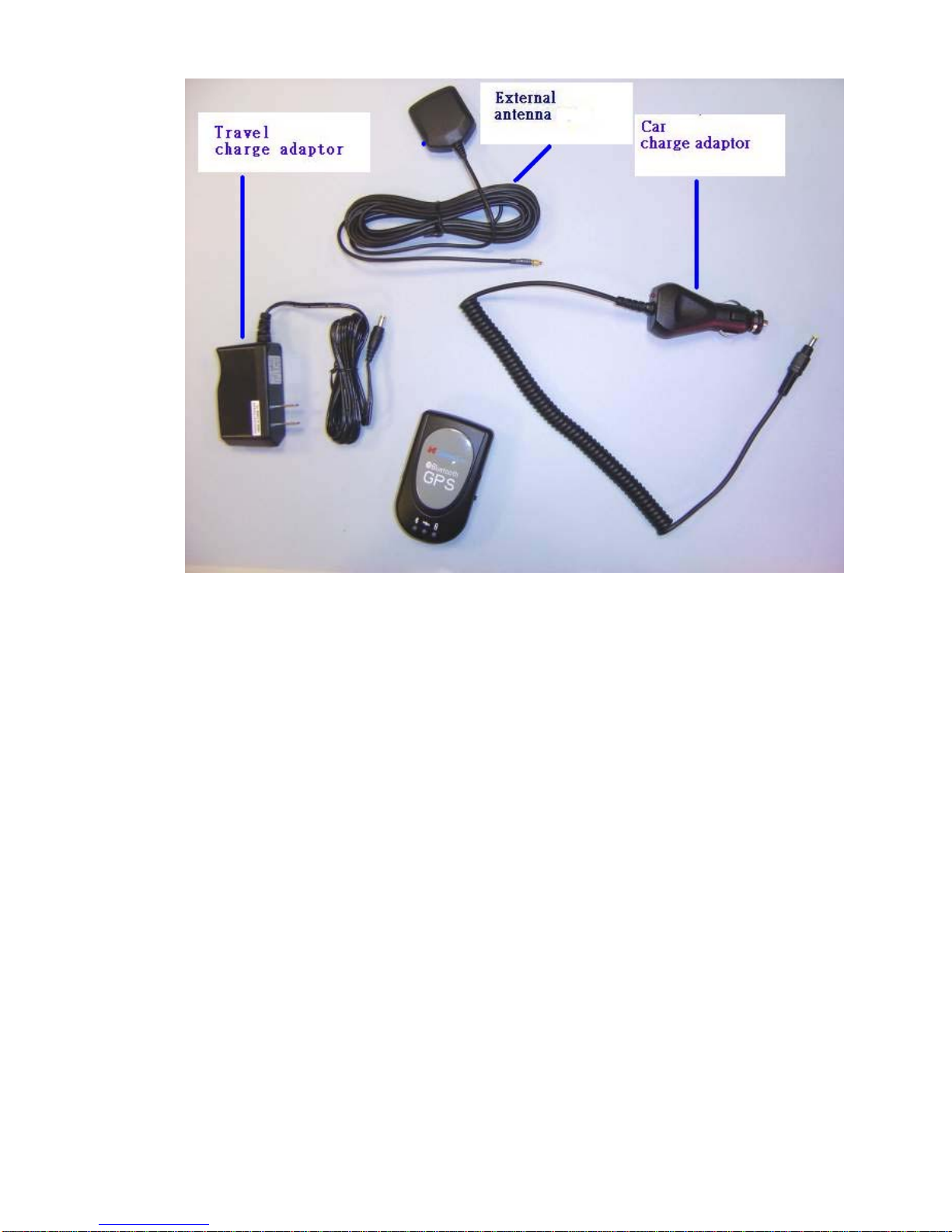

2.2 Package

Before you start up, make sure that your package includes the following

items. If any items are missing or damaged, contact your dealer immediately.

 Bluetooth GPS Receiver

 A CD with the User Manual and the Testing Program.

 AC Power Charger

 DC Car Power Charger

 External Antenna

10
