Gigabyte U2440N User manual
English
1
2
Congratulations on your purchase of the GIGABYTE Notebook.
This manual will help you to get started with setting up your notebook. The nal product
conguration depends on the model at the point of your purchase. GIGABYTE reserves
the right to amend without prior notice. For more detailed information, please visit our
website at www.gigabyte.com
Using GIGABYTE Notebook for the First Time
Check Supplied Items
1
AC Adapter Power Cord Handy Bag (Optional)
Manual Driver CD Warranty Card
* The illustrations in this document may appear differently from your model.
1
3
2

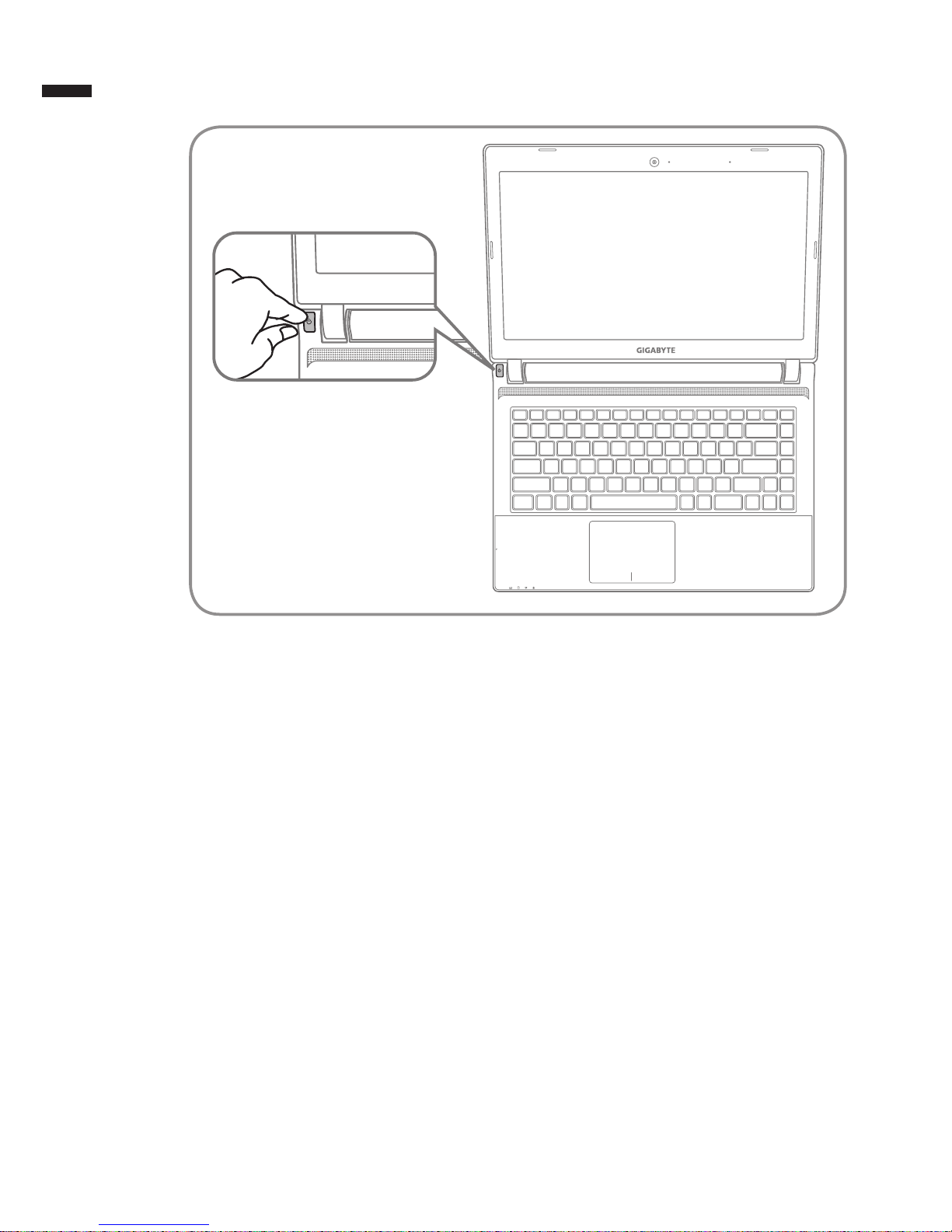

1Connect the the power cord to the AC adapter.
2Connect the AC adapter to the DC-in jack on the right side of the notebook.
3Connect the power cord to the power outlet.
English
2
Switching on the Power
After you turn on the U2440 for the very first time, do not turn it off until the
operating system has been configured. Please note that the volume for the
audio will not function until Windows® Setup has completed.
Booting Up the U2440 for the First Time
Depending on your conguration, the Microsoft® Windows® Boot Screen will be
the rst screen that you will see as the notebook starts up. Follow the on-screen
prompts and instructions and enter your personal information to complete the
setup of the Windows® Operating System.
English
3

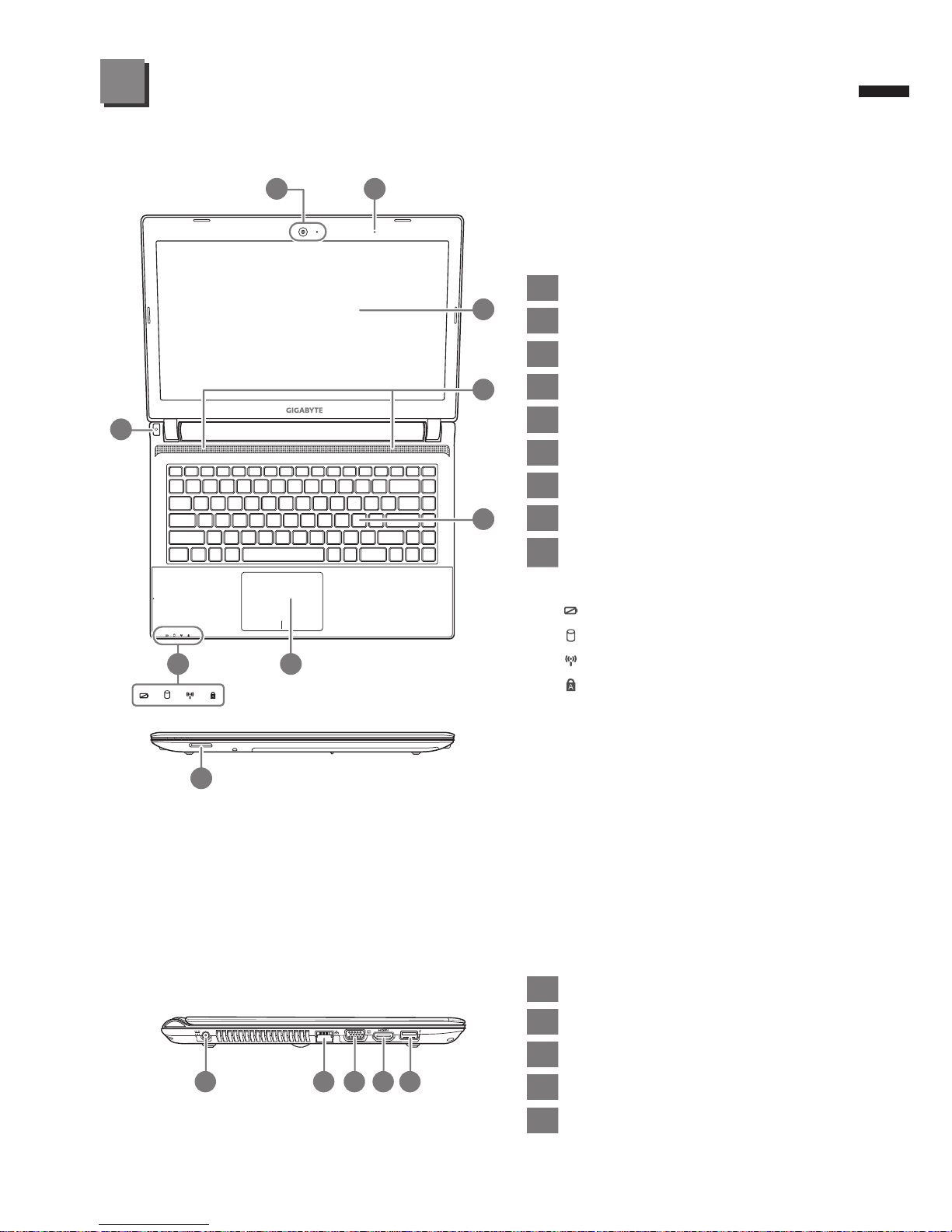

Your GIGABYTE Notebook Tour
3
Top View
Left View
1 2
5
8
3
7 6
9
4
2 3 4 51
1Webcam
2Microphone
3Display panel
4Audio Speakers
5Keyboard
6Touchpad and buttons
7Status indicators
8Power Switch
9Flash Memory Card Reader
Webcam on or off indicator
Battery charge Indicator
Drive Activity Indicator
Wireless Indicator
Capital Lock Indicator
1power DC input
2LAN Port
3Display (Monitor) output
4HDMI Port
5USB 3.0 Port
English
4

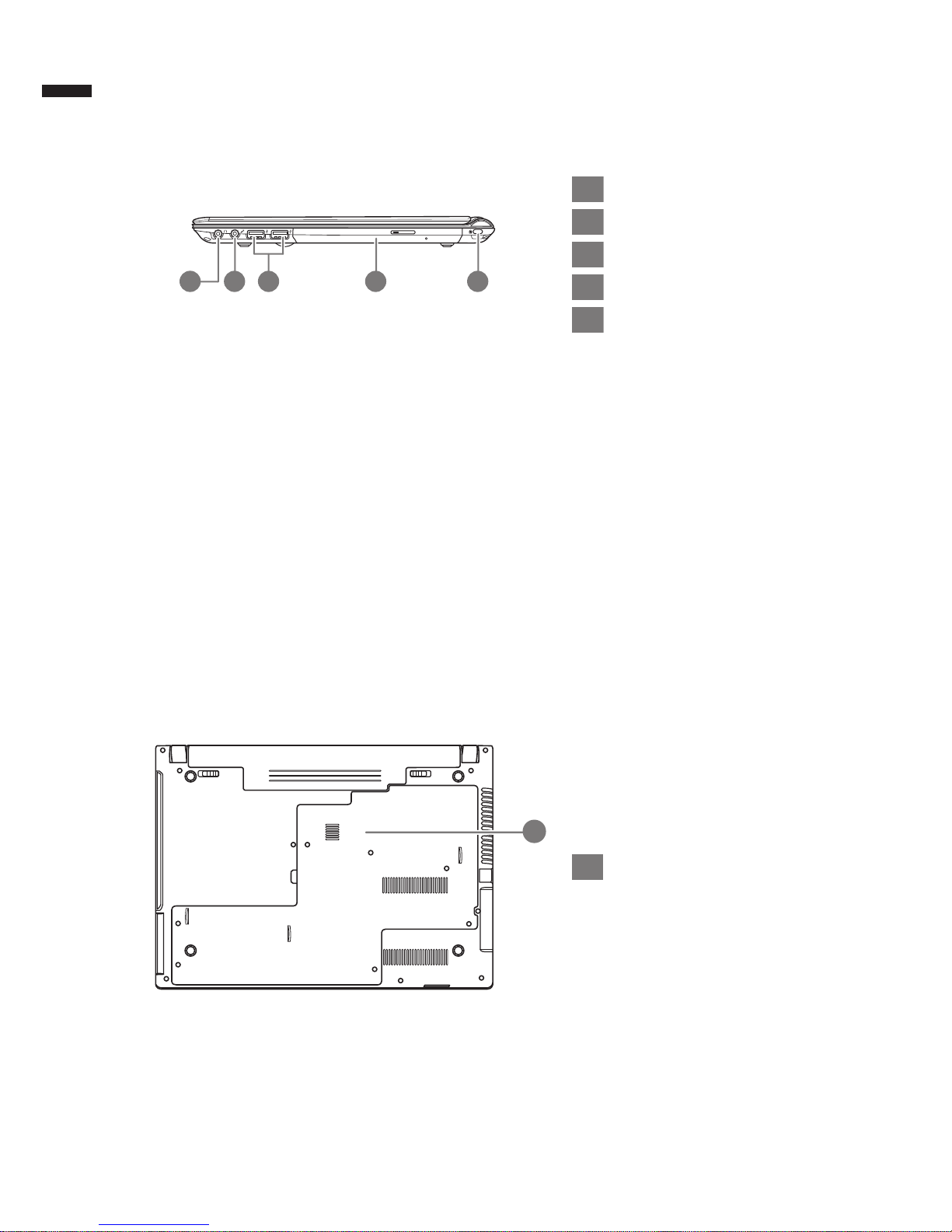

Base View
Right View
1Headphone output Jack
2Microphone input Jack
3USB Ports(2.0)X 2
4Optical Drive
5Kensington Lock Port
1HDD & Memory Compartment
2 4 531
1
English
5
The computer employs hotkeys or key combinations to access most of the computer’s
controls like screen brightness and volume output. To activate hotkeys, press and hold
the <Fn> key before pressing the other key in the hotkey combination.
Hotkey Function Description
Fn+F1 Zz Icon Places the Notebook in suspend mode.
Fn+F2 Wireless LAN Enables/disables the Wireless LAN
function.
Fn+F4 Lightning Toggles the Notebook between various
power management modes.
Fn+F5 Dim Sun Decreases the display brightness
Fn+F6 Bright Sun Increases the display brightness
Fn+F7 LCD on & off Toggles the Display Panel On and off
Fn+F8 LCD /Monitor
Toggles between the Notebook LCD
display and an external monitor in this
series.
Fn+F9 Crossed-out Touchpad Toggles the Built-in touchpad LOCKED
and UNLOCK.
Fn+F10 Speaker Toggles the speakers on & off
(only in Windows OS)
Fn+F11 Speaker Down Decrease the speaker volume
Fn+F12 Speaker Up Increase the speaker volume
Hotkeys
4
English
6GIGABYTE Smart Recovery
5
● System Recovery (Restore your U2440N/M Operating system):
The hard drive of the U2440 has a hidden partition that contains a full backup image
of the operating system that can be used to recover the system in the event that
something happens to the operating system.
CAUTION:
If the hard drive is removed or the partition deleted. the recover options will no
longer be available and a recovery service will be needed.
● Launch System Recovery :
The system recover feature is part of the Notebook installation and it ships preset
from the factory. The options menu allows you to launch the WIndows recovery tool to
reinstall the operating system to factory defaults.

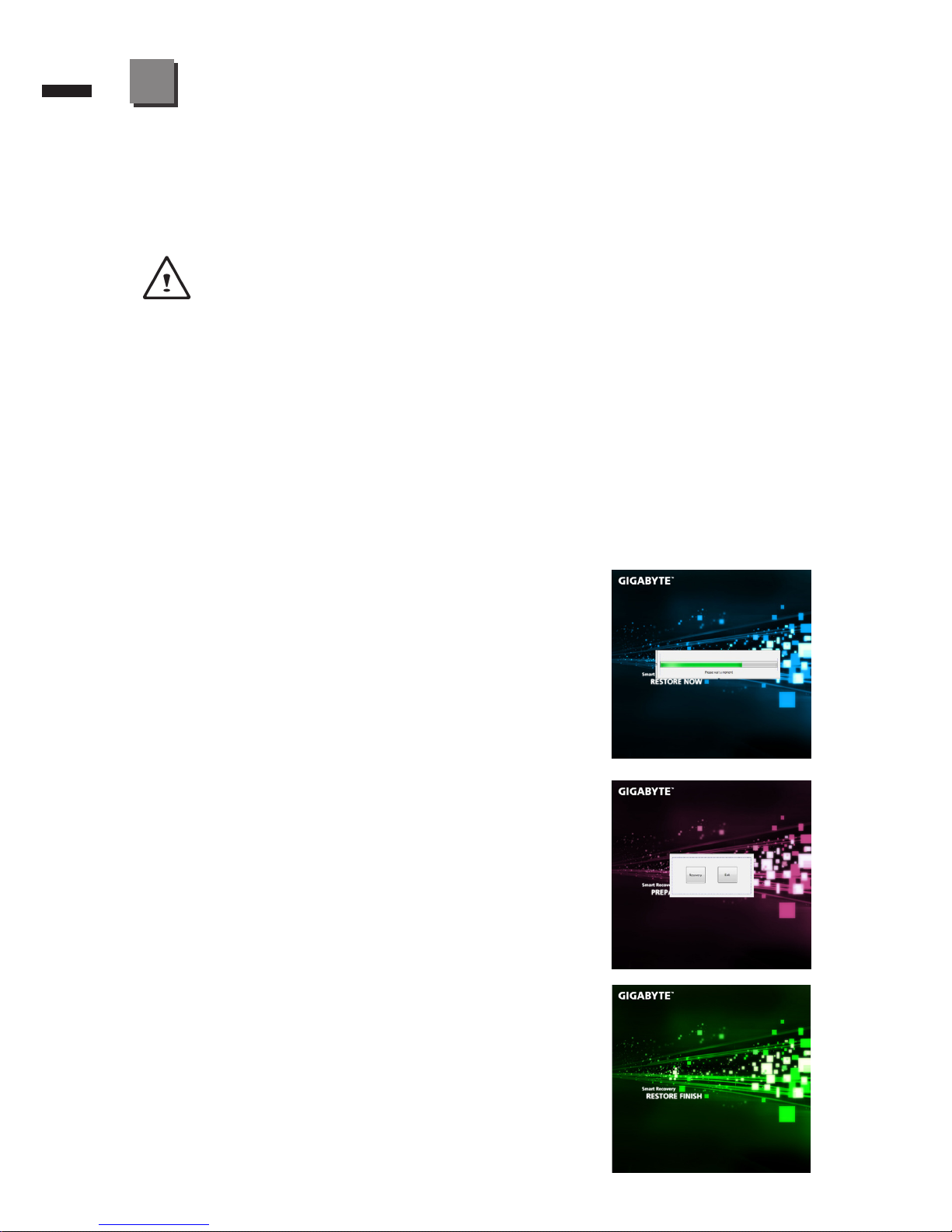

● Below will briefly describe how to launch the recovery tool and to get the recovery
started.
1. Turn off or restart the Notebook.
2. Turn the Notebook on the press and hold the F9 Key to launch the tool.
3. The recovery window will open and give you
the option to "Recovery" in the toolbar. You will
be prompted if you want to recovery. Click on
"Recovery" to begin the repair if you do.
4. The "Recoverying " windos will open and begin the
recovery.
5. Once it is complete. you will be prompted to reboot
the Notebook.
English
7
Model Name U2440N/M
CPU 3rd Generation Intel® Core™ ULV Processor
Operation System Genuine Windows®7 Home Premium
Genuine Windows® 7 Professional
Display 14" HD 1366 X 768 LED backlight
System Memory 2/4GB DDRIII, 2 slots (Max 8GB)
Chipset Mobile Intel® HM77 Express Chipset
Video Graphics
Intel® HD Graphics 4000
NVIDIA® GeForce® GT 630M 1GB
Supports NVIDIA® Optimus™ Technology
Storage 2.5" 9.5mm HDD 5400/7200rpm
24GmSATA SSD + 2.5" 9.5mm HDD 5400/7200rpm
ODD 9.5mm Super Multi DVD RW
I/O Port USB(3.0)*1, USB(2.0)*2, D-sub, HDMI, RJ45, Mic-in,
Earphone-out,SD Card reader , DC-in Jack,
Audio 2 Watt Speaker*2, Internal Microphone
Communications
LAN 10/100/1000Mbps Ethernet
Wireless LAN 802.11/n Wireless
Bluetooth Bluetooth V4.0
WWAN (3.5G) N/A
Webcam 1.3 Megapixel
Security Kensington Lock
Battery Li-ion 4-cell, 2600mAh 38.48Wh
Li-ion 6 cell, 2200mAh 48.84Wh(Optional)
Dimensions 335(W) x 240(D) x 21.5(H)mm
Weight ~1.87kg(w/ODD and 4-cell battery)
* This specication is for users’ reference only. The nal conguration depends on the users' bought.
Specication
6
Appendix
7
■ Warranty & Service:
Warranty and service and related information please refer to the warranty card
or GIGABYTE service website as the below link:
http://www.gigabyte.com/support-downloads/technical-support.aspx
■ FAQ:
FAQ (Frequent Asked Questions) please refer to the below link:
http://www.gigabyte.com/support-downloads/faq.aspx
繁體中文
1
1
2

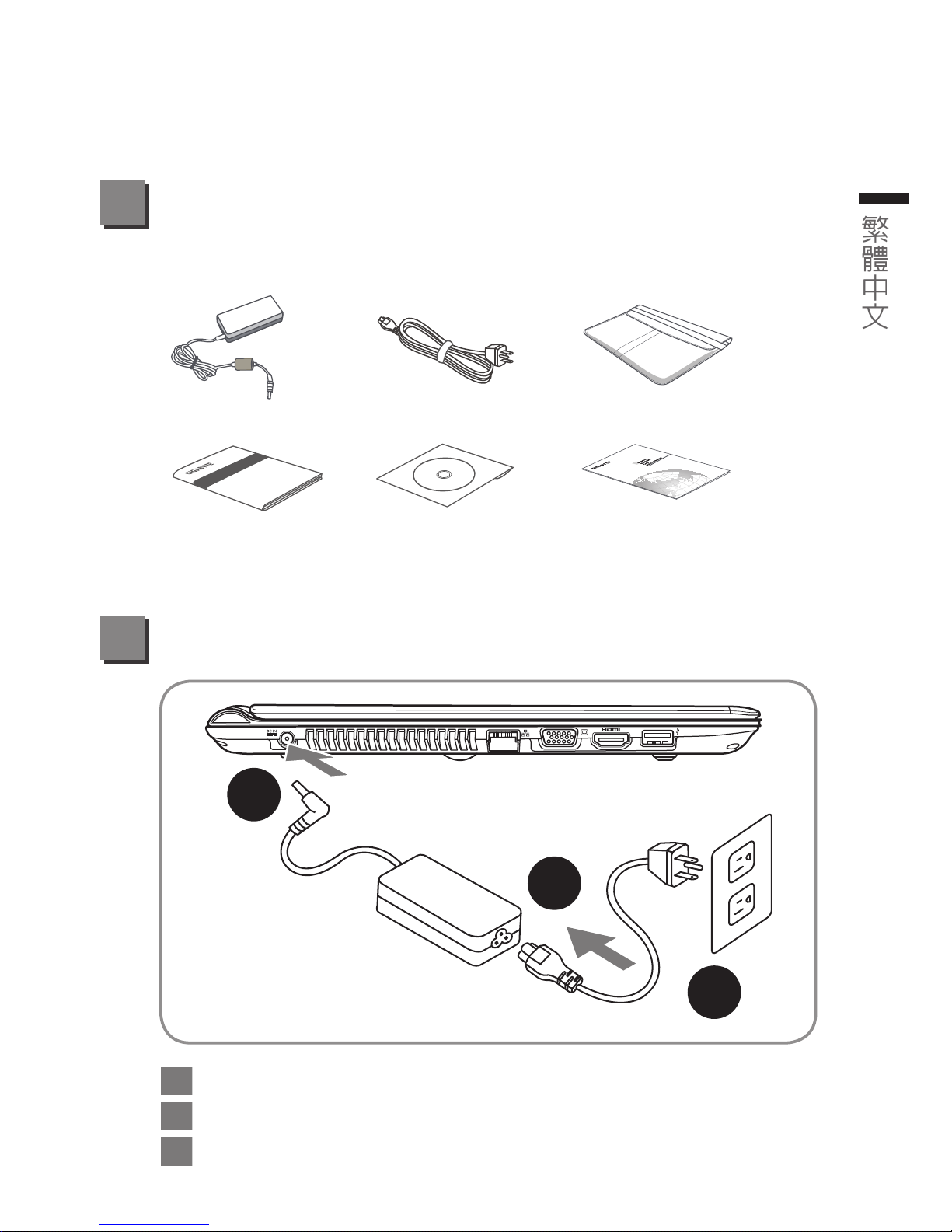

請檢查包裝內配件
首次使用GIGABYTE技嘉筆記型電腦
感謝您選擇技嘉U2440筆記型電腦 !
為協助您順利使用技嘉筆記型電腦，我們特地設計此快速安裝說明。如果您需要更多關於
電腦功能，歡迎上技嘉官方網站 www.gigabyte.tw查詢。產品實際規格以出貨為準，如有
異動恕不另行通知。
變壓器 電源線 輕巧隨身包 ( 選配 )
說明書 驅動程式光碟 保固卡
* 以上配件圖示可能會與您實際所購買的機種而有所差異。

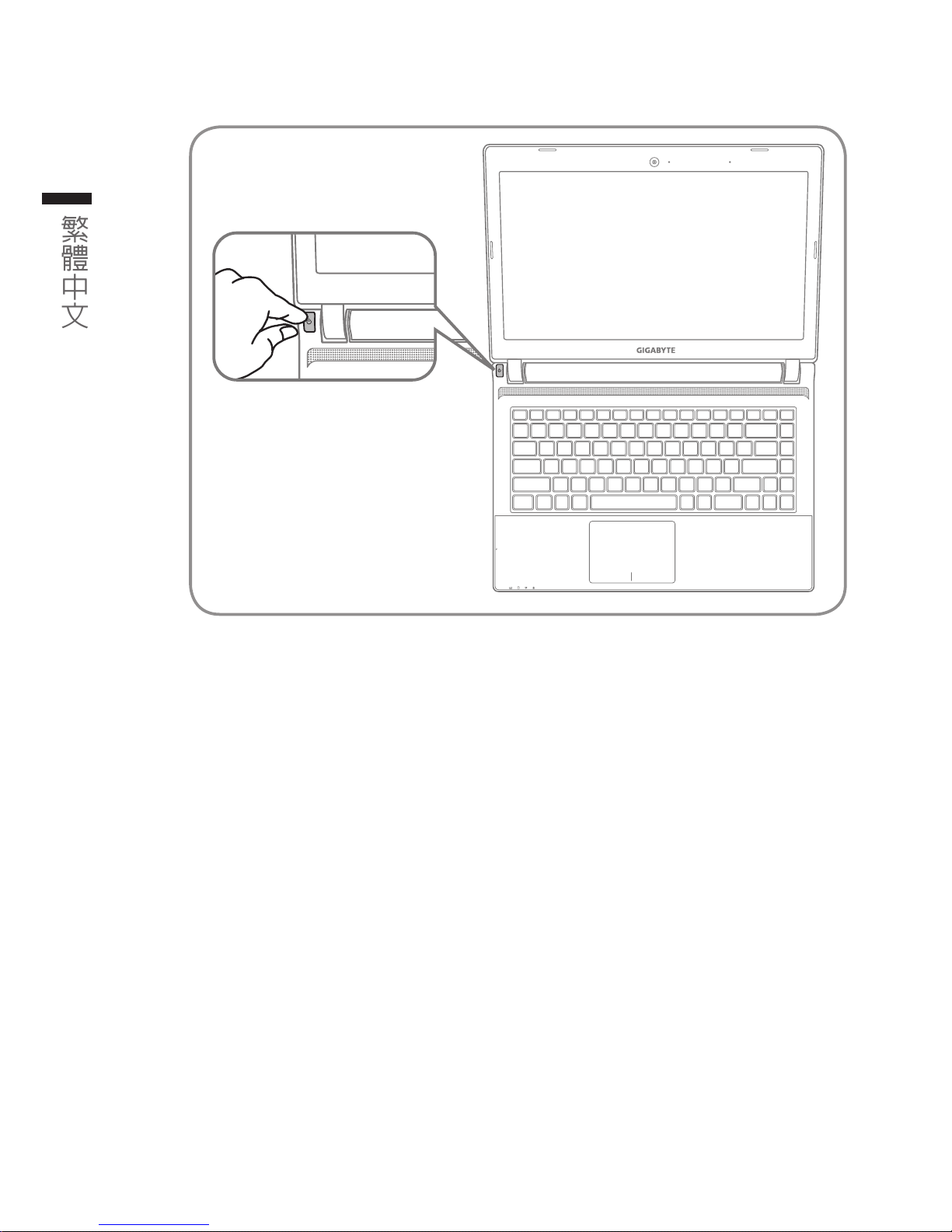

1將電源線接上電源轉換器。
2將電源轉換器連接到電腦的電源插孔。
3將電源線插入電源插座。
1
3
2
繁體中文
2
開啟筆記型電腦
電源指示燈會顯示機器是否為通電的狀態。
第一次開機時，在還未完全進入作業系統前請勿強制關機。
開啟電源後，直到該作業系統配置完成前，音量無法設定。
開始第一次使用U2440
根據您的筆記型電腦配置，當您第一次開機，第一個畫面會是微軟Windows®啟動畫
面，按照該螢幕上的提示和指示，完成作業系統的配置。當軟體許可條款顯示時，
請務必閱讀並同意後再繼續。
This manual suits for next models
2
