USER MANUAL
AKRON
®
STREAMLINE
CONTINENTAL
WITH
DRAINAGE
Models
2152A, 2152B, 2152C
2162A, 2162B, 2162C
,
AKRON
®
STREAMLINE
EUROPA
CONTINENTAL
Models
2132A, 2132B, 2132C
2142A, 2142B, 2142C
792-692-01
UM English
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
1
Contents
1. Introduction 2
2. Warnings & Cautions 3
3. Installation 4
4. Operation 5
5. Accessories – Operating Instructions 8
Paper Roll Holder, Cyriax Horns, Arm Support,
Moulded Arm Support, Head Support, Hole & Horn
Fixation Rails
6. Cleaning and Decontamination 10
7. Troubleshooting 11
8. Maintenance 11
9. Warranty and Service 12
10. Revision Status 13
11 Technical Specification 14
12. Transport and Storage 16
13. Environmental Protection 16
The mark on this product demonstrates conformity with the EC Directive 93/42/EEC.
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
2
1. Introduction
The STREAMLINETM product range of treatment & examination couches, have been designed to
cover a wide range of disciplines, from simple examination to heavier manipulative and manual
therapy techniques.
The STREAMLINETM couches in this range provide ergonomic solutions to a variety of manual
handling issues, benefiting both the patient and clinician. These products can be further
enhanced with a wide range of additional accessories also available.
However, these products are not designed to be used as a bed and are not suitable for sleeping
on.
Always keep this Operating Manual available for reference.
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
3
2. Warnings & Cautions
General Warnings
WARNINGS
Warnings identify possible hazards in procedures or conditions which, if not correctly
followed, could result in death, injury or other serious adverse reactions.
CAUTIONS
Cautions identify conditions or procedures which, if not correctly followed, could result in
equipment failure or damage.
WARNINGS
Electrical equipment can be hazardous. These products should only be
operated by suitably qualified/trained personnel.
This equipment should not be used adjacent to other electrical equipment.
If such use is necessary, normal operation of the equipment should be
verified by observation.
Medical Electrical Equipment maybe affected by portable and/or mobile
RF communications equipment (eg mobile telephones).
Use only accessories that have been designed or approved for use with
this couch.
These products are not intended for Patient Transportation.
Do not use electric couches in the presence of flammable gases such as
an anaesthetic agent.
Maximum Load 225 kg (495 lbs) distributed evenly.
Do not concentrate weight on either side of the couch.
Plug acts as a disconnect device.
Do not allow children to play with the couch at any time.
Adequately supervise children in the proximity of the couch.
The patient should not be left on the Couch unattended at any time.
CAUTIONS
Electromagnetic Compatibility (EMC). This product complies with the requirements of
applicable EMC standards. The use of accessories not specified by the manufacturer may
result in increased emissions by, or decreased immunity of, the equipment, affecting its
performance.
Do not exceed the specified duty cycle as stated on the Product Identification Label
USA only - To achieve grounding reliability, ensure that this equipment is connected to a
receptacle marked “Hospital Only” or “Hospital Grade”.
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
4

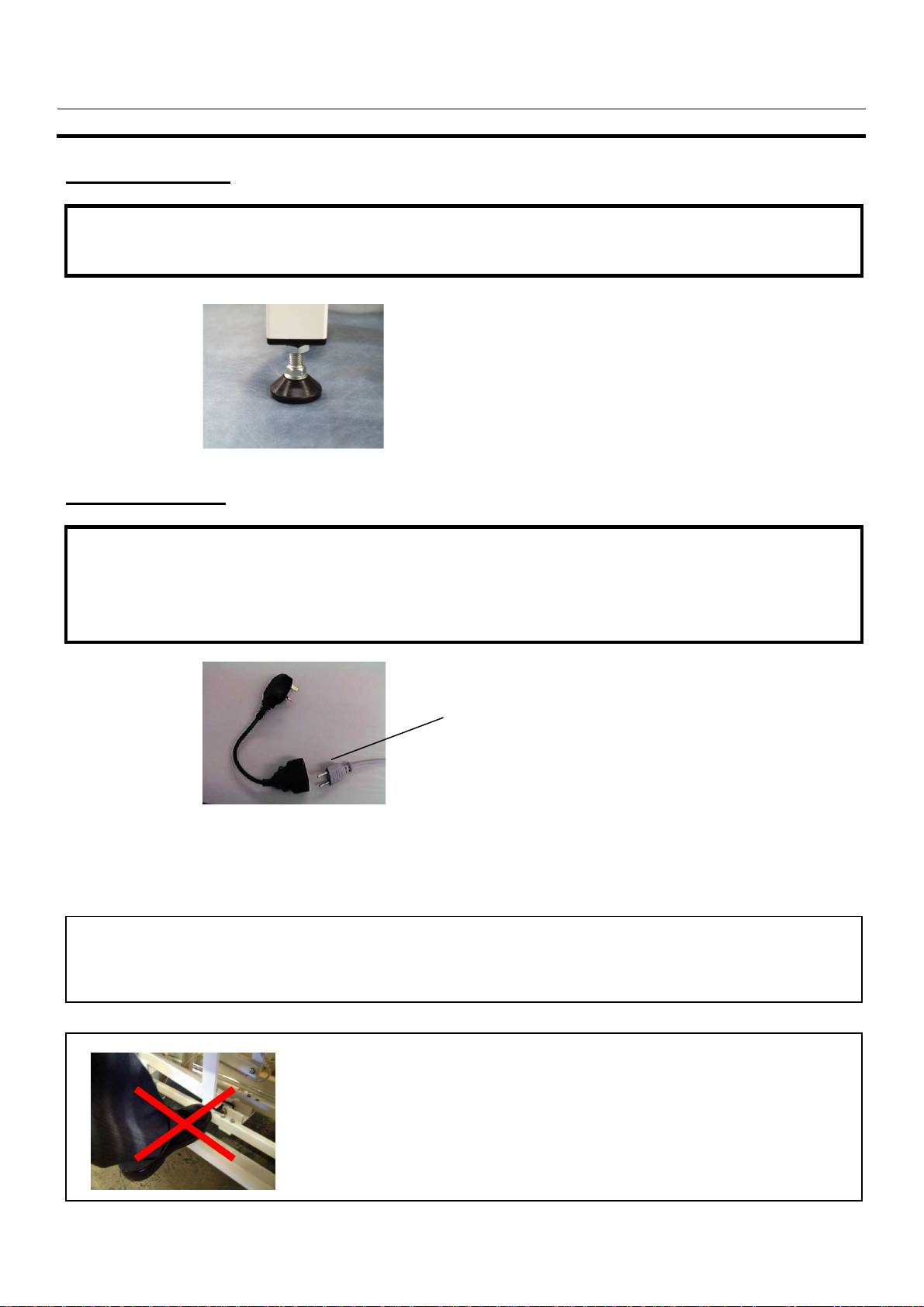

3. Installation
Adjustable Foot
Electric Models
Ensure mains supply cable is not stretched when connected.
Ensure, during couch use, no obstacles are in its path.
Ensure hand / foot switch tubes or leads are not trapped by moving parts of the couch.
WARNING
Lock castors before adjusting.
A) Lock castors first.
B) Adjust foot.
C) Lock foot by tightening half nut.
WARNING
Do not insert the 2-pin mains connector directly into a UK style, BS1363,
3-pin 13A mains outlet. Always use the adapter provided.
Plug acts as a disconnect device.
Use adapter if UK style, BS1363, 3-pin 13A
plug is required.
(Order reference 5S0409Z)
CAUTION
When not in use, switch couch off, by unplugging from the power socket/receptacle. Note that
models with battery back-up will still operate.
CAUTION
Do NOT Insert Hands or Feet into the Mechanism as this
could result in serious injury!
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
5
4. Operation
Elevation Controls
Electric Models
Foot bar switch (FBS)
Hanning Handswitch
Wheel Locking
WARNING
Safely position patient before elevating couch.
Position all electrical cables away from the moving parts.
Press tube down to raise couch
Lift tube upwards to lower couch
Press to raise mid section of couch
Press to lower mid section of couch
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
6
4. Operation
Castors (RWB – Retractable Wheel Base)
Castors locked Castors unlocked
Breathing Hole and Plug
WARNING
Lock couch wheels/castors prior to patient transfer or treatment.
These couches are not designed for the transportation of patients.
Disconnect and coil electrical cord away from moving parts prior to
repositioning couch.
Remove plug for patient prone position.
Press out from underneath.
WARNING
Lock table wheels prior to patient transfer or treatment.
AKRON STREAMLINE Model No.’s:- 2132A, 2132B, 2132C, 2142A, 2142B, 2142C, 2152A, 2152B, 2152C, 2162A,
2162B, 2162C
7
4. Operation
Head & Foot Sections
A & B Type Head Section Operating Lever
C Type Head Section Operating Lever
Foot Section Operating Lever
C Type Head Section Arm Rests
CAUTION
Support upholstery section while manually altering the angle.
A) Press lever UP to alter section angle.
B) Support section when altering angle.
C) Release lever to lock section in position.
Angles A Type = +80°-20°B Type = +45°-20°
A) Press lever UP to alter section angle.
B) Support section when altering angle.
C) Release lever to lock section in position.
Angles C Type = +45°-20°
A) Press lever UP to alter section angle.
B) Support section when altering angle.
C) Release lever to lock section in position.
Foot Section Angles = +95°-0°
A) Tilt Armrest towards Head Section.
B) Move Armrest into position.
C) Release Armrest to lock into position.
