Instruction Manual

Model 8020-59

Vibrating Wire to Analog Converter

Warranty Statement

Geokon, Inc. warrants its products to be free of defects in materials and workmanship, under

normal use and service for a period of 13 months from date of purchase. If the unit should

malfunction, it must be returned to the factory for evaluation, freight prepaid. Upon examination

by Geokon, if the unit is found to be defective, it will be repaired or replaced at no charge.

However, the WARRANTY is VOID if the unit shows evidence of having been tampered with

or shows evidence of being damaged as a result of excessive corrosion or current, heat, moisture

or vibration, improper specification, misapplication, misuse or other operating conditions outside

of Geokon's control. Components which wear or which are damaged by misuse are not

warranted. This includes fuses and batteries.

Geokon manufactures scientific instruments whose misuse is potentially dangerous. The

instruments are intended to be installed and used only by qualified personnel. There are no

warranties except as stated herein. There are no other warranties, expressed or implied, including

but not limited to the implied warranties of merchantability and of fitness for a particular

purpose. Geokon, Inc. is not responsible for any damages or losses caused to other equipment,

whether direct, indirect, incidental, special or consequential which the purchaser may experience

as a result of the installation or use of the product. The buyer's sole remedy for any breach of this

agreement by Geokon, Inc. or any breach of any warranty by Geokon, Inc. shall not exceed the

purchase price paid by the purchaser to Geokon, Inc. for the unit or units, or equipment directly

affected by such breach. Under no circumstances will Geokon reimburse the claimant for loss

incurred in removing and/or reinstalling equipment.

Every precaution for accuracy has been taken in the preparation of manuals and/or software,

however, Geokon, Inc. neither assumes responsibility for any omissions or errors that may

appear nor assumes liability for any damages or losses that result from the use of the products in

accordance with the information contained in the manual or software.

TABLE of CONTENTS

1. INTRODUCTION .................................................................................................................................................. 1

2. INSTALLING AND CONFIGURING THE 8020-59 SOFTWARE APPLICATION ..................................... 2

2.1 CONFIGURING THE COM PORT ........................................................................................................................... 5

3. QUICK START (SINGLE CHANNEL)............................................................................................................... 7

4. SINGLE AND MULTI-CHANNEL OPERATION............................................................................................10

4.1 THEORY OF OPERATION.....................................................................................................................................10

4.2 OPERATING MODES ...........................................................................................................................................11

4.2.1 Single Channel Mode................................................................................................................................11

4.2.2 16-Channel Multiplexed Mode..................................................................................................................12

4.2.3 32-Channel Multiplexed Mode..................................................................................................................13

4.3 CONVERSION TO “DIGITS” .................................................................................................................................14

4.4CONNECTION TO A VOLTAGE INPUT DAS..........................................................................................................15

4.5 CONNECTION TO A CURRENT INPUT DAS..........................................................................................................15

4.6 TEMPERATURE MEASUREMENT .........................................................................................................................16

5. COMMUNICATIONS ..........................................................................................................................................17

5.1 COMMAND LINE INTERFACE..............................................................................................................................17

6. 8020-59 WINDOWS APPLICATION..................................................................................................................20

6.1 SOFTWARE INSTALLATION.................................................................................................................................20

6.2 STARTING THE 8020-59 APPLICATION ...............................................................................................................20

6.3 COMMUNICATIONS TIMEOUT ERROR .................................................................................................................20

6.4 SINGLE CHANNEL CONFIGURATION...................................................................................................................21

6.5 16-CHANNEL CONFIGURATION ..........................................................................................................................22

6.6 32-CHANNEL CONFIGURATION ..........................................................................................................................25

APPENDIX A. SPECIFICATIONS.........................................................................................................................26

A.18020-59 SPECIFICATIONS ..................................................................................................................................26

A.2 MULTIPLEXER TIMING SPECIFICATIONS............................................................................................................27

APPENDIX B. THERMISTOR TEMPERATURE DERIVATION.....................................................................28

APPENDIX C. WIRING CONFIGURATIONS.....................................................................................................29

C.1 VOLTAGE OUTPUT –SINGLE CHANNEL MODE (DIGITAL I/O DAS) ..................................................................29

C.2 VOLTAGE OUTPUT –16-CHANNEL MODE (DIGITAL I/O DAS) .........................................................................30

C.3 VOLTAGE OUTPUT –32-CHANNEL MODE (DIGITAL I/O DAS) .........................................................................31

C.4 CURRENT OUTPUT –SINGLE CHANNEL MODE (DIGITAL I/O DAS) ..................................................................32

C.5 CURRENT OUTPUT –16-CHANNEL MODE (DIGITAL I/O DAS): ........................................................................33

C.6 CURRENT OUTPUT –32-CHANNEL MODE (DIGITAL DAS)................................................................................34

C.7 VOLTAGE OUTPUT –SINGLE CHANNEL MODE (PLC DAS) ..............................................................................35

C.8 VOLTAGE OUTPUT –16-CHANNEL MODE (PLC DAS)......................................................................................36

C.9 VOLTAGE OUTPUT –32-CHANNEL MODE (PLC DAS)......................................................................................37

C.10 CURRENT OUTPUT –SINGLE CHANNEL MODE (PLC DAS).............................................................................38

C.11 CURRENT OUTPUT –16-CHANNEL MODE (PLC DAS)....................................................................................39

C.12 CURRENT OUTPUT –32-CHANNEL MODE (PLC DAS)....................................................................................40

APPENDIX D. DATA REDUCTION ......................................................................................................................41

D.1 PRESSURE CALCULATION..................................................................................................................................41

D.2 TEMPERATURE CORRECTION.............................................................................................................................42

D.3 BAROMETRIC CORRECTION (REQUIRED ONLY ON NON-VENTED TRANSDUCERS)...............................................43

APPENDIX E. SAMPLE CALIBRATION REPORT ...........................................................................................44

APPENDIX F. IMPROVING THE ACCURACY OF CALCULATED PRESSURES.......................................45

APPENDIX G. BAROMETRIC CORRECTION (NON-VENTED TRANSDUCERS ONLY).........................46

FIGURES

FIGURE 1-EXTRACTING THE 8020-59 INSTALLER .........................................................................................................2

FIGURE 2-SELECT DESTINATION FOLDER .....................................................................................................................2

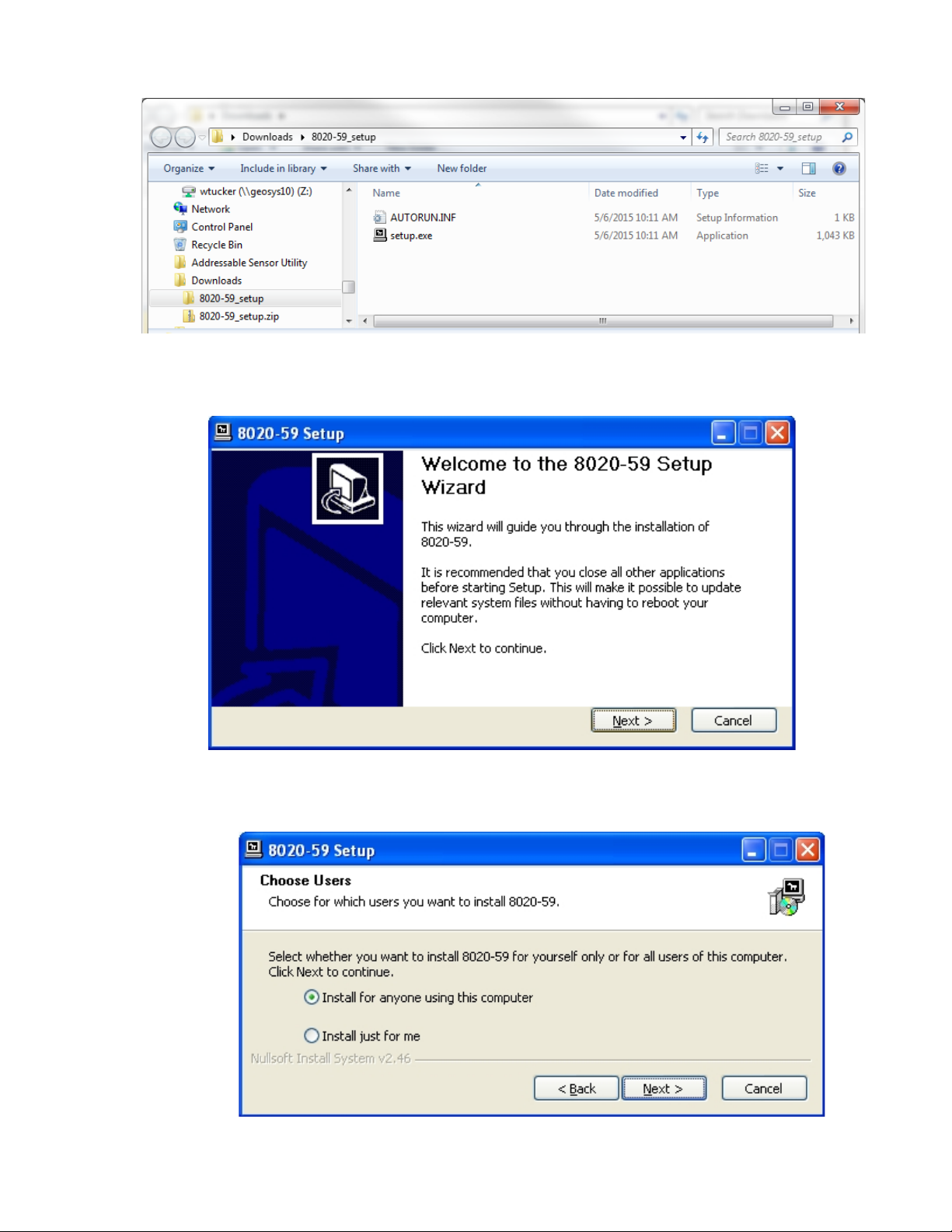

FIGURE 3-EXTRACTED 8020-59 INSTALLER .................................................................................................................3

FIGURE 4-INSTALL WIZARD,START SCREEN................................................................................................................3

FIGURE 5-INSTALL WIZARD,CHOOSE USERS ...............................................................................................................3

FIGURE 6-INSTALL WIZARD,CHOOSE START MENU FOLDER.......................................................................................4

FIGURE 7-INSTALL WIZARD,INSTALLATION COMPLETE ..............................................................................................4

FIGURE 8-INSTALL WIZARD,LAUNCH 8020-59 APPLICATION......................................................................................5

FIGURE 9-8020-59 SOFTWARE APPLICATION,STARTUP DIALOG..................................................................................5

FIGURE 10 -COMMUNICATIONS PARAMETERS DIALOG .................................................................................................6

FIGURE 11 -SINGLE CHANNEL CONFIGURATION SCREEN ..............................................................................................8

FIGURE 12 -SINGLE CHANNEL MONITOR.......................................................................................................................8

FIGURE 13 -CONTROL SIGNAL SEQUENCE:SINGLE CHANNEL MODE ..........................................................................11

FIGURE 14 -CONTROL SIGNAL SEQUENCE:16-CHANNEL MODE (CHANNELS ONE AND TWO ONLY) ..........................12

FIGURE 15 -CONTROL SIGNAL SEQUENCE:32-CHANNEL MODE (CHANNELS ONE THROUGH FOUR ONLY) ................13

FIGURE 16 -COMMUNICATION TIMEOUT WARNING MESSAGE ....................................................................................20

FIGURE 17 -16-CHANNEL CONFIGURATION SCREEN ...................................................................................................22

FIGURE 18 -16-CHANNEL MONITOR SCREEN...............................................................................................................23

FIGURE 19 -CHANNEL ONE MONITOR .........................................................................................................................24

FIGURE 20 -32-CHANNEL MONITOR SCREEN...............................................................................................................25

FIGURE 21 -CHANNEL THREE MONITOR......................................................................................................................25

FIGURE 22 -16-CHANNEL MULTIPLEXER TIMING REQUIREMENTS ..............................................................................27

FIGURE 23 -32-CHANNEL MULTIPLEXER TIMING REQUIREMENTS ..............................................................................27

FIGURE 24 -CONNECTION EXAMPLE FOR ONE CHANNEL 8020-59 WITH VOLTAGE OUTPUT TO DIGITAL I/O DAS.....29

FIGURE 25 -CONNECTION EXAMPLE FOR 16-CHANNEL MULTIPLEXER,8020-59 WITH VOLTAGE OUTPUT AND DIGITAL

I/O DAS .............................................................................................................................................................30

FIGURE 26 -CONNECTION EXAMPLE FOR 32-CHANNEL MULTIPLEXER,8020-59 WITH VOLTAGE OUTPUT AND DIGITAL

I/O DAS .............................................................................................................................................................31

FIGURE 27 -CONNECTION EXAMPLE FOR ONE CHANNEL 8020-59 WITH CURRENT OUTPUT TO DIGITAL I/O DAS .....32

FIGURE 28 -CONNECTION EXAMPLE FOR 16-CHANNEL MULTIPLEXER,8020-59 WITH CURRENT OUTPUT AND DIGITAL

I/O DAS .............................................................................................................................................................33

FIGURE 29 -CONNECTION EXAMPLE FOR 32-CHANNEL MULTIPLEXER,8020-59 WITH CURRENT OUTPUT AND DIGITAL

I/O DAS .............................................................................................................................................................34

FIGURE 30 -CONNECTION EXAMPLE FOR ONE CHANNEL.8020-59 WITH VOLTAGE OUTPUT,8020-59 PLC AND PLC

DAS ...................................................................................................................................................................35

FIGURE 31 -CONNECTION EXAMPLE FOR 16-CHANNEL MULTIPLEXER,8020-59 W/VOLTAGE OUTPUT,8020-59 PLC

AND PLC DAS....................................................................................................................................................36

FIGURE 32 -CONNECTION EXAMPLE FOR 32-CHANNEL MULTIPLEXER,8020-59 W/VOLTAGE OUTPUT,8020-59 PLC

AND PLC DAS....................................................................................................................................................37

FIGURE 33 -CONNECTION EXAMPLE FOR ONE CHANNEL 8020-59 WITH CURRENT OUTPUT,8020-59 PLC AND PLC

DAS ...................................................................................................................................................................38

FIGURE 34 -CONNECTION EXAMPLE FOR 16-CHANNEL MULTIPLEXER,8020-59 W/CURRENT OUTPUT,8020-59 PLC

AND PLC DAS....................................................................................................................................................39

FIGURE 35 -CONNECTION EXAMPLE FOR 32-CHANNEL MULTIPLEXER,8020-59 W/CURRENT OUTPUT,8020-59 PLC

AND PLC DAS....................................................................................................................................................40

FIGURE 36 -VIBRATING WIRE PRESSURE TRANSDUCER CALIBRATION REPORT..........................................................44

TABLES

TABLE 1-CONNECTOR PINOUT AND SIGNAL DESCRIPTION .......................................................................................... 1

TABLE 2-THERMISTOR RESISTANCE VERSUS TEMPERATURE .....................................................................................28

TABLE 3-ENGINEERING UNITS MULTIPLICATION FACTORS ........................................................................................42

EQUATIONS

EQUATION 1-VIBRATING WIRE FREQUENCY TO DIGITS CONVERSION........................................................................14

EQUATION 2-ANALOG VOLTAGE OUTPUT ..................................................................................................................14

EQUATION 3-ANALOG CURRENT OUTPUT ..................................................................................................................14

EQUATION 4-ANALOG VOLTAGE OUTPUT ..................................................................................................................14

EQUATION 5-ANALOG CURRENT OUTPUT ..................................................................................................................14

EQUATION 6-TEMPERATURE DERIVED FROM VOLTAGE OUTPUT................................................................................16

EQUATION 7-TEMPERATURE DERIVED FROM CURRENT OUTPUT................................................................................16

EQUATION 8-RESISTANCE TO TEMPERATURE .............................................................................................................28

EQUATION 9-DIGITS CALCULATION............................................................................................................................41

EQUATION 10 -CONVERT DIGITS TO PRESSURE ...........................................................................................................41

EQUATION 11 -TEMPERATURE CORRECTION ...............................................................................................................42

EQUATION 12 -BAROMETRIC CORRECTION..................................................................................................................43

EQUATION 13 -CORRECTED PRESSURE CALCULATION ................................................................................................43

EQUATION 14 -SECOND ORDER POLYNOMIAL EXPRESSION.........................................................................................45

EQUATION 15 -LINEARITY CALCULATION ...................................................................................................................45

1. INTRODUCTION

The Model 8020-59 Vibrating Wire (VW) to Analog Converter is a low cost module that

provides a simple way to connect Geokon’s vibrating wire transducers to data acquisition

systems that are not capable of reading frequency signals nor able to generate the proper signals

required to excite VW transducers. The converter can operate with single transducers, as a stand-

alone device, or with multiple transducers in conjunction with the Geokon Model 8032

Multiplexer. The converter is powered using either a 12V or a 24V supply.

The 8020-59 interface is capable of outputting a 0-5V or 4-20mA signal that is directly

proportional to “digits”, a vibrating wire sensor’s native units. These outputs are easily converted

to digits via several simple formulas (see Section 4.3). The analog outputs are automatically

scaled to minimum and maximum parameters (defaults are 0 and 25,000) and sloped to provide

their complete 0-5V or 4-20mA range for each individual transducer. These analog outputs offer

20-bit resolution (one part in 1,048,576) with an accuracy of better than 0.1% of full scale span

(0-5V output) throughout the operating temperature range (-20 ºC min, +80 ºC max). In a similar

fashion, the temperature reading from the transducer’s thermistor is available with 10-bit

resolution (one part in 1024). When configured for single-channel operation, the 8020-59

updates the reading approximately once every second.

Number

Signal

Name

Signal Description

GND

Analog Signal Ground

V OUT

Conversion Voltage Output, 0 to 5 Volts

+24V

24 Volt Power In

+24V GND

Ground for 24V Power

I-RET

Return for Conversion Current Output

+12V

12 Volt Power Supply In OR +12V Output, if powered by 24V

GND

Ground for 12 Volt Power

TH+

Thermistor Positive Lead

TH-

Thermistor Negative Lead

C+

Vibrating Wire Positive Lead

C-

Vibrating Wire Negative Lead

VALID

Valid Output:

5V indicates conversion complete

0V indicates conversion not done

ENABLE

Enable Input:

Single Channel Mode: 0V = VW output (digits)

5V = Temperature output (˚C)

16/32-Channel Mode: 0V = Conversion Disabled

5V = Conversion Enabled

CLOCK

Clock Input:

Single Channel Mode: 0V = 8020-59 ON

5V = 8020-59 OFF

16-Channel Mode: 0 → 5V transition =

increment channel and select VW Analog or Temperature Analog

32-Channel Mode: 0 → 5V transition = increment channel

I-OUT

VW and Thermistor Conversion Current Output

Table 1 - Connector Pinout and Signal Description

2. INSTALLING AND CONFIGURING THE 8020-59 SOFTWARE

APPLICATION

A free setup and configuration application is available for download on Geokon’s website,

providing a user-friendly way to set up the 8020-59 VW to Analog Converter. Follow the steps

below to install the software:

1) After downloading the installer from the Geokon website, right-click on the zip file, “8020-

59_setup.zip”, and select “Extract All…” from the resulting popup menu (see Figure 1).

Figure 1 - Extracting the 8020-59 Installer

2) Another dialog will be displayed showing the editable default destination folder for the

extracted contents (see Figure 2). When satisfied with the destination folder, click on the

Extract button to extract the contents of the zipped installer (see Figure 2).

Figure 2 - Select Destination Folder

3) Figure 3 on the following page shows the extracted installer in the destination folder. Double

click on the file, “setup.exe”, to start the install process.

Figure 3 - Extracted 8020-59 Installer

4) After a few moments, the dialog shown in Figure 4 will be displayed.

Figure 4 - Install Wizard, Start Screen

5) After clicking on the “Next >” button, the dialog shown in Figure 5 is displayed.

Figure 5 - Install Wizard, Choose Users

6) Choose whether to install the 8020-59 Software Application for all users or just for the

current user (see Figure 5). NOTE: Without administrative privileges on the PC, the only

option allowed will be “Install just for me”. After making a selection, click “Next >”; this

will bring up the dialog shown in Figure 6.

Figure 6 - Install Wizard, Choose Start Menu Folder

7) The dialog shown in Figure 6 allows the installer to choose where the “shortcut” to launch

the application will be located – the default is the “Geokon” folder. A “shortcut” will also be

located on the desktop. Clicking on “Install” begins the process of copying files and causes

the dialog box shown in Figure 7 to be displayed:

Figure 7 - Install Wizard, Installation Complete

Table of contents

Other Geokon Media Converter manuals

Geokon

Geokon 8020-38 User manual

Popular Media Converter manuals by other brands

SoundTraxx

SoundTraxx Blunami BLU-2200 user guide

SPROLINK

SPROLINK VA1 user manual

Acclaim Lighting

Acclaim Lighting DDC-1-AC user guide

Nikon

Nikon AF-S TC-20E III user manual

Axis

Axis AXIS Q7406 user manual

Omega

Omega TAC80B-J instruction sheet

Zoom

Zoom Thunderbolt TAC-2R Operation manual

OST

OST iConverter 10/100M quick start guide

Vertiv

Vertiv Netsure user manual

birddog

birddog MINI user guide

Roland

Roland GI-10 owner's manual

Wallenstein

Wallenstein WX310 Operator's manual

Pace

Pace MSS 200-1 Service manual

Solar Converters

Solar Converters EQ 12/24-50 manual

CYP

CYP EL-7400V Operation manual

TIE

TIE MIDI 1i1o user manual

DCS

DCS Vivaldi Upsampler user manual

Westermo

Westermo MCW-211 SERIES user guide
