Genius LOOK 316 User manual
English
-1-
Symbol for Separate Collection in European Countries
This symbol indicates that this product is to be
collected separately.
The following apply only to users in European
countries:
zThis product is designated for separate collection
at an appropriate collection point. Do not dispose
of as household waste.
zFor more information, contact the retailer or the local authorities in
charge of waste management.
1. SnapShot Button
You can press the snapshot button to
take the images.
2. LED Indicator
When the Look 316 connects to the PC
successfull
y
, the LED will li
g
ht u
p
.
3. Lens
Adjust the focus by twisting the lens.
4. Swivel and Clipping Base
The flexible base design allows the
Look 316 to stand easily. The adjustable
clipping base can be up to 14 mm.
Look 316 Features
English
-2-
1. Please install the driver first and then connect Look 316 to
the USB port.
2. Installing the Look 316 driver
a. Insert the Look 316 Installation CD into the CD-ROM drive.
b. The Autorun screen will bring up the installation screen. Click on
“Driver” then simply follow the on-screen instructions.
c. Install “DirectX”from the CD.
Notice: If the Autorun screen doesn’t start, please follow these
steps:
zClick on “Start Menu”.
zType D：\SETUP.EXE , then click “Enter” key.
(Assume your CD-ROM is in Drive D)
3. Insert the Look 316’s USB cable to your desktop’s or
laptop’s USB port.
4. Complete software and hardware installation. You can
install the software you would like for video
conferencing or chat with your friends.
Installing the Look 316
English
-3-
NOTE
To remove the driver installation:
Please go to the taskbar and follow “Start” Æ“Program” Æ“Look 316”Æ
Click “Uninstall”, then follow the on-screen instructions to remove the
driver.
You can use our software to capture the real-time image, record or
execute the simply security function.
To run the software, please go to the task bar and follow “Start”Æ
Click “Program”ÆChoose “Look 316”ÆClick “Look 316”. Or you
may execute the software by simply clicking the shortcut of “Look 316”.
NOTE
After installing the driver of Look 316, the system will automatically create a
file (C:\WINDOWS\Album or C:\WINNT\Album)to save the images you take
using the Genius Application.
1. Description for the major icon
Preview mode
Snapshot mode
Video Clip Mode
Genius Application (Windows Only)
English
-4-
Security monitoring system
Exit the Genius UI
Camera Control
NOTE

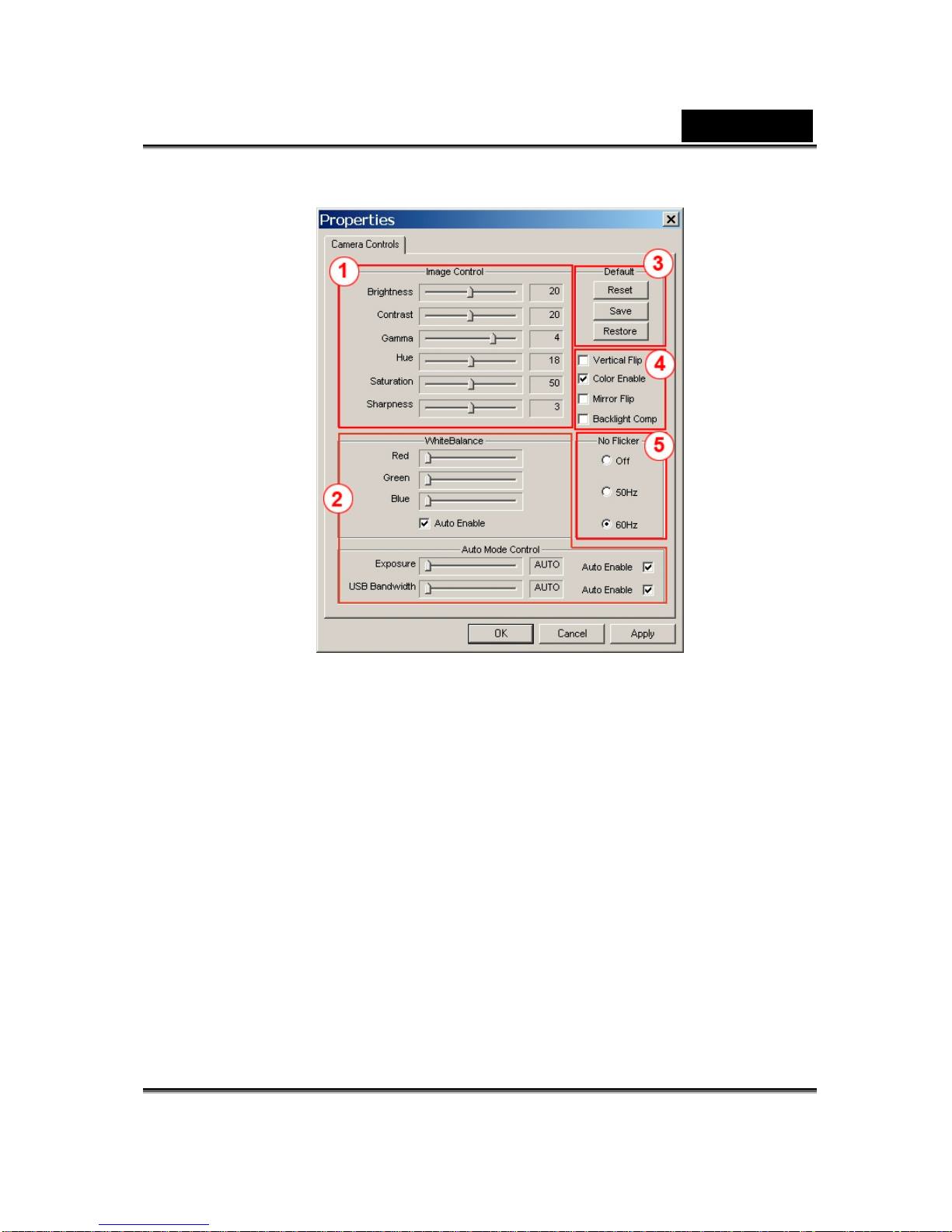

In the “camera control section”, you can personalize your camera
settings for different circumstances.
English
-5-
1You can adjust different values for different circumstances and environment
2You may adjust values toward image appearance. Before adjusting values, you
have to unclick “Auto” to unlock.
3-Press “Reset” to return to the manufacturer’s settings.
-Press “Restore” to return to the previous settings.
-Press “Save” to save the values you set up.
4-You can flip the image horizontally or vertically by choosing “Mirror Flip” or
“Vertical Flip”.
--If your web camera is located in backlight position, you may click
“Backlight Comp” to get a sharper image.
5Select the correct frequency according to the country where you are using the
web camera.
English
-6-
2. Preview Mode
You can use the function buttons on the control panel to zoom in/out and
move upward/downward/left/right.
Zoom in the image
Zoom out the image
Move the image upward
Move the image downward
Move the image to the left
English
-7-
Move the image to the right
Resolution Selection
There are 2 categories of resolution: RGB24 and
I420. You can select 5 different image resolutions for
each of them. The file size of I420 will be smaller than
RGB24. So, I420 may be the better choice for
transmission.
3. SnapShot Mode
You can press the Snapshot button in the right of the circle to take a
picture right away and share with your friends.
Send photo by e-mail
Shoot continuously
English
-8-
Resolution selection
This section shows the resolution you selected in the
“Preview Mode”. If you want to change the resolution,
please click “ ”to go back to the “Preview Mode” to
make the changes.
4. Video Clip Mode
You can record real-time image in this section.
Send photo by e-mail
Convert AVI files into MEPG-1 format
Start recording
Stop recording
Exit the Video Clip Mode
English
-9-
To Create animation
Press to start; Press to stop
Press to return to the video recording mode
This function has to be under the resolution of RGB24 320 x 240
or I420 320 x 240. Please make sure the resolution is correct
before executing this function.
Resolution selection
This section shows the resolution you selected in the “Preview
Mode”. If you want to change the resolution, please click “ ”to
go back to the “Preview Mode” to make the changes.
5. Security Monitoring System
This function records any movements that appear in front of your
monitor automatically. It can also record anytime until the HD is full. If
there’s no movement, it will shut down automatically after four
seconds or otherwise it will be active when detecting new movement.
It’s a great security monitoring system at times when you’re not
around.
English
-10-
Start recording
Stop recording
Setup time of the security monitoring system
Set up the degree of the variance for every
second of recording image. When the differences
are over the setup degree, the system will alert
you.
Set up the different alerting sound effects
NOTE
In “Security Monitoring System” section, you can record in any size of
image resolution. If you want to change the resolution, please click
“”to go back to the “Preview Mode” and make the changes.
MSN Messenger
a. For live video function, you’ll need MSN Messenger version 6 or later. If
you don’t have it, please refer to the website:
http://www.msnmessenger-download.com to download.
b. Now, get to sign onto MSN Messenger service.
c. Choose a friend on the contact list and Click “OK” to confirm.
MSN Messenger, Yahoo Messenger, AOL
