GENDRON 3648 Instructions for use
GENDRON
BARIATRIC HOMECARE BED
Model: 3648
Owner’s Operation Manual
Gendron, Inc.
520 W. Mulberry Street –Suite 100
Bryan, Ohio 43506
PHONE (800)-537-2521
HOMECARE BED
1
Table of Contents
Parts Locator.............................................................................................................2
Safety Notes ..............................................................................................................3
Intended Use & Product Description.......................................................................5
Function & Basic Operation.....................................................................................6
Assembly Instructions..............................................................................................7
Setup Instructions.....................................................................................................8
Operating the Bed...................................................................................................11
Steering the bed...................................................................................................11
Locking the Casters.............................................................................................11
Upright Back Position..........................................................................................12
Siderail Adjustment .............................................................................................12
Actuators, Control & Handset................................................................................13
Diagnostic & Repair................................................................................................14
Cleaning & Maintenance.........................................................................................15
Specifications..........................................................................................................16
Warranty ..................................................................................................................18
HOMECARE BED
2
Parts Locator
Pinch points
Keep fingers, arms, legs, and objects clear of bed when any mechanism
is in motion. Make sure all persons and objects are clear of the bed
when raising or lowering.

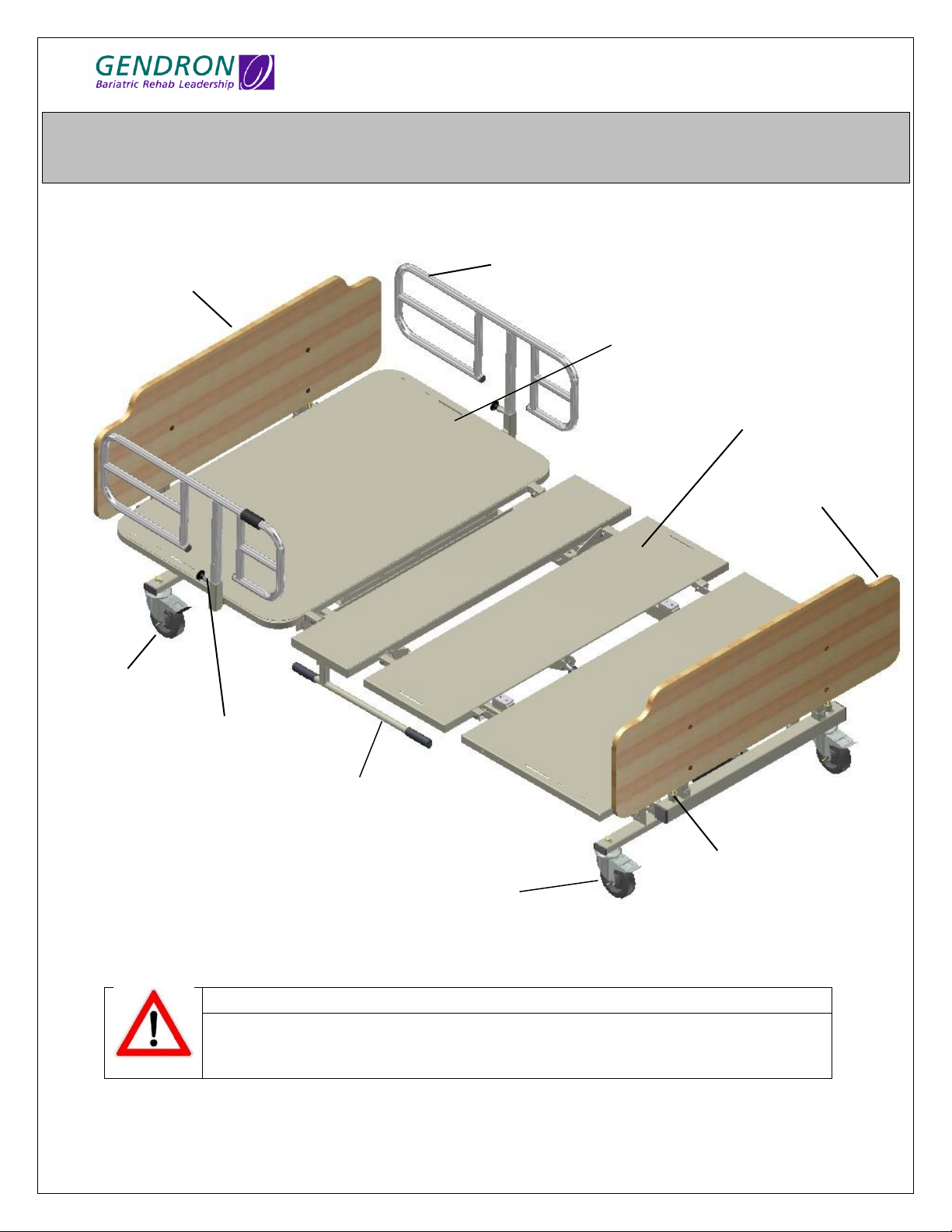

Brake Caster
Head Board
Back Rest
Siderail
Foot Board
Steer Caster
Leg Lift
Siderail
Release Pin
I.V. Socket
Lift Handle
HOMECARE BED
3
Safety Notes
Always raise the siderails whenever the patient is lying on the bed in supine
position.
Always lock all casters and align parallel to the patient before use.
Take special care to lock the casters securely when articulating the bed or when
transferring the patient to or from the bed.
Do not confuse the head end and foot end of the bed when placing the patient in
the bed.
The mattress should be sufficiently wide enough to prevent any part of the
patient’s body from falling between the side rails and the mattress.
Make sure all persons and objects are clear of the bed when raising or
lowering the bed. Do not place arms or head into frame while
operating.
Moving parts. Watch for pinch points. Keep fingers, arms, legs, and
objects clear of bed when any mechanism is in motion.
Keep all objects out from under the bed. Certain parts under the bed raise and
lower when the bed is in motion. Make sure there is nothing under the bed to
interfere with proper bed operations.
Do not allow the patient to sit on the bed when it is in the highest position.
Lower the bed to the lowest position before allowing patient to sit on the bed.
Equipment not suitable for use in presence of flammable mixtures
Bed should be left in its lowest position when unattended in order to reduce the
risk of injury due to falls while getting into or out of the bed, or while lying on
the bed.
When a patient’s condition could lead to patient entrapment, the mattress
support platform should be left in the flat position while unattended.
Handset must not be accessible to the patient.
Bed does not provide Trendelenburg position.
HOMECARE BED
4
Safety Notes
Weight Limit: Never exceed the safe working load of 650 pounds. Exceeding
weight limit may cause bed to fail. The capacity label is on the Back Rest and on
the UDI number label. Safe working load includes the weight of the patient, the
mattress, and any accessories.
Power Requirements: Electrical hazard may occur if device is plugged into
inadequate power supply. A power source of 100-240 VAC, 50/60 Hertz with a
capacity of at least 3.9 Amperes must be available to operate the bed. A three
wire grounded receptacle must be supplied. A GFCI is recommended.
Do not service this device without first unplugging the power cord.
Make sure the control module and the handset cords are properly positioned
before operating the bed. Do not allow either of these cords to get caught in the
moving members of the bed.
Do not operate this device if the power cord or any of the cords between the
control module and the associated parts are cut, frayed or loosely connected.
Do not use a bed with any missing or damaged parts.
Never disassemble your Bariatric bed. If problems are found, contact Gendron customer
service at 1-800-537-2521 or your local authorized Gendron dealer.
HOMECARE BED
5
Intended Use & Product Description
3-Function Homecare Beds are designed for bariatric patients. The bed is ideal for
long term use in the home or nursing care centers. It is intended for all age groups with
varying medical and physical conditions. Total safe working load of the bed is 650 pounds.
THREE 3-FUNCTIONS
1) Raise and lower head 2) Lift and lower leg and foot section 3) Elevate bed height
Functions are powered by 24-volt DC electric actuators.
Electrical Power: 100-240 volt AC power control module converts system to 24-
volt DC. Electrical actuators, handset, and control module meet UL, CE, & CSA
listing.
Power plug: Three-prong hospital type plug, grounding meets NFPA standards.
Construction: Constructed entirely of welded steel frame, powder coat finish.
Side Rails: Three position, drop down style.
Casters: Heavy Duty 5 inch casters. Two individual total lock (head end) and two
individual steer type (foot end).
Accessory sockets: One IV socket on each corner of bed.

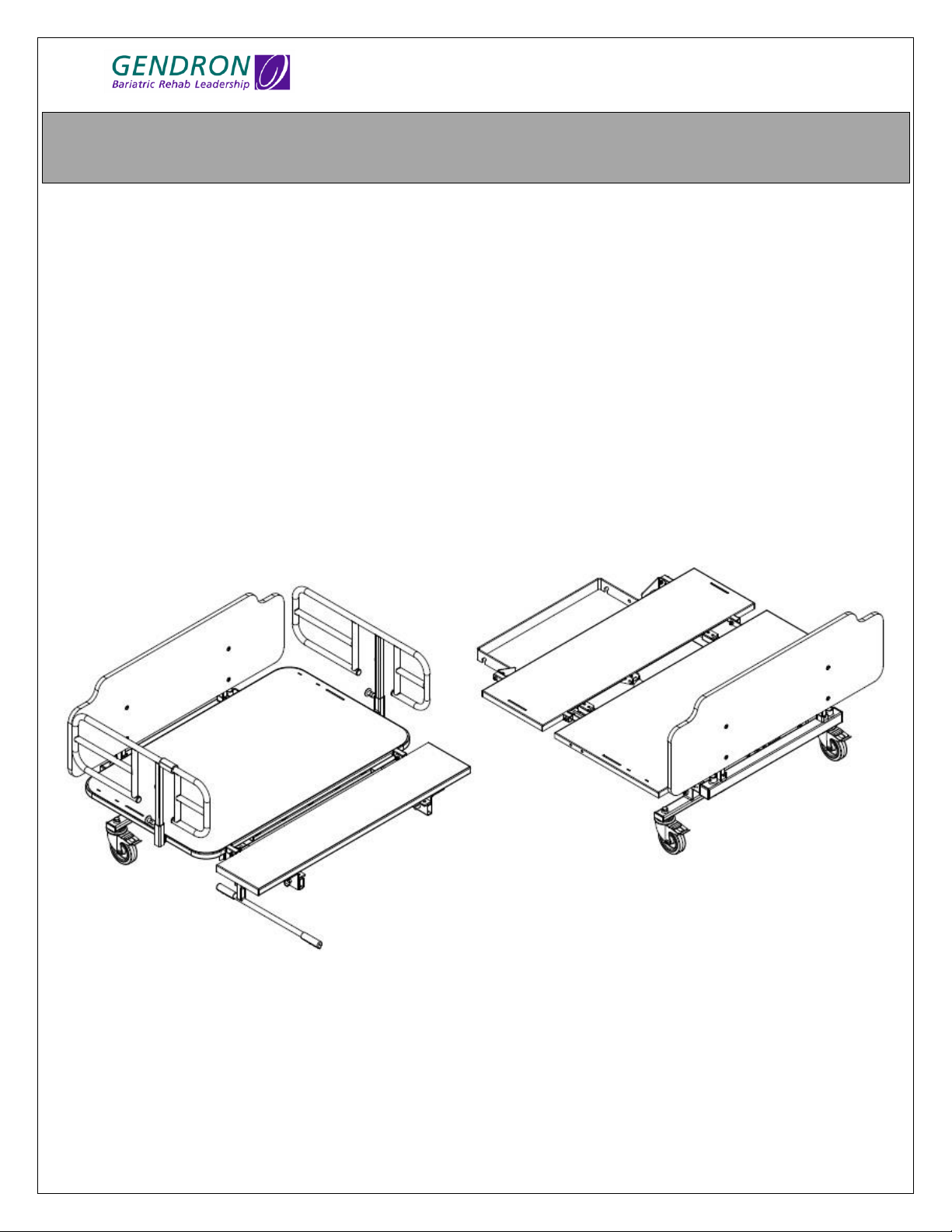

Delivery: Bed frame is disassembled into two sections for handling.
HOMECARE BED
6
Function & Basic Operation
The 3-Function Homecare Bed has electric drive actuators to operate the back rest,

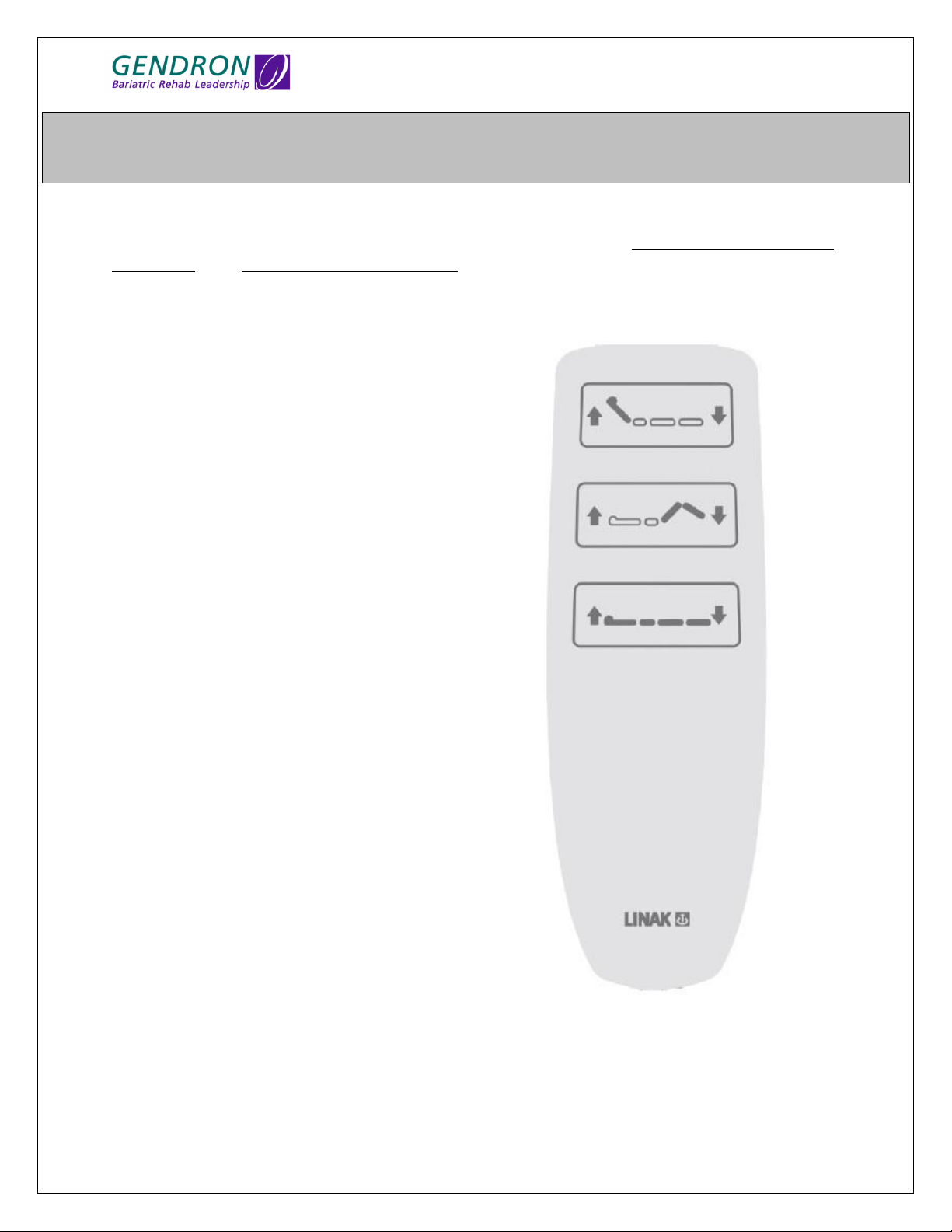

the leg lift, and to raise and lower the bed. To control the positioning on these beds use
the 6-button, 3-function handset. These beds do not have the Trendelenburg or reverse
Trendelenburg feature.
HEAD UP and HEAD DOWN buttons
raise and lower backrest (head end)
The FOOT UP and FOOT DOWN
buttons raise and lower knee and leg
sections
The BED UP and BED DOWN
buttons raise and lower the bed
HOMECARE BED
7
Assembly Instructions
1. Install the headboard posts in the square sockets provided at the head end with the
board closest to the mattress as shown below.
2. Install the footboard posts in the square sockets provided at the foot end with the board
away from the mattress as shown below.
3. Install the siderails as shown below.
4. Install the lift handle with bolt and lock nut. Be sure that lift handle is in the correct
orientation (see picture below).
HOMECARE BED
8
Setup Instructions
To Assemble:

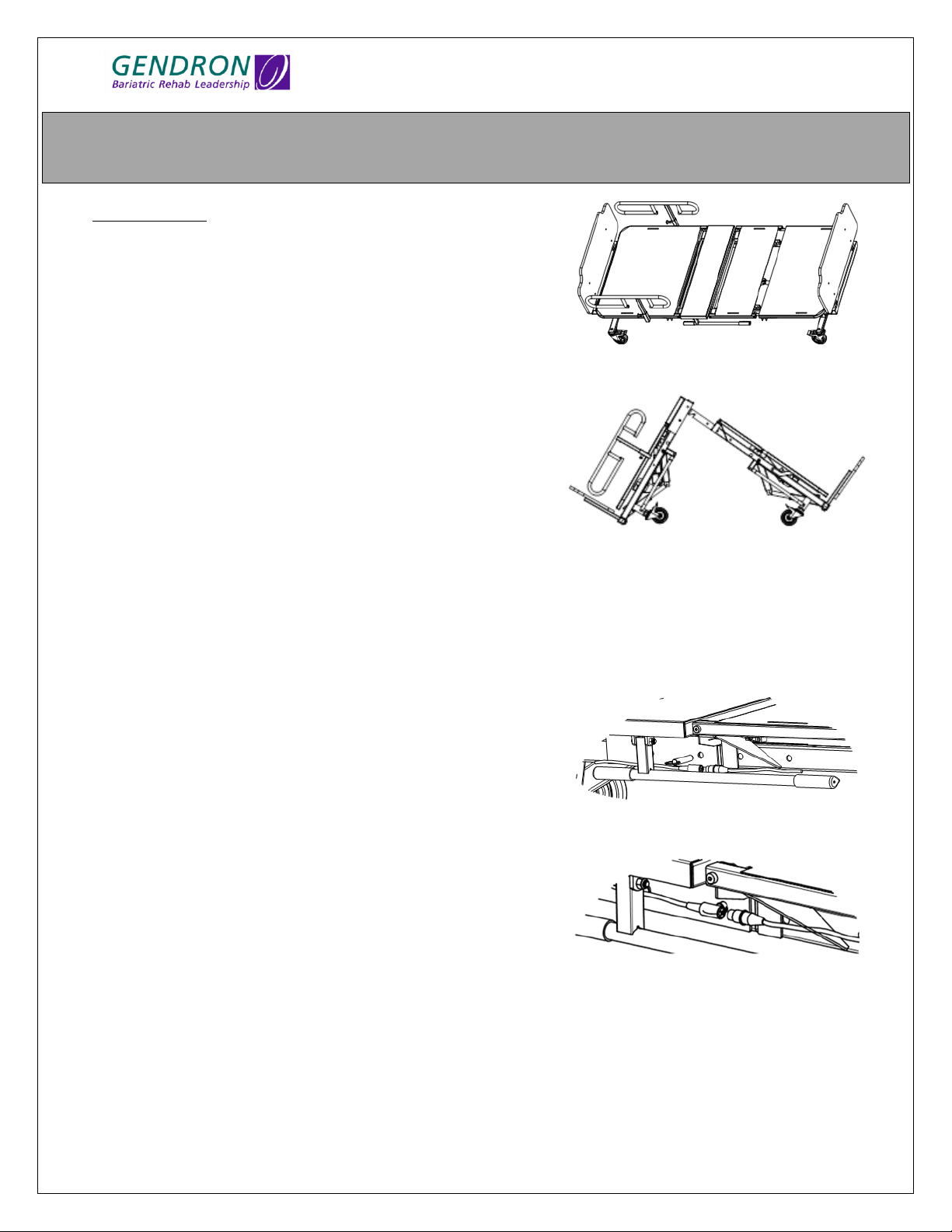

Step 1. Lock head & foot end casters parallel to
frame & oriented as shown.
Step 1
Step 2. Move bed into position as shown and hook
the foot end frame over the round bar on
the head end frame.
Step 2
Step 3. Swing lift handle out and slowly lower bed.
Keep both hands on handgrips until bed
has been completely lowered to reduce the
risk from pinch areas.
Step 4. Insert quick release pins on both sides of
frame.
Step 4
Step 5. Connect both actuator cables from foot
end of frame to head end of frame.
Step 5
HOMECARE BED
9
Setup Instructions
To Disassemble:

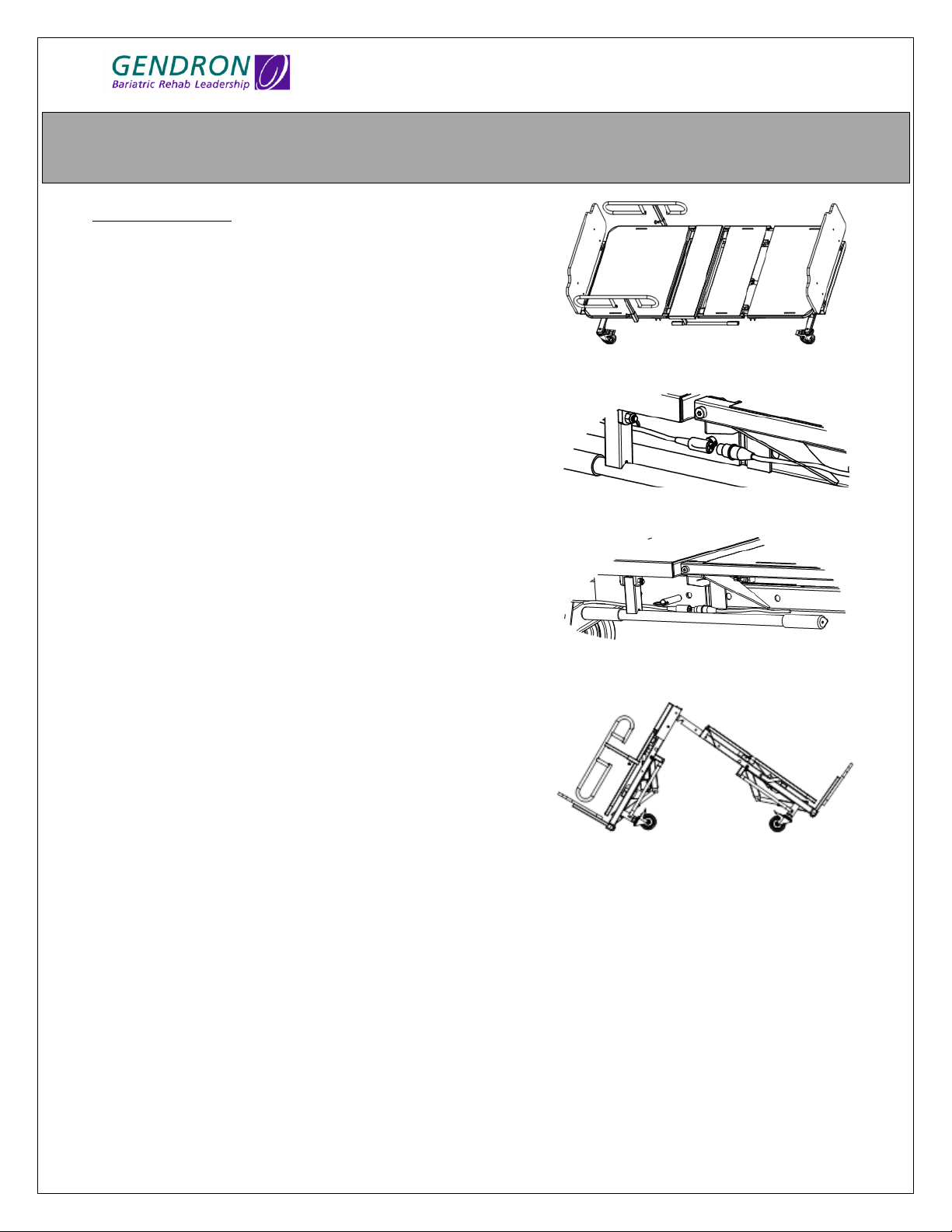

Step 1. Completely lower bed and all bed sections.
Step 1 & 2
Step 2. Lock head & foot end casters parallel to
frame & oriented as shown.
Step 3. Disconnect both actuator cables from foot
end of frame to head end of frame.
Step 3
Step 4. Remove quick release pins on both sides
of frame.
Step 4
Step 5. Swing lift handle out and slowly lift bed.
Keep both hands on handgrips until bed
has been completely lifted to reduce the
risk from pinch areas.
Step 5 & 6
Step 6. Lift foot end frame away from head end
frame.
