Gefen HD-SDI User manual
4x2 HD-SDI
Switcher
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 884-6294
(800) 545-6900
Fax (818) 884-3108
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
4x2 HD-SDI Switcher is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Desciptions
Connecting and Operating the 4x2 HD-SDI Switcher
RMT4-IR Installation
Specifications
Warranty
1
2
3
4
5
6
7
Congratulations on your purchase of the ex•tend•it 4x2 HD-SDI Switcher. Your complete
satisfaction is very important to us.
Readily Access One of Four Sources with One or Two Displays
4 Sources + 1 or 2 Displays = Cost Effective Multi-Tasking
The ex•tend•it 4x2 HD-SDI Switcher is unique in its ability to connect two HD-SDI
displays to four HD-SDI sources. Select from multiple sources using the IR remote
control that comes with the unit. When selected, a source may be viewed on either one
or two HD-SDI displays. Source switching is completed swiftly and high definition video
up to 1080p is supported.
SDI
SDI (serial digital interface), used primarily in broadcasting, converts and transmits digi-
tal video through SDI connectors. It enables computers to process high definition, high
quality video.
How it Works
Connect your HD-SDI sources and the one or two HD-SDI displays to the 4x2 HD-SDI
Switcher. When all the equipment is powered and connected, switching can begin.
The ex•tend•it line offers solutions for noise, space and security concerns, data center
control, information distribution, conference room presentation, school and corporate
training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
The ex•tend•it 4x2 HD-SDI Switcher allows two HDTV DVI devices to be switched easily
in to one HDTV DVI compatible monitor or projector. The 4x2 HD-SDI Switcher can also
be placed at the end of a long DVI cable to regenerate the DVI signal.
INTRODUCTION
1
FEATURES
Features
• Saves money—use one or two displays to access four sources
• Saves space—eliminates unnecessary hardware while increasing efficiency
• Saves time—switch between sources in an instant using the RMT-4 IR remote. Installs
in seconds
• Lifetime support—includes one-year manufacturer’s warranty and free technical
support for the lifetime of the product
Includes:
4x2 HD-SDI Switcher
One 5v Power Supply
RMT-4 IR remote control
2

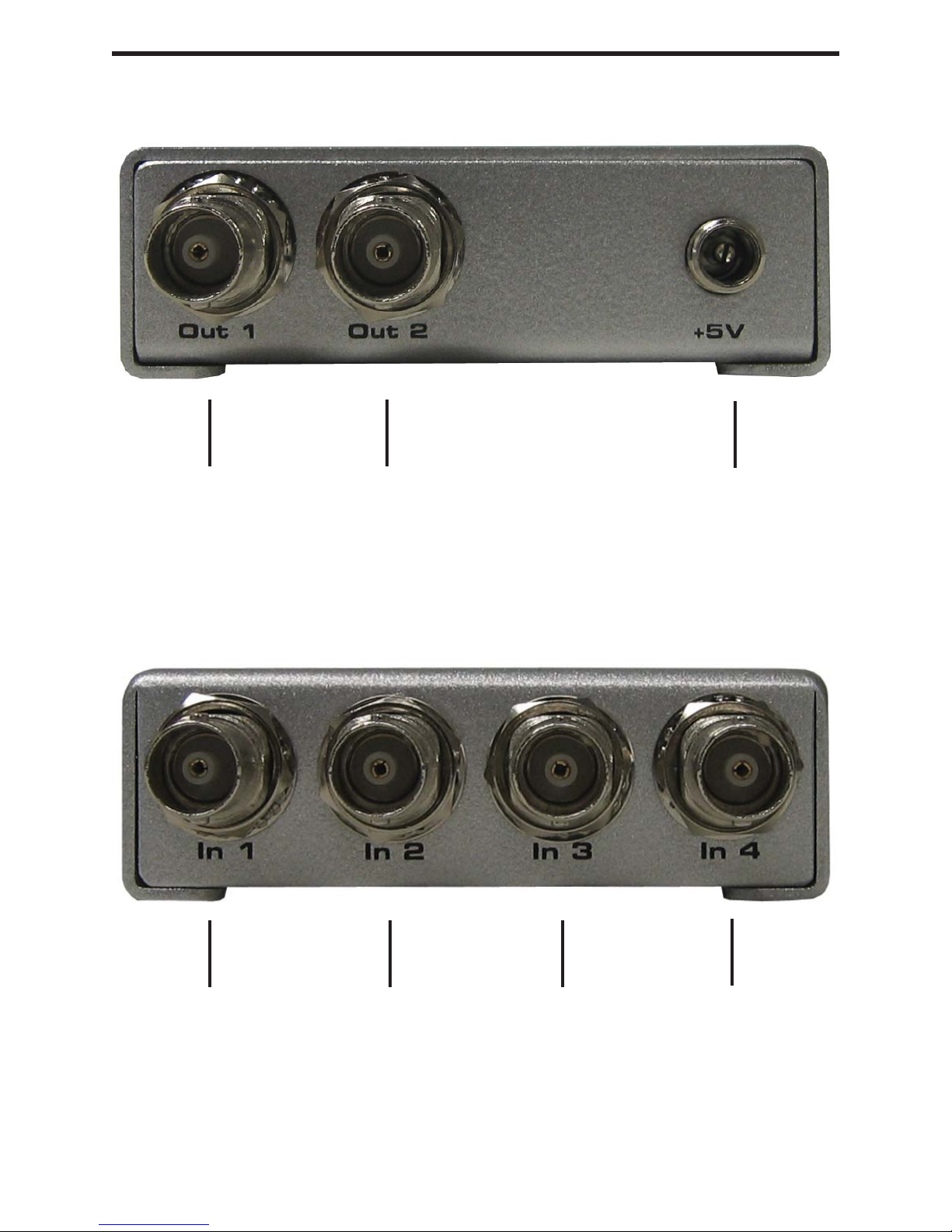

PANEL DESCRIPTIONS
Connects to 5VDC
powersupply
SDI Out 1
3
SDI Out 2
SDI In 1 SDI In 2 SDI In 3 SDI In 4
CONNECTING AND OPERATING THE 4X2 HD-SDI SWITCHER
How to Connect the 4x2 HD-SDI Switcher to your devices
1 Connect your HD-SDI inputs into Input 1 thru 4 on the 4x2 HD-SDI Switcher.
2Connect one or two displays into the outputs.
3Connect the 5VDC power supply into the 4x2 HD-SDI Switcher.
How to Operate the 4x2 HD-SDI Switcher
1 Use the RMT4-IR remote control port to remotely toggle between sources.
4

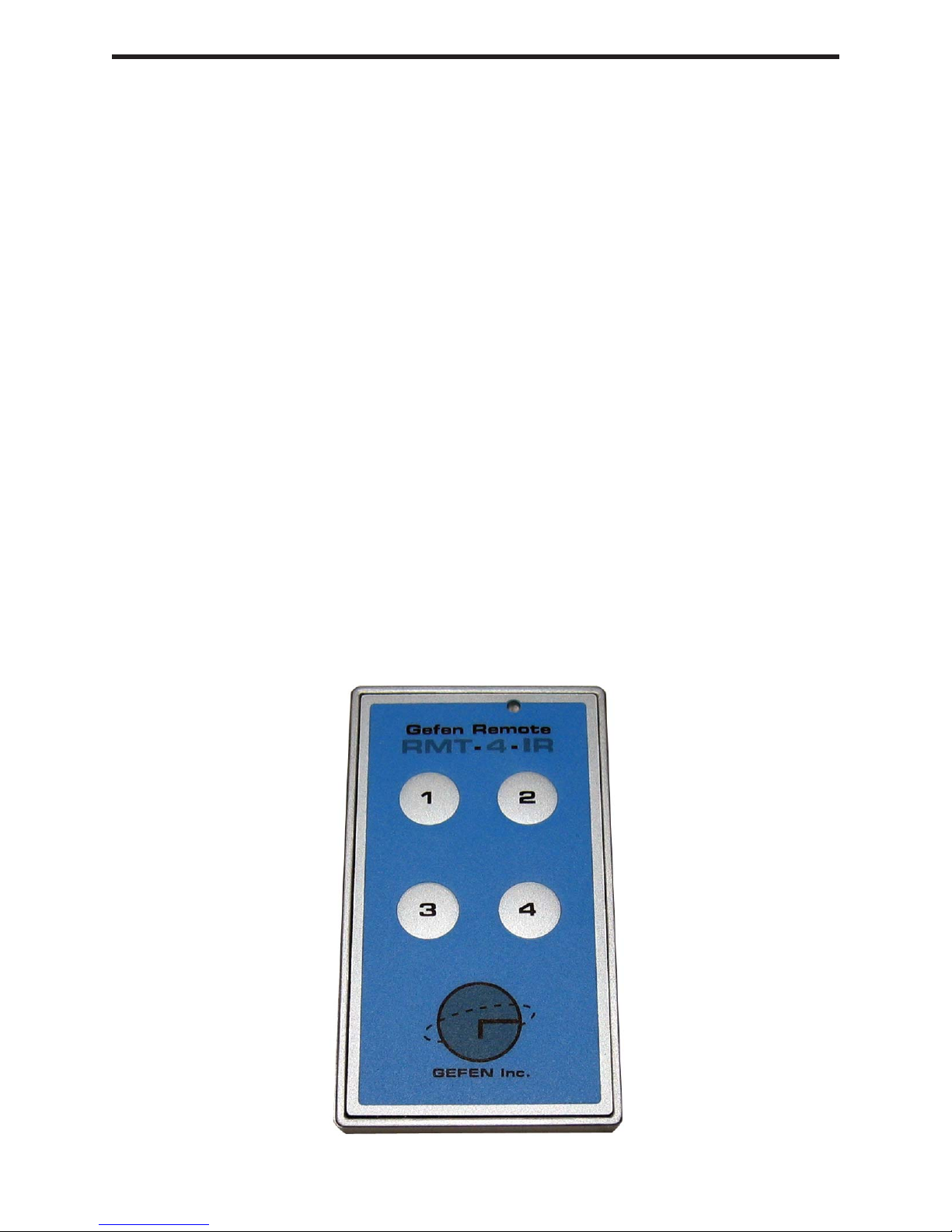

RMT4-IR INSTALLATION
5
1. Remove battery cover from the back of the RMT4-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up. The
side that is not marked must be facing down.
4. Test the RMT4-IR remote by pressing ONLY one button at a time. The indicator light
on the remote will flash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT4-IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
SPECIFICATIONS
6
• Input/Output: SDI - SMPTE 259M-C (270Mbps);HD-SDI - SMPTE 292M (1.485, 1.485/
1.001 Gbps); NTSC; PAL:
720p @ 60, 59.94, 50Hz
1080p @ 30, 29.97, 25, 24 & 23.98Hz,
1080i @ 60, 59.94, 50, 48 & 47.95Hz
• Power Supply: 5VDC
• Power: external adapter with locking power connector
• Dimensions: 3.5“ D x 2.875” W x 1” H
• Shipping Weight: 4 lbs.
