Gefen EXT-MINIDVI-241N User manual
Mini DVI Switcher
EXT-MINIDVI-241N
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST.
Write To:
Gefen, LLC
C/O Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hard ware, packaging and
any accompanying doc u men ta tion without prior written notice.
Mini DVI Switcher is a trademark of Gefen, LLC
All trademarks are the property of their respective owners.
© 2011 Gefen, LLC. All rights reserved.
All trademarks are the property of their respective owners.
Rev A1
ASKING FOR ASSISTANCE
Introduction
Features
Panel Descriptions
Connecting and Operating the Mini DVI Switcher
RMT2-IR Installation
IR Code Conf guration
Specif cations
Warranty
1
2
3
4
5
6
7
8
TABLE OF CONTENTS
Congratulations on your purchase of the ex•tend•it Mini DVI Switcher. Your complete
satisfaction is very important to us.
Gefen’s line of DVI switches, extenders, and splitters are designed to make your A/V
equipment use more comfortable, more productive and less expensive.
The Mini DVI Switcher enables effortless DVI video source switching using a single
DVI display. A simple, reliable and economical solution, the Mini DVI Switcher links
any two DVI sources to one DVI display. It completely eliminates the need to
disconnect then reconnect multiple DVI sources, saving time by providing a funda-
mental tool that brings it all together behind the scenes. When all three devices (the
display plus the two sources) are connected to the Mini DVI Switcher and powered
on, you simply select which source you want to view on the display using the Switch-
er, the IR remote that comes with it, or any universal remote you program to work
with the Switcher.
Our Commitment
Gefen will always offer the f nest quality product at the best possible price. Included in
that price is a lifetime of support from a team of outstanding engineers.
How It Works
Simply connect your DVI display to the Switcher's display output. Then connect both
DVI sources to the Switcher's inputs using the DVI cables that come with the
Switcher. Once the sources, the Switcher and the display are all powered on and con-
nected, you simply select which source you want to view.
1
INTRODUCTION
Features
• Saves money on hardware—no need to purchase multiple DVI displays.
• Saves space—a single DVI display
• Saves time—no need to disconnect and reconnect DVI devices—everything is always
connected and accessible.
• Maintains high resolution video—beautiful, sharp DVI resolutions up to 1080P are
easily achieved. For computer users, the Mini DVI Switcher conforms with DVI 1.0
specif cations for resolutions up to 1920 x 1200.
• No loss of quality—the integrity of the signal is preserved throughout the transmissions
using high caliber DVI cables that ensure the signal is maintained
• Operational f exibility—you can switch at the source, with the IR remote control or your
own universal remote.
• Compatible with all DVI-equipped. To determine if your device is DVI-equipped, simply
look for the 24-pin connector on the back of the unit. For computer users, the Mini DVI
Switcher is compatible with all DVI-equipped computers and supports Apple’s line of f at
panel displays when used with the DVI to ADC Conversion Box.
• Easy to install and simple to operate.
• HDCP compliant
Includes:
(1) Mini DVI Switcher
(2) 6’ DVI-D cables (M-M)
(1) 5V DC Power Supply
(1) RMT2-IR remote control
(1) User Manual
2
FEATURES
Connects to 5VDC
power supply
Connects to
DVI display
Connects to IR
extender
IR eye
Indicates if port 1 or
port 2 is selected
Selects port 1
or port 2
3
Power LED
Indicator EQ Trim pots for
each channel
DVI Inputs
Back
Front
PANEL DESCRIPTIONS
How to Connect the Mini DVI Switcher to your devices
1 Connect the supplied DVI cables from the DVI sources into the DVI Switcher Input.
2 Connect the cable from your display (monitor or projector) into the DVI Out of the
Mini DVI Switcher.
How to Operate the Mini DVI Switcher
1 Use the front panel push button to switch between sources.
2 Alternatively, use the RMT2-IR remote control port to remotely toggle between sources.
Operation Notes
The output signal may need to be equalized depending on the length and quality of the
DVI cables that are being used. If, after connecting all equipment and powering on the
system, there is either no picture or video noise on the output display device, the signal
may have to be equalized. For equalization, there are two EQ knobs on the front panel.
Each EQ knob represents each input. According to the length of the cable, the EQ knob
should be adjusted.
4
CONNECTING AND OPERATING THE MINI DVI SWITCHER
1. Remove battery cover from the back of the RMT2-IR remote.
2. Verify that DIP switches 1 and 2 are in the down (OFF) position.
3. Hold the battery so that you can see the positive side facing up. The side that is not
marked must be facing down.
5. Insert the battery into the open battery slot in the remote control.
6. Test the RMT2-IR remote by pressing ONLY one button at a time. The indicator light
on the remote will f ash once each time you press a button. WARNING: Do not press
multiple buttons simultaneously and do NOT press buttons rapidly. These actions will
cause the remote to reset and steps 1-7 will have to be repeated.
Note: The RMT2-IR ships with two batteries. One battery is required for operation, the
second battery is complimentary.
5

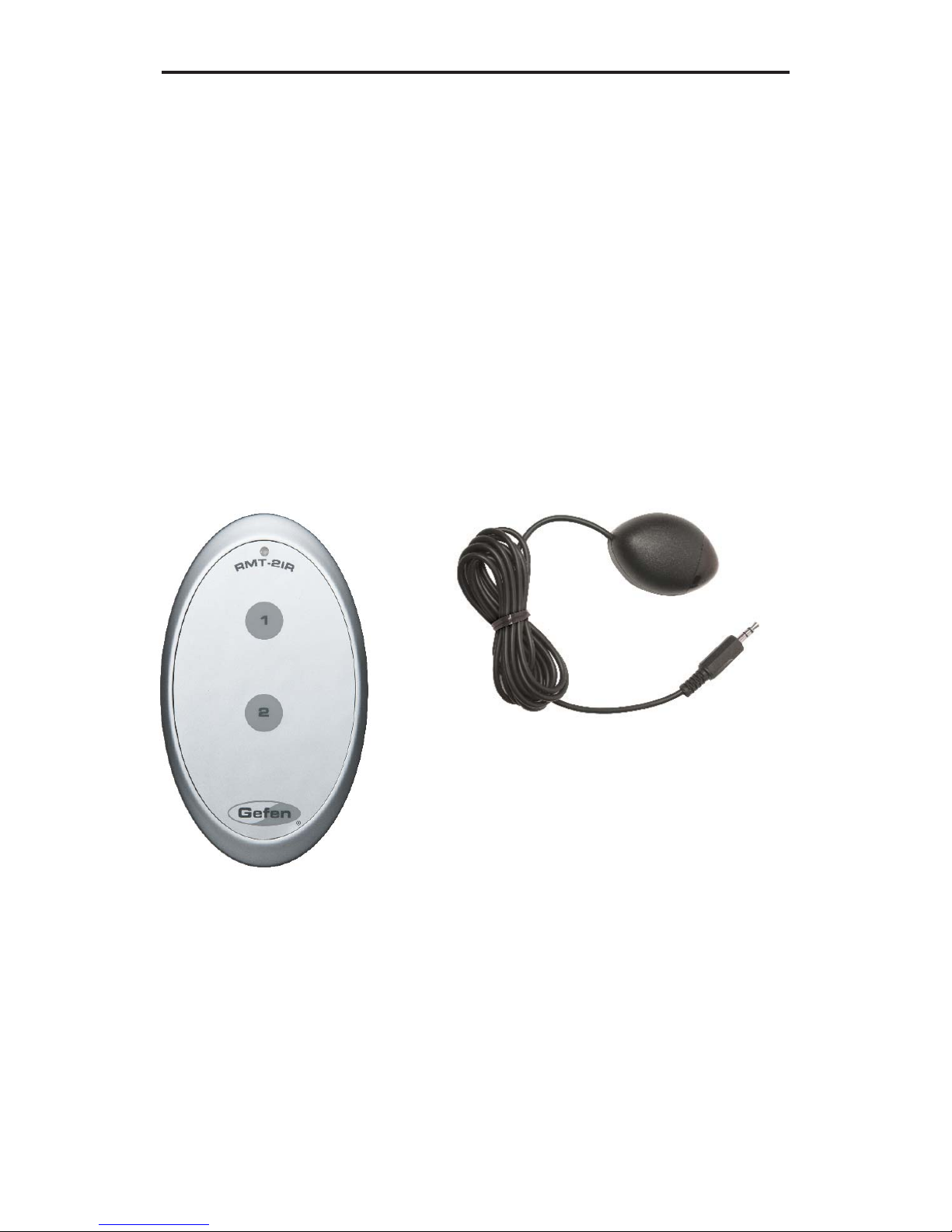

The optional IR extender
RMT-EXTIR allows you to relocate
your Mini DVI Switcher and still have
IR control of the Mini DVI Switcher
Note: The 3.5 mm mini-stereo jack located on the front of the unit is used to con-
nect the optional IR extender (shown above). It can also be used for connecting a
cabled contact closure remote control (such as Gefen's EXT-RMT-2).
RMT2-IR INSTALLATION
Why would I need to change the remote channel?
In some instances, the Mini DVI Switcher may use IR codes that conf ict with other
IR remote control devices. The unit may switch inputs when another brand IR remote
control is used or the RMT-2IR may cause other brand IR controlled devices to behave
unexpectedly.
I am experiencing the issues listed above. What do I do?
In these cases it is recommended to change the IR channel that the RMT-2IR remote
control and the Mini DVI Switcher use. The IR channel is conf gured independently on the
RMT-2IR remote control and the Mini DVI Switcher but the channel selection must match
on both units for proper operation.
How Do I change the Remote Channel?
There are service DIP switches on the RMT-2IR remote control and also inside the Mini
DVI Switcher. Use the diagrams below to locate and change the IR channel to one that
is not the default. Remember that the channel must match on both the unit and remote
2 DIP switch bank for IR channel conf guration.
Mini DVI Switcher
RMT-2IR Remote Control
Remote Channel 1:
Default
Remote Channel 4:
Remote Channel 1:
Default
1 2
Remote Channel 2:
1 2
Remote Channel 3:
1 2
Remote Channel 4:
1 2
1234
Remote Channel 3:
1234
Remote Channel 2:
1234
1234
Remove the battery cover on the rear side of the RMT-2IR remote control to
expose the DIP switches.
The IR channel DIP switches for the Mini DVI Switcher are located on an 4 bank DIP switch on the underside of
the unit and covered with a piece of silver colored metallic tape. Locate DIP switches 3 and 4. Once adjustments
are complete, replace all screws.
6
IR CODE CONFIGURATION
Video Amplif er Bandwidth ................................................................................. 165 MHz
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Single Link Range .................................................................................... 1920p x 1200
DVI Input/Output Connector Type ........................................................................... DVI-D
Power Consumption ................................................................................ 15 Watts (max.)
Power Supply .......................................................................................................... 5VDC
Dimensions ................................................................................... 6.25"W x 1"H x 3.25"D
Shipping Weight ....................................................................................................... 4 Lbs
7
SPECIFICATIONS
