Gefen ex-tend-it CAT5-1000 User manual
www.gefen.com
f
CAT5·1000
EXT-CAT5-1000
User Manual
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
CAT5•1000 is a trademark of Gefen Inc.
© 2008 Gefen Inc., All Rights Reserved
All trademarks are the property of their respective companies
ASKING FOR ASSISTANCE
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Sender Panel Layout
5 Sender Panel Descriptions
6 Receiver Panel Layout
7 Receiver Panel Descriptions
8 Connecting And Operating The CAT5•1000
9 Configuring The CAT5•1000
10 Specifications
11 Warranty
1
Congratulations on your purchase of the CAT5•1000. Your complete satisfaction
is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen CAT5•1000
The CAT5-1000 requires just one CAT5 cable to transmit video, audio and control
signals to the remote workstation. It essentially bundles the signals together
before, during and after transmission so that cabling is reduced while reliable
signal transmission is achieved. This is the ideal solution for anyone who desires
an effective method to extend their workstation anywhere within 330-feet from the
computer
The CAT5-1000 and the CAT5-1500 work with all CRT and LCD computer
monitors as well as USB-equipped keyboards and mice (Mac or PC).
How It Works
Both the CAT5-1000 and the CAT5-1500 utilize a sender and receiver
methodology to connect the extended workstation to the computer. Simply
connect the sender unit to your computer using the cables provided. Then
connect the receiver unit to the computer?s keyboard, monitor and mouse at the
remote location. CAT5 cable(s), sold separately, then connect the sender unit to
the receiver unit. Both the sender and the receiver units must be connected to
a power supply. When fully powered and operational, the units efficiently extend
video, audio and control signals.
INTRODUCTION
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE CAT5•1000
The CAT5•1000 will extend analog VGA video, analog 2 channel stereo• audio, and USB up to 330 feet.
Supports resolutions up to 1920 x 1200.•
USB 1.1 compliant.•
Audio extension is designed for line-out audio sources only. Amplified audio• is not supported and may damage the CAT5•1000.
Single CAT-5 extension should be terminated according to the TIA/EIA-• 568-B specification. Please see page ## for details.
The use of patch panels, couplers, and splices are not recommended as• these may degrade the signal and produce unexpected results.
Display information (EDID) is not transmitted from the display back to the• source. Standard VESA resolutions should pass without issue, but wide
screen resolutions and non-standard VESA resolutions may not be listed for
selection by the source. In this case, the source must either be able to force
the output of the desired resolution or a EDID storage device (part# EXT-
DVI-EDIDN) must be used to record the displays information. This device
must be placed before the CAT5•1000 sender unit and must be the first
device after the computer in the extension chain.
2
OPERATION NOTES
3
Features
Extends any VGA display up to 330 feet (100 meters)•
Maintains 1920 x 1200 resolution video•
Extends USB 1.1 compliant devices up to 330 feet•
Audio is extended for multimedia applications•
Uses one CAT-5e cable•
Rack mountable•
Package Includes
(1) CAT5•1000 Sender Unit
(1) CAT5•1000 Receiver Unit
(1) 6 Foot VGA Cable (PC/Black)
(1) 6 Foot USB A to B Cable
(1) 6 Foot Audio Cable
(1) 5V DC Power Adapters
FEATURES
4

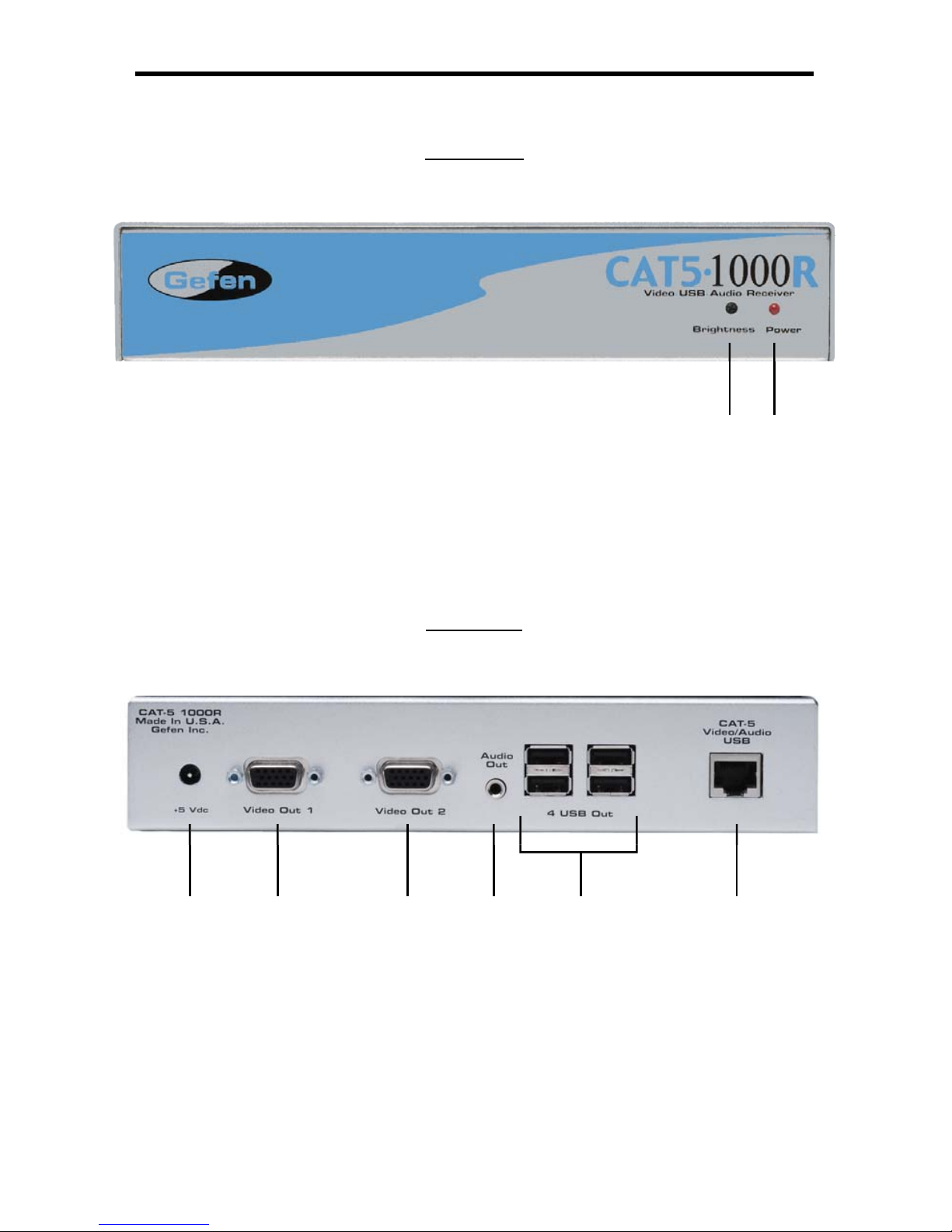

Front Panel
Back Panel
1
23 4567
SENDER PANEL LAYOUT
5
Power LED1 This LED will become active once the included 5V DC power adapter is properly
connected.
5V DC Power Connector2 Connect the included 5V DC power adapter to this connection port.
Local Monitor Output Port3 Use this port to connect an local VGA monitor for monitoring purposes. This is
useful if both local and extended locations need to view the VGAsource.
VGA Input4 Connect the VGA source to this input.
Stereo Analog Audio Input5 Connect a stereo analog mini-jack audio source to this input.
RJ-45 Input Port6 Connect an CAT-5 cable to this port to connect the sending and receiving units
together.
USB B Input7 Connects the computer’s USB to the CAT5•1000. The input on the CAT5•1000
is USB B while the computer will need a USB A cable input. A USB B to A
cable is provided with the CAT5•1000.
SENDER PANEL DESCRIPTIONS
6
Front Panel
Back Panel
12
34 567 8
RECEIVER PANEL LAYOUT
7
Brightness Adjustment1 The Trim Pot is used for adjusting the brightness of the output video. If the
image is too bright or too dark, adjust this setting until the desired brightness is
reached.
Power LED2 This LED will become active once the included 5V DC power adapter is properly
connected.
5V DC Power Connector3 Connect the included 5V DC power adapter to this connection port.
VGA 1 Output Port4 This is the first of two VGAoutput ports. This output will mirror the input video
signal from the VGAsource. Output from VGAOutput 2 will be the same at this
output port.
VGA 2 Output Port5 This is the second of two VGA output ports. This output will mirror the input
video signal from the VGAsource. Output from VGA Output 1 will be the same
at this output port.
Stereo Analog Audio6 Output
Connect a stereo analog mini-jack audio device to this output.
USB A Output7 Connect USB peripherals to these output ports (4 are provided). Connected
devices will essentially be connected to the local computer from their remote
location.
RJ-45 Input Port8 Connect an CAT-5 cable to this port to connect the sending and receiving units
together.
RECEIVER PANEL DESCRIPTIONS
