Gefen ex-tend-it CAT5-1000 User manual
www.gefen.com
®
CAT5•1000
EXT-CAT5-1000
USER MANUAL
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday Pacific Time.
Write To:
Gefen, LLC
C/O Customer Service
20600 Nordhoff St.
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
CAT5•1000 is a trademark of Gefen, LLC
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners.
ASKING FOR ASSISTANCE
Rev B2
TABLE OF CONTENTS
Introduction
Features
How it works
CAT5•1000S Front Panel Layout
CAT5•1000R Front Panel Layout
CAT5•1000S Back Panel Layout
CAT5•1000S Back Panel Function Descriptions
CAT5•1000R Back Panel Layout
CAT5•1000R Back Panel Function Descriptions
CAT5 Cable Length Setup
Link Cable - Wiring Diagram
CAT5•1000 Wiring Diagram
System Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Thank you for purchasing the new Gefen CAT5•1000 series.
The Gefen CAT5•1000 allows users the benefits of extending VGA, USB, and audio
signals beyond the desktop. In a growing number of applications for broadcast stations
and production facilities there is a need to control a computer remotely. The keyboard,
mouse, and video monitor are relocated to the remote side.ACPU may need to be shared
between several users or moved to another room because of annoying fan noise.
The CAT5•1000 can be used to extend computers with printers, hard drives, scanners,
cameras, keyboards, mouse, and any other USB-type devices. The CAT5•1000 has the
potential to extend the distance of 330 feet over industry standard Category 5 (CAT-5)
cable. One can connect multiple CAT5•1000 units to the same computer, allowing access
to the same computer from different locations up to 330 feet apart.
INTRODUCTION
1
Features:
• Saves space—no need to make room for large or small CPUs at the workstation when
the CAT5-1000 provides convenient and flexible ways to isolate the CPU at a distance
and make room at the workstation area
• Increased productivity—a remote computer workstation allows computer data to be
input and accessed on-site in real-time
• Improved aesthetics—the CAT5-1000 eliminates computer noise where you work
• Full functionality—the CAT5-1000 maintains 1920 x 1200 @ 75 Hz resolution video,
support two types of analog monitors (CRT and LCD) and DDC control signals
• High Performance Technology—both models use Extreme USB technology for USB
extension, ensuring control signals operate optimally
• Multimedia Enabled—audio is extended for multimedia applications
• Ease of use— the CAT5-1000 installs in seconds and the units are rack-mountable
The CAT5•1000 system consists of:
(1) CAT5•1000S sender unit
(1) CAT5•1000R receiver unit
(2) 5V DC power supply
(1) Video cable (6 FT)
(1) USB cable (6 FT)
(1) Audio cable (6 FT)
(1) User Manual
FEATURES
2
Initsmostbasicapplication,theCAT5•1000Ssenderunitresidesnexttothecomputer. With
the supplied VGA, USB, and audio cables, they connect the computer to the CAT5•1000S
sender unit.
The CAT5•1000R receiver unit and USB peripherals are placed next to the mon-
itor. The monitor and USB devices are connected to the CAT5•1000R in the
same way they are connected to the back of the computer (PC or Macintosh).
Industry standard Category 5 (CAT-5) cables are used to link CAT5•1000S sender and
CAT5•1000R receiver units together. The VGA, USB, and audio signals are extended by
one CAT-5 cable.
HOW IT WORKS
3
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE CAT5•1000 SYSTEM
* Industry standard Category-5 (CAT-5) cables are used to link the CAT5•1000 sender
and receiver boxes together.
* When two monitors are used in the local and remote locations, the video monitors must
be a multi-resolution type. This pertains to monitors placed remotely, and those divided
between local and remote locations. The video monitors will not initialize correctly at start-
up if they are different types.
* The CAT5•1000 units are housed in a metal box for better RF shielding.
OPERATION NOTES

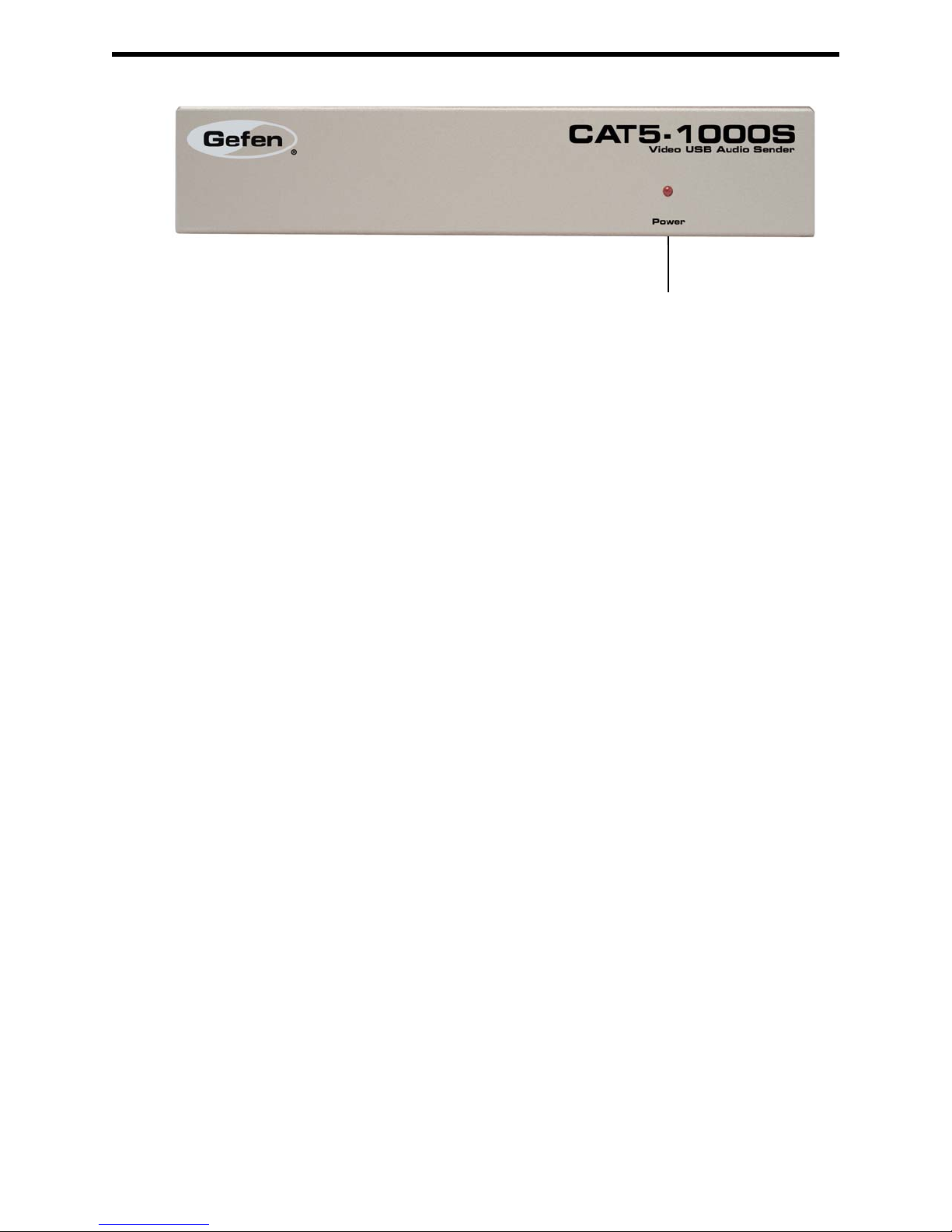

Front Panel Function Descriptions
POWER ON INDICATOR - Indicates that the unit is plugged in and powered on
CAT5•1000S FRONT PANEL LAYOUT
4
1
1

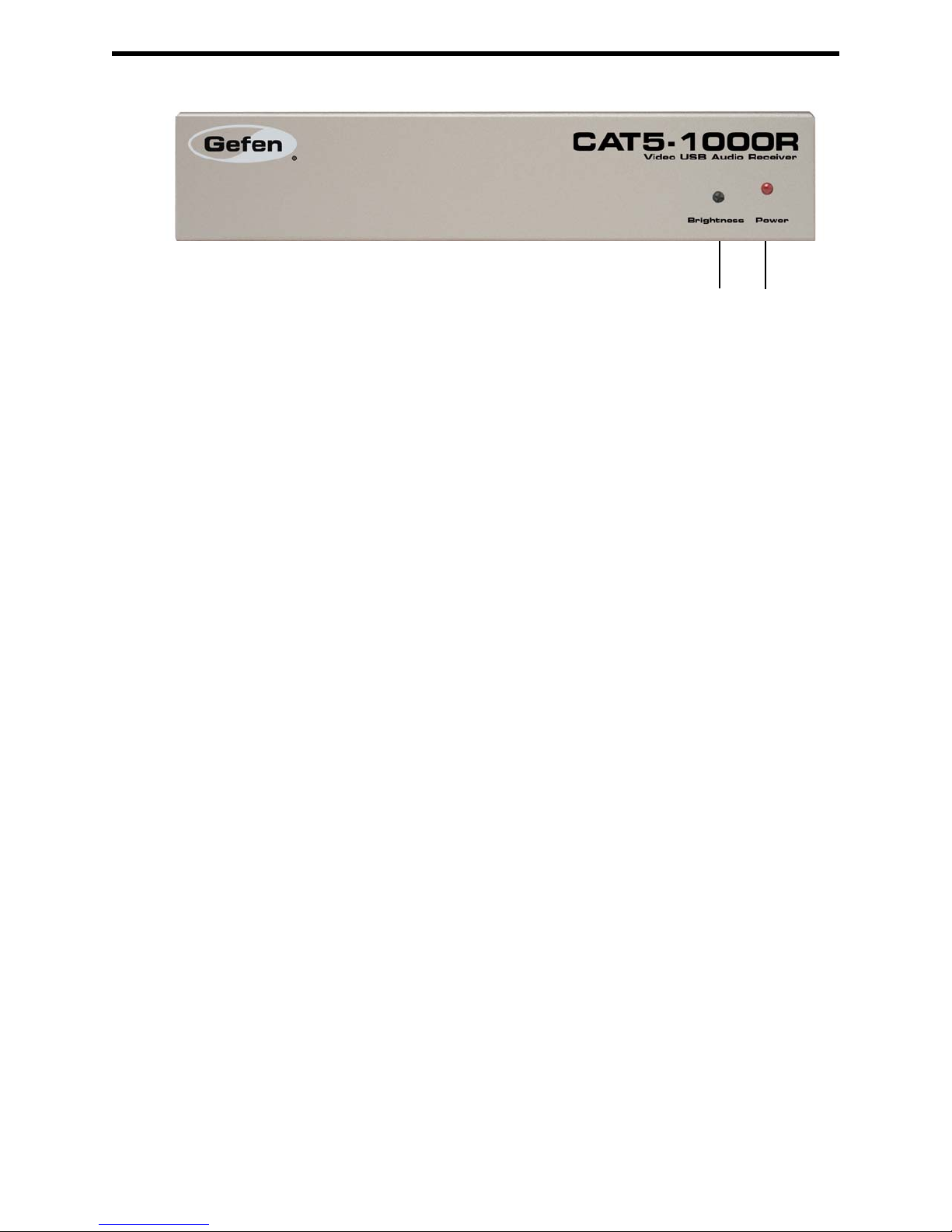

CAT5•1000R FRONT PANEL LAYOUT
Front Panel Function Descriptions
5
BRIGHTNESS - Adjusts the brightness for monitor 1
POWER ON INDICATOR - The red LED indicates that the unit is powered on
1
2
2
1

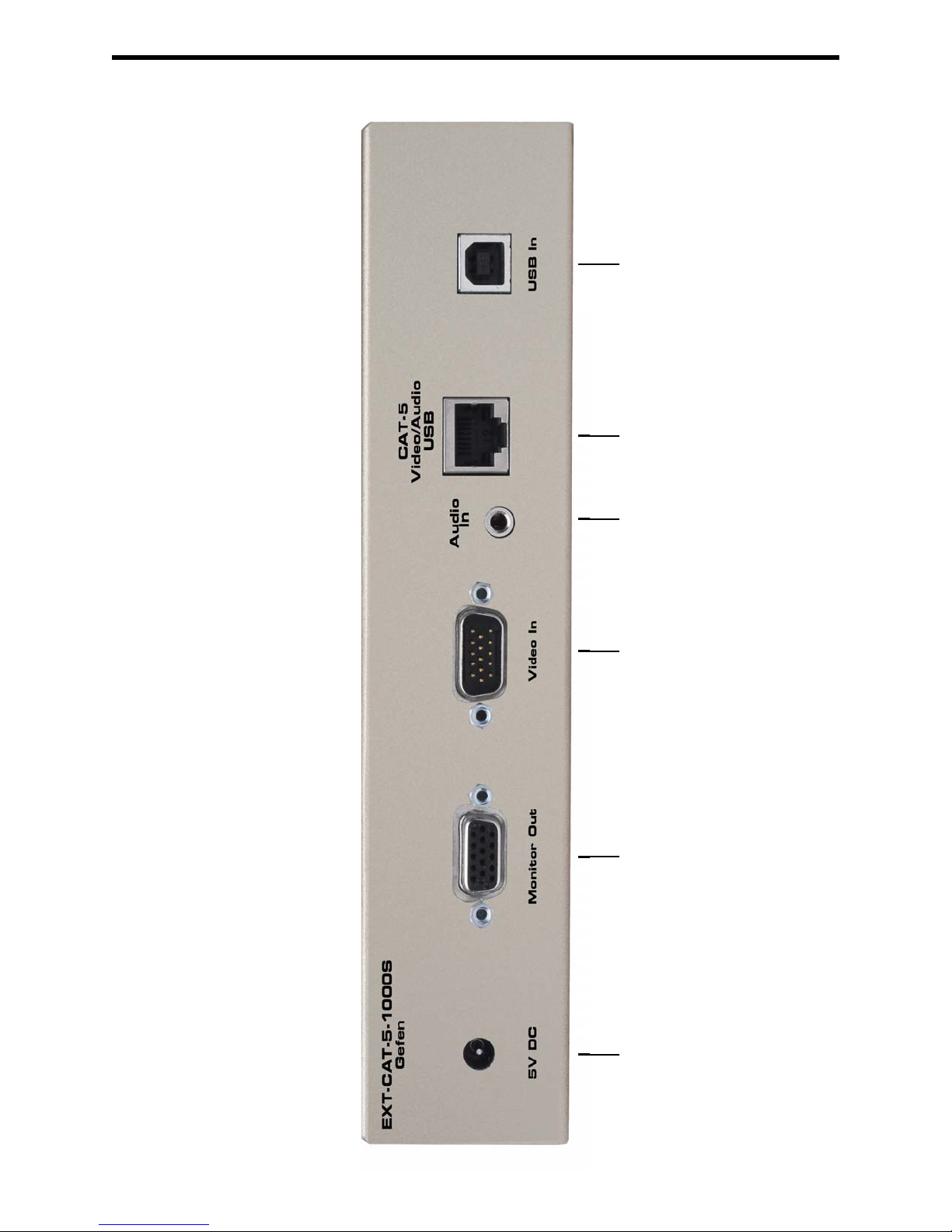

CAT5•1000S SEND UNIT BACK PANEL
6
123456
POWER - 5 VDC external power supply
MONITOR OUT - HD15 output connects to the monitor for local video
VIDEO IN - HD15 input from computer
AUDIO - Analog audio mini-stereo 3.5mm jack input from computer
RJ-45 VID/AUD/USB - RJ-45 input extends VGA, USB, and audio signals with
CAT5 extension cable
USB IN - USB Input from computer
CAT5•1000S BACK PANEL FUNCTIONS
7
1
2
3
4
5
6
