Gefen VGA-CAT5-148S User manual
1x8 VGA
CAT-5 DA
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday PST.
Write To:
Gefen Inc.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
1x8 VGA CAT5 DA is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Operation Notes
Introduction
Features
Sender Panel Descriptions
Receiver Panel Descriptions
Connecting and Operating the 1x8 VGA CAT5 DA
How to Adjust the Picture
CAT5 Wiring Diagram
Specifications
Warranty
1
2
3
4
5
6
7
8
9
10
1
READ THESE NOTES BEFORE INSTALLING
OR OPERATING THE 1X8 VGA CAT5 DA SYSTEM
• UseindustrystandardCategory-5(CAT-5) cable to operate the 1x8 VGACAT5DAsystem.
CAT-5e cable is preferred.
• Please connect all the cables between the computer and the 1x8 VGACAT5 DAsystem
before powering up the 1x8 VGA CAT5 DA Sender unit.
• The 1x8 VGA CAT5 DA units are housed in a metal box for better RF shielding.
OPERATION NOTES
Congratulations on your purchase of the ex•tend•it 1x8 VGA CAT5 Distribution Amplifier.
Your complete satisfaction is very important to us.
Gefen’s line of computer switchers, extenders, and splitters are designed to make your
A/V setup more comfortable, more productive and more affordable.
The 1x8 VGA CAT5 DA allows one VGA source to be distributed on up to eight displays.
The 1x8 VGA CAT5 DA also extended VGA signals over 330 feet using industry stan-
dard Category 5 (CAT-5) Cable. All output displays will have mirrored images.
The ex•tend•it line offers solutions for home theater, A/V installation, data center, infor-
mation distribution, conference room presentation, school and corporate training envi-
ronments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime support from a team of outstanding engineers.
How it Works
Simply connect your VGA video source to the 1:8 VGA CAT5 Distribution Amplifier’s
input using the supplied VGA cable. Then connect up to eight VGAdisplays to the VGA
CAT5 receivers over 330 feet using CAT-5 Cable. Then power the 1:8 VGA CAT5 Distri-
bution Amplifier and the receivers will get power from the CAT5. Note: VGA output 1 is
the primary connection and is used for the main display. VGA output 2 through 8 follow
the main display. The VGAdisplays attached to the 1:8 VGA CAT5 Distribution Amplifier
MUST have the same native resolution in order to get a picture.
INTRODUCTION
2
FEATURES
Features
• Distributes easily up to eight VGA displays
• Extends each display up to 330 feet
• Maintains up to 1920 x 1280 resolutions
• Maintains 480i, 480p, 720p, 720i, and 1080i, 1080p resolutions
• Distributes and extends VGA or Component
• Installs in seconds
Includes:
(1) 1x8 VGA CAT5 DA
(1) 6’ VGA cables (m-f)
(1) 5V6A DC Power Supply
(1) Users Manual
3

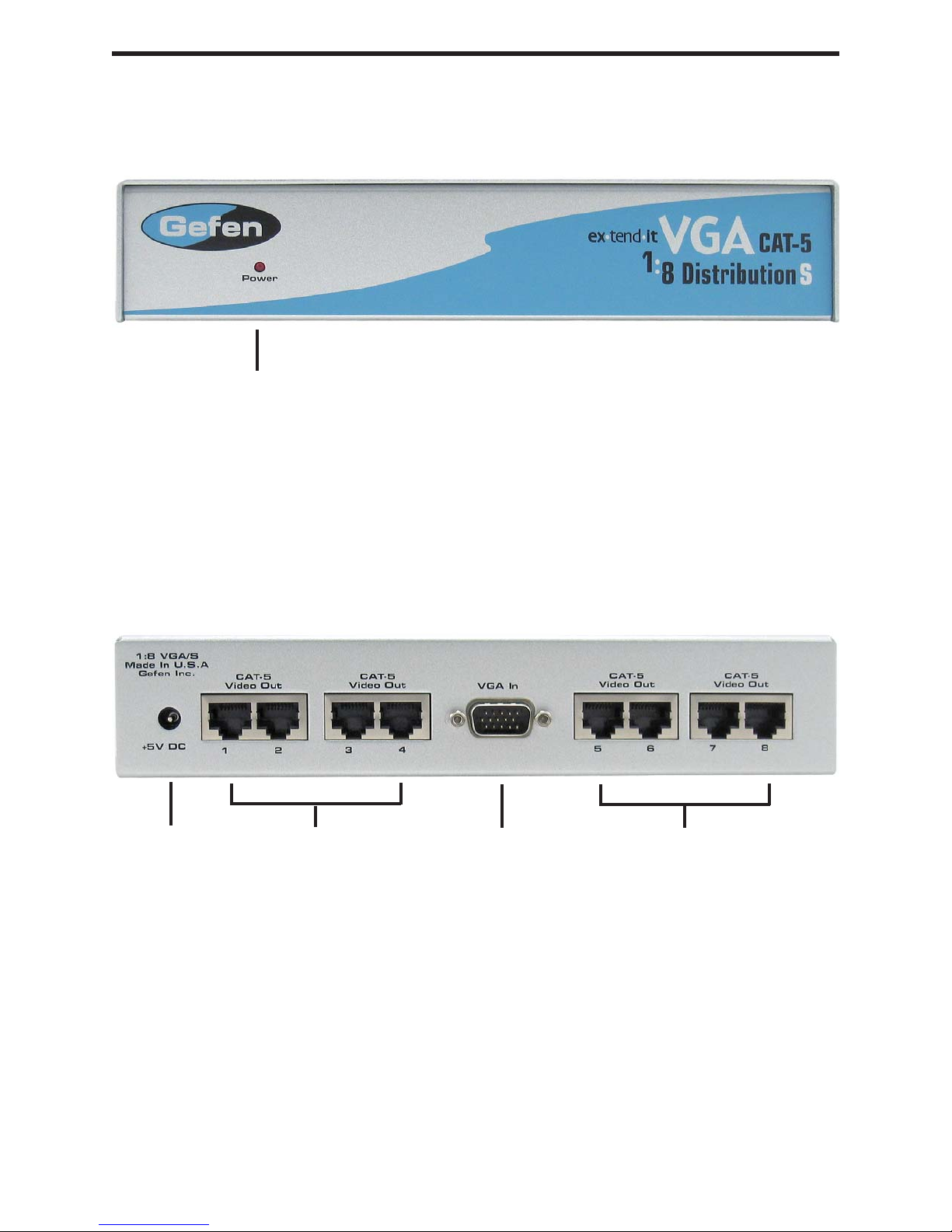

SENDER PANEL DESCRIPTIONS
Connects to
5VDC power
supply
4
Video CAT5
Out 1-4 VGA Input
Power LED
Video CAT5
Out 5-8
RECEIVER PANEL DESCRIPTIONS
5
Video
CAT5 In VGA Out
Power
LED
EQ
Knob
CONNECTING AND OPERATING THE 1X8 VGA CAT5 DA
How to Connect the 1x8 VGA CAT5 DA to your devices
1 Connect the supplied VGAcable from the VGAvideo source into the 1x8 VGACAT5 DA
Sender "VGAIn".
2Connect a CAT-5e* cable from the "CAT5 Video Outs" on the 1x8 VGA CAT5 DA
Sender to the "CAT5 Inputs" on the VGA CAT5 Distribution Receiver. (Repeat for
each Receiver unit)
3 Connect the VGA cable from the display to the "VGA Out" on the VGA CAT5
Distribution Receiver. (Repeat for each Receiver unit)
4 Plug the 5VDC power supply into the 1x8 VGA CAT5 DA Sender.
6
HOW TO ADJUST THE PICTURE
7
The first step in adjusting the video quality is to display text and a graphic on your monitor
(i.e. desktop icons). Then set your computer to the resolution that you will be using most
frequently. The dip switches are used to set the focus and sharpness of the picture to the
best possible setting. Set the dip switches to the settings that are recommended for the
different lengths of CAT5 cable (see chart below). Verify that the picture quality is to your
satisfaction. If the recommended setting does not produce a great quality picture, try us-
ing a different dip switch setting. The trim pod next to the VGAconnector on the 1x8 VGA
CAT5 DA R allows brightness adjustments for video.
0-25 Feet All dip switches OFF for all colors.
26-100 Feet Set dip switch #1 ON all colors. 2,3,4 remain OFF.
101-200 Feet Set dip switch #2 ON all colors. 1,3,4 remain OFF.
201-300 Feet Set dip switch #3 ON all colors. 1,2,4 remain OFF.
301 Feet and Up Set dip switch #4 ON all colors. 1,2,3 remain OFF.
NOTE: The dip switches are set to the OFF position when the switch is closest to the
number or in the down position.
