GE Monogram ZVC48LSS User guide
ZVC48LSS
GE Monogram®48" Custom Hood Insert
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
ge.com or call GE Answer Center®service,
800.626.2000.
Specification Created 10/06 130670

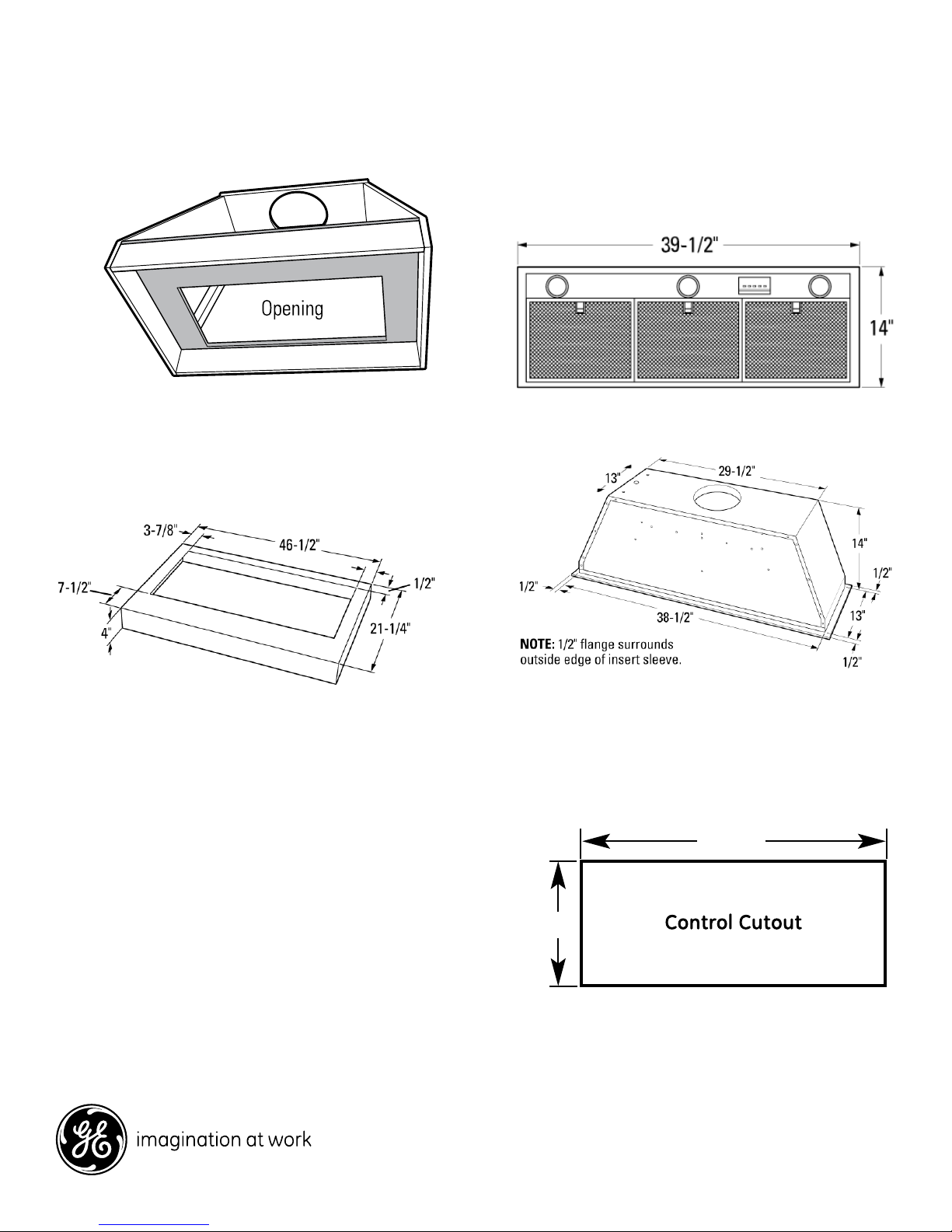

Dimensions and Specifications (in inches)
Outside Dimensions
Custom Insert Liner
The custom canopy must be sized to fit the insert sleeve.
Construct the canopy with an opening that is:
38-3/4"W x 13-3/16"D
The opening must be constructed of 3/4" thick material to
allow the sleeve locking clips to engage.
The Insert Sleeve
The Supplied Liner
A stainless steel liner is shipped with each hood insert. This
non-combustible liner protects the underside of the canopy.
Custom Liner
If you are not using the supplied liner, you may construct a
custom non-combustible liner. Use the supplied liner as a
template. The opening must be 38-3/4"W x 13-3/16"D.
3/4" thick material must surround the opening to allow the
sleeve locking clips to engage. The insert sleeve inside the
cabinet should be positioned 1/2" from the rear wall so that
the center of the 8" duct is 5-1/2" from the rear wall.
Remote Location for the Control
The control may be removed from the hood and installed
into a wall or countertop. A 30-ft length of wire is supplied to
accommodate most installations. A blanking plate covers the
opening when the controls are removed. The overall size of
the control is 4-1/4" wide and 2-1/4" deep.
1-11/16"
3-11/16"
We recommend that the cutout in granite or other hard
surfaces be made before the countertop is installed.
ZVC48LSS
GE Monogram®48" Custom Hood Insert
Specification Created 10/06 130670
ZVC48
Features and Benefits
• Patented Installation Process - Makes the insert
ideally suited to a wide variety of custom hood
applications; with easy and secure connection
to the ventilation duct
• Dual-Blower Ventilation with 1200 CFM and 4
Fan Speeds - Provides the power necessary
to capture the smoke and fumes produced by
high-performance cooking equipment
• Control with ADA Compliant Remote-Mount
Option - Can be removed and relocated to a
more convenient location, such as a wall
or countertop
• Blower, Liner and Filters Included - No additional
components or accessory kits required
• Three Halogen Lights - Provide four levels of
illumination over the cooking surface
• Three Stainless Steel Mesh Filters - Trap airborne
grease particles and can be easily removed for
safe cleaning in your dishwasher
• Model ZVC48LSS – 48" Wide Stainless Steel
Hood Insert
