GE MONOGRAM ZV750SY User guide
Monogram.
™
Specification Revised 12/99

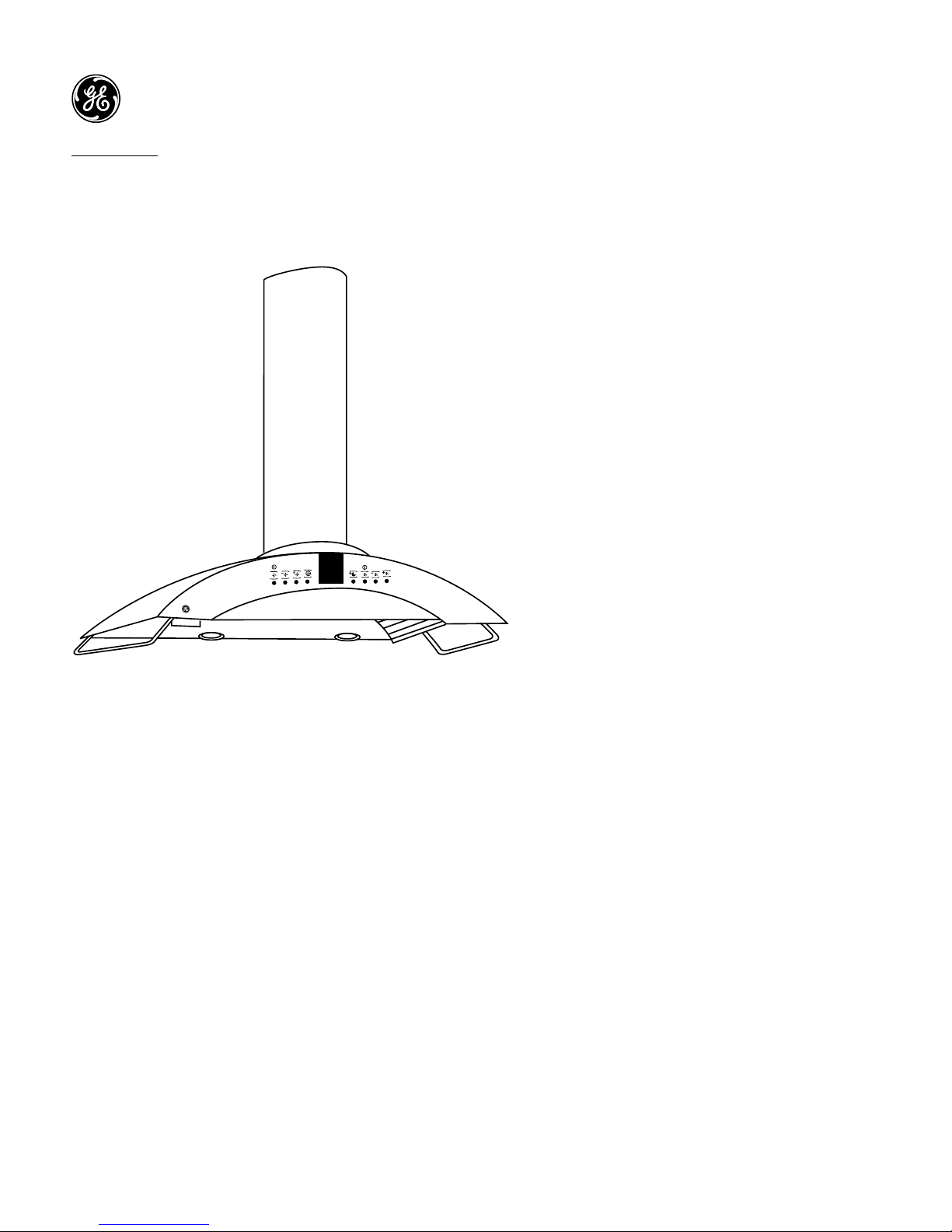

ZV750SY—36" Vent Hood
Dimensions and Specifications (in inches)
This vent hood is designed to be used in vented
installations and must use a 6” round duct.
A decorative duct cover is provided to cover the duct from
the top of the hood to an 8 ft. or 9 ft. ceiling.
Accessories:
An optional stainless steel duct cover is available for
9 ft. to 10 ft. ceiling installations. (The supplied duct cover
is sized to reach 8 ft. to 9 ft. ceilings.) Order the optional
duct cover at the same time as the vent hood and have on
site before installation.
*Height
to Ceiling
8-1/4"
34-5/8" 21-5/8"
*26-1/4” for 8 ft. ceiling
38-1/4” for 9 ft. ceiling
38-1/4” to 50-1/4” for 9 ft. to
10 ft. ceiling using optional
accessory ZX10SY Duct Cover
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Monogram.
™
Specification Revised 12/99
ZV750SY—36" Vent Hood
Dimensions and Clearances:
The vent hood should be installed 25-1/2” above the
cooking surface. The cooking surface should be at
least 36” above the floor. Installation will be easier if
the vent hood is installed before the range or
cooktop/countertop is installed.
Installation Information: Before installing, consult
installation instructions (Pub. No. 49-8775) packed
with product for current dimensional data.
*25-1/2" Recommended
36" Min.
*The vent hood must be installed 24” min. and 30” max. above
the cooking surface. 25-1/2” is recommended to insure that the
duct cover meets the ceiling.
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Monogram.
™
Specification Revised 12/99
ZV750SY—36" Vent Hood
Features and Benefits
•Stainless Steel Model
• 36” Width
• 360 CFM Vertical Exhaust Blower Rating
• Electronic Touchpad Controls
• 4 Halogen Lamps
• 3 Removable Filters with Filter
Cleaning Reminder
• 6” Round Duct
• Model ZV750SY—Stainless Steel
Monogram
