GE Profile PTI22MBM User instructions

Specification Created 12/00

PTI22MBM - GE Profile™21.9 Cu. Ft. CustomStyle™Top-Freezer Refrigerator

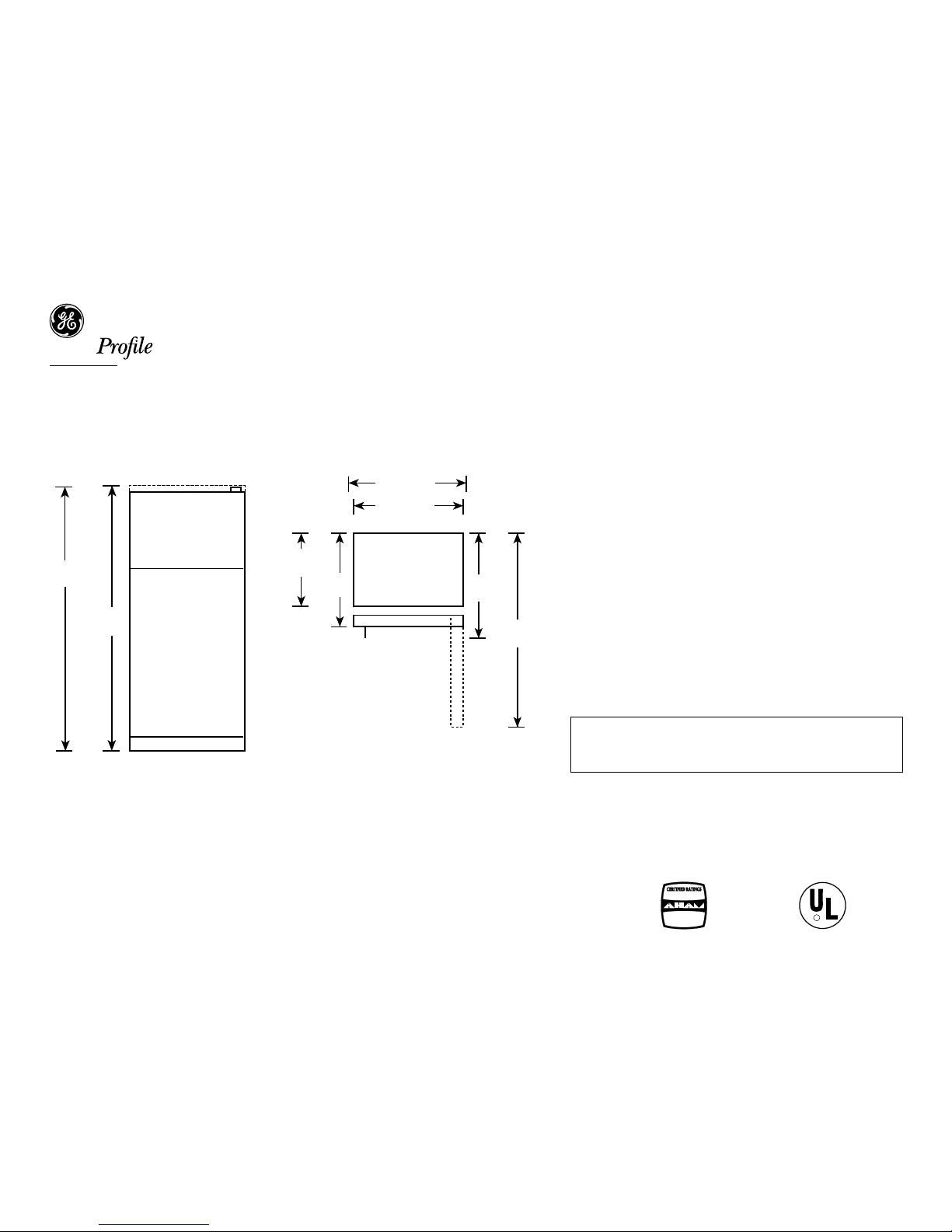

Case Dimensions (in inches/cm.)

Top View

Front View

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and

SHELF AREA

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

68-3/4

69-7/8

35-3/4

28-3/8

23-3/4

26-3/4

36-5/8

Handle Side Clearance

–At least 2" (51 mm) on the handle side for fingertip clearances.

Top and Bottom Clearance

–At least 3/16" (4.75 mm) at the top and bottom edges to allow for

trim flange.

Hinge Side Clearance

•A 3/4”(19 mm) thick door panel may strike thje adjacent countertops

when the door is fully opened. Therefore, the hinge side clearance to

raised panel will vary according to installation situation.

–Allow 1-3/4”(44 mm) clearance when installation does not include

side panels.

–The installation of 3/4" (19 mm) thick side panels requires less

clearance because the space between the door and adjacent

countertop is wider.

•To avoid door contact to countertop consider:

–Miter the corner of the adjacent countertops 45°, or

–pull the refrigerator forward enough to avoid contact.

IMPORTANT: Before finalizing specifications for your GE Profile Performance™

CustomStyle™Refrigerator, Please NOTE:

• A minimum of 36" is required for refrigerator installation

• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum

Clearances

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

WWW.GEAppliance.com or call

GE Answer Center®service, 800.626.2000.

Specification Created 12/00

PTI22MBM - GE Profile™21.9 Cu. Ft. CustomStyle™Top-Freezer Refrigerator

Rough-In Dimensions (in inches)

70-1/4"

36"

24"

Standard, New Construction and

Replacement Installation

Installation Tips to Maximize

the Built-In Look

•All wall/floor moulding should be

removed prior to installation.

•Water recess on rear wall

recommended to prevent water

line damage. 48" minimum length

1/4" diameter water line tubing

recommended.

•When possible, recess both water

line and electrical outlet. (See

local codes)

•Front and rear leveling legs are

adjustable for the “Built-In”look.

(See owner’s manual)

* 22”depth applies to the refrigerator

opening, not the acctual cabinet

depth.

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

Order your own custom wood

panels to match cabinetry or

other decor.

Panels up to 1/4" thick will fit door

frame with no special preparation.

Add filler behind material thinner

than 1/4" for proper fit.

Note: Panels up to 3/4" will

require special routing area

around handles.

Dimensions may vary depend-

ing on depth of panel.

Freezer Panel

Without Dispenser

Fresh Food Panel

2-5/8

Clearance

Handle Side

(Detail A)

2-5/8

Clearance

Handle Side

(Detail A)

Hinge Side

Clearance

(See Notes)

3/16

24-1/16

42-1/4

35-3/4

24-1/16

35-3/4

Detail B Detail B Freezer Panel

With Dispenser

2-5/8

Clearance

Handle Side

(Detail A)

Hinge Side

Clearance

(See Notes)

3/16

3/16 3-15/16

15-7/16

3/16

14-7/8

1/8

5/16

Detail B

1/8 1-3/4

1/4

Detail A Area to be routed out

on handle side of panel

Detail B

Door Panel Dimensions (in inches)

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and

SHELF AREA

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

WWW.GEAppliance.com or call

GE Answer Center®service, 800.626.2000.

Specification Created 12/00

PTI22MBM - GE Profile™21.9 Cu. Ft. CustomStyle™Top-Freezer Refrigerator

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

70-1/4"*

36-1/8"

24-1/2"

An enclosure is required to match up to the trim, see Typical Installation. To obtain the

most integrated look, the cabinet or soffit above the refrigerator should extend out to the

same depth as the side panels. The refrigerator opening must have minimum dimensions

of 70-1/4" high x 36-1/8" wide x 24-1/2" deep as shown at right. If there is an overhead

cabinet, allow 1" for cabinet door clearance with the top trim piece so the cabinet doors

can be opened without hitting the top trim. If 1/2" side panels are used, then side trim

and panel will be even. If 3/4" side panels are used, then some of the side panel will

extend beyond the trim and must be finished.

Collar Trim Installation

*The rough-in dimension of 70-1/4" is minimum and is

measured from the finished floor to top of opening (or the

underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned

for above the refrigerator, you may need to consider adding a

maximum of 1/4" (70-1/2") to height of opening to allow addi-

tional clearance between cabinet doors and top of refrigerator

trim when cabinet doors are in open position.

Case

Overhead

Cabinet

Top

Trim

Cabinet

Door

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Refrigerator

Case

Side Trim

Side trim must be installed

flush with the gasket contact

surface on the case.

Door Gasket

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and

SHELF AREA

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

WWW.GEAppliance.com or call

GE Answer Center®service, 800.626.2000.

Specification Created 12/00

PTI22MBM - GE Profile™21.9 Cu. Ft. CustomStyle™Top-Freezer Refrigerator

Features and Benefits

•21.9 cu ft Capacity (Fresh Food 15.4 cu ft / Freezer 6.5 cu ft)

•2 Adjustable Humidity Vegetable/Fruit Crispers with Spill-Proof Crisper Cover

•Adjustable Temperature Meat Pan

•Slide-Out, Slide-Over Pans

•4 Adjustable, Split Glass Fresh Food Cabinet Shelves (3 Slide-Out, Spill Proof)

•3 Adjustable ClearLook™Modular Door Bins with Gallon Storage

•1 Fixed Fresh Food Door Bin with Tall Bottle Storage

•QuickSpace™Shelf

•Quick Store™Bin

•Beverage Rack

•Dairy Compartment with Butter Dish

•Egg Bin

•2 Adjustable, Split Wire Everwhite Freezer Compartment Shelves

•3 Freezer Door Bins (2 Adjustable; 1 Full-Width Fixed)

•4 Ice 'N Easy Trays with Ice Storage Bin

•Deluxe Quiet Design Quiet Package

•Color-Matched Full-Length Premium Door Handles

•Model PTI22MBMWW - White on white

•Model PTI22MBMBB - Black on black
