GE Profile Arctica PSW26SGRSS User instructions

PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator

with Dispenser

Specification Revised 7/04

210398

Dimensions (in inches)

"94 SxS Refer

Front View

Top View

**When cap is removed: 69-1/4".

**Width including caps is 36-3/16".

† Water hook-up fits in back air clearance when calculating installation depth.

If installed against a wall, allow clearance of 14-3/16" on freezer side to

remove ice bin.

To remove fresh food pans, remove door bins.

Clearance required to remove fresh food full-size pan without disassembling:

18-15/16".

Plus, allow additional space for any necessary leveling adjustments.

Overall

Dimensions

Height to top of hinge (in.) A 70-1/2*

Height to top of case (in.) B70-1/2

Case depth without door (in.) C†28-1/2

Case depth less door handle (in.) D†32-3/4

Case depth with door handle (in.) E†35-3/16

Depth with fresh food door open 90° (in.) F†50-9/16

Width (in.) G35-7/8**

Width with door open 90° with door handle (in.) H36-1/4

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Total volume and shelf

area are calculated by

the Association of Home

Appliance Manufacturers’

standards.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator

with Dispenser

Specification Revised 7/04

210398

Water Line Coupler

366-15A

Hinge Screws

Wire Harness

Toekick Screw

To Remove Top Cap and Doors on PSW26SGR

Step 1: Locate and remove two Phillips head screws on the top of

the refrigerator. Remove two screws, one on each side at

the rear of the top cap. Lift off and remove top cap.

Step 2: Open both doors. Remove one screw on each side of the

toekick. Pull forward to remove toekick.

Step 3: On the freezer door, disconnect water line coupler by

pushing against the collar on the left side. Disconnect

wire harness.

Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the

top hinge. Carefully remove hinge while supporting door.

Lift door up and off bottom hinge. Remove fresh food door

in the same manner. Note: Do not remove bottom hinges!

Door alignment will be difficult if bottom hinges

are removed.

Step 5: Place refrigerator onto a hand truck, upright and against

one side. Move refrigerator to the installation location.

Reinstall Doors, Top Cap

Step 6: Carefully lower doors onto bottom hinges. Be sure to route

the tubing and electrical connector through the bottom

hinge. Reinstall top hinges.

Step 7: Place cap over the top of the refrigerator. Reinstall the

original screws in the top and back of the cap.

Step 8: Reconnect the wiring harness and waterline.

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center® service, 800.626.2000.

Total volume and shelf

area are calculated by

the Association of Home

Appliance Manufacturers’

standards.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PSW26SGR – GE Profile Arctica® ENERGY STAR® 25.5 Cu. Ft. Stainless-Wrapped Side-By-Side Refrigerator

with Dispenser

Specification Revised 7/04

210398

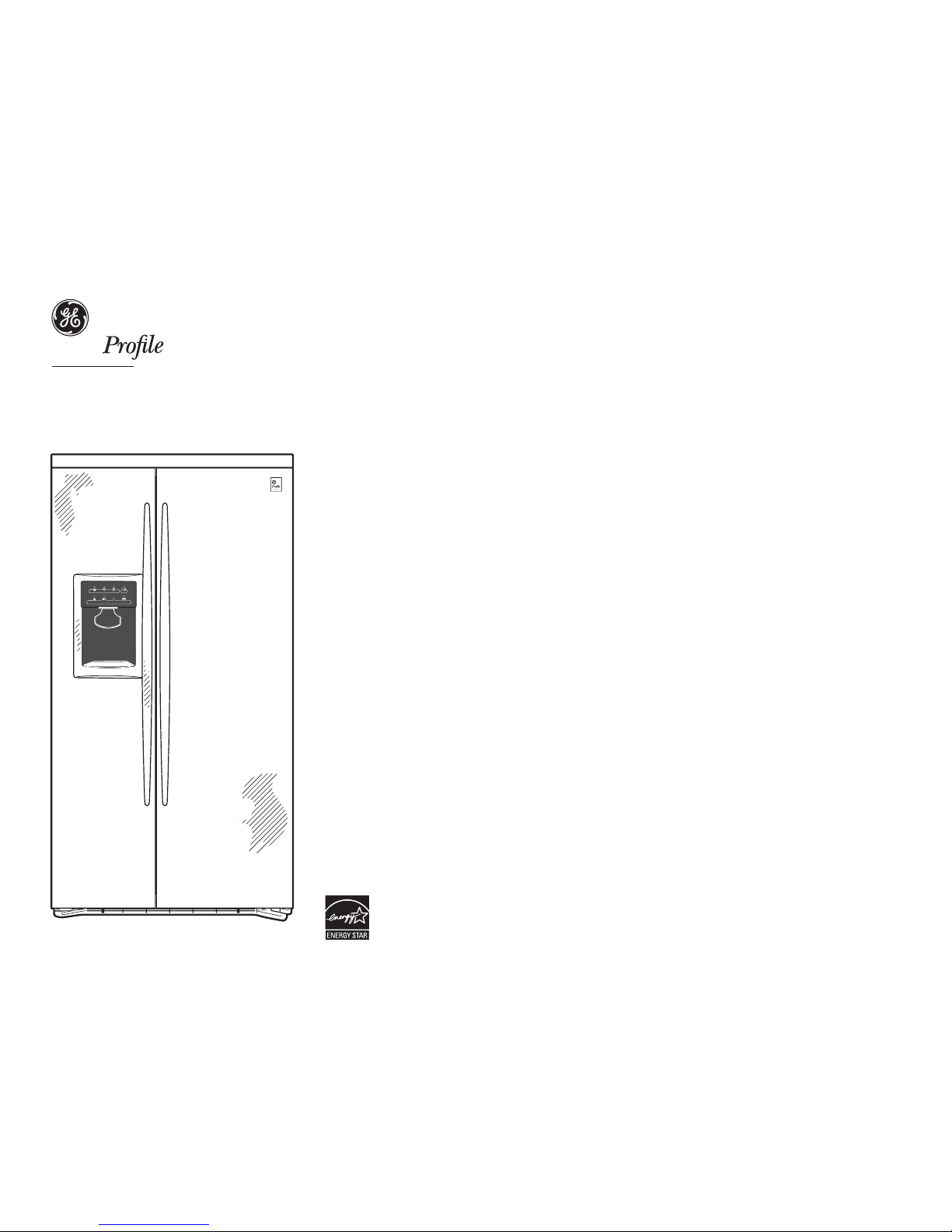

Features and Benefits

• Full-wrap stainless design – Features stainless steel doors, side panels and top for a truly dramatic look

• CustomCool™ Technology With Full Extension Slides – Chills in minutes, thaws in hours and keeps foods

fresher, longer

• ClimateKeeper™ Temperature Management System – Best Temperature Management System

You Can Buy!

• Upfront Electronic Digital Display – Clearly displays exact temperatures for the fresh food and

freezer compartments

• Integrated Ice™ System – Frees up valuable freezer space. It tilts down, providing easy access to

cubed ice.

• Contoured Exterior – Create a high-fashion look with gently rounded doors and edges

• In-the-Door Beverage Rack – Conveniently located inside the refrigerator door to increase flexibility

and to free up valuable shelf space

• Model PSW26SGRSS – Stainless steel

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PSW26PSRSS

WATER

CRUSHED

CUBEDCLOCK SET

LIGHT

DOOR ALARMRESET WATER FILTER

HOLD 3 SEC.

LOCK CONTROL

HOLD 3 SEC.

Arctica
