GE Monogram® 36" Built-In Custom All-Refrigerator

Dimensions and Installation Information

Listed by

Underwriters

Laboratories

ZIR360NXRH, Refrigerator

Handle on the left side, the door swings left to right.

ZIR360NXLH, Refrigerator

Handle on the right side, the door swings right to left.

Caution

*Shipping height. The refrigerator can be adjusted to fit

into a cutout 83-1/2" min. to 84-1/2" max. height. Note: the

top case trim at the front is 1/2" higher and will overlap

upper cabinetry or soffit. Use leveling legs and wheels for a

maximum 1" height adjustment.

The water and electrical supply must be located as shown.

The finished cutout width must be 35-1/2".

Note: The case trim overlaps cabinets at the top and

sides. Frameless cabinets may require filler strips to

prevent interference with cabinet door swing. The opening

width must allow for filler strips.

36" Frame to

Frame Width

*84" From

Floor to

Top Frame

35"

Case Width

*83-1/2"

Rear

25-3/8" Framed Models

Case Depth

Depth Including Handles:

26-7/8" Framed Models

Product Clearances

These units are equipped with a 2-position door stop. The fac-

tory set 130˚ door swing can be adjusted to 90˚ if clearance

to adjacent cabinets or walls is restricted. Order WX14X99

door stop for precise settings between 90˚and 130˚.

251Dia59

25"

Minimum

to Wall

130ϒDoor Swing

36-3/4"

23-7/8"

Behind Frame

251Dia60

4" Min.

to Wall

90ϒDoor Swing

Allow 25" minimum clearance for a full 130˚ door swing.

Allow 15" for pan removal. for a 90˚ door swing, allow 4"

minimum clearance for professional models. If the 90˚

doorstop position is used, pan access is maintained but

pan removal is restricted.

These units are top-heavy and must be secured to prevent the

possibility of tipping forward. Anti-Tip protection is required.

For answers to your Monogram,® GE Profile™

or GE®appliance questions, visit our website

at ge.com or call GE Answer Center®service,

800.626.2000.

110161

Specification Created 6/08

ZIR360NX

GE Monogram® 36" Built-In Custom All-Refrigerator

Dimensions and Installation Information

Listed by

Underwriters

Laboratories

Cutout and Clearances for Multiple Product Installations

For a complete food storage center, install a Monogram

All-Refrigerator and All Freezer side-by-side. For even

more capacity, install two refrigerators or two freezers. If you are installing two units, side by side, the installation

space must be 71-1/2" wide. Additional cutout width may be

required when side panels are used. Add side panel thickness

to the finished cutout to calculate rough-in width.

• The water and electrical locations for each product must be

located as shown.

• A separate 115V, 60Hz., 15 or 20 amp power supply is

recommended for each product.

251Dia35

251Dia61

25"

Min. to

Wall

0" 25"

Min. to

Wall

130ϒDoor Swing 130ϒDoor Swing

Clearances for two products installed side-by-side with

right and left side hinges together

Allow 5" minimum between the two products to prevent

one door from striking the other. Use the WX14X99

adjustable door stop to reduce the factory set 130˚ door

swing and to allow pan removal. NOTE: A unified grille

panel kit will NOT fit this installation.

Clearances for Multiple Single Door Installations

In a side-by-side installation of a left and right door swing

product, the inside trims touch at the front, with a 1" clearance

between the units at the rear. Order ZUG2 Unified Grille Panel

Kit for one continuous grille panel using a 1/4" framed or 3/4"

overlay custom panel.

For answers to your Monogram,® GE Profile™

or GE®appliance questions, visit our website

at ge.com or call GE Answer Center®service,

800.626.2000.

110161

Specification Created 6/08

ZIR360NX

GE Monogram® 36" Built-In Custom All-Refrigerator

Dimensions and Installation Information

Listed by

Underwriters

Laboratories

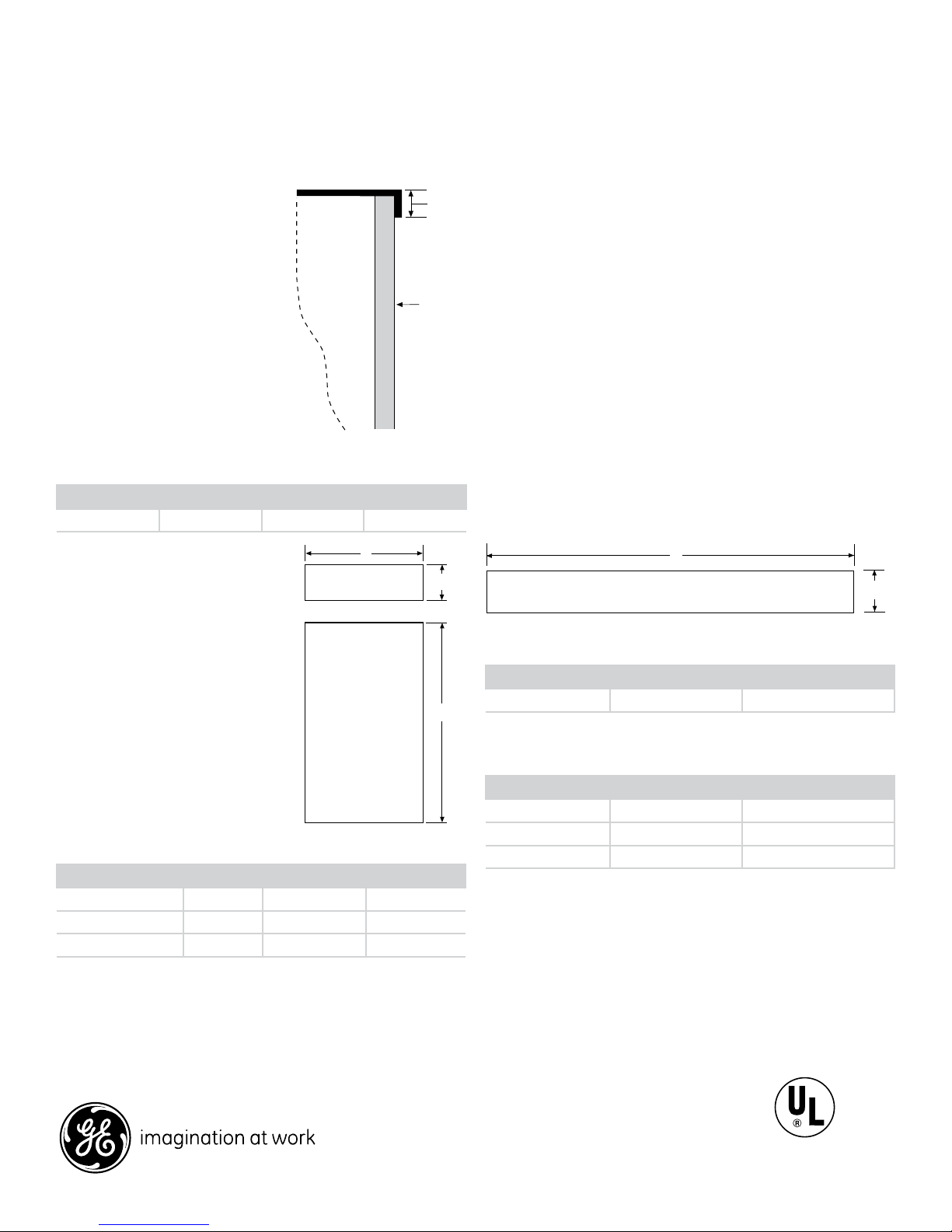

729Dia84

1/4"

Panel

Door/

Drawer

5/16"

Tr im

Reveal

All-Refrigerator,

All-Freezer 1/4" Framed

Panel

If you choose to install framed

panels, they must be cut to the

dimensions shown. The panels

will slide into the frame on the

door and grille.

If the panel is less than 1/4" thick,

it must be backed up with filler

material or foam tape to improve

the fit.

Door

Panel

zif_zir360nx_panel_dim

Grille Panel

IMPORTANT NOTE: Maximum weight

for the door panel is 67 pounds.

Maximum total weight for the

assembled grille panel is 11 pounds.

729Dia85

Grille Panel

1/4" Framed Panel Dimensions

A (Width) B (Grille Height) C (Door Height)

Framed Panel 33-7/8" 8-7/8" 69-5/16"

3/4" Overlay Panel Dimensions

A (Width) B (Grille Height) C (Door Height)

1/4" Backer Panel 33-7/8" 8-7/8" 69-5/16"

0.10" Spacer Panel 32-1/2" 7-5/8" 67-15/16"

3/4" Overlay Panel 34-1/8" 9" 69-9/16"

ZUG2 Grille Panel Dimensions

The ZUG2 unified grille panel kit provides for the installation of

a framed or overlay grille panel.

Panel Dimensions

A (Width) B (Grille Height)

1/4" Framed Panel 69-7/8" 8-7/8"

Panel Dimensions

A (Width) B (Grille Height)

1/4" Framed Panel 69-7/8" 8-7/8"

0.10" Spacer Panel 68-1/2" 7-5/8"

3/4" Overlay Panel 70-1/8" 9"

IMPORTANT:

Grille panel maximum total weight is 25 lbs..

For answers to your Monogram,® GE Profile™

or GE®appliance questions, visit our website

at ge.com or call GE Answer Center®service,

800.626.2000.

110161

Specification Created 6/08

ZIR360NX

GE Monogram® 36" Built-In Custom All-Refrigerator

Dimensions and Installation Information

Listed by

Underwriters

Laboratories

729Dia42

Overlay

Panel

1/4"

Backer

Panel

Door/

Drawer

.10"

Spacer

194Dia_65

Spacer Panel

Overlay Panel

Backer Panel

Optional Accessories

Order these accessories from your Monogram supplier.

ZKHPSS2, Professional Handle Kit

Professional stainless steel tubular handle designed to fit 3/4"

overlay panels. Note: Kit includes one Professional handle,

31" long.

ZKHSS2 Tubular Handle Kit

Monogram stainless steel tubular handle designed to fit 3/4"

overlay panels. Note: Kit includes two tubular handles, 62-3/8",

3/4" diameter.

ZUG2 Unified Grille Panel Kit

For side-by-side installation of trimmed units. This kit provides

for a unified custom grille panel to span the width of two units

using a 1/4" framed or 3/4" overlay panel.

ZPBS360, Black and ZPSS360 Stainless Steel Accessory Panel Kits

These accessory panels are cut to size and ready to install.

All-Refrigerator, All-Freezer 3/4" Overlay Panel

Overlay panels may be installed on trimmed units.

The overlay panel must be secured to a 1/4" thick backer

panel which slides into the trim. A 0.10" thick spacer panel

must be placed between the custom and backer panel.

Assemble overlay panels with glue and screws.

• Center spacer panel on the backer panel left to right and

top to bottom. Secure the panels with glue.

• Center the spacer/backer panel on the overlay panel and

secure with glue and screws. Screws must be countersunk

into the backer panel.

Note: Left-to-right offset is not always equal to top-to-bottom

offset.

For answers to your Monogram,® GE Profile™

or GE®appliance questions, visit our website

at ge.com or call GE Answer Center®service,

800.626.2000.

110161

Specification Created 6/08

ZIR360NX

GE Monogram® 36" Built-In Custom All-Refrigerator

ZIR360NXRH

Features and Benefits

• Custom Panel Model - Can be personalized with cabinet-

matching panels and handles

• Enhanced Temperature Management System - With

precise electronic controls and thermistors, maintains

ideal storage conditions for fresh foods

• Concealed Halogen Lighting System - Illuminates

contents without compromising space

• ENERGY STAR® Qualification - As an ENERGY STAR

partner, GE has determined that Monogram all-

refrigerators meet the ENERGY STAR guidelines for

energy efficiency

• Humidity-Controlled Compartments and Sealed Snack

Drawers - Help preserve the freshness of foods

• Adjustable Spillproof Glass Shelves - Easily

accommodate party trays and platters

• Gallon-Size Door Bin - Holds milk containers, two-liter

bottles and pitchers

• Sealed Dairy Compartment - Locks in freshness

• Model ZIR360NXRH – Door panels required (right-handed

door swing)

• Model ZIR360NXLH – Door panels required (left-handed

door swing)
