GE GE Profile Performance CustomStyle... User manual
Revised 2/99
TPX24SPBBS - GE Profile Performance™23.5 Cu. Ft. CustomStyle™Side-By-Side Refrigerator
Case Dimensions (in inches/cm.) Installation of Water and Electrical Outlets
I
H
G
Top View
40-3/8
35-3/4
45-5/8
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward.
C
F
D
E
Side View
28-7/16
26-3/8
23-7/8
69-3/4 Rear Wall View
A
1''
(2.54 cm.)
B
Front View
69-3/4
68-3/4
R
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Revised 2/99
TPX24SPBBS - GE Profile Performance™23.5 Cu. Ft. CustomStyle™Side-By-Side Refrigerator

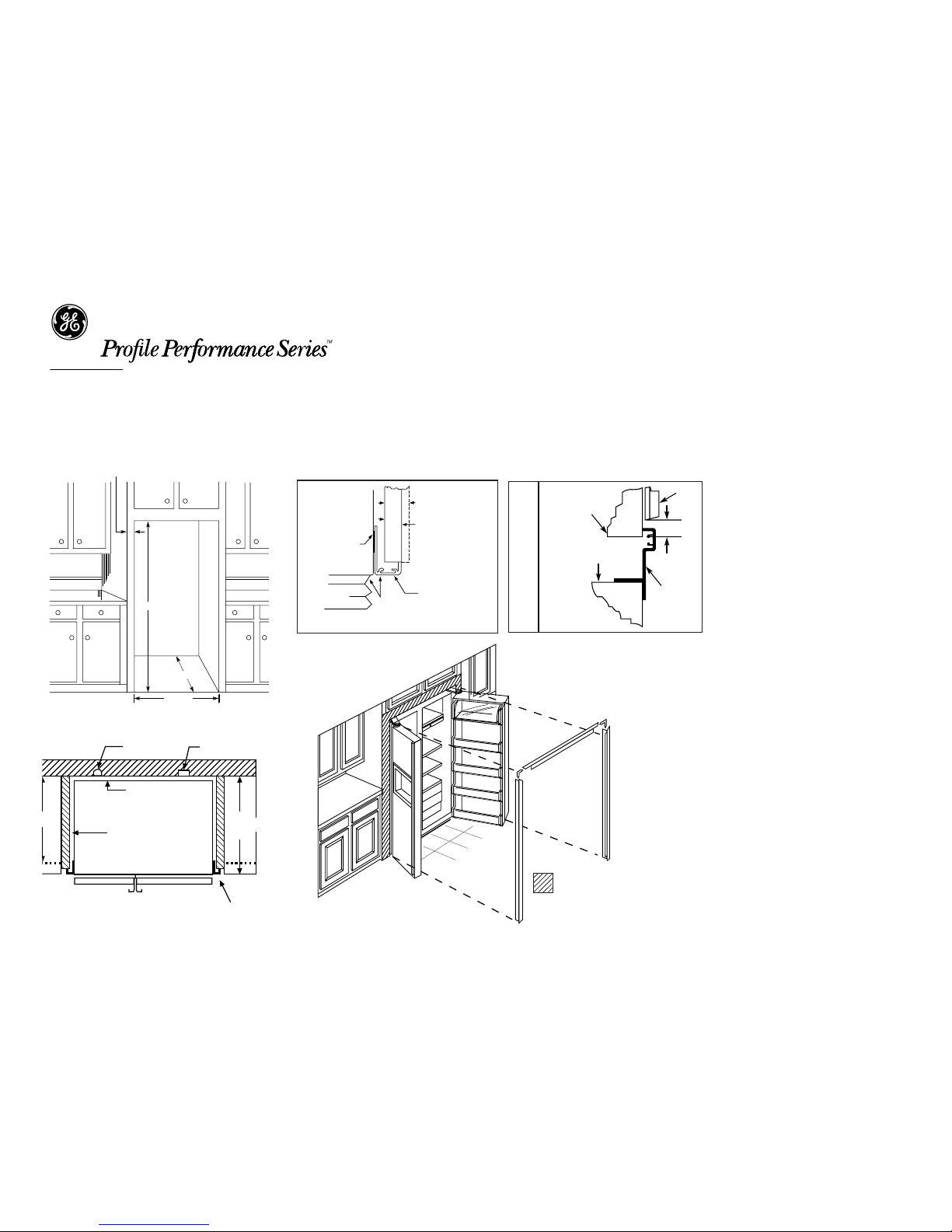

Collar Trim Installation
Collar Trim Installation
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the most
integrated look, the cabinet or soffit above the
refrigerator should extend out to the same
depth as the side panels. The refrigerator
opening must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/4"* deep as
shown at right. If there is an overhead cabinet,
allow 1" for cabinet door clearance with the top
trim piece so the cabinet doors can be opened
without hitting the top trim. If 1/2" side panels
are used, then side trim and panel will be even.
If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and
must be finished.
70-1/4"*
36-1/8"
24-1/2"*
1/2" minimum
25"
Counter
Top
ElectricalWater
Trim
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24-1/2"* Side panels
net
*24-1/4" depth applies only to the refrigerator opening,
not the actual cabinet depth.
Case
Overhead
Cabinet
Top
Trim
Cab
Doo
1"
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Refrigerator
Case
Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Door Gasket
Typical Installation
Shaded areas represent front surfaces
of side panels and overhead cabinet or
soffit that contacts trim.
Revised 2/99
TPX24SPBBS - GE Profile Performance™23.5 Cu. Ft. CustomStyle™Side-By-Side Refrigerator

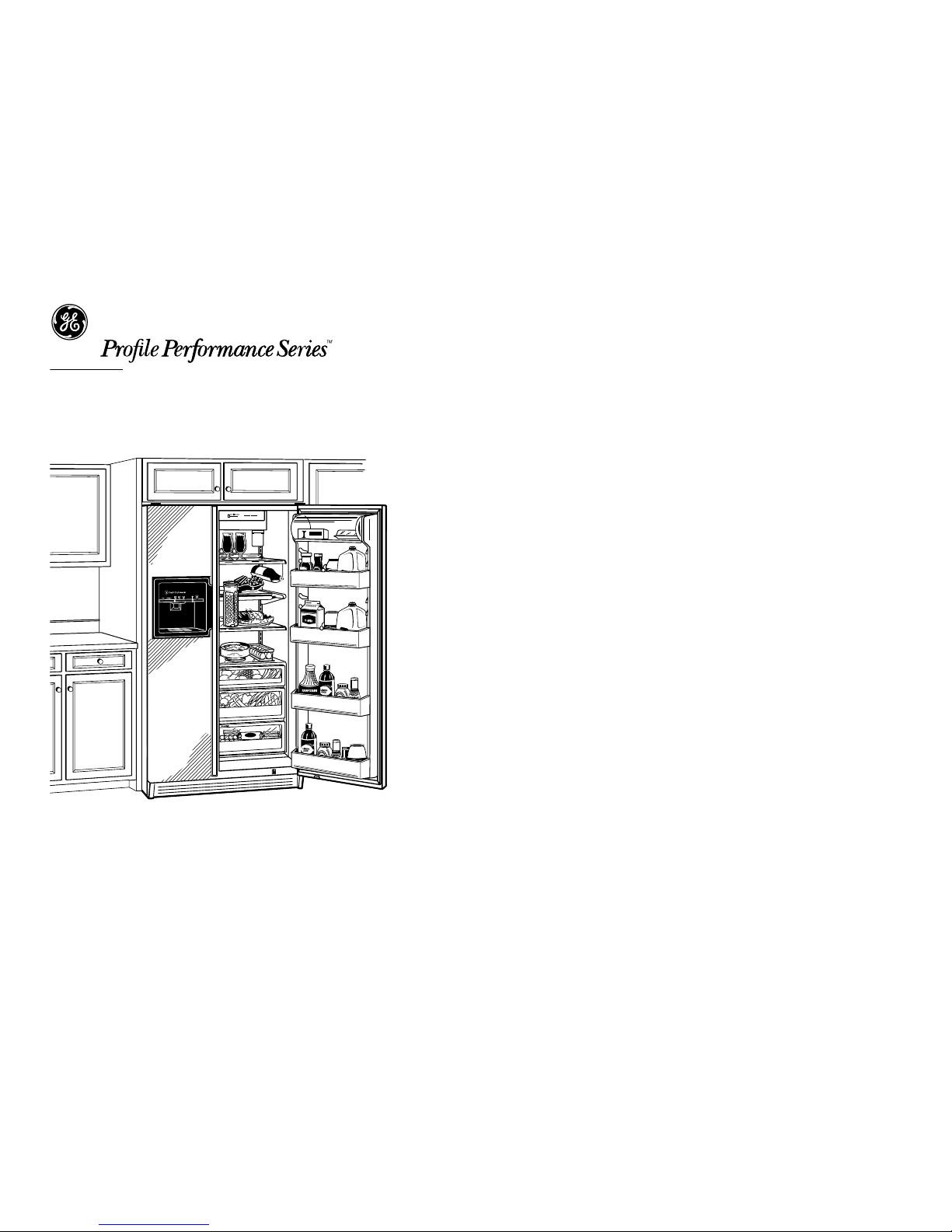

Features and Benefits
• 23.5 cu ft (Fresh Food 14.48 cu ft / Freezer 9.05 cu ft)
• Exclusive Water by Culligan™ Provides Cleaner, Better Tasting Water and
Ice through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Electronic Monitor and Diagnostic System
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space™Shelf
• Beverage Rack
• Dairy Compartment
• Adjustable Modular Gallon Door Bins
• Stainless Steel Appearence Full-Length Door Handles
• Model TPX24SPBBS - Stainless Steel
