GE GE Profile Performance CustomStyle... User manual
Specification Revised 10/99
TNX22BACWW - GE Profile Performance™21.9 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator

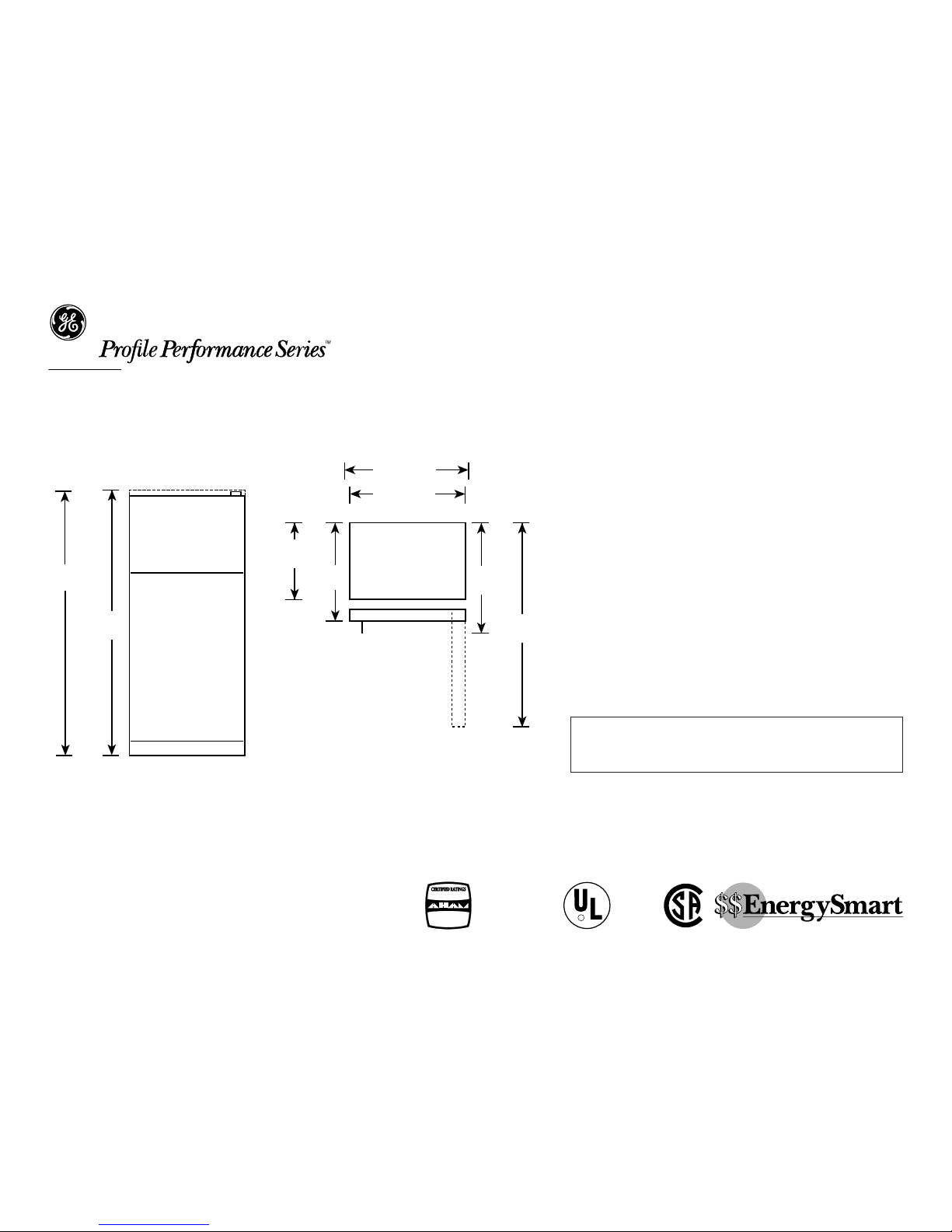

Case Dimensions (in inches/cm.)
Top View
Front View
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
69-7/8
70-7/16
35-3/4
28-3/8
23-3/4
61
26-3/4
36-5/8
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for
trim flange.
Hinge Side Clearance
• A 3/4” (19 mm) thick door panel may strike thje adjacent countertops
when the door is fully opened. Therefore, the hinge side clearance to
raised panel will vary according to installation situation.
–Allow 1-3/4” (44 mm) clearance when installation does not include
side panels.
–The installation of 3/4" (19 mm) thick side panels requires less
clearance because the space between the door and adjacent
countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance™
CustomStyle™Refrigerator, Please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
Clearances
Specification Revised 10/99
TNX22BACWW - GE Profile Performance™21.9 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator

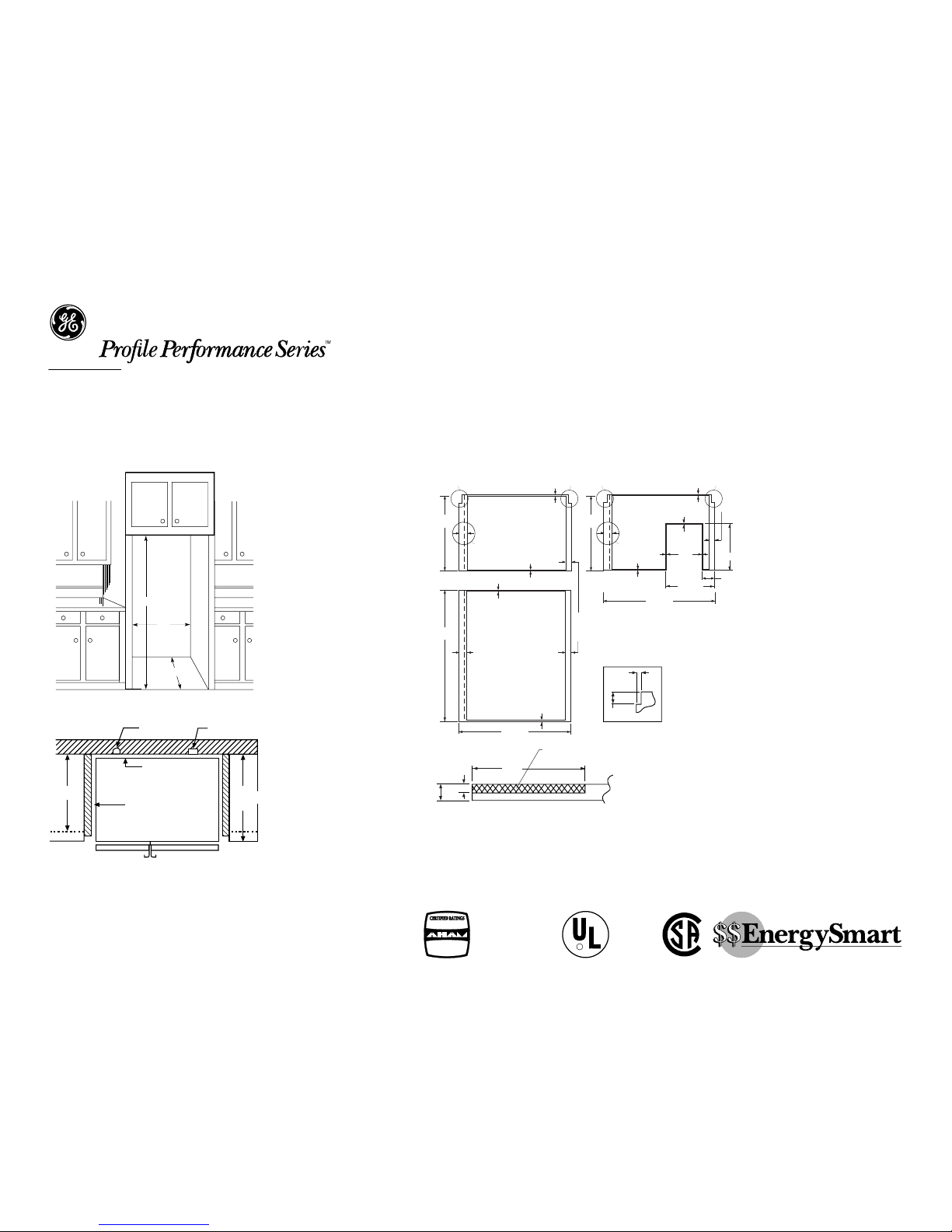

Rough-In Dimensions (in inches)
70-1/4"
36"
24"
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize
the Built-In Look
•All wall/floor moulding should be
removed prior to installation.
•Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length
1/4" diameter water line tubing
recommended.
•When possible, recess both water
line and electrical outlet. (See
local codes)
•Front and rear leveling legs are
adjustable for the “Built-In” look.
(See owner’s manual)
* 22” depth applies to the refrigerator
opening, not the acctual cabinet
depth.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"* Side panels
24"
Cabinet
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Order your own custom wood
panels to match cabinetry or
other decor.
Panels up to 1/4" thick will fit door
frame with no special preparation.
Add filler behind material thinner
than 1/4" for proper fit.
Note: Panels up to 3/4" will
require special routing area
around handles.
Dimensions may vary depend-
ing on depth of panel.
Freezer Panel
Without Dispenser
Fresh Food Panel
2-5/8
Clearance
Handle Side
(Detail A)
2-5/8
Clearance
Handle Side
(Detail A)
Hinge Side
Clearance
(See Notes)
3/16
3/16
3/16
3/16
24-1/16
42-1/4
35-3/4
24-1/16
35-3/4
Detail B Detail B Freezer Panel
With Dispenser
2-5/8
Clearance
Handle Side
(Detail A)
Hinge Side
Clearance
(See Notes)
3/16
3/16 3-15/16
15-7/16
3/16
3/16
14-7/8
1/8
5/16
Detail B
1/8 1-3/4
1/4
Detail A Area to be routed out
on handle side of panel
Detail B
Door Panel Dimensions (in inches)
Specification Revised 10/99
TNX22BACWW - GE Profile Performance™21.9 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"

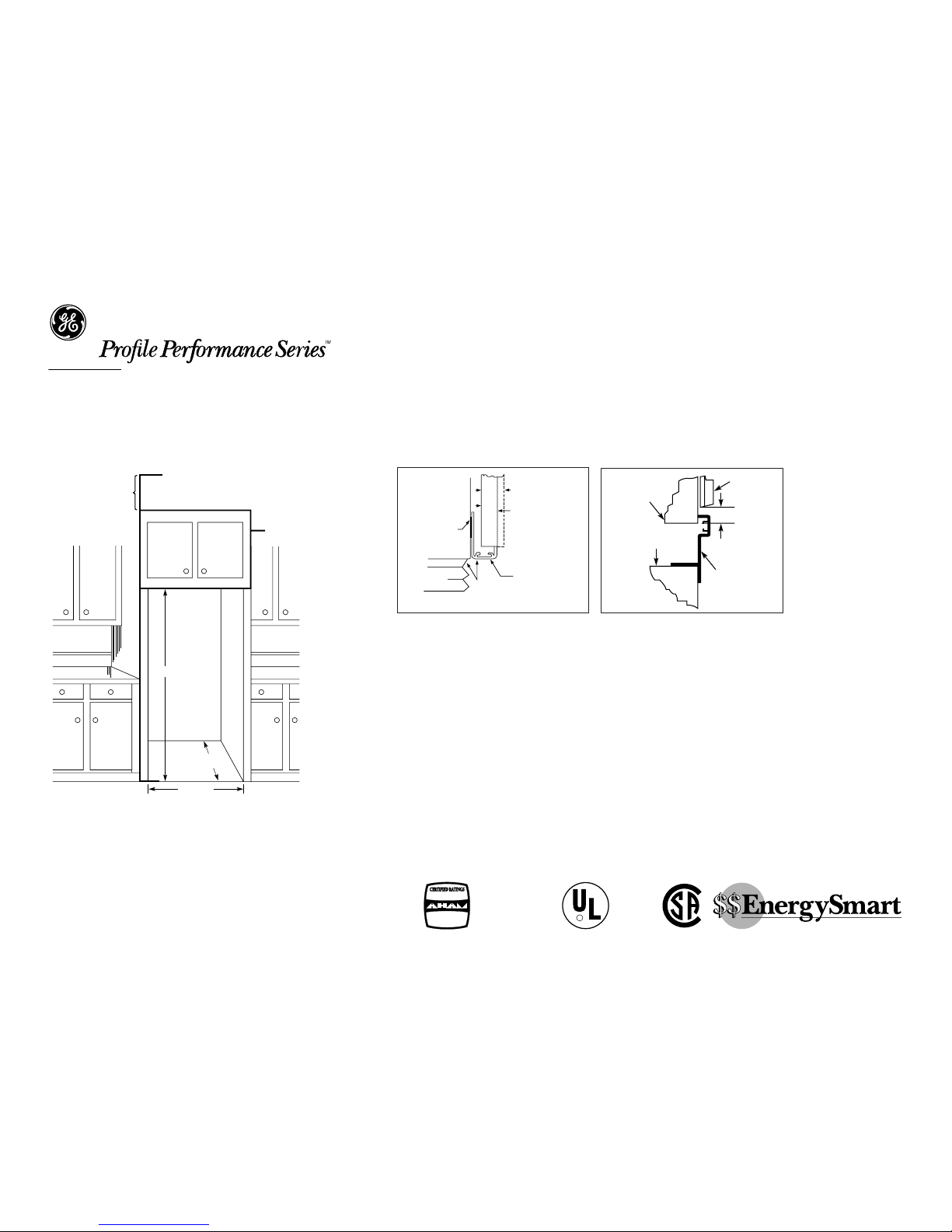

An enclosure is required to match up to the trim, see Typical Installation. To obtain the
most integrated look, the cabinet or soffit above the refrigerator should extend out to the
same depth as the side panels. The refrigerator opening must have minimum dimensions
of 70-1/4" high x 36-1/8" wide x 24-1/2" deep as shown at right. If there is an overhead
cabinet, allow 1" for cabinet door clearance with the top trim piece so the cabinet doors
can be opened without hitting the top trim. If 1/2" side panels are used, then side trim
and panel will be even. If 3/4" side panels are used, then some of the side panel will
extend beyond the trim and must be finished.
Collar Trim Installation
*The rough-in dimension of 70-1/4" is minimum and is
measured from the finished floor to top of opening (or the
underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned
for above the refrigerator, you may need to consider adding a
maximum of 1/4" (70-1/2") to height of opening to allow addi-
tional clearance between cabinet doors and top of refrigerator
trim when cabinet doors are in open position.
Case
Overhead
Cabinet
Top
Trim
Cabinet
Door
1"
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Refrigerator
Case
Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Door Gasket
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®
GE Profile Performance Series,™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Revised 10/99
TNX22BACWW - GE Profile Performance™21.9 Cu. Ft. CustomStyle™No-Frost Top-Freezer Refrigerator
Veg Humidity Fruit
..... .....
Veg Humidity Fruit
..... .....

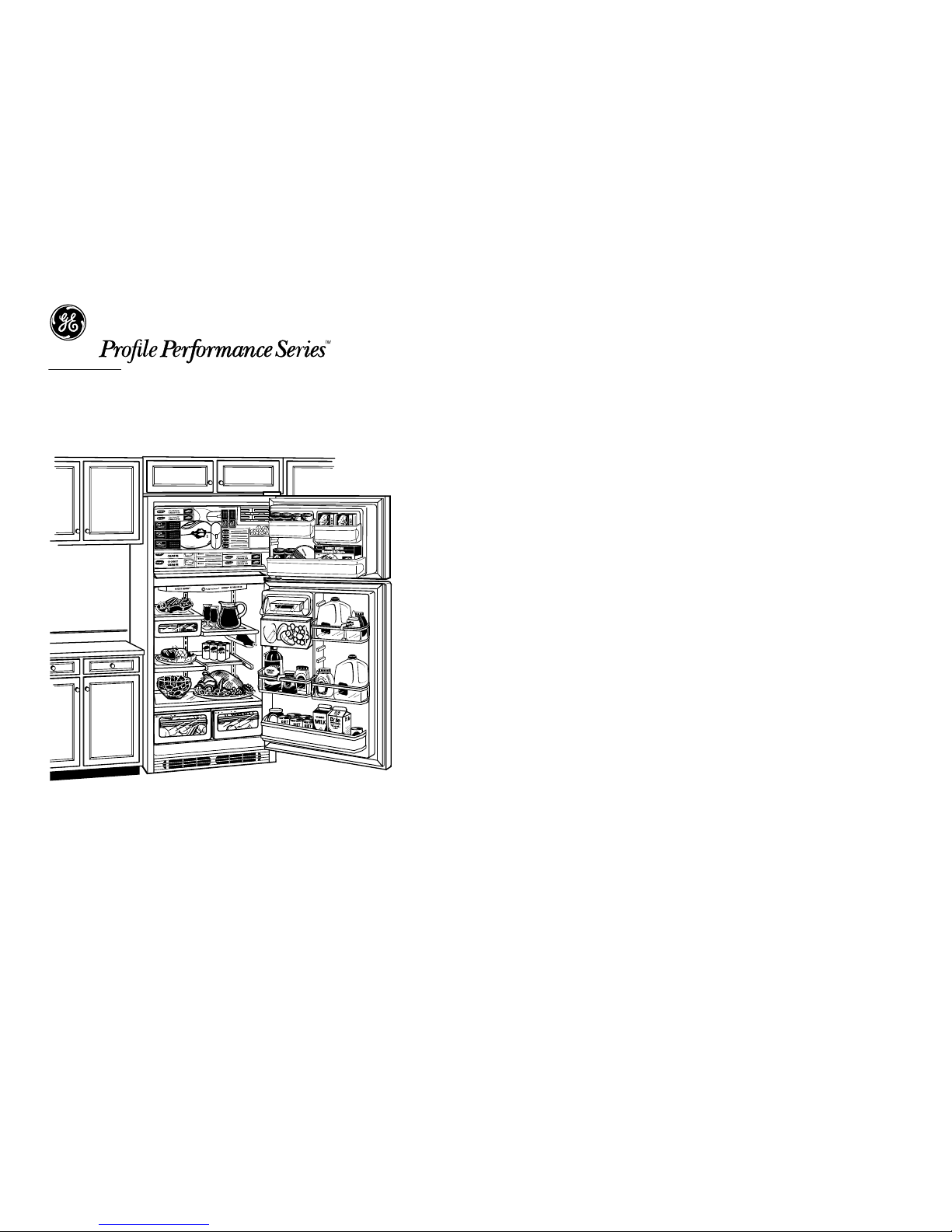

Features and Benefits
•21.9 cu ft Capacity (Fresh Food 15.4 cu ft / Freezer 6.5 cu ft)
•Equipped for Optional Automatic Icemaker
•2 Adjustable Humidity Window Vegetable/Fruit Crispers
•Adjustable Temperature Meat Pan
•Slide-Out, Spill-Proof Crisper Cover
•4 Adjustable Glass Fresh Food Cabinet Shelves (3 Slide Out, 3 Spill Proof)
•3 Adjustable Modular Door Bins with Gallon Storage
•1 Fixed Fresh Food Door Shelf
•Quick Space™Shelf
•Quick Store™Bin
•Beverage Rack
•Slide-Out, Slide-Over Pans
•Modular Dairy Compartment with Glass Butter Dish
•Snugger™Clips
•2 Adjustable Wire Everwhite Freezer Compartment Shelves
•3 Freezer Door Bins (2 Adjustable; 1 Fixed with Gallon Storage)
•4 Ice 'N Easy Trays with Ice Storage Bin
•Interior Freezer Light
•Dual Upfront Temperature Controls
•Bright Fresh Food Upfront Lighting
•Color-Matched Full-Length Door Handles
•Model TNX22BACWW - White on white
•Model TNX22BACBB - Black on black
