GE Monogram ZGG48N42CSS User guide

Specification Revised 9/00

Monogram.

™

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

ZGG48N42CSS - GE Monogram 48" Outdoor Cooking Center

Dimensions and Specifications (in inches)

48” Natural Gas Model:

4 Grill Burners, 2 Rear Infrared Burners

•Monogram Outdoor Cooking Centers are designed to be installed on a

grill cart or into an enclosure.

•These cooking centers are designed for outdoor use only. Do not

locate the grill in a building, garage or other enclosed area.

•Ensure that fresh air ventilation is adequate.

•Consider exposure to wind and proximity to traffic paths.

•The minimum clearances to combustibles must be maintained at

all times.

•Do not install a grill below overhead unprotected combustible

construction.

•The installation must conform to local codes or in the absence of local

codes, with the national fuel gas code, ANSI Z223 latest edition.

3" Min.

Lid Clearance

22-5/8"

25-3/8"

47-7/8"

12-1/2"

9-1/2"

Note: Reference pub. no. 49-8843-1, Monogram Outdoor Cooking

Center Installation Instructions, for complete details. Reference

pub.no. 49-8841-1, Monogram Outdoor Cooking Center Cart

Installation Instructions, for complete details.

Listed by

Underwriters

Laboratories

Specification Revised 9/00

Monogram.

™

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

ZGG48N42CSS - GE Monogram 48" Outdoor Cooking Center

Dimensions and Specifications (in inches)

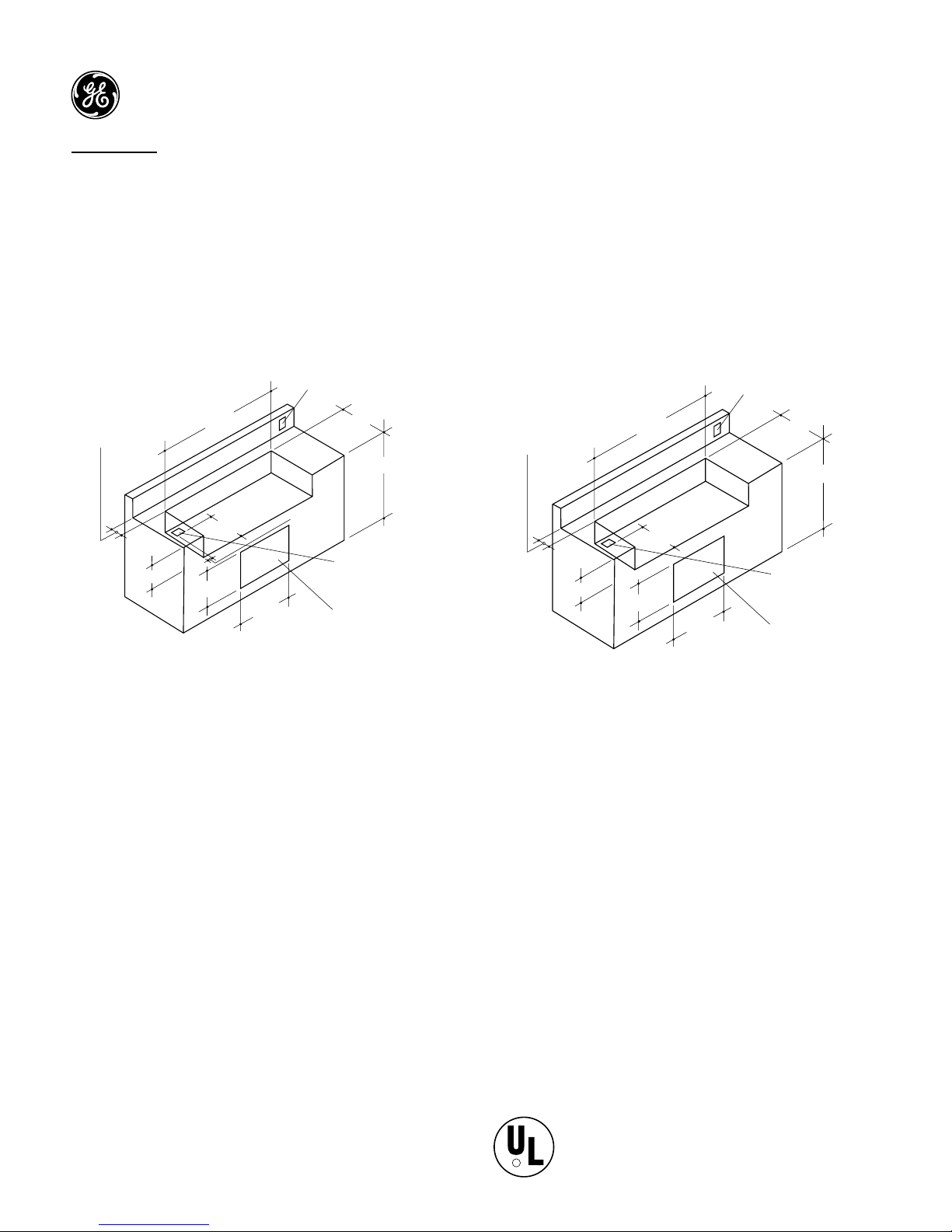

Installation in a non-combustible enclosure.

•In a non-combustible (masonry) enclosure, the grill drops into the

opening and hangs from its side flanges. A deck is not required

for support.

3" Min. for Lid

Clearance

45-3/4"

18-1/2"

22-3/4"

9-1/8"

24-1/8"

18-1/4"

4x4 Opening

for Gas Supply

Line

Opening

for Access

Doors

If Installing

an Electrical

Outlet for

the Rotisserie

Motor, Mount

on Right Side

(6.5 AMP Min.)

35-1/2"

3" Min. for Lid

Clearance

51-3/4"

18-1/2" 3-1/8"

23-3/4"

10-1/8"

24-1/8"

18-1/4"

4x4 Opening

for Gas Supply

Line

Opening

for Access

Doors

If Installing

an Electrical

Outlet for

the Rotisserie

Motor, Mount

on Right Side

(6.5 AMP Min.)

35-1/2"

Installation in a combustible enclosure.

ZX48JYSS insulated jacket is required.

•Combustible enclosures require insulated jackets.

ZX36JYSS for 36”models and ZX48JYSS for 48”models. The

insulated jacket must be supported from the bottom by a solid

deck or ledge on each side beneath the jacket.

•Construct the enclosure as shown and place the insulated jacket

into the enclosure. Place the cooking center into the jacket. No

installation hardware is required.

Clearances - All Models

•Allow 3”at the rear for lid clearance.

•Allow at least 12”clearance at the back of the grill when

exhaust is directed to a window or a surface that is

difficult to clean.

•Allow at least 6”clearance on each side to any non-combustible

material located above the cooking surface for counterspace.

Rotisserie models also require 6”clearance for placing and

handling the motor and skewer.

•Allow at least 12”clearance on each side to combustible

vertical materials.

Listed by

Underwriters

Laboratories

Monogram.

™

Specification Revised 9/00

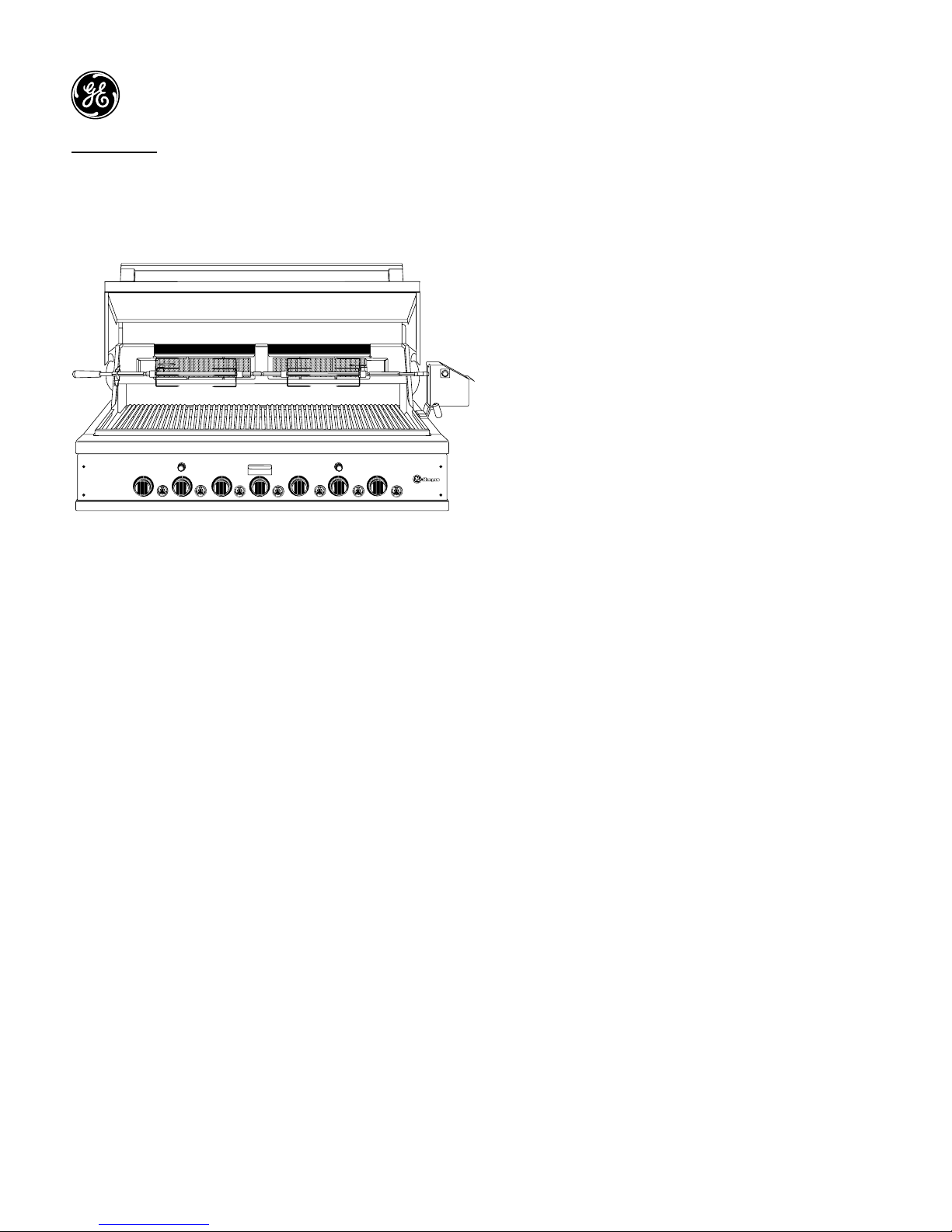

ZGG48N42CSS - GE Monogram 48" Outdoor Cooking Center

Features and Benefits

•Natural Gas Model

•4 (20,000 BTU) Cast-Iron Gas Grill Burners

•2 (14,000 BTU) Infrared Gas Rotisserie Burners

•5,000 BTU Stainless Steel Gas Smoker Burner

•Warming Rack

•Rotary Multi-Spark Piezo Ignition

•Brass Control Valves

•Steel, Porcelain-Enameled Grill Grates

•Stainless Steel, Slide-Out Drip Tray

•Heavy Duty 304 Stainless Steel Construction

•Flexible Installation Options

•Model ZGG48N42CSS—Natural Gas

•Model ZGG48L42CSS—Liquid Propane Gas

GRILL

IGNITOR

ROTISSERI

IGNITOR

GRILL

IGNITOR

SMOKER

IGNITOR

GRILL

IGNITOR

ROTESSERIE

IGNITOR

GRILL

IGNITOR

SMOKER GRILLGRILLGRILL ROTISSERIE

HOLD10 SEC. WHILE LIGHTING

ROTISSERIE

HOLD10 SEC. WHILE LIGHTING
