GAS GAS FSE 2003 - PART LISTE User manual

Conjunto pedal arranque

Kickstart set

FSE 2003

234

910

22 23

PLATINA TRINQUETE ARRANQUE /

KICKSTARTER GUIDE

ULS 6X12 /

6X12 ULS

MUELLE TRINQUETE ARRANQUE /

KICKSTARTER SPRING

TRINQUETE ARRANQUE /

KICKSTARTER

SEEGER DE 20 ARRANQUE /

CIRCLIP

ARANDELATOPE 27X20,2X1 DESP. ARRANQUE /

END WASHER 27X20.2X1

PIÑON ARRANQUE /

KICKDRIVE GEAR

EJE ARRANQUE /

KICKSTARTER SHAFT

ARANDELAARRANQUE 20X40X1 /

KICKSTARTER WASHER 20X40X1

MUELLE ARRANQUE /

KICKSTARTER SPRING

CASQUILLO CENTRADOR MUELLE ARRANQUE /

KICKSTARTER SPRING BUSHING

RETEN PEDALARRANQUE 20X30X7 /

KICKSTARTER OIL SEAL 20X30X7

SOPORTE PIÑON /

BEARING SUPPORT

JAULAAGUJAS K15X18X14 TN /

K15X18X14 TN NEEDLES BEARING

PIÑON INTERIOR ARRANQUE /

KICKSTART INNER PINION

VOLANDERA PIÑON ARRAN.24X15,15X0,8 /

WASHER 24.15.15X0.8

SEEGER EJE 15 EMBRAGUE /

CLUTCH AXLE SEEGER 15

PEDAL Y MUÑEQUILLA PEDALARRANQUE /

KICKSTARTER LEVER BASE

CTO. PEDALARRANQUE ALUM. MUÑ. D.18 /

KICKSTARTER LEVER SET

MUELLE MUÑEQUILLA PEDALARRANQUE /

KICKSTARTER LEVER SPRING

BOLA MUÑEQUILLA PEDALARRANQUE /

KICKSTARTER LEVERBALL

ARANDELA 6X20X1.5 /

WASHER 6X20X1.5

TORNILLO 6X12 CABOTATORK /

TORK SCREW 6X12

MFS400136005

T0506012

ME25636006

ME250126004

ME25636052

ME25636000

ME250126002

ME250126003

ME25636051

ME25636007

ME250136053

ME25632021

MFS400126010

MFS400126011

MFS400126001

ME25636012

ME25632017

ME250036061

MFS400126060

ME250036066

ME250036062

T4006020

T0316012

Motor 1

Nº DESCRIPCION / DESCRIPTION FSE 2003 Cant.

Bombas aceite

Oil pumps

FSE 2003

RACORD CIRCUITOACEITE /

RACORD 22 MM.

ARANDELA COBRE 8X12X1,5 /

8X12X1,5 WASHER

DISTRIBUIDOR ACEITE /

OIL SUPPLY

TORNILLO RACORD /

RACORD 10 MM.

ARANDELA COBRE 11x15x1.5 /

11x15x1.5 WASHER

SEEGER D.8 EJE BOMBAACEITE /

OIL AXIS SEEGER

ARANDELA REGLAJE 08,1X17X0.2 /

08,1X17X0.2 WASHER

RUEDA DENTADA /

COG WHEEL

COJINETE HK 0808 /

HK 0808 BEARING

TORNILLO 6X35 /

6X35 SCREW

ANILLO BOMBA RECUPERACIÓN D.44 /

RETRIEVABLE PUMP RING

PIÑON BOMBAACEITE /

OIL PUMP PINION

COJINETE 508Z /

508Z BEARING

CUERPO BOMBAACEITE PRESIÓN /

OIL PUMP BODY

ROTOR BOMBAACEITE /

OIL PUMP ROTOR

JUNTA BOMBAACEITE /

OIL PUMP GASKET

CASQUILLO CENTRADOR /

CENTRER BUSHING

EJE BOMBAACEITE /

OIL PUMPAXLE

ROTOR BOMBARETORNO /

RETURN OIL ROTOR

TORICATAPA BOMBAACEITE RETORNO /

RETURN OIL PUMP COVER O’RING

TAPA BOMBAACEITE RETORNO /

OIL PUMP COVER

ALLEN 6X25 /

ALLEN BOLT 6X25

ALLEN 6X45 /

ALLEN BOLT 6X45

MUELLE APRETADOR FILTRO ACEITE /

OIL FILTER SPRING

FILTRO ACEITE /

OIL FILTER

TORICATAPA FILTRO ACEITE /

OIL FILTER COVER O’RING

TORICA6X2 EJE CENTR.VAL.ESCAPE /

6X2 O’RING

TAPA FILTRO ACEITE /

AIR FILTER COVER

ALLEN 6X50 /

ALLEN BOLT 6X50

ALLEN 6X20 /

ALLEN BOLT 6X20

TORNILLO ESPECIAL M8 /

SPECIAL SCREW M8

ALLEN 6X55 /

ALLEN BOLT 6X55

ANILLO BOMBA EATON PRESIÓN /

EATON PRESSURE PUMP RING

MFS400122570

T4008012

BFS400110856

MFS40011024

T4001115

MFS400122305

ST950705

MFS400122450

MFS400126535

T0306035

MFS400122120

MFS400122400

ME25616032

MFS400122230

MFS400122105

MFS400122410

MFS400116066

MFS400122300

MFS400122100

MFS400122131

MFS400122130

T0306025

T0306045

MFS400122560

MFS400122550

MFS400122555

ME25616045

MFS400122551

T0306050

T0306020

T0208108

T0306055

MFS400122110

Motor 2

Nº DESCRIPCION / DESCRIPTION FSE 2003 Cant.

Motor 2

Nº DESCRIPCION / DESCRIPTION FSE 2003 Cant.

ALLEN 6X12 /

6X12 ALLEN BOLT

TORICA CENTRÍFUGO 6X2

ALLEN 6X40 /

6X40 ALLEN BOLT

CTO.TUBO METALICO RETORNO /

OIL RETURN METALLIC HOSE SET

BRIDA MEDIANA 4,8X20 /

4,8X20 CLAMP

T0306012

ME25616045

T0306040

BFS400232216

BE25634008

910

11 12

16 17 18

24 25

Selector cambio /

Shift cam

FSE 2003

CTO. PEDAL CAMBIO /

GEAR LEVER SET

PASADOR PUNTERA PEDAL 6X18 /

LEVER END PIN 6X18

PUNTERA PEDAL CAMBIO /

GEAR LEVER END

MUELLE PUNTERA PEDAL CAMB. /

GEAR LEVER END SPRING

HEXAGONAL 6X25 /

HEXAGONAL BOLT 6X25

PEDAL CAMBIO /

GEAR LEVER

SEEGER 12X1 EXTERIOR EJE SELECTOR /

SEEGER 12X1

EJE HORQUILLA 5-6 /

5-6 FORK AXIS

HORQUILLA 5-6 /

SHIFT FORK 5-6

RODAMIENTO HK2512 DESMODROMICO /

SHIFT CAM BEARING

HORQUILLA 1-2-3-4 /

SHIFT FORK 1-2-3-4

EJE HORQUILLA 1-2-3-4 /

1-2-3-4 FORK AXIS

DESMODROMICO /

SHIFT CAM

RODAMIENTO HK3512 DESMODROMICO /

SHIFT CAM BEARING

MUELLE FIJADOR MARCHAS /

GEAR FASTEN SPRING

FIJADOR MARCHAS /

GEAR FASTEN

CASQUILLO PLATINA FIJADOR MARCHAS /

GEAR BUSHING

ULS 6X16

/ 6X16 ULS

RETEN SELECTOR 12-22-7 /

SEAL 12-22-7

CASQUILLO EJE SELECTOR /

AXIS

BUSHING

EJE SELECTOR /

SELECTOR AXIS

TORNILLO CENTRADOR MUELLE SELECTOR /

SELECTOR SPRING SCREW

MUELLE ESCORPION /

SCORPION SPRING

ESCORPION /

SCORPION

DOLLA CENTRADOR ESCORPION /

SCORPION CENTRER BUSHING

MUELLE SELECTOR /

SELECTOR SPRING

CTO. FIJADOR MARCHAS /

GEAR FASTEN SET

ME250036026R

ME25636030

ME25636027

ME25636029

T0106025

ME250036026

ME25636043

MFS400136045

ME25636009

ME25636055

ME25636008

ME25636044

MFS400138031

ME25636054

MFS400136034

MFS400136033

MFS400136047

T0506016

ME25636048

ME250136050

ME250236038

ME25636042

ME25636039

ME250236036

ME250236041

ME25636035

MFS400136033C

Motor 3

Nº DESCRIPCION / DESCRIPTION FSE 400 c.c. Cant.

Engranajes cambio /

Gear set

FSE 2003

345

13 14

15 16

17 18

23 24 25 26

343

ARANDELA 18x40x0,6 /

18X40X0,6 WASHER

PIÑON PRIMARIO II /

PRIMARY II PINION

CIRCLIP D.25 DIN 471 REBAJADO /

DIN 471 CIRCLIP

ARANDELA 31,5x(25x22)x1 ESTRIADA /

31,5x(25x22)x1 GROOVING WASHER

PIÑON PRIMARIO VI /

PRIMARY VI PINION

PIÑON PRIMARIO III Y IV /

PRIMARY III AND IV PINION

ARANDELA 25,2x31,5x1 CAMBIO /

25,2x31,5x1 GEAR WASHER

PIÑON PRIMARIO V /

PRIMARY V PINION

COJINETE AGUJAS K25-29-10 /

K25-29-10 NEEDLES BEARING

EJE PRIMARIO /

PRIMARY AXIS

EJE SECUNDARIO /

SECUNDARY AXIS

CIRCLIP D.25 DIN 983 /

DIN 983 CIRCLIP

PIÑON SECUNDARIO II /

SECUNDARY II PINION

PIÑON SECUNDARIO VI /

SECUNDARY VI PINION

PIÑON SECUNDARIO III /

SECUNDARY III PINION

PIÑON SECUNDARIO IV /

SECUNDARY IV PINION

PIÑON SECUNDARIO V /

SECUNDARY V PINION

ARANDELA 20,8x29x1 CAMBIO /

20,8x29x1 GEAR WASHER

PIÑON SECUNDARIO I /

SECUNDARY I PINION

RODAMIENTO AGUJAS K20x24x10 /

K20x24x10 NEEDLES BEARING

PIÑON SALIDA Z. 13 /

Z13 EXIT PINION

DOLLA RETEN SALIDA CAMBIO /

GEAR EXIT SEAL

TORICA25x2 NBR PIÑON SALIDA/

EXIT PINION SEAL

RETEN 30X40X7 /

30X40X7 SEAL

RODAMIENTO CAMBIO 6205 ZZ /

GEAR 6205 BEARING

GRUPO CAMBIO COMPLETO /

GEAR SET

COJINETE 6305 2Z CAMBIO /

GEAR 6305 BEARING

T4001840

ME25636071

ME25636084

ME25636091

ME25636074

ME25636072

ME25636017

ME25636073

M02616000

ME25636070

ME250136075

ME25636095

ME25636077

ME250136081

ME25636078

ME25636079

ME25636080

ME25636016

ME25636076

ME25636059

ME25636025

ME25636046

ME25632025

ME25636024

ME25636056

MFS400136010

MFS400136167

Motor 4

Nº DESCRIPCION / DESCRIPTION FSE 2003 Cant.

910

23 19

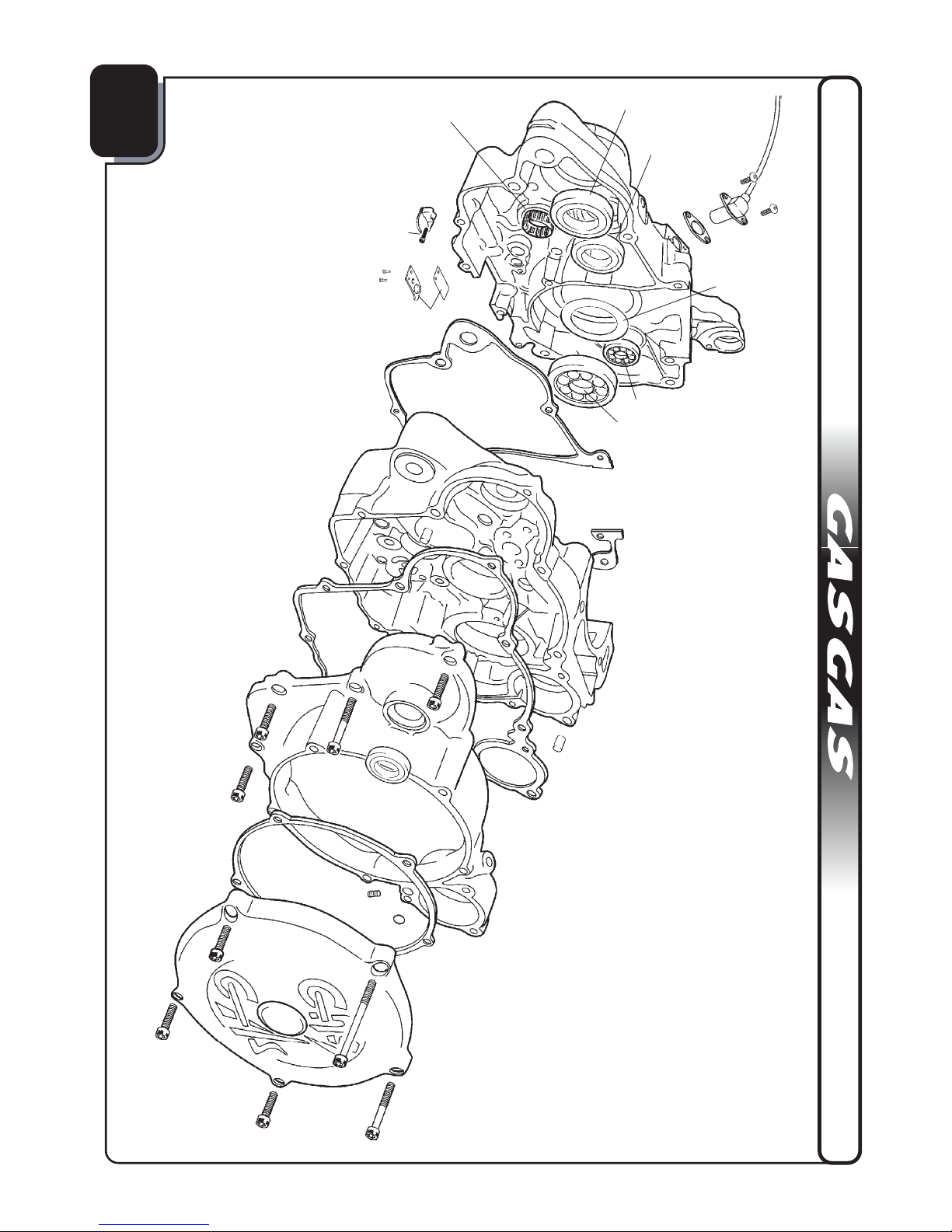

Cárter derecho

Right crankcase

FSE 2003
