Garrett Infinium LS User manual

Owner’s

Manual

Owner’s

Manual

INFINIUM™

Land & Sea

TO THE OWNER

Congratulations on your selection of the Garrett

Infinium LS (land & sea) metal detector. This detector

has been specially designed for optimum performance

in any environment. You can be confident that your new

detector will provide years of treasure hunting pleasure.

We encourage you to read this Owner's Manual

carefully. The more metal detecting knowledge and

experience you gain, the more successful you will be

in finding treasure. This manual has been designed for

you to keep in your pocket while hunting. It describes

basic functions of the Infinium LS and explains how its

Advanced Pulse Induction (API) technology will assist

you in a variety of treasure-hunting applications.

Since 1964, Garrett Metal Detectors has been

the leader in metal detecting technology. Our highly

trained and knowledgeable service representatives

are available to assist you in any way with your

treasure hunting needs. Please feel free to contact us

directly or call your authorized Garrett dealer with any of

your concerns. We also invite you to visit our website at

www.garrett.com.

On behalf of the entire team at Garrett Metal

Detectors, we wish you the best of luck in your treasure

hunting experiences.

TABLE OF CONTENTS

ToTheOwner.........................................2

Assembly ............................................6

Searchcoils..........................................12

Control Functions.....................................13

Power On/Automatic Ground Track ..................13

(slow, lock or fast)

Audio Threshold Adjustment.........................13

Discrimination Adjustment...........................14

Basic Operating Instructions ............................14

Turn On/Battery Test ...............................14

Selecting Automatic Ground Track Setting .............14

Setting Threshold..................................16

Setting Discrimination ..............................16

Bench Testing and Understanding Audio Signals ........17

Searchcoil Scanning Technique ......................18

Reverse Discrimination Technique ....................19

Pinpointing Tips ...................................20

Adjusting Frequency ...............................21

Hunting Applications...................................22

Search and Recovery Tips .............................23

Underwater Searches ..............................24

Searching Shoreline and Shallow Surf.................25

Land Searches....................................26

Prospecting ......................................26

Detector Maintenance .................................28

Battery Replacement ..................................29

Recommended Accessories ............................30

Specifications........................................31

Repair Service .......................................32

Warning.............................................33

Detecting Code of Ethics...............................34

Remove all pieces from the Infinium LS box. All

assembly hardware is located in a clear plastic bag

inside the bag containing the control housing pouch.

1. The cuff on the end of the s-handle has been

factory installed. Test its placement by grasping the

black-rubbered s-handle (Figure 1). If the cuff does

not fit comfortably under your forearm, loosen the

nut, remove the nut, bolt and washers, and reposition

the cuff. Reinsert the bolt and washers, and tighten

the nut.

2. Remove the black stem piece that has been tele-

scoped into the silver stem (Figure 2). Insert the end

of the silver stem piece, with the hole 2" from the top,

over the bottom of the black stem at the end of the

s-handle. Significant pressure needs to be applied to

the silver stem in order to insert the bolt (Figure 3).

ASSEMBLY

Figure 1 Figure 2

Tighten with bolt, washers

and nut.

3. Insert spring clip into

the black stem piece

(Figure 4). Insert black

stem piece into bottom

of silver stem. (You may

need to adjust the length

of the stem after the

searchcoil is attached to

suit individual needs.)

4. Insert black rubber

washers into the recessed

grooves on the bottom

of the black stem (Figure

5). Insert bottom of black

stem between raised

mounting holes on top of

the Power DD searchcoil.

Figure 3

Figure 4

Figure 5

5. Insert black plastic bolt through the mounting holes

of the searchcoil and the stem (Figure 6). Attach black

cap to the threaded end of the screw and tighten

(Figure 7). DO NOT use tools.

6. Wrap cable around

the stem and secure it

according to your operat-

ing configuration. For hip-

mount or under the cuff

configurations, use the

adjustable velcro strap to

secure the cable to the upper stem (Figure 8).

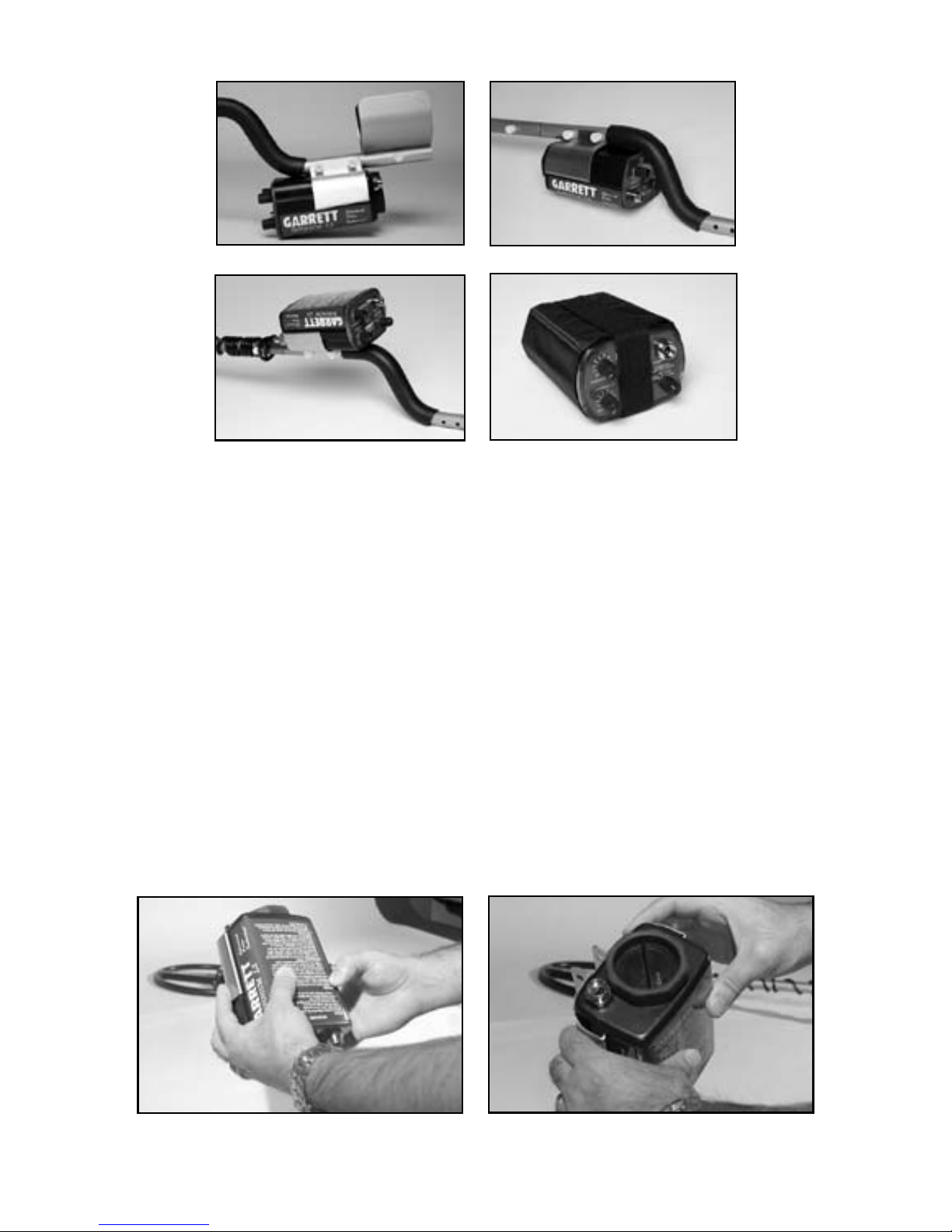

7. Choose desired control housing configuration

(Figure 9). For ease of use, under the cuff or belt

mount configurations are recommended.

Under the cuff, above or under the stem (mounting

brackets located in clear plastic bag):

A. Holding the control housing with "instructions" side

Figure 6 Figure 7

Figure 8

Figure 9

Figure 10 Figure 11

Under Cuff Under Stem

Above Stem Belt Mount

facing you (instructions should be upside down, bat-

tery compartment side up, control buttons down), slip

the left bracket lip under the slot on the left hand side

of the control housing (Figure 10). Do the same with

the right bracket on the right side of the control hous-

ing (Figure 11).

B. Hold the brackets firmly in place and slide them

over the stem, lining up the holes in the stem. Insert

the remaining bolts, washers and nuts through the

left bracket, stem and

right bracket (Figure

12). Tighten both nuts.

NOTE: keep pouch and

belt in a safe place in

case you decide to use

the pouch configuration

at a later date.

Belt Mount:

A. Unfasten velcro strap on pouch. Slide

control housing, control buttons up, into the pouch.

Refasten velcro strip.

B. Unwind belt strap and adjust to fit around your

waist. Slip one side of the strap through the loop

in the back of the pouch (Figure 13) and snap belt

together around your waist (Figure 14). NOTE: keep

control housing brackets and extra hardware in a safe

place in case you decide to use a mounted configura-

tion at a later date.

8. Ensure the searchcoil connector at the rear of the

control housing is clean and the o-ring at the end of

the cable is well lubricated; add a little silicon grease

or petroleum jelly if necessary. DO NOT coat connec-

tor pins with lubricant. Insert searchcoil cable connec-

tor and gently tighten by hand; DO NOT over tighten.

Figure 12
