START HERE
StreetPilot® c330
190-00436-02 Rev. C
This setup guide includes instructions for
mounting, configuring, and using your
c330. Remove your unit and the vehicle
suction cup mount from the product box
before you begin.
Your unit’s battery must be charged
before it can be used on battery-
operated power. It will begin to charge
once the c330 is fully mounted as
described in this guide.
setup guide

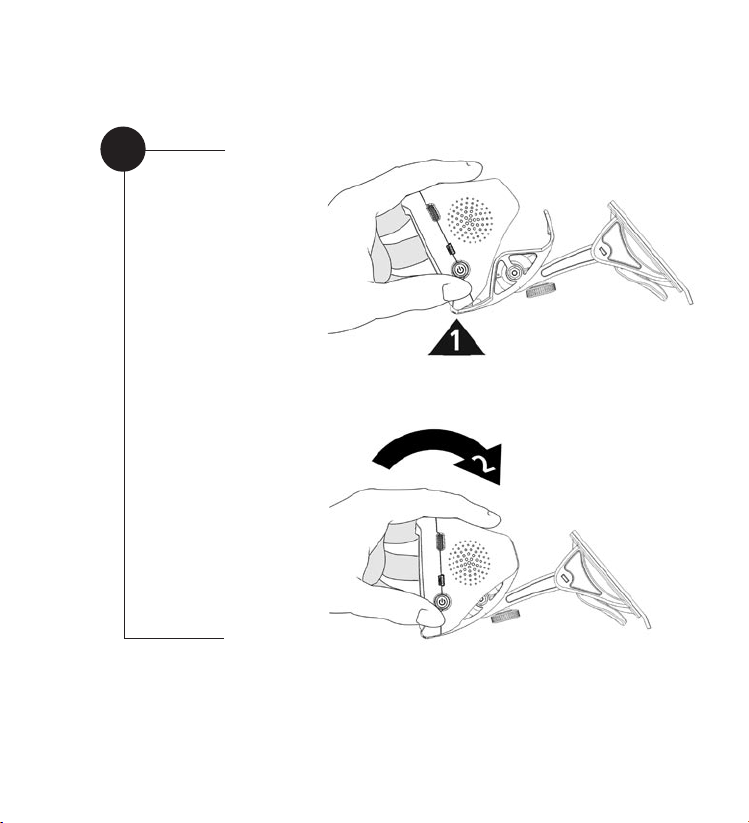

Mount your c330
Fit the bottom of
your c330 into the
cradle of the suction
cup mount (1).
Tilt your c330 back
until it snaps in
place (2).
1
WARNING: For use in vehicles, it is the sole responsibility of the owner/operator of a vehicle with the c330 installed to place and
secure the device so it will not interfere with the vehicle operating controls and safety devices, obstruct the driver’s view of driving
conditions, or cause personal injury in the event of an accident.
NOTICE TO STATE OF CALIFORNIA DRIVERS: California Vehicle Code Section 26708 (a) (1) provides that drivers in California
should not use suction mounts on their windshield or side or rear windows. Other garmin dashboard or friction mounting options
should be used. For available accessories, refer to the garmin web site at www.garmin.com. Also, refer to the
Owner’s Manual
for
instructions on using the included mounting disk with the suction cup mount.
3

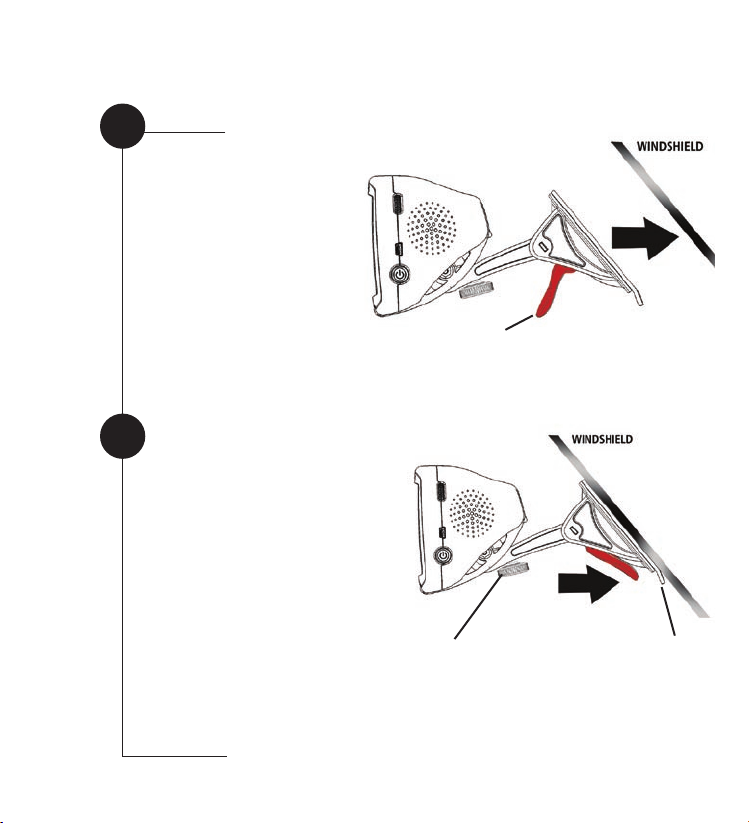

Place the suction cup
on your windshield. Be
sure the lever is pointing
down, as shown at right.
Note: To ensure a tight
grip, make certain your
windshield is clean and
dry before you mount the
suction cup.
Flip the lever back, toward
the windshield. Adjust the
c330 to obtain a maximum
viewing angle.
To remove the suction
cup from the windshield,
lift the lever to release
the suction cup’s grip. To
help release the grip, pull
upwards on the rubber tab.
2
If necessary, use the tension
knob to loosen or tighten
the tension in the mount to
improve your viewing angle.
Lever
Rubber
tab

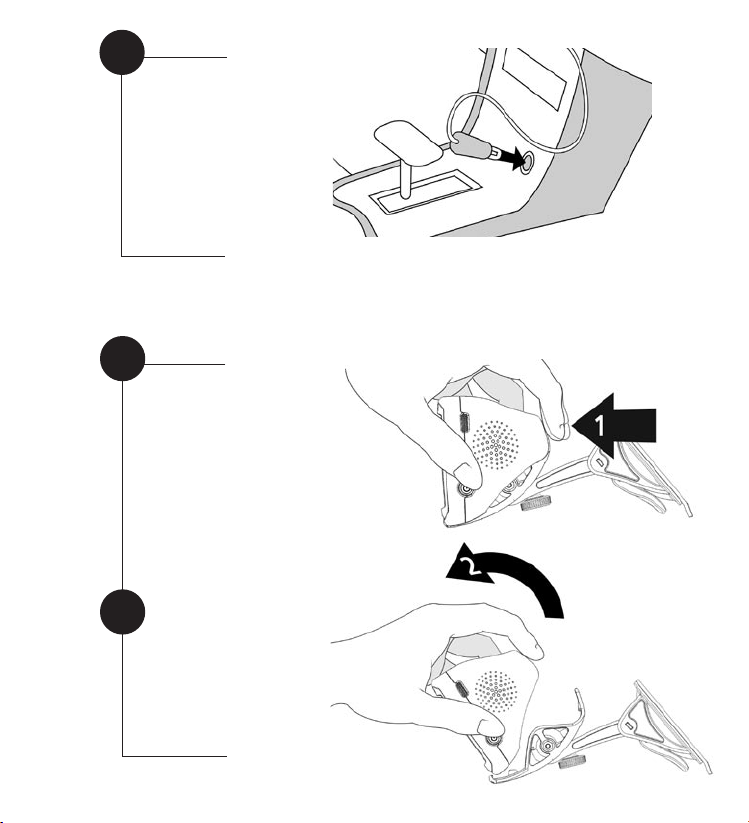

To remove the unit
from the mount, press
the indentation on the
back of the unit (1).
Then, lift the unit off
of the mount (2).
Plug the end of
the cable into an
available power
receptacle. Your unit
will automatically
turn on if you have
started your vehicle.
4
To remove the unit from the mount
2
1

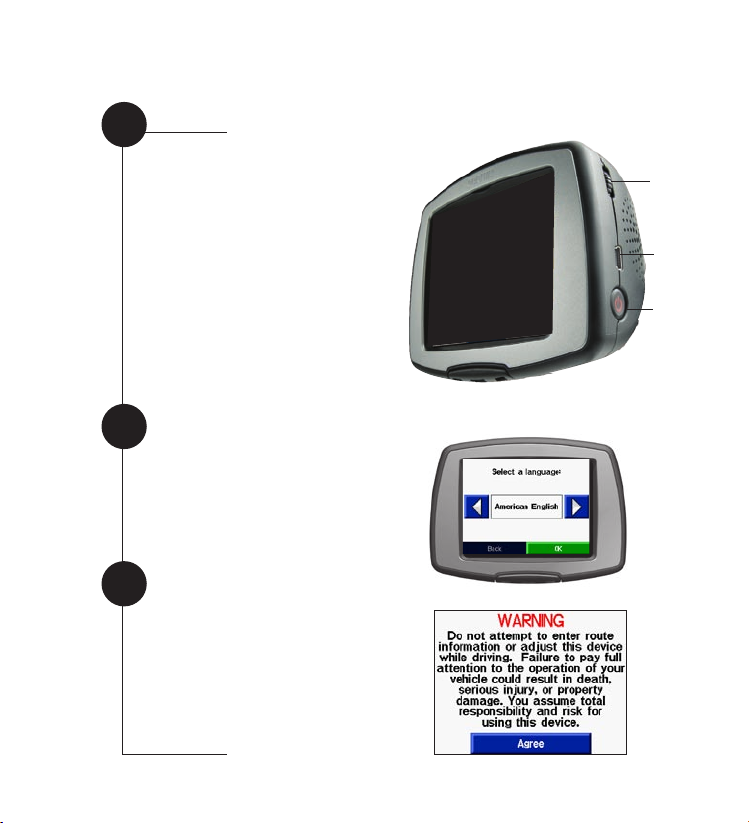

Once the power is turned
on, follow the on-screen
instructions to set up your
c330 for the first time.
When the setup is complete,
you will see the WARNING
screen, shown at right.
Touch Agree to begin using
your c330.
Configure your c330
Press the Power button to turn
on the unit.
Note: If the unit is not receiving
power, a “Low Battery” warning
may appear. Do not worry
about this message. Connect
the unit to your vehicle’s
power receptacle, as described
previously.
1
2
3
volume
control
power
button
USB cable
connector

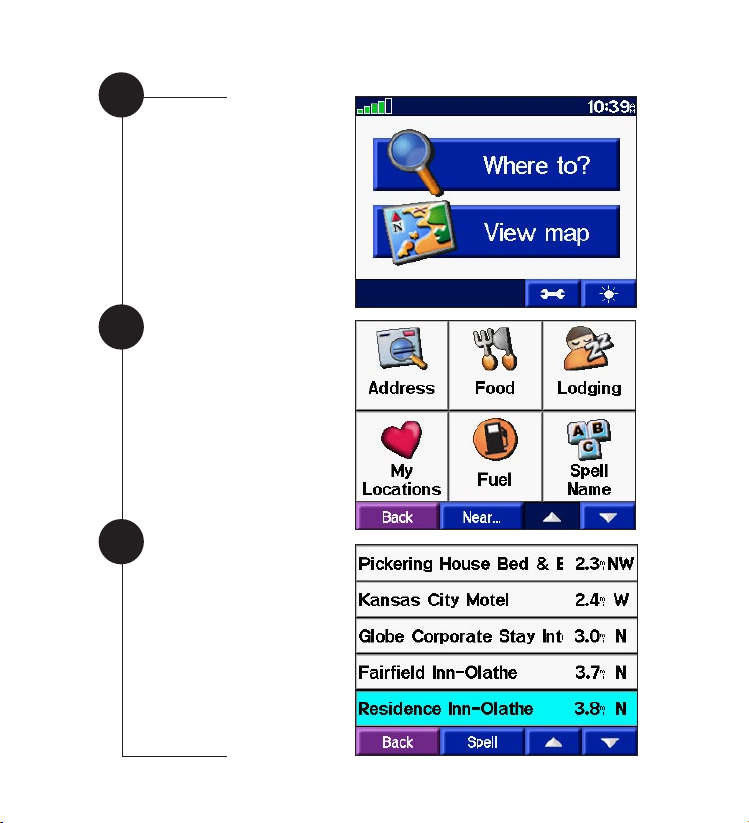

Touch an icon that will
help you find your
destination.
Find a place
Touch Where to?
1
2

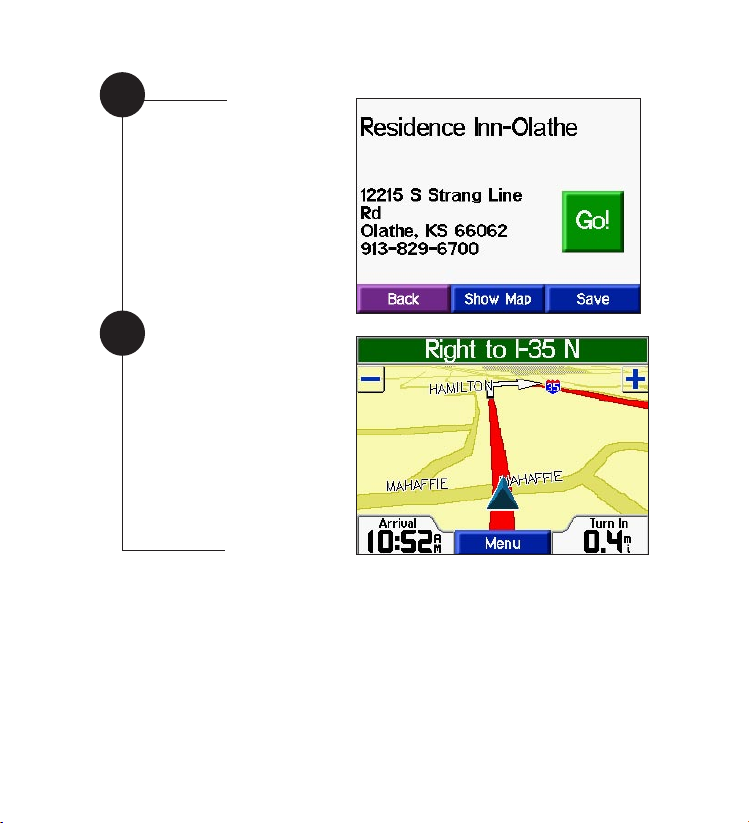

Touch a destination.
3
Enjoy the route!
Touch Go!
4
5
To learn more about the exciting features that
are available with your c330, see the enclosed
Owner’s Manual
.
Register your unit!
To register your c330, go to the Garmin Web site at:
http://www.garmin.com/unlockregister/register.jsp.
Your “Registration Code” is located on the enclosed
sheet.
Registering your unit enables you to be informed of map
software and product updates. It also allows Garmin to
better track your unit if it is lost or stolen.
© Copyright 2005 Garmin Ltd. or its subsidiaries
March 2005 190-00436-02 Rev. C Printed in Taiwan
