Garmin Rino 650 Instruction manual

Rino® 650

quick start manual

August 2011 190-01183-04_0B Printed in Taiwan

2 Rino650QuickStartManual







See the Important Safety and Product

Information guide in the product

box for product warnings and other

important information.

When using your device the rst time,

complete these tasks.

1. Install the batteries or battery pack

(page 4).

2. If necessary, charge the lithium-ion

battery (page 4).

3. Acquire satellite signals (page 5).

4. Set up the radio (page 5).



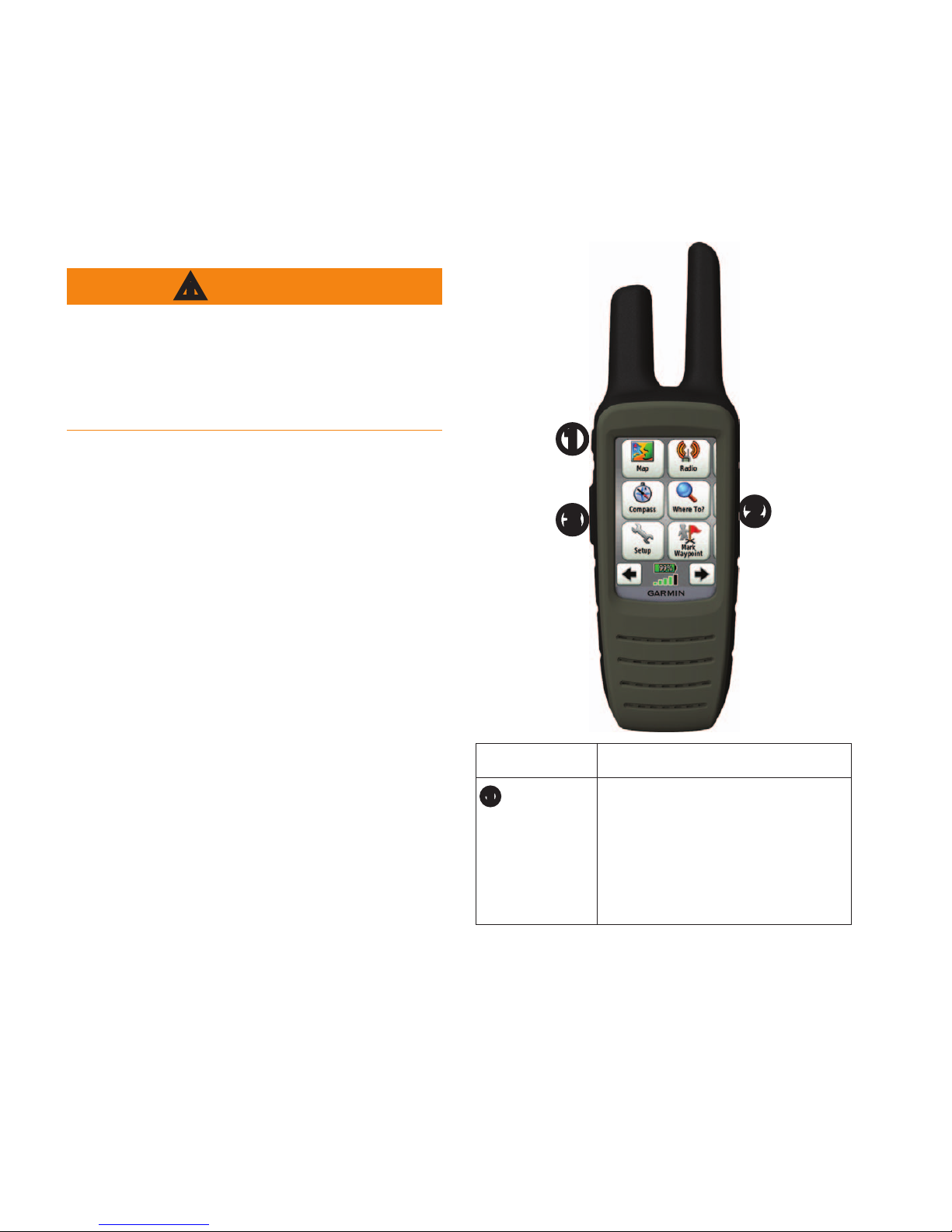

➌

➊

➋

 

➊

Select to send out a call

tone. If enabled (page 7),

the call key sends your

position when released.

Rino650QuickStartManual 3

➋

Hold to turn on or off

the unit. Select to adjust

backlight, volume,

squelch level, and to lock

or unlock the screen.

➌

Hold to talk.  stands

for push-to-talk.



All the pages are found on the home

screen. Use or to scroll through

the pages. The small arrows (>) used in

the text indicate that you should select

a series of items in order, for example,

“Select Delete > Yes.”



• Go to www.garmin.com to

download the latest manuals.

• Go to http://buy.garmin.com,

or contact your Garmin dealer

for information about optional

accessories and replacement parts.







This product contains a lithium-ion

battery. To prevent the possibility of

personal injury or product damage

caused by battery exposure to extreme

heat, store the device out of direct

sunlight.

The temperature rating for the device

may exceed the usable range of some

batteries. Alkaline batteries can rupture

at high temperatures. Alkaline batteries

lose a signicant amount of their

capacity as temperature decreases. Use

lithium batteries when operating the

device in below-freezing conditions.

The device operates on the included

lithium-ion battery pack or an optional

Alkaline battery pack, which uses four

AA batteries.

4 Rino650QuickStartManual





1. Locate the battery pack

➊

that

came in the product box.

➊

2. Align the metal contacts on the

battery pack with the metal contacts

on the back of the unit.

3. Gently press the battery pack into

place.

4. Turn the D-ring clockwise.





Before you use the device the rst

time, charge the battery.

Charging a fully depleted battery

takes 6 hours. The device will not

charge when outside the temperature

range from 0°C to 45°C (from 32°F to

113°F).

1. Plug the AC charger into a standard

wall outlet.

2. Lift the weather cap.

3. Plug the small end of the AC

charger into the two-pin connector

➊

4. Charge the device completely.

A fully charged battery can run for

up to 14 hours before it must be

recharged.

Rino650QuickStartManual 5





It may take 30 to 60 seconds to acquire

signals.

1. Go outdoors to an open area.

2. Turn on the device.

3. Wait while the device searches for

satellites.

A question mark ashes while the

device determines your location.

The GPS bars indicate satellite

strength. When the bars are green, the

device has acquired satellite signals.



The radio page provides interface for

UHF CBRS-Australia/ UHF PRS New

Zealand radio operations.



 

9–30, 39, 40,

49–60, 64–70,

79, 80

UHF CBRS/PRS

channels

1R–8R (31–38)

41R–48R (71–78)

Repeater

channels

NOTE: Channels 5 and 35 are reserved

as emergency channels. Channels 22

and 23 are reserved for data only, and

voice transmissions are not allowed.

Channels 61, 62, and 63 are reserved

for future allocation and should not be

used. Communication with another CB

station is not authorized on channels

1–8, 31–38, 41–48, and 71–78 within

operational range of a CB repeater

station.



1. Select Radio > Channel.

2. Use + or - to select a channel.

6 Rino650QuickStartManual



You can scan the channels for voice

activity.

Select Radio > Scan.



You can pick which channels and codes

to scan. Selecting specic channels and

codes reduces the scan time and helps

prevent missing a transmission.

1. Select > Setup Scanlist.

2. Select a channel to add.

3. Select .



You can monitor a single channel for

any activity, including static and weak

voice signals. This is helpful if a signal

is going out of range.

Select Radio > Monitor.



1. Select .

2. Select Volume.



The rst time a signal is received from

another Rino user, the new contact

page appears. From that page you

can show their location on the map,

navigate to their location (page 7), or

add them to your contacts list.



When a new contact signal is received,

the new contact page appears.

Select OK to save the contact.



1. Select Contacts.

2. Select a contact.

3. Select an item.

4. Select .



1. Select Contacts.

2. Select a contact.

3. Select View Map.

Rino650QuickStartManual 7



Before you can navigate to a contact,

you must save the contact (page 6).

1. Select Contacts.

2. Select a contact.

3. Select View Map > Go.

4. Follow to your destination.



NOTE: Notes transmit to all users on

your current channel and code.

You can send notes to other Rino users

on your current channel and code. You

can review previously received notes

from your contacts. You can edit and

save favorite notes to quickly send

them later.



1. Select Notes > <Send Note> <New

Note>.

2. Write the note.

The maximum character limit is 13.

3. Select .

4. Select an option:

• Select Send Note to send

without saving.

• Select Save.

• Select Send and Save.





You can send your location to another

Rino using peer-to-peer positioning.

You can also track the movement of

other Rino users and navigate to their

locations.

8 Rino650QuickStartManual





Select Setup > Radio > Send

Location > On.



Before you can send a location, you

must enable peer-to-peer positioning

(page 8).

1. Select Share Wirelessly > Send.

2. Select Use UHF.

3. Select a category.

4. Select an item.

5. Select Send.



Waypoints are locations you record and

store in the device.



You can save your current location as

a waypoint.

Select Mark Waypoint.



1. Select Where To? > Waypoints.

2. Select a waypoint.





You can use the Where To? menu to

navigate to a destination. Not all Where

To? categories are available in all areas

and maps.

1. Select Where To?.

2. Select a destination.

3. Select Go.

4. Navigate using the map (page 8) or

compass (page 9).



represents your location on the map.

As you travel, the moves. When you

are navigating to a destination, your

route is marked with a magenta line.

Rino650QuickStartManual 9



You can use the map to navigate an

active route.

1. Select Map.

2. Hold the device level.

3. Follow the magenta route line to

your destination.



The device has a 3-axis compass. You

can use a bearing pointer or a course

pointer to navigate to your destination.



Notice

Calibrate the electronic compass

outdoors. Do not stand near objects that

inuence magnetic elds, such as cars,

buildings, or overhead power lines.

You should calibrate the compass after

moving long distances, experiencing

temperature changes, or changing the

batteries.

1. From the compass page, touch and

hold the middle of the compass.

2. Follow the on-screen instructions.



A track is a recording of your path.

The track log contains information

about points along the recorded path,

including time, location, and elevation

for each point.



1. Select Route Planner > Create

Route > Select First Point.

2. Select a category.

3. Select the rst point in the route.

4. Select Use > Select Next Point.

5. Repeat steps 2–4 until the route is

complete.

A route must contain at least two

points.

6. Select to save the route.

10 Rino650QuickStartManual



The backlight will turn off after a

period of inactivity.

• Select .

• Touch the screen.

Alerts and messages also activate the

backlight.





The backlight levels vary for the

different power sources. For example,

the highest backlight setting while

running on AA batteries is lower

than the highest while running on the

lithium-ion battery. This is to extend

the AA battery life.

1. While the device is on, select .

2. Use + and - to adjust the brightness

level.



NOTE: This action does not lock the

keys.

1. Select .

2. Select Lock Screen.



Help us better support you by

completing our online registration

today.

• Go to http://my.garmin.com.

• Keep the original sales receipt, or a

photocopy, in a safe place.



If your device screen or keys stop

responding, you can reset the device.

1. Remove the batteries.

2. Reinstall the batteries.

NOTE: This does not erase any of your

data or settings.
