Oregon 650 Owner's Manual 1

Introduction

WARNING

See the

Important Safety and Product

Information

guide in the product box for

product warnings and other important

information.

Getting Started

When using your device the rst time, you

should complete these tasks to set up the

device and get to know the basic features.

1Install the batteries (page 2).

2Turn on the device (page 4).

3Register the device (page 42).

4Acquire satellites (page 4).

5Select to view the status page

(page 29).

6Mark a waypoint (page 5).

7Navigate to a destination (page 12).

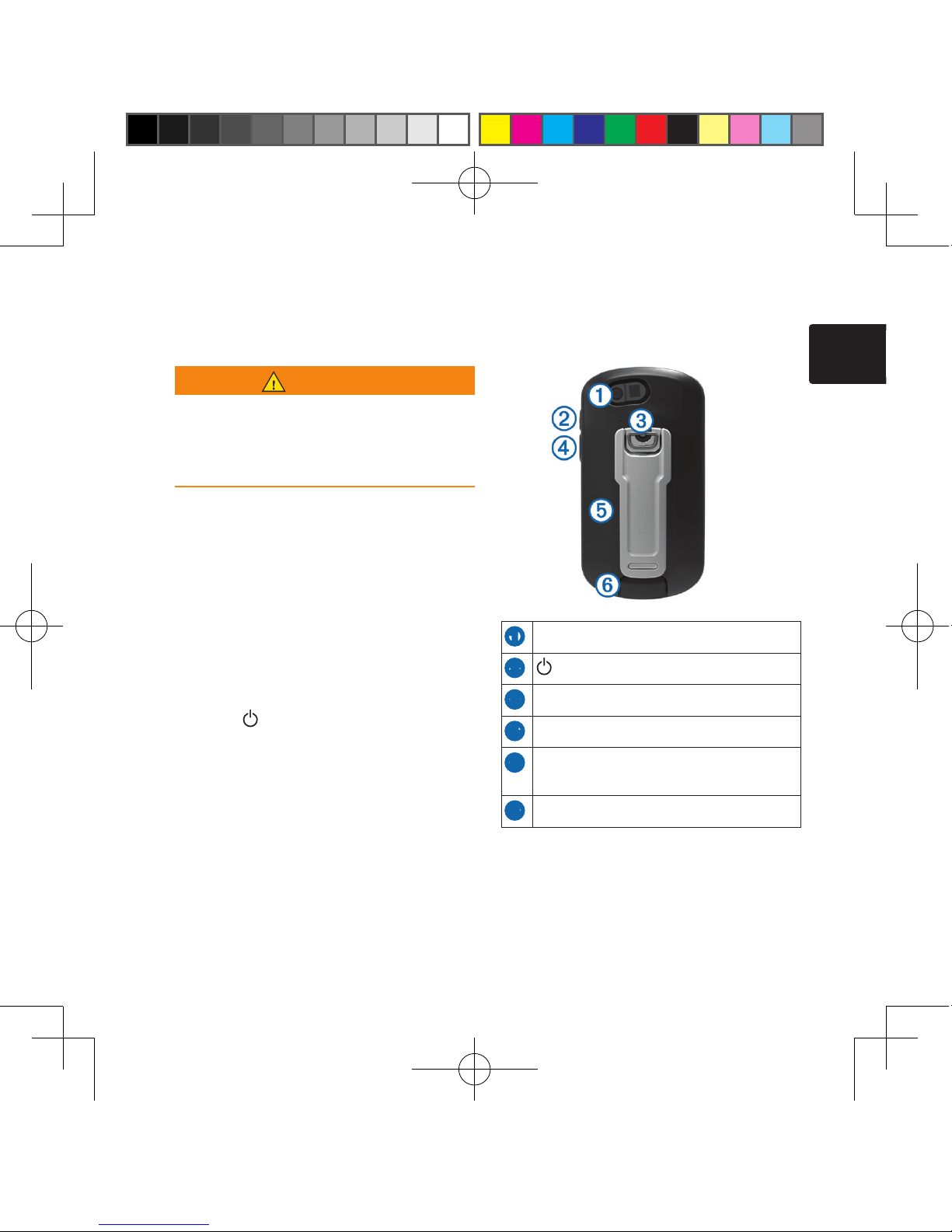

Device Overview

➊

Camera lens

➋

Power key

➌

Battery cover D-ring

➍

User key (page 29)

➎

microSD™ card slot (under battery

door)

➏

Mini-USB port (under weather cap)

190-01552-25_0B.indd 1

2013/9/6 上午 08:10:54

2 Oregon 650 Owner's Manual

Battery Information

WARNING

The temperature rating for the device may

exceed the usable range of some batteries.

Alkaline batteries can rupture at high

temperatures.

Do not use a sharp object to remove

batteries.

CAUTION

Contact your local waste disposal

department to properly recycle the

batteries.

NOTICE

Alkaline batteries lose a signicant amount

of their capacity as the temperature

decreases. Therefore, use lithium batteries

when operating the device in below freezing

conditions.

Installing the NiMH Battery Pack

The device operates using the optional NiMH

battery pack or two AA batteries (page 2).

1Turn the D-ring counter-clockwise, and

pull up to remove the cover.

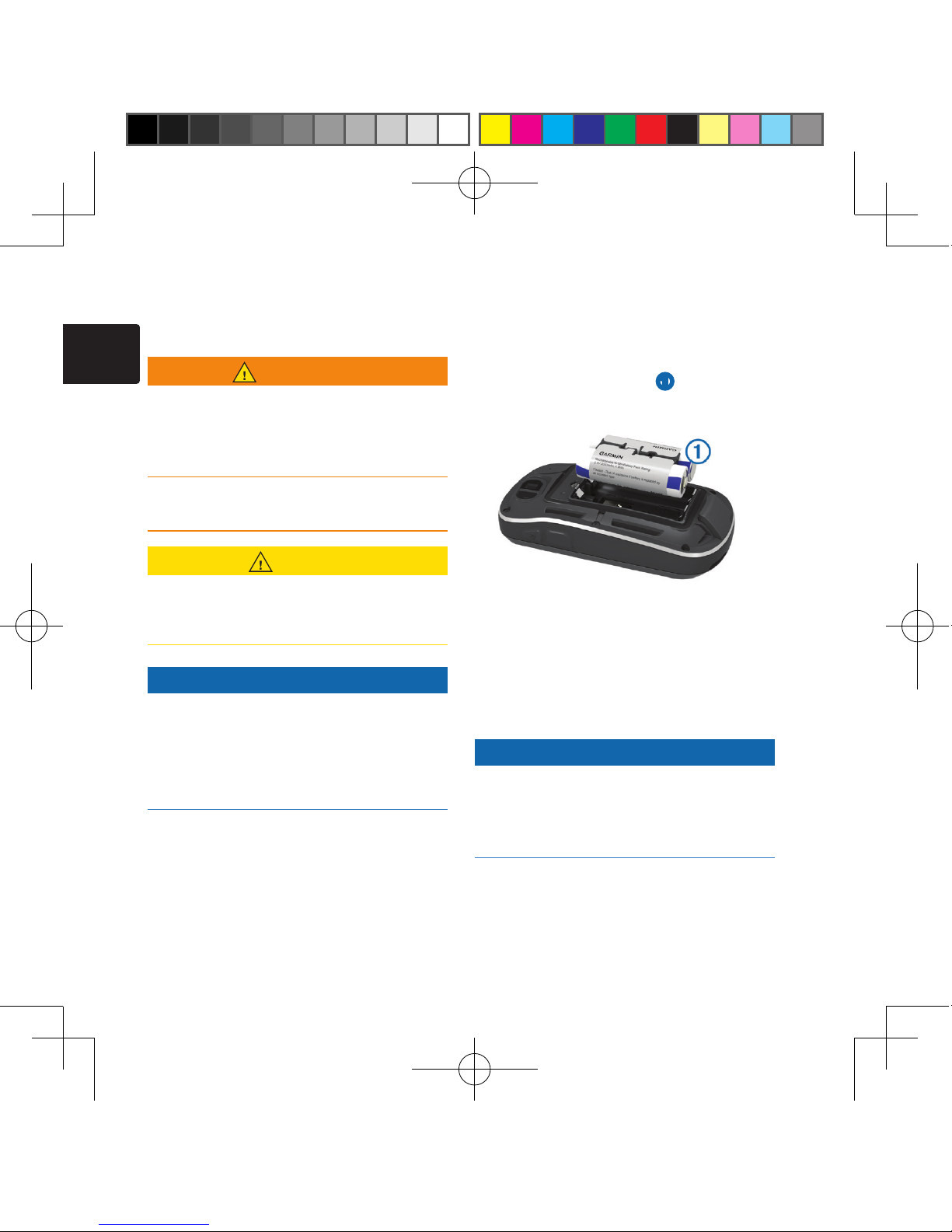

2 Locate the battery pack

➊

that came in

the product box.

3Insert the battery pack, observing polarity.

4Gently press the battery pack into place.

5Replace the battery cover, and turn the

D-ring clockwise.

Charging the Battery Pack

NOTICE

To prevent corrosion, thoroughly dry the

mini-USB port, the weather cap, and

the surrounding area before charging or

connecting to a computer.

190-01552-25_0B.indd 2

2013/9/6 上午 08:10:55

Oregon 650 Owner's Manual 3

Do not attempt to use the device to charge a

battery that was not provided by Garmin

Attempting to charge a battery that was not

provided by Garmin can damage the device

and void the warranty.

Before you can connect the straight

connector of the USB cable to your device,

you may have to remove optional mount

accessories.

NOTE: The battery will not charge when

outside the temperature range of 32 to 122°F

(0 to 50°C).

You can charge the battery using a standard

wall outlet or a USB port on your computer.

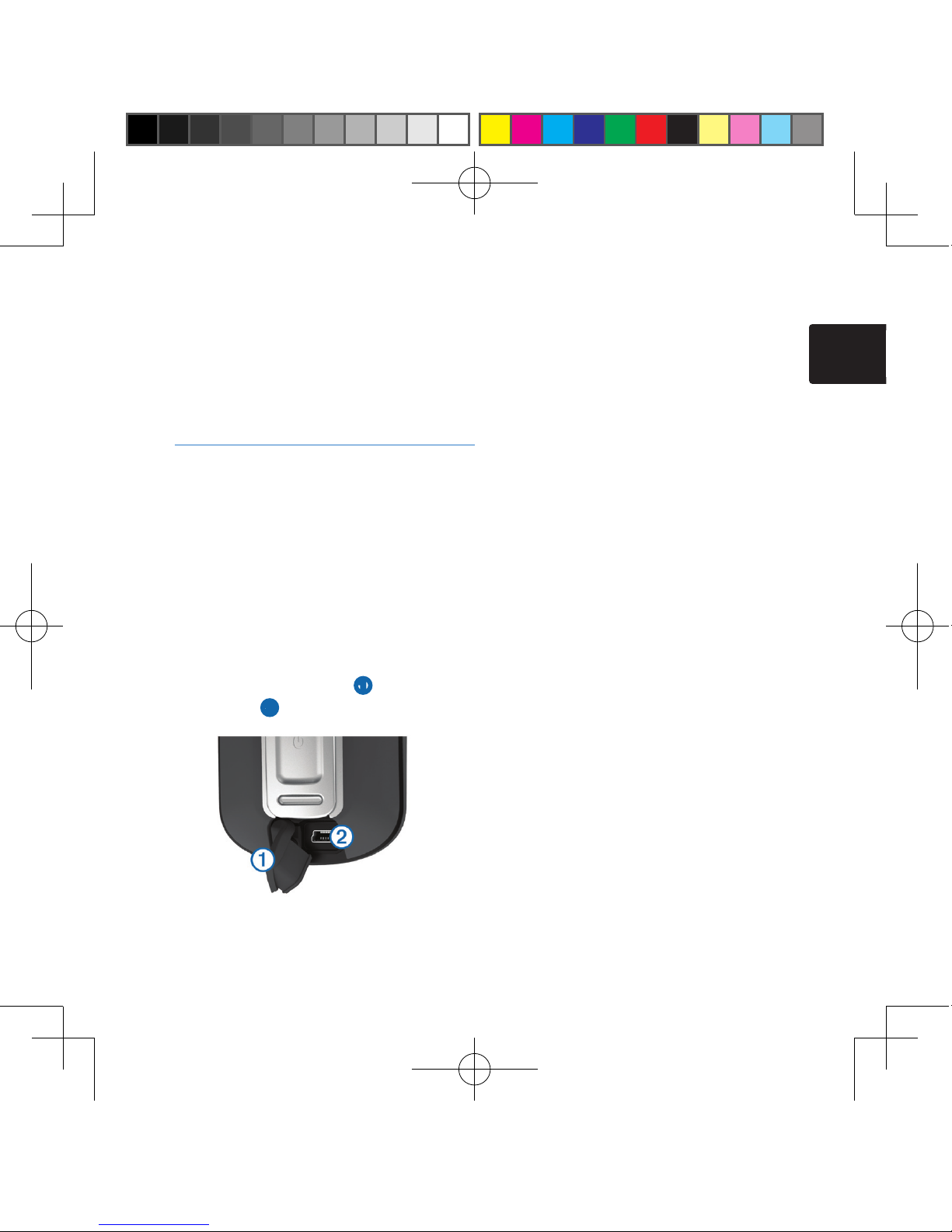

1Pull up the weather cap

➊

from the mini-

USB port

➋

2Plug the small end of the USB cable into

the mini-USB port.

3Plug the USB end of the cable into the AC

adapter or a computer USB port.

4Plug the AC adapter into a standard wall

outlet. When you connect the device to a

power source, the device turns on.

5Charge the battery completely.

Installing AA Batteries

Instead of the optional NiMH battery pack

(page 2), you can use two alkaline, NiMH,

or lithium batteries. This is useful when you

are on the trail and cannot charge the NiMH

battery pack. Use NiMH or lithium batteries

for best results.

NOTE: Standard alkaline batteries are not

recommended for the Oregon 650 models

when using the camera feature.

1Turn the D-ring counter-clockwise, and

pull up to remove the cover.

2Insert two AA batteries, observing polarity.

190-01552-25_0B.indd 3

2013/9/6 上午 08:10:56

4 Oregon 650 Owner's Manual

3Replace the battery cover, and turn the

D-ring clockwise.

4Hold .

5Select

Setup

System

AA Battery

Type

6Select

Alkaline

Lithium

, or

Rechargeable NiMH

Turning On the Device

Hold

Acquiring Satellites Signals and

Recording a Track

Before you can use the GPS navigation

features, such as recording a track, you

must acquire satellite signals. The device

may need a clear view of the sky to acquire

satellite signals.

For more information about GPS, go to www.

garmin.com/aboutGPS

1 Hold .

2Wait while the device locates satellites.

When turns green, your device has

acquired satellite signals. The time and

date are set automatically based on the

GPS position.

3Walk around to record a track (page 9).

4Select an option:

• Select

Map

to view your track on the

map.

• Select

Compass

to view the compass

and customizable data elds.

• Select

Trip Computer

to view your

current speed, distance, and other

helpful statistics.

Using the Touchscreen

• Tap the screen to select an item.

• Drag or swipe your nger across the

screen to pan or scroll the screen.

• Pinch two ngers together to zoom out.

• Spread two ngers to zoom in.

190-01552-25_0B.indd 4

2013/9/6 上午 08:10:57

Oregon 650 Owner's Manual 5

• Make each touchscreen selection a

separate action.

• Select to save your changes and close

the page.

• Select to close the page and return to

the previous page.

• Select to return to the previous page.

• Hold to return to the main menu.

• Select to view specic menu items

for the page you are viewing.

Waypoints, Routes, and

Tracks

Waypoints

Waypoints are locations you record and store

in the device.

Creating a Waypoint

You can save your current location as a

waypoint.

1Select the user key.

The default function of the user key marks

a waypoint.

2If necessary, select a field to make

changes to the waypoint.

3Select

Save

Marking a Waypoint Using the Map

1Select

Map

2Select a location on the map.

3Select the information bar at the top of

the screen.

4Select >

Finding a Waypoint

1Select Waypoint Manager.

2Select a waypoint from the list.

3If necessary, select to narrow the

search.

4Select an option:

• Select

Spell Search

to search using

the name of the waypoint.

• Select

Select Symbol

to search using

the symbol of the waypoint.

• Select

Search Near

to search near

a recently found location, another

waypoint, your current location, or a

point on the map.

190-01552-25_0B.indd 5

2013/9/6 上午 08:10:58

6 Oregon 650 Owner's Manual

• Select

Sort

to view the list of

waypoints based on nearest distance or

alphabetical order.

Editing a Waypoint

Before you can edit a waypoint, you must

create a waypoint.

1Select

Waypoint Manager

2Select a waypoint.

3Select an item to edit, such as the name.

4Enter the new information, and select .

Deleting a Waypoint

1Select

Waypoint Manager

> >

Delete

2Select a waypoint.

3Select

Delete

Yes

Increasing the Accuracy of a

Waypoint Location

You can rene a waypoint location for more

accuracy. When averaging, the device takes

several readings at the same location and

uses the average value to provide more

accuracy.

1Select

Waypoint Manager

2Select a waypoint.

3Select >

Average Location

4Move to the waypoint location.

5Select

Start

6Follow the on-screen instructions.

7When the confidence status bar reaches

100%, select

Save

For best results, collect 4 to 8 samples for

the waypoint, waiting at least 90 minutes

between samples.

Projecting a Waypoint

You can create a new location by projecting

the distance and bearing from a marked

location to a new location.

1Select

Waypoint Manager

2Select a waypoint.

3Select >

Project Waypoint

4Enter the bearing, and select .

5Select a unit of measure.

6Enter the distance, and select .

7Select Save.

190-01552-25_0B.indd 6

2013/9/6 上午 08:10:59

Oregon 650 Owner's Manual 7

Where To? Menu

You can use the

Where To?

menu to nd

a destination to navigate to. Not all

Where

To?

categories are available in all areas and

maps.

Optional Maps

You can use additional maps with the

device, such as BirdsEye satellite imagery,

BlueChart®g2, and City Navigator®detailed

maps. Detailed maps may contain additional

points of interest, such as restaurants or

marine services. For more information, go

to https://www.garmin.com or contact your

Garmin dealer.

Finding a Location by Name

1Select

Where To?

Waypoints

> >

Spell Search

2Enter the name or part of the name.

3Select .

Finding a Location Near Another

Location

1Select

Where To?

> >

Near

2Select an option.

3Select a location.

Finding an Address

You can use optional City Navigator maps to

search for addresses.

1Select

Where To?

Addresses

2Select the country or state, if necessary.

3Enter the city or postal code.

NOTE:

Not all map data provides postal

code searching.

4Select the city.

5Enter the house number.

6Enter the street.

Routes

A route is a sequence of waypoints or

locations that leads you to your nal

destination.

Creating a Route

1Select

Route Planner

Create Route

Select First Point

2Select a category.

3Select the first point in the route.

4Select

Use

Select Next Point

190-01552-25_0B.indd 7

2013/9/6 上午 08:10:59

8 Oregon 650 Owner's Manual

5Repeat steps 2–4 to add all the points in

the route.

6Select to save the route.

Editing the Name of a Route

1Select

Route Planner

2Select a route.

3Select

Change Nam

4Enter the new name, and select .

Editing a Route

1Select

Route Planner

2Select a route.

3Select

Edit Route

4Select a point.

5Select an option:

• To view the point on the map, select

Review

• To change the order of the points on

the route, select

Move Up or Move

Down

• To insert an additional point on the

route, select

Insert

The additional point is inserted before

the point you are editing.

• To remove the point from the route,

select

Remove

6Select to save the route.

Viewing a Route on the Map

1Select

Route Planner

2Select a route.

3Select

View Map

Deleting a Route

1Select

Route Planne

2Select a route.

3Select

Delete Route

Viewing the Active Route

1While navigating a route, select

Active

Route

2Select a point in the route to view

additional details.

Reversing a Route

1Select

Route Planner

2Select a route.

3Select

Reverse Route

190-01552-25_0B.indd 8

2013/9/6 上午 08:10:59

Table of contents

Languages:

Other Garmin GPS manuals

Garmin

Garmin GPS 90 User manual

Garmin

Garmin Approach G5 - GPS-Enabled Golf Handheld User manual

Garmin

Garmin Vivofit 2 Instruction manual

Garmin

Garmin GPS 400 User manual

Garmin

Garmin GPSMAP 62 User manual

Garmin

Garmin Zumo 660 Instruction manual

Garmin

Garmin 150DZ56LMT Instruction manual

Garmin

Garmin aera 190-01117-02 Manual

Garmin

Garmin DRIVE 55 User manual

Garmin

Garmin GPS 76 Reference guide

Garmin

Garmin Fishfinder 80 Instruction Manual

Garmin

Garmin 010-00625-00 - Mobile - For BlackBerry User manual

Garmin

Garmin GPSMAP 4008 - Marine GPS Receiver User manual

Garmin

Garmin 72H - Waterproof Handheld GPS Instruction manual

Garmin

Garmin GPSMAP 60CSx User manual

Garmin

Garmin APOLLO GX 55 User manual

Garmin

Garmin Nuvi 250 Manual

Garmin

Garmin GNS 530 User manual

Garmin

Garmin GPSMAP 168 Sounder User manual

Garmin

Garmin GNC 420 Installation and operating instructions

Garmin

Garmin GVN 53 - Navigation System User manual

Garmin

Garmin GPSMAP 66i User manual

Garmin

Garmin GPSMAP 392, 398, 492, 498 User manual

Garmin

Garmin GPS 150 Manual

Popular GPS manuals by other brands

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Operating instruction

Jigabot

Jigabot EX quick start guide

Pointer

Pointer Cellocator CelloTrack XT LTE overview

Queclink

Queclink GV55LITE user manual

Voxson

Voxson Voxtrack GPS500 Quick user guide

Starcom Systems

Starcom Systems Kylos Compact user guide

Cobra

Cobra Marine MC 600Ci owner's manual

Cellocator

Cellocator CelloTrack T installation guide

Enfora

Enfora Mini-MT GSM2228UG001 user guide

Magellan

Magellan eXplorist 100 Reference manual

LTE

LTE G50B user manual

SkyGolf

SkyGolf SkyCaddie SG1 user guide

Kenwood

Kenwood DNN9330BT instruction manual

Safelet

Safelet Indra quick start guide

Bushnell

Bushnell 360100 quick start guide

Geneq

Geneq SXBlue Reference manual

ORIGO

ORIGO ED308 user manual
