Garmin GLO Aviation User manual

GLO™ GLONASS and GPS Sensor

Instructions

June 2012 190-01492-00_0A Printed in Taiwan







This product contains a lithium-ion battery.

See page 5 for important battery safety

information.

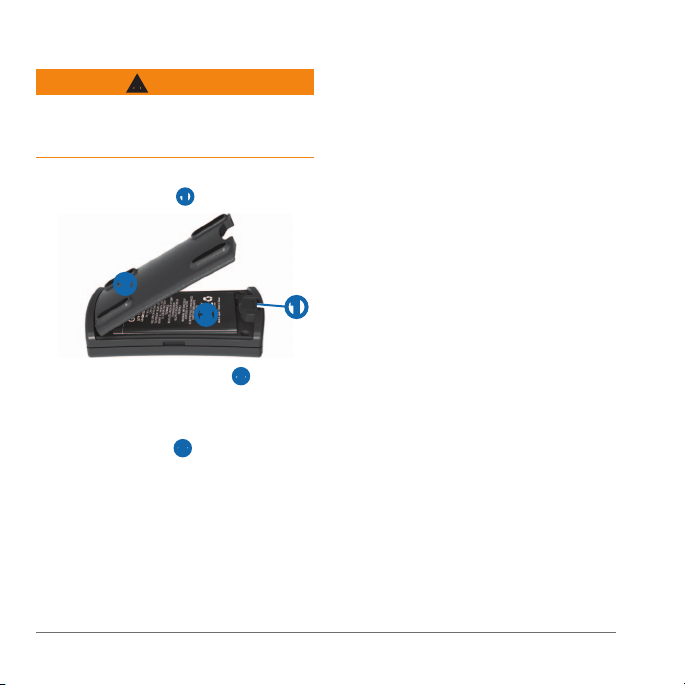

 With your thumbnail, slide the battery

cover release tab ➊.

➌➊

➋

 Remove the battery cover ➋.

 Locate the metal contacts on the end

of the lithium-ion battery.

 Insert the battery ➌ so the metal

contacts on the battery align with

the metal contacts inside the battery

compartment.

 Press the battery down into place.

 Insert the battery cover into the

notches and press down.

The release tab locks the cover in

place.



You can purchase a replacement battery

(010-10840-00) at http://buy.garmin.com.



You can use the sensor while you are

charging it.

 Plug the small end of the power cable

into the mini-USB connector on the

end of the sensor.

 Plug the other end of the power cable

into an appropriate source of power for

the cable type.

It takes about three hours to charge the

battery. A fully charged battery lasts about

12 hours.

: If the battery has not been charged

for a long period of time, remove the

battery, connect the cable to the device

and a power source, and then replace the

battery. The battery will charge as usual.



 Hold to turn on the sensor.

 Turn on the other device and enable

the Bluetooth component.

You can refer to the device’s

documentation for specic instructions

about enabling Bluetooth wireless

technology.

 Bring the sensor within 30 feet (10

meters) of the mobile device.

 Using the mobile device, pair the

sensor with the mobile device.

The blue LED is solid blue when the

sensor is connected to the other device.

If the sensor has not established a

Bluetooth connection for several minutes,

it turns off automatically.



 

Slow ashing

blue

Searching for mobile devices

Rapid ashing

blue

Pairing

Solid blue Connected to mobile device



 

Slow ashing orange Charging

Solid orange Battery charged,

power connected.

Orange off Battery charged,

power disconnected.

Rapid ashing orange Low battery

Alternating orange

and green

Faulty battery or

system error

Flashing green Searching for GPS

satellites

Solid green GPS satellite x



 Verify that the blue LED on the sensor

is solid blue, indicating a wireless

connection.

 Place the sensor where it has a clear

view of the sky.

Acquiring satellite signals may take a

few minutes. The Status LED ashes

green while searching for satellites and

establishing your location. The Status LED

is solid green when it has established a x

on your location.





The portable friction mount comes in

some GLO packages and is available as

an optional accessory.

 Wipe the mounting surface and the

back of the mount with a wet cloth to

remove dust and debris.

 Insert the sensor in the mount so the

LEDs face up and the mini-USB port is

accessible.

 Place on a at surface.

Periodically, you should wipe the surface

and the mount with a wet cloth to remove

dust and debris to help prevent the mount

from sliding.



Made for iPod® touch (4th generation),

iPod touch (3rd generation), iPhone® 4S,

iPhone 4, iPhone 3GS, iPad® 2, and iPad.

"Made for iPod, iPhone, iPad” means

that an electronic accessory has been

designed to connect specically to iPod,

iPhone, or iPad, respectively, and has

been certied by the developer to meet

Apple performance standards. Apple is

not responsible for the operation of this

device or its compliance with safety and

regulatory standards. Please note that the

use of this accessory with iPod, iPhone, or

iPad may affect wireless performance.

The GLO sensor is also compatible with

many Android®, Windows® or Blackberry®

smartphones, tablets and notebook

computers.

When using the GLO GPS/GLONASS

sensor with an Android device, you

may need to use an application to allow

the sensor to properly communicate

with the Android system over Bluetooth

technology. The application will allow the

Android system to accept non-system (or

mock) GPS/GLONASS signals.



• Go to http://my.garmin.com.

• Keep the original sales receipt, or a

photocopy, in a safe place.



: Rugged, but not water-resistant

: Rechargeable lithium-ion

battery, 12 hours (typical use)

: 10 Hz, but not all mobile

devices support a 10 Hz update rate.

:

12–28 Vdc (*available in some packages)

: -4°F to 140°F

(-20°C to 60°C)

: 32°F to 113°F

(0°C to 45°C)



: -4°F to 140°F (-20°C to

60°C)



: -4°F to 68°F (-20°C to

20°C)











When installing the device in a vehicle,

place the device securely so it does not

obstruct the driver’s view of the road ➊ or

interfere with vehicle operating controls,

such as the steering wheel, foot pedals,

or transmission levers. Do not place

unsecured on the vehicle dashboard

➋. Do not place the device in front of or

above any airbag ➌.

➋

➌

➊



If these guidelines are not followed, the

battery may experience a shortened life

span or may present a risk of damage to

the sensor, re, chemical burn, electrolyte

leak, and/or injury.

• Do not leave the sensor exposed to a

heat source or in a high temperature

location, such as in the sun in an

unattended vehicle. To prevent the

possibility of damage, remove the

device from the vehicle or store it out

of direct sunlight, such as in the glove

box.

• Do not use a sharp object to remove

the battery.

• Do not disassemble, puncture,

incinerate, or damage the battery.

• Keep the battery away from children.

• If using an external battery charger,

only use the Garmin accessory

approved for your product.

• Only replace the battery with the

correct replacement battery. Using

another battery presents a risk of

re or explosion. To purchase a

replacement battery, see your Garmin

dealer or the Garmin website.

• When storing the device for an

extended time, store within the

following temperature range: from -4°F

to 68°F (-20°C to 20°C).

• Do not operate the device outside of

the following temperature range: from

-4°F to 140°F (-20°C to 60°C).

• Contact your local waste disposal

department to dispose of the device/

battery in accordance with applicable

local laws and regulations.



Use this sensor only as a navigational aid.

Do not attempt to use the sensor for any

purpose requiring precise measurement

of direction, distance, location, or

topography. This product should not be

used to determine ground proximity for

aircraft navigation.



Information about Garmin’s product

recycling program and WEEE, RoHS,

REACH, and other compliance programs

can be found at www.garmin.com

/aboutGarmin/environment.



Hereby, Garmin, declares that this

product is in compliance with the

essential requirements and other relevant

provisions of Directive 1999/5/EC. To view

the full Declaration of Conformity, go to

www.garmin.com/compliance.



This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) this device

may not cause harmful interference,

and (2) this device must accept any

interference received, including

interference that may cause undesired

operation.

This equipment has been tested and

found to comply with the limits for a

Class B digital device, pursuant to

part 15 of the FCC rules. These limits

are designed to provide reasonable

protection against harmful interference in

a residential installation. This equipment

generates, uses, and can radiate radio

frequency energy and may cause harmful

interference to radio communications if

not installed and used in accordance with

the instructions. However, there is no

guarantee that interference will not occur

in a particular installation. If this equipment

does cause harmful interference to radio

or television reception, which can be

determined by turning the equipment off

and on, the user is encouraged to try to

correct the interference by one of the

following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between the

equipment and the receiver.

• Connect the equipment into an outlet

that is on a different circuit from the

GPS unit.

• Consult the dealer or an experienced

radio/TV technician for help.

This product does not contain any user-

serviceable parts. Repairs should only be

made by an authorized service center.

Unauthorized repairs or modications

could result in permanent damage to the

equipment, and void your warranty and

your authority to operate this device under

Part 15 regulations.



Category I radiocommunication devices

comply with Industry Canada Standard

RSS-210. Category II radiocommunication

devices comply with Industry Canada

Standard RSS-310. This device complies

with Industry Canada license-exempt RSS

standard(s). Operation is subject to the

following two conditions: (1) this device

may not cause interference, and (2) this

device must accept any interference,

including interference that may cause

undesired operation of the device.



Garmin’s standard limited warranty applies

to this accessory. For more information,

go to www.garmin.com/support/warranty

.html.

Garmin® and the Garmin logo are trademarks of Garmin Ltd.

or its subsidiaries, registered in the USA and other countries.

GLO™ is a trademark of Garmin Ltd. or its subsidiaries. These

trademarks may not be used without the express permission of

Garmin.

The Bluetooth® word mark and logos are owned by the Bluetooth

SIG, Inc. and any use of such marks by Garmin is under license.

iPad, iPhone, iPod, and iPod touch are trademarks of Apple

Inc., registered in the USA and other countries. Android™ is a

trademark of Google Inc. Windows® is a registered trademark of

Microsoft Corporation in the United States and other countries.

BlackBerry is registered with the U.S. Patent and Trademark

Ofce and may be pending or registered in other countries.





1200 East 151st Street,

Olathe, Kansas 66062, USA



Liberty House, Hounsdown Business Park

Southampton, Hampshire, SO40 9LR UK



No. 68, Zhangshu 2nd Road, Xizhi Dist.

New Taipei City, 221, Taiwan (R.O.C.)

815 69 555

00 46 7744 52020

00 331 55 69 33 99

43 (0) 3133 3181 0

0800-0233937

00 34 902 007 097

00 358 9 6937 9758

1-866-429-9296

0180 5 / 42 76 46 - 880

00800 4412 454

+44 2380 662 915

00 32 2 672 52 54

913-397-8200

1-800-800-1020

00 39 02 3669 9699

00 35 1214 447 460

00 45 4810 5050

0808 238 0000

+44 870 850 1242

Other manuals for GLO Aviation

This manual suits for next models

Table of contents

Other Garmin GPS manuals

Garmin

Garmin GPSMAP 60CSx User manual

Garmin

Garmin AQUAMAP 80 Series User manual

Garmin

Garmin Forerunner 201 - Running GPS Receiver User manual

Garmin

Garmin StreetPilot 7200 Reference guide

Garmin

Garmin GpsMap 12” User instructions

Garmin

Garmin Personal Navigator GPS 48 User manual

Garmin

Garmin Forerunner 610 User manual

Garmin

Garmin GPSMAP 4008 - Marine GPS Receiver User manual

Garmin

Garmin Montana 600 Series User manual

Garmin

Garmin 500W Series User manual

Garmin

Garmin Zumo 660 User manual

Garmin

Garmin GPS 73 User manual

Garmin

Garmin GMA 340 Manual

Garmin

Garmin GTN 725 Manual

Garmin

Garmin GNC 250XL User manual

Garmin

Garmin eTrex - Hiking GPS Receiver User guide

Garmin

Garmin GPS 15 User manual

Garmin

Garmin FORETREX 601 User manual

Garmin

Garmin GPSMAP 376C User manual

Garmin

Garmin nuvi 500 Series User manual

Garmin

Garmin Oregon 600t User manual

Garmin

Garmin GPS 175 Reference manual

Garmin

Garmin N??VI nvi 660 User manual

Garmin

Garmin Oregon 450 Reference guide

Popular GPS manuals by other brands

Raven

Raven Cruizer II Manual

Hama

Hama 53118 Operating instruction

Jigabot

Jigabot EX quick start guide

Pointer

Pointer Cellocator CelloTrack XT LTE overview

Queclink

Queclink GV55LITE user manual

Voxson

Voxson Voxtrack GPS500 Quick user guide

Starcom Systems

Starcom Systems Kylos Compact user guide

Cobra

Cobra Marine MC 600Ci owner's manual

Cellocator

Cellocator CelloTrack T installation guide

Enfora

Enfora Mini-MT GSM2228UG001 user guide

Magellan

Magellan eXplorist 100 Reference manual

LTE

LTE G50B user manual

SkyGolf

SkyGolf SkyCaddie SG1 user guide

Kenwood

Kenwood DNN9330BT instruction manual

Safelet

Safelet Indra quick start guide

Bushnell

Bushnell 360100 quick start guide

Geneq

Geneq SXBlue Reference manual

ORIGO

ORIGO ED308 user manual
