Garmin Streetpilot C320 User manual

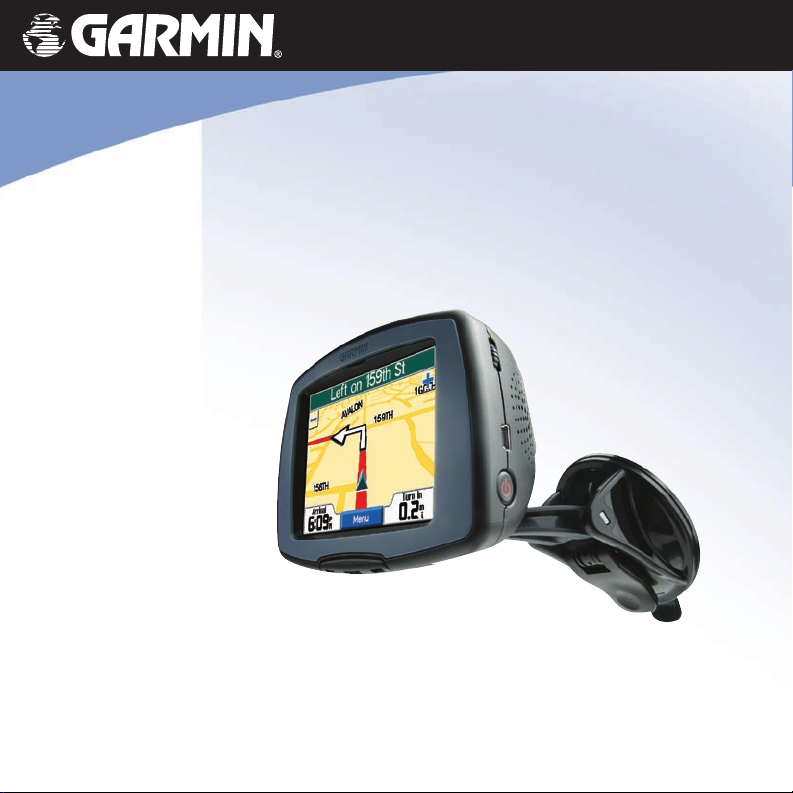

StreetPilot®c320
setup and go!
WARNING: See the product information sheet in the product box for product warnings
and other important information.
Press and hold the Power button on the side of the unit to turn it on. Follow the on-screen
instructions to set up your c320; you only have to do this once.
Before using your c320, install software on your computer using the DVD-ROM, and then
load maps on your c320. Refer to the setup guide for complete instructions.
To ensure a tight grip, clean and dry the windshield before mounting the suction cup.
4
4. Fit the bottom of your c320 into the
cradle of the suction cup mount.
5. Tilt your c320 back until it snaps in
place.
Tension knob
5
1. Plug the small end of the cable into the
mount and the other end in a 12-Volt
receptacle in your vehicle.
2. Place the suction cup on the windshield.
3. Flip the lever back, toward the windshield.
1
If necessary, use the tension knob to improve your viewing angle.
Tip: Touch and
to see more choices.
WARNING: This product contains a lithium-ion battery. To prevent damage and risk of
re due to high temperatures, remove the unit from the vehicle or store it out of direct
sunlight, such as in the glove box. For more information, see www.garmin.com\safety.
Check your state and local trafc laws before mounting. Currently, state laws in California and
Minnesota prohibit drivers from using suction mounts on their windshields while operating
motor vehicles. Other Garmin dashboard or friction mounting options should be used.
Garmin®and StreetPilot®are registered trademarks of Garmin Ltd. or its subsidiaries and may not be used without the express
permission of Garmin.
➍
Touch Go!
➋
Select a category.
➌
Select a destination.
➎
Enjoy the route!
➊
Touch
Follow the route to your destination using the Map page. As you travel, your c320 guides
you to your destination with voice prompts, arrows on the map, and directions at the top of
the Map page. If you depart from the original route, your c320 recalculates the route and
provides new route instructions.
A checkered ag marks
your destination.
Follow the arrows as you
take turns.
Your route is marked with
a red line.
You can add a stop to your route. The c320 gives you directions to the stop and then to your
nal destination.
1. With a route active, go to the Menu page, and touch
2. Search for the extra stop.
3. Touch Go!
4. Touch to add this stop before your destination. Or, touch No to make this your new
nal destination.
Note: You can add only one stop to your route.
From the Menu page, touch View map to open the Map page. The position icon shows
your current location. Touch buttons on the Map page to see additional information.
Touch to zoom in.
Touch the directions bar to
open the Current Route page.
Touch Turn In to open
the Next Turn page.
Touch Menu to open
the Menu page.
Touch Arrival or Speed to open
the Trip Information page.
Touch to zoom out.
➋
Touch OK. The place is saved
in > .
➊
After you have found a place
you want to save, touch .
➊
From the Menu page,
touch
➋
Touch
> .
➌
Select a place.
➊
Touch
➌
Touch
➋
Touch
➊
Touch >
➌
Select an option.
➋
Touch .
Going Home
After you have set your Home location, you can route to it at any time by touching My
Locations and then Go Home.
Changing Your Home Location
Change your Home location by repeating the steps you took to set it.
To adjust the volume, turn the Volume knob, located
above the Power button.
1. From the Menu page, touch .
2. Touch to decrease the backlight brightness.
Or, touch to increase the brightness.
3. Touch OK.
If your c320 stops responding, turn it off and back on. If this does not help, reset the c320.
1. Unplug the power and USB cables to remove external power.
2. Place your thumbnail in the groove located under the Garmin logo on the faceplate and
gently pull off the faceplate.
3. Press the button for about 3 seconds.
4. Connect the c320 to a power source using the power cable. The c320 should
automatically turn back on and operate normally.
For more information about your c320, refer to the owner’s manual located on the enclosed
DVD-ROM and at www.garmin.com/products/sp320/. Click on the Manuals link and then
select Download.
Volume
knob
Power
button
Mini-USB
connector
© Copyright 2005–2006 Garmin Ltd. or its subsidiaries
September 2006 190-00435-01 Rev. B Printed in Taiwan
