Numbers indicated
inside parenthesis ( ) = mm

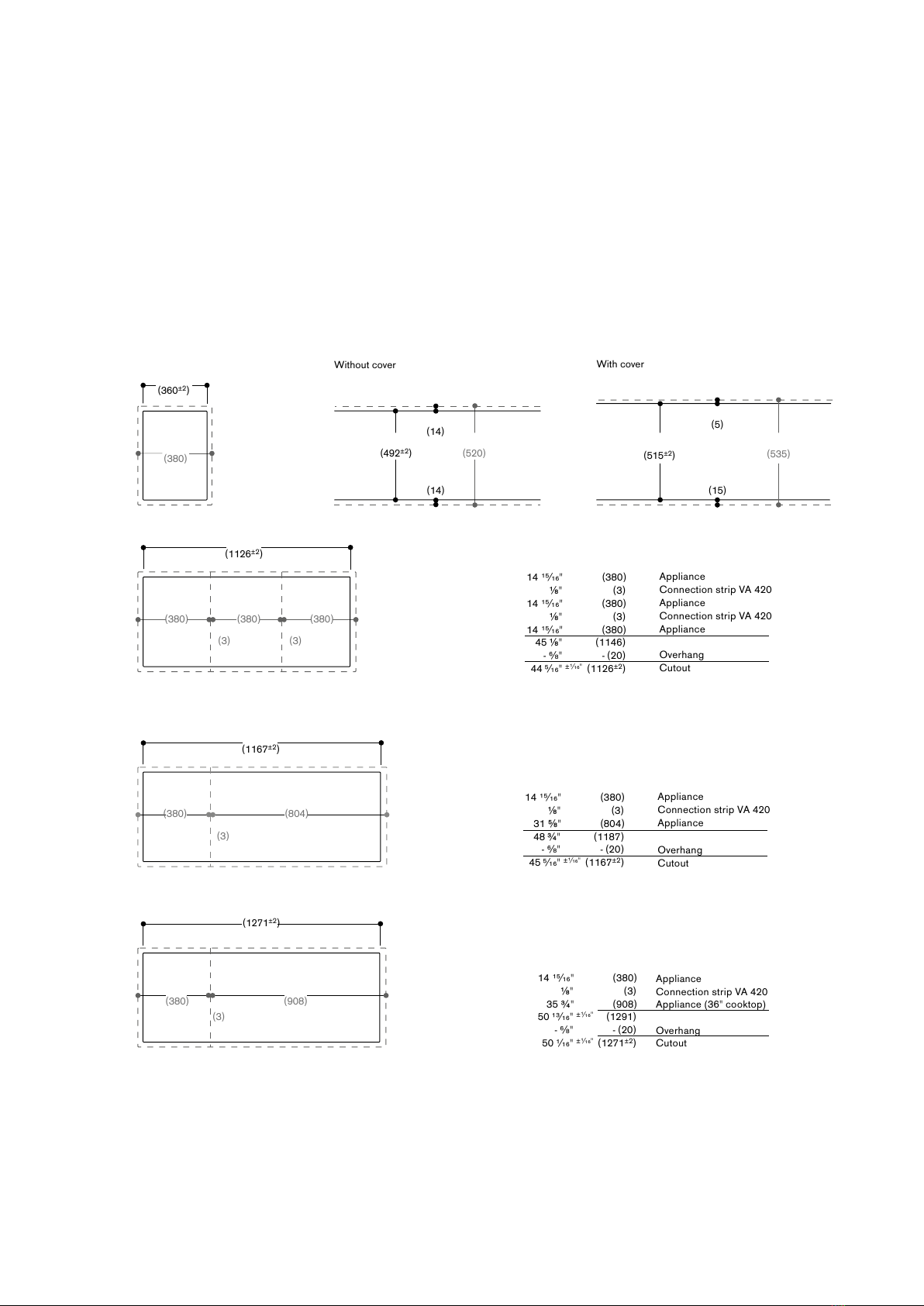

Cut-out dimensions for Vario 400 series combinations. Calculating tool for the cut-out width.

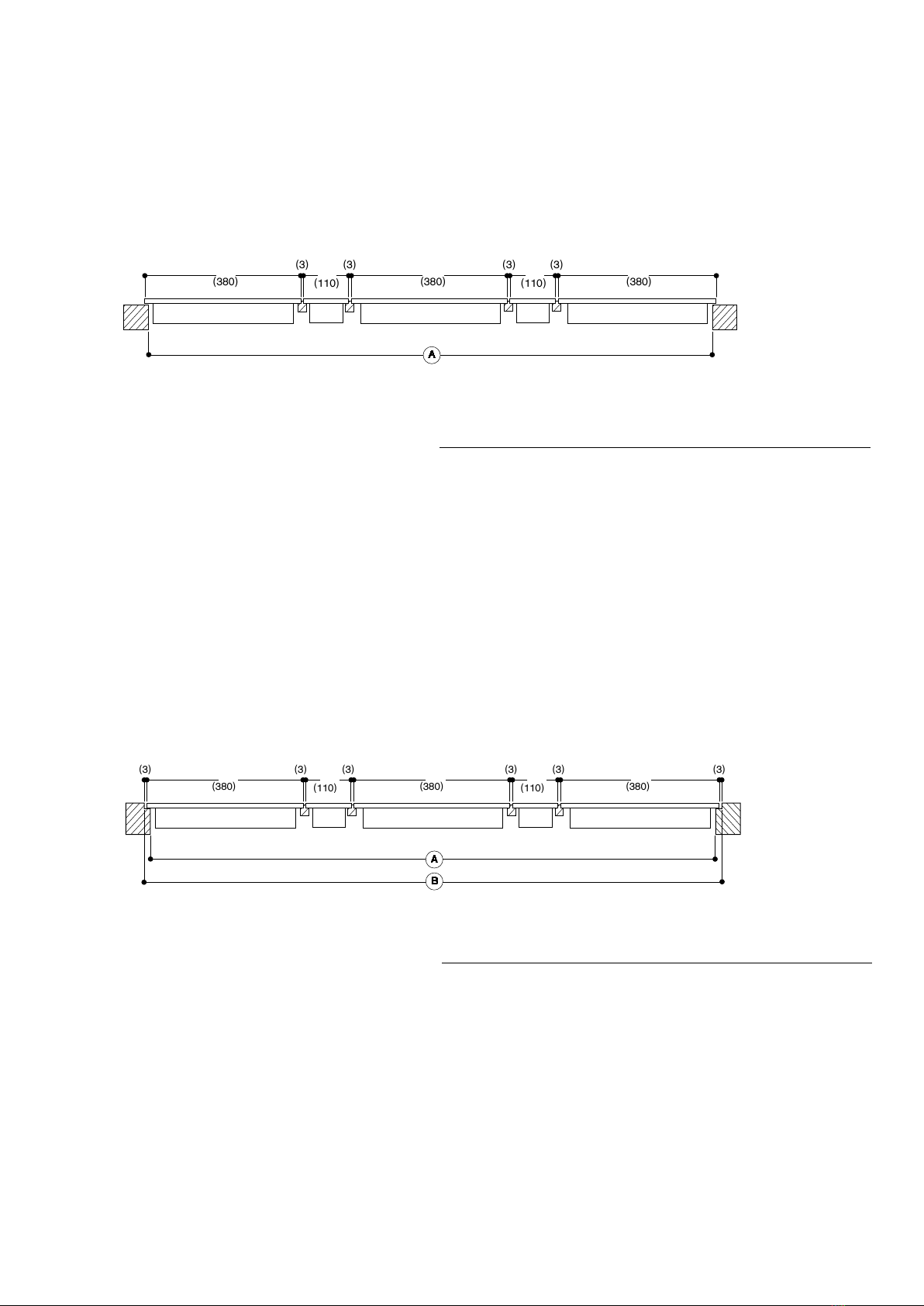

Calculation of the width of the cut-out for a surface mounting
Example using a combination of VI 414, VI 422, VP 414 and 2 VL 414.
Example Your combination
Total width of all appliances in inches (mm) (3x 14 ¹⁵⁄₁₆" (380)) + (2x 4 ¹⁵⁄₁₆" (110)) 53 ⁹⁄₁₆" (1,360) ..................................................
+ Number of connection strips x ⅛" (3) 4x ⅛" (3) + ½" (12) ..................................................
– Lateral appliance overhang (⅜" (10) / side) ⁶⁄₈" (20) – ⁶⁄₈" (20) – ⁶⁄₈" (20)
(A) Total cut-out width (in inches (mm)) 53 ¼"±¹⁄₁₆" (1,352± 2) ............................... ±¹⁄₁₆" (±2)

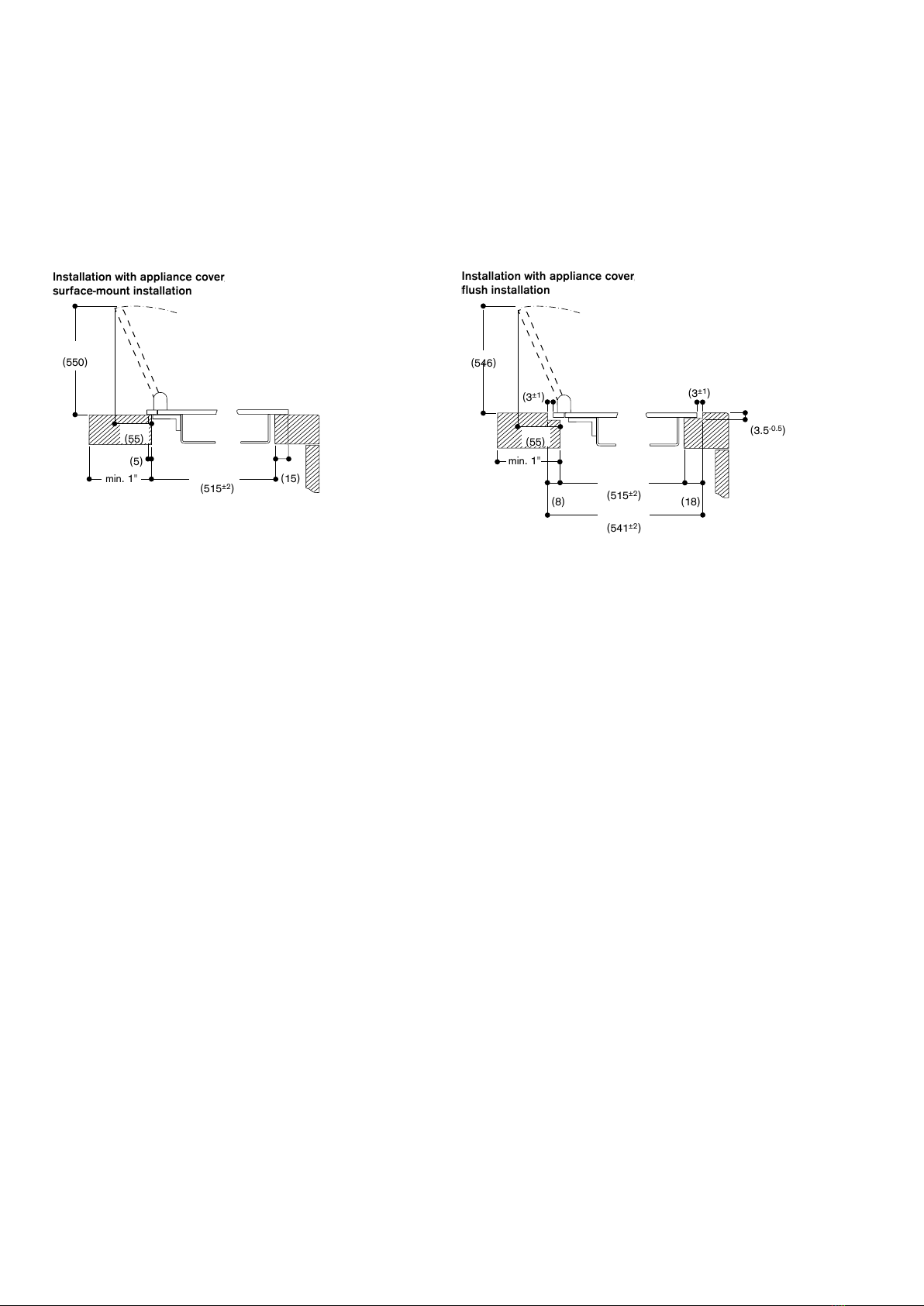

Cut-out depth based on the installation situation with or without appliance cover/ller strip.

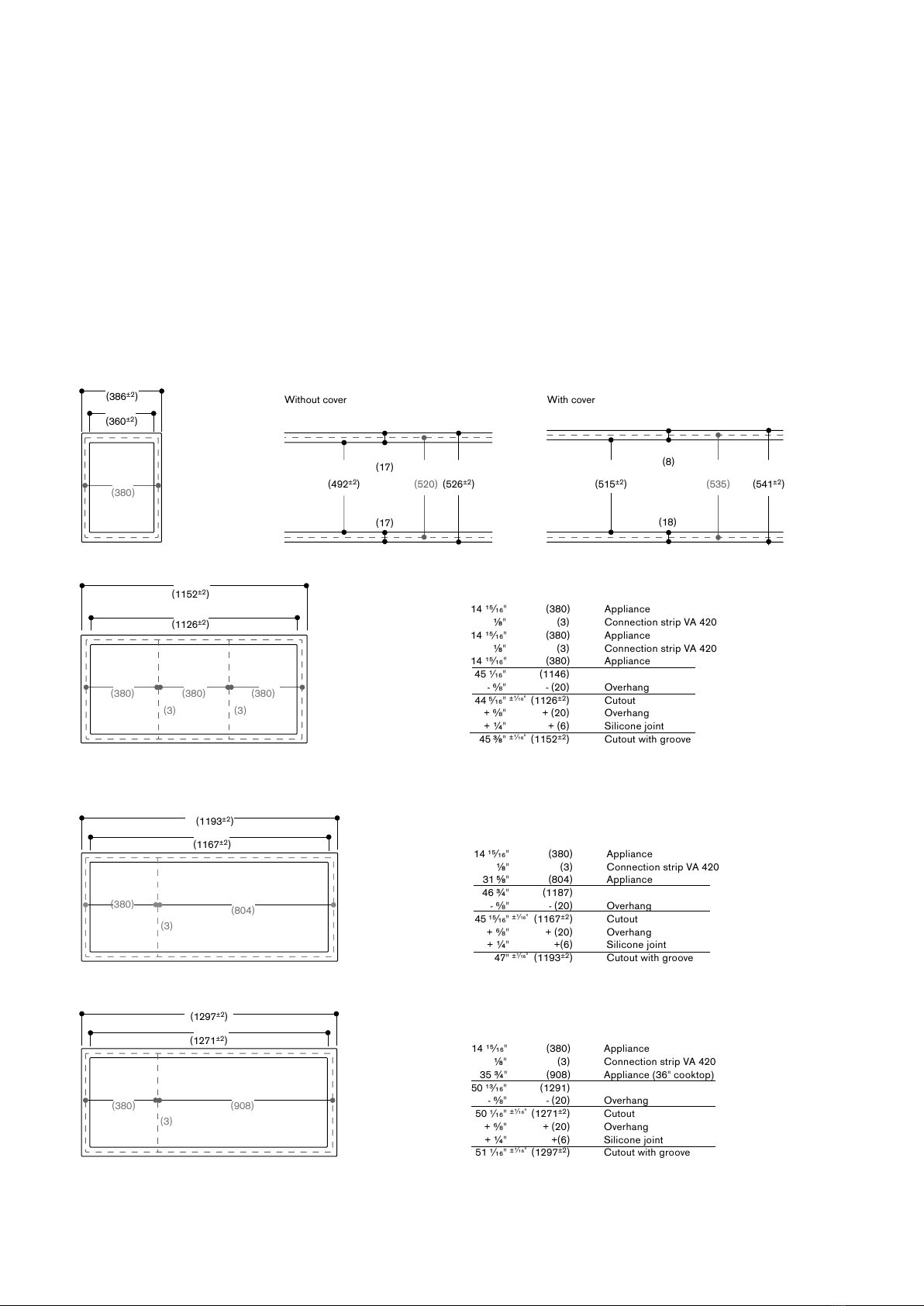

Calculation of the width of the cut-out for a flush mounting
Example using a combination of VI 414, VI 422, VP 414 and 2 VL 414.
Example Your combination
Total width of all appliances in inches (mm) (3x 14 ¹⁵⁄₁₆" (380)) + (2x 4 ¹⁵⁄₁₆" (110)) 53 ⁹⁄₁₆" (1,360) ....................................................
+ Number of connection strips x ⅛" (3) 4x ⅛" (3) + ½" (12) ....................................................
– Lateral appliance overhang (⅜" (10) / side) ⁶⁄₈" (20) – ⁶⁄₈" (20) – ⁶⁄₈" (20)
(A) Total cut-out width (in inches (mm)) 53 ¼"±¹⁄₁₆" (1,352± 2) ................................. ±¹⁄₁₆" (±2)
+ Lateral appliance overhang (⅜" (10) / side) ⁶⁄₈" (20) + ⁶⁄₈" (20) – ⁶⁄₈" (20)
+ Silicone joint (⅛" (3) circumference) 2x ⅛" (3) + ¼" (6) + ¼" (6)
(B) Total width with groove in inches (mm) 54 ¼"±¹⁄₁₆" (1,378 ± 2) ................................. ±¹⁄₁₆" (±2)
Cut-out depth based on the installation situation with or without appliance cover/ller strip.
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAА
14 ¹⁵⁄₁₆"
14 ¹⁵⁄₁₆"
14 ¹⁵⁄₁₆"
⅛"
⅛"
4 ⁵⁄₁₆"
⅛"
⅛"
4 ⁵⁄₁₆"
14 ¹⁵⁄₁₆"
14 ¹⁵⁄₁₆"
14 ¹⁵⁄₁₆"
⅛"
⅛"
⅛"
4 ⁵⁄₁₆"
⅛"
⅛"
⅛"
4 ⁵⁄₁₆"
