MB15F8xUL Series

Fractional-N / Integer dual

PLL Frequency Synthesizers

 DESCRIPTION Packages

20-pin, Plastic TSSOP 20-pad, Plastic BCC

FPT-20P-M06 LCC-20P-M05

 FEATURES

RF/RX Frequency - max. 2 GHz 2.5 GHz 2.6 GHz

IF/TX Frequency - max 600 MHz 600 MHz 1.2 GHz

Low Power Supply Voltage 2.7V 2.7V 2.7V

Low Power Supply Current 5.8 Ma 5.8 mA 6.0 mA

RF = 16/17 RF = 16/17 or 32/33 Rx = 32/33

IF = 8/9 OR 16/17 IF = 8/9 or 16/17 Tx = 16/17 or 32/33

RF = 3 to 127 RF = 3 to 255 RF = 8 to 16383

IF = 3 to 16383 IF = 3 to 16383 IF = 8 to 16383

Fractional Function RF = modulo 13 fixed RF = modulo 3 to 16 RF = modulo 5 or 8

Fractional Counter RF = 0 to 15 RF = 0 to 15 RF = 0 to 15

RF = 0 to 31 RF = 0 to 31 RX = 0 to 31

IF = 0 to 15 IF = 0 to 31 TX = 0 to 31

RF = 18 to 1,023 RF = 18 to 1,023 RF = 34 to 1,023

IF = 3 to 2.027 IF = 3 to 2.027 TX = 3 to 2.027

Power Saving Function 0.1µA typ.

The Fujitsu MB15F8xUL series dual PLLs are serial input

Frequency synthesizers. The Fractional-N PLL operates up to 2.6

GHz and the integer PLL operates up to 1200 MHz. They have

built-in dual-modulus prescalers enabling pulse swallow operation

and fixed or selectable fractional modulo. The latest advanced

BiCMOS technology is used resulting in a super low supply

current. A refined charge pump design (Fujitsu’s Super Charger)

provides fast tuning along with low spurious noise and phase

noise characteristics. The MB15F8xUL series is ideally suited for

digital mobile communications, including GSM, DCS1800,

PCS1900, IS-136, IS-95 and ISM applications.

• Fractional-N RF PLL and Integer IF PLL

• Very low spurious and phase noise characteristics

• Low operating voltage: 2.4 to 3.6 volts

• Low operating current: 5.8 to 6 mA (typical)

• Power-saving current: 0.1µA (typical)

• Wide operating temperature: –40 to +85°C

• New 30% smaller BCC 20 package

• Plastic 20-pin TSSOP

• Selectable charge pump current (±1.5 or ±6.0 mA)

• Evaluation Kits available

Parameter MB15F83UL MB15F86UL MB15F88UL

Prescaler Divide Ratios

Reference Divider

Swallow Counter

Pro

rammable Counte

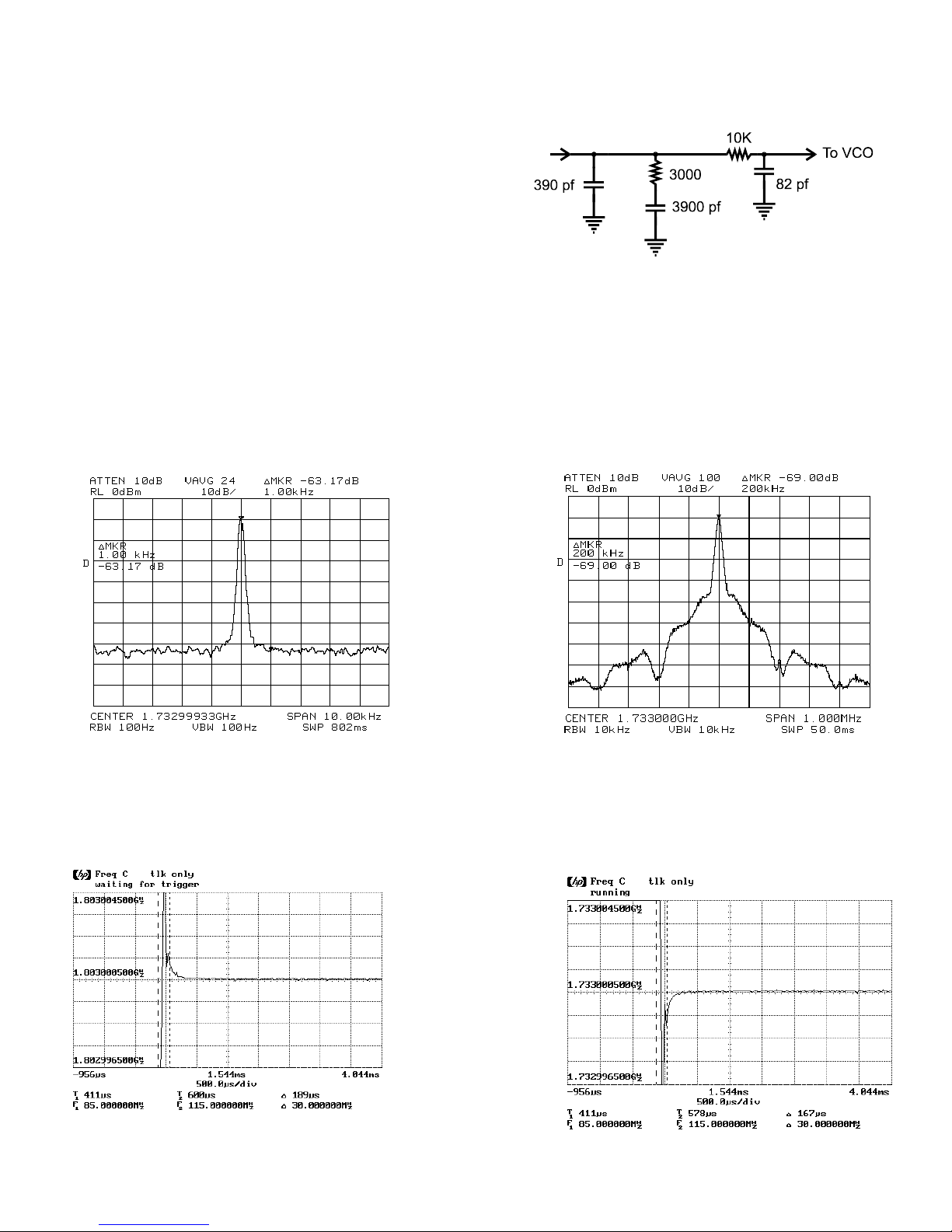

Reference Information: MB15F83UL

Frequencies: 1733 to 1803 MHz

Step Size: 200 kHz

Hop Time: Less than 2 µs

Charge Pump: 6.0 mA

VCO Sens: 44 MHz/V

Loop Filter Values

Test Results

Phase Noise = -83.2 dBc/Hz Spurious = -69.0 dBc

Switching Times

1733 to 1803 =189 µs 1803 to 1733 = 167 µs

Reference Information: MB15F86UL

Frequencies: 1051.98 to 1078.17

Step Size: 30 kHz

Hop Time: Less than 2 Ms

Charge Pump: 1.5 mA

VCO Sens: 25 MHz/V

Loop Filter Values

Test Results

Phase Noise = -76.34 dBc/Hz Spurious = -88.35 dBc

Switching Times

1051.98 to 1078.17 =1.36 ms 1078.17 to 1051.98 = 1.28 ms

Reference Information: MB15F88UL

Frequencies: 2490 to 2550 MHz

Step Size: 200 kHz

Hop Time: Less than 2 µs

Charge Pump: 6.0 mA

VCO Sens: 52 MHz/V

Loop Filter values

Test Results

Phase Noise = -76.3 dBc/Hz Spurious = -67.2 dBc

Switching Times

2490 to 2550 MHz = 144 µs 2550 to 2490 MHz = 133 µs

Package Dimensions

MB15F8xULPFT - 20 pin, Plastic SSOP (FPT-20P-M06)

MB15F8xULPVA - 20 pin, Plastic BCC (LCC-20P-M05)

Evaluation Systems

Designing a complex subsystem, such as a PLL, is no easy task. Therefore, Fujitsu has made available an

evaluation system to aid in the development of reliable frequency synthesizers. Each evaluation system

consists of two PCBs, controlling software, and instructions.

The RF PCB is laid out to allow the target MB158xUL to be optimized for the chosen application. The RF

board is only semi-populated, which allows the user to configure it to fit the application.

Evaluation Board P/N's

MB1500EB16 for the TSSOP Package

MB1500EB16B for the BCC Package

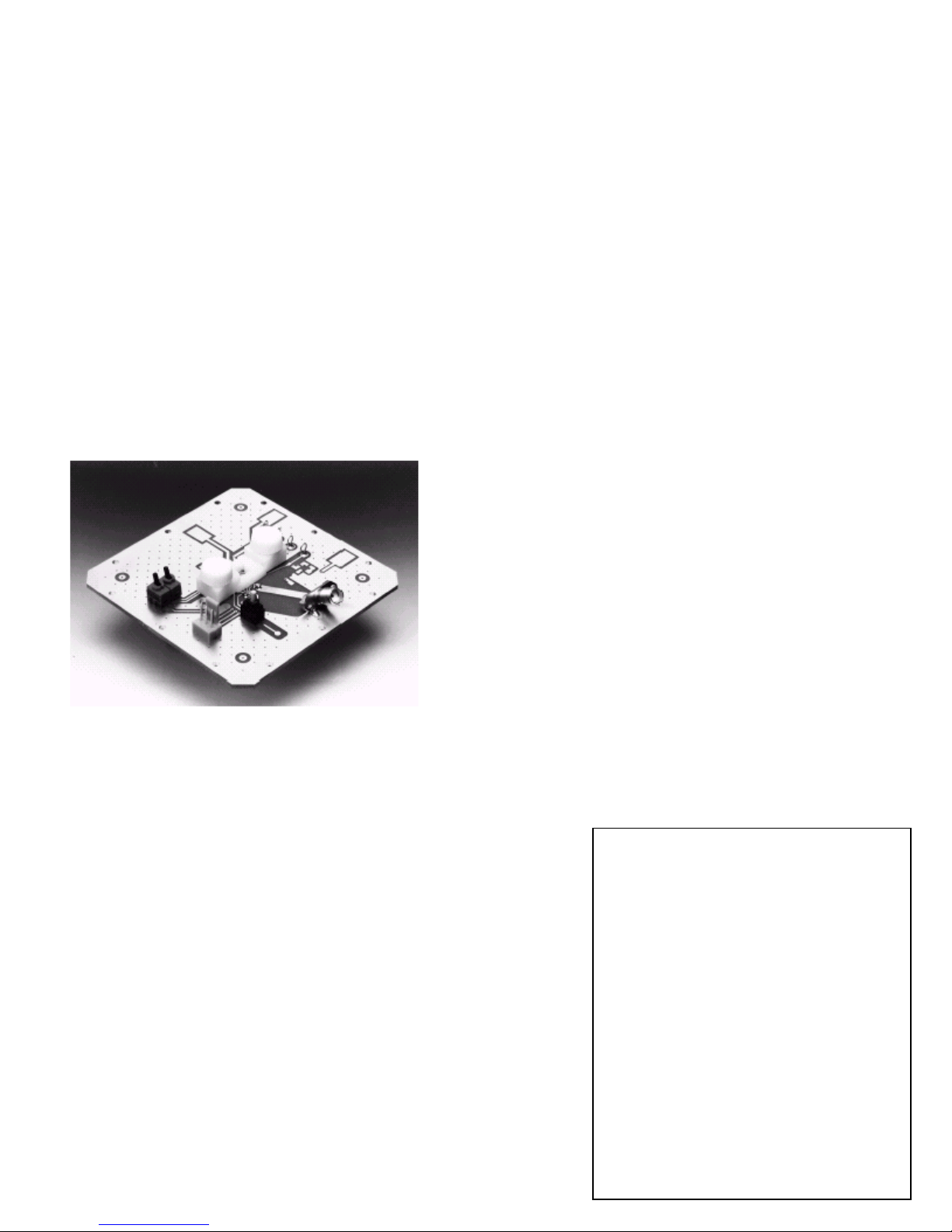

Typical Evaluation Board

ll company and product names are trademarks or registered

trademarks of their respective owners.

With respect to any information contained in this document,

Fujitsu makes no warranties, express, implied or otherwise,

including but not limited to warranty of merchantability or of

fitness for a particular purpose, or warranty that such information

shall be free from errors or that such errors shall be corrected, or

warranty that such info

mation shall be free from infringement or

patents, patent applications, copyrights, semiconductor chip

protection rights, trade secrets and other proprietary or legal

rights of a third party. In no event will Fujitsu be responsible for

any incidental or consequential damages arising out of use of this

information.

The information in this document does not convey any license

under the copyrights, patent rights, or trademarks claimed and

owned by Fujitsu Limited, its subsidiaries, or Fujitsu

Microelectronics America, Inc.

Fujitsu Microelectronics America, Inc. reserves the right to

change products or specifications without notice.

No part of this publication may be copied or reproduced in any

form, or by any means, or transferred to any third party without

prior written consent of Fujitsu Microelectronics America, Inc.

Printed in U.S.A.

PLL-DS-20933-5/2002

FUJITSU MICROELECTRONICS AMERICA, INC.

Corporate Headquarters

3545 North First Street, San Jose, California 95134-1804

Tel: (800) 866-8608Fax: (408) 922-9179

E-mail: inquiry@fma.fujitsu.com Web Site: http://www.fma.fujitsu.com
