Fujioh FR-HS1870 Manual
Operating/installation manual
FR-HS1870／1890
Please read this manual carefully
before using this appliance
Dear Customer
●Thank you for selecting this Fujioh product.
●Please read this manual carefully before installing and operating
this appliance, and retain it for future reference.
●Any malfunctions, accidents or damages occurring as a result of
noncompliance with the content and precautions stated in this
manual shall not be covered by the company’s scope of warranty,
and any related liability will also not be borne by the
manufacturer.
●Please retain all attached literature and your receipt for purchase
of this appliance for future reference.
●Please note：
FUJIOH INTERNATIONAL TRADING PTE. LTD. reserves all
rights to the final interpretation of the content of this manual.
Please be aware that you will not be otherwise notified in the
event of any future amendments to the content.
Recommendation
●If the cooker hood will not be used for an extended period of time,
please remove the plug from the socket.
●New cooker hood packaging
Please dispose of the packaging materials in an
environmentally friendly manner to maintain our surroundings.
Do not allow children to play with the plastic film and packaging
cartons as this may result in suffocation. Keep all packaging
materials out of children’s reach and be aware that packaging
materials are not toys.
●Disposal of old cooker hoods
Old cooker hoods should be discarded once they can no longer
be used.It is recommended that the cooker hood be discarded
only after it has been reduced to an unusable state as old
cooker hoods consist of some reusable parts.
Table of Contents
Safety Precautions
Vent System Requirements
Name of parts
List of Included Items
Switch
Installation Diagram
Installation instructions
Electrical Connection
Maintenance
Cleaning
Troubleshooting
Other Information
Service and Warranty
1
2
3
4
4.5
5.6
6.7.8
8
9
10
11
12
13
P1
■Safety Precautions
Do not connect the appliance if there are obvious signs of
transportation damage.
Read this user manual thoroughly before attempting to use this
appliance.
Installation and repair should be attempted only by qualified
technical personnel.
It is dangerous to modify any part of this appliance.
The manufacturer declines all responsibility in case of failure to
adopt proper safety measures.
Ensure the location in which this appliance is installed has good,
permanent ventilation.
The distance between the bench top to the lower part of the
cooker hood must not be at less than 75 cm.If the gas stove
installation instructions stipulate a larger clearance,this should
be taken into account.
Use an electrical connector with earth that is correct for your
location.
Check that the voltage in your area is correct before plugging in.
The electrical connection of this appliance:
Blue =NEUTRAL
Brown =LIVE
Multiple plugs and extension cables must not be used. Overload
is dangerous and may cause a fire.
Ensure that the power supply cord is free from any heat source
or sharp objects.
The appliance should be switched off and the electrical supply
disconnected before any cleaning or maintenance work can be
carried out.
This appliance is not intended for use by persons (including
children) with re-duced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
P2
If the supply cord is damaged, it must be replaced by the
manufacturer, its Service agent or similarly qualified persons in
order to avoid a hazard.
There shall be adequate ventilation of the room when the
cooker hood is used at the same time as appliances burning
gas or other fuels (not applicable to appliances that only
dis-charge the air back into he room);
There is a fire risk if cleaning is not carried out in according with
the instructions.
Do not flambe under the cooker hood.
The cooker hood is intended to be installed over a hob with up
to four hob elements or burners.
Vent System Requirements
Determine which venting method is best for your application.
Vented system must be terminated to the outside. Ductwork
can extend either through the wall or the roof. Do not terminate
the vent system in an attic or other en-closed area.
The exhaust duct should be as short as possible, generally not
longer than 1.5m.The radius if any bends in the pipe should be
as large as possible.The size of the ductwork should be uniform.
Do not install two elbows together. Use duct tape to seal all
joints in the ductwork system. Use caulking to seal exterior wall
or floor opening around the cap.
Make sure there is proper clearance within the wall or floor for
exhaust duct before making cutouts. Do not cut a joist or stud
unless absolutely necessary. If a joist or stud must be cut, then
a supporting frame must be constructed.
P3

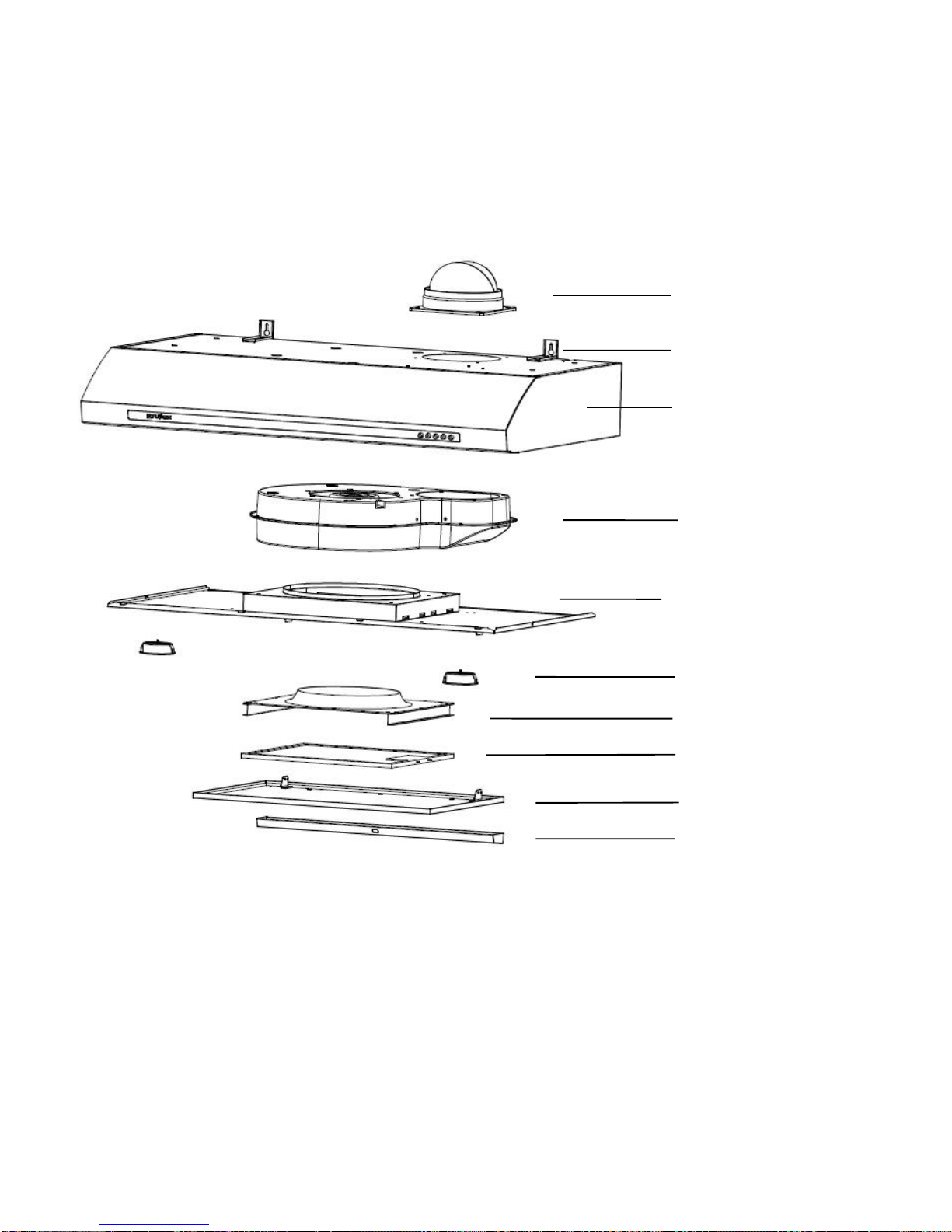

Name of Parts
Where any parts of the actual product differ from the drawing, the
actual parts shall prevail as the correct parts.
Exhaust Outlet
Body
Fan Assembly
Oil Panel
LED
Air Deflector
Filter
Rectifier Panel
Oil Tray
L Hanger
P4
List of Included Items
Please check all following items in a box and ensure that there are
no missing or damaged parts after opening.
Switch
The hood is equipped with 3 speed control.
Use the low speed for simmering, medium speed for light
cooking.
Use the high speed for frying or heavy cooking.
It is also equipped with a light bulb to illuminate you cooking
area when needed.
I II III IV V
No.
Name
Quantity
1
Main unit
1
2
Rectifier panel
1
3
Oil tray
1
4
L Hanger
2
5
Exhaust outlet
1
6
Plastic expansion pipe
4
7
Wall screw ST5×40
4
8
Screw of exhaust outlet M4×8
4
9
Distance washer
2
10
Operating manual
1
P5
Blower Off Button (I)
Off switch for the blower. Push the button in to turn the blower OFF.
Blower On and Speed Buttons (II, III, IV)
Button (II) operates the blower on LOW speed.
Push button (III) for MEDIUM speed.
Push button (IV) for HIGH speed.
Light On/Off Button (V)
On/Off switch for the light. Push the button in to turn the light ON,
push again to turn the light OFF.
Installation Diagram
P6
Installation instructions
Installation (First Method)
Please install the equipment as following steps.
A. To take out wall screw (4×ST5×40)
B. To drill holes in the wall according to drawing and knock-in plastic
expansion pipe and twist the wall screw in it
C.To take off rectifier panel from the cooker hood
D.To take off 5 screws and remove oil panel from the cooker hood
E. To take off screw of L hanger from the appliance(4×M4×16)
F. To set the L hanger on the cooker hood and locate screw
G.To hang the appliance on the wall and locate screw(2×ST5×40)
H.To pass wall screw through the distance washer and hole and
twist it.
I.To mount oil panel and rectifier panel back according to C. and D.
This manual suits for next models
1
